Genuine Leviton Mfg through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
61UJK-RR6
Category
Connectors
Overview

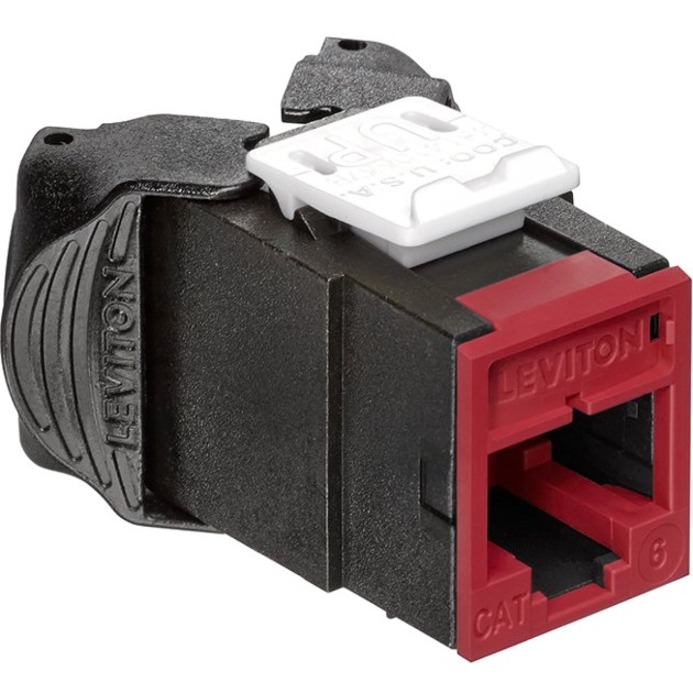

Atlas-X1 Cat 6 Component-Rated UTP QuickPort Jacks support 1000BASE-T networks. The jack is part of a complete Atlas-X1 Cat 6 UTP system, ideal for the most demanding mission-critical network applications. The jack supports emerging technologies and will easily adapt to network trends.
Highlights
Independently tested and guaranteed to exceed all component, permanent link, and channel margins
Patented Retention Force Technology (RFT) protects against tine damage and increases system longevity
For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
Unique design supports tool-free termination/re-termination and requires no specialized termination tool
Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
Available in 13 ANSI/TIA-606-C compatible colors
Select jacks available with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face), for easy identification and tracking of data, voice, or other functions
Jack with internal shutter protects against dust and debris
Specifications
General Information
Manufacturer
Leviton Mfg. Company, Inc
Manufacturer Part Number
61UJK-RR6
Brand Name
Leviton
Product Line
Atlas-X1
Product Name
Atlas-X1 Cat 6 UTP QuickPort Jack, Dark Red
Product Type
Network Connector
Physical Characteristics
Product Color
Dark Red
Product Material
Metal, Die-cast Zinc
Shielding Material
Copper Alloy
Technical Information
Connector Type
RJ-45 Network - Female
Connector Details
1 x RJ-45 Network - Female
Contact Plating
Gold
Shielding
No
Compatible Wire Gauge
22-26 AWG
Mount Type
Surface Mount
Features
Retention Force Technology (RFT), Stranded, Dust Protection, Debris Resistant, PoE
