Vaddio RoboSHOT Video Conferencing Camera - 8.9 Megapixel
60 fps - TAA Compliant
9 Megapixel Interpolated - 3840 x 2160 Video - Exmor R CMOS Sensor - Auto/Manual - 74° Angle - 1.7x Digital Zoom - Network (RJ-45) - For Computer
SKU
Category
WebCams
$9,637.17*
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 8 and Dec 13, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine Legrand through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
WebCams
Overview
Ultra HD (4K) PTZ camera with pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces this powerful UHD camera is perfect for higher education classrooms, corporate broadcasting and houses of worship.
Total zoom range of 20x: 12x optical zoom lens with seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling.
With a 74-degree wide horizontal field of view and built in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing.
OneLINK Bridge Express connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Microsoft Teams, Google Meet, and Zoom.
Along with the bridging capabilities, the system's OneLINK Bridge Exress Receiver for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.
Warranty
Limited Warranty: 3 Year
About Legrand
Vaddio designs, develops, and manufactures professional audio and video equipment for the audiovisual, collaboration and production markets. Vaddio solutions combine enterprise class performance with system-configured design and are easy to install and easy to use. Backed by industry-leading support, Vaddio products enhance any collaboration experience by elevating the science of communication with the Art of Easy.
Highlights
Back-illuminated 9.03 Megapixel, ultra high definition 1/2.3-type sensor delivers native 2160p/30 (3840 x 2160) video
Horizontal field of view 74° (wide) to 4.8° (tele) at 20x
Imaging and performance comparable to 3-chip cameras
Precise pan and tilt movements from 0.35° to 120° per second
Simple, clutter-free camera extension with HDBaseT technology
Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
Bridges audio and video for easy soft-client conferencing
Simultaneous HDMI, USB 3.0, and IP Streaming outputs
Configurable audio matrix with AEC
Up to 1080p/60 resolution available over uncompressed USB
Videos
Vaddio RoboSHOT 20 UHD OneLINK Bridge Express System
Vaddio RoboSHOT 20 UHD OneLINK Bridge Express System
Vaddio RoboSHOT 20 UHD OneLINK Bridge Express System
Vaddio RoboSHOT 20 UHD OneLINK Bridge Express System
Vaddio RoboSHOT 20 UHD OneLINK Bridge Express System
Specifications
Display & Graphics
Effective Resolution
8.9 Megapixel
Interpolated Resolution
9 Megapixel
Maximum Video Resolution
3840 x 2160
Maximum Frame Rate
60 fps
Image Sensor Type
Exmor R CMOS
Field Of View (FOV) Angle
74°
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
999-9950-270
Brand Name
Vaddio
Product Line
RoboSHOT
Product Name
RoboSHOT 20 UHD OneLINK Bridge Express System
Product Type
Video Conferencing Camera
Interfaces/Ports
Network (RJ-45)
Yes
HDMI Out
Yes
Lens
Focus Modes
Auto/Manual
Digital Zoom
1.7x
Physical Characteristics
Mounting Type
Wall, Ceiling Mount
Height
7.9"
Width
8"
Depth
7.7"
Weight (Approximate)
6 lb
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
RoboSHOT 40 UHD Camera
OneLINK Bridge Express Interface
12V Power Supply with AC Cord set(s)
48V Power Supply with AC Cord set(s)
EZCamera RS-232 Control Adapter
4 x 3-position Phoenix-style Connectors
6 ft. (1.8m) USB 3.0 Cable, Type A to B

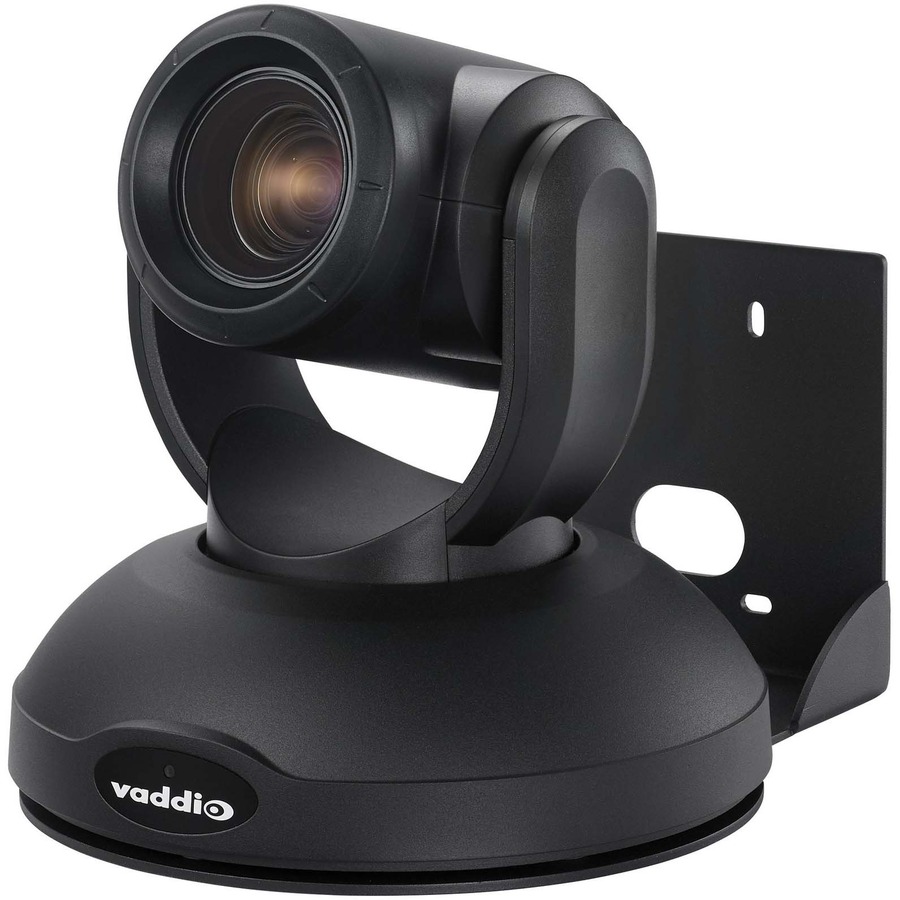

Thin Profile Wall Mount with Mounting Hardware and Installation Manual
