Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Category
Projection Screens
Overview

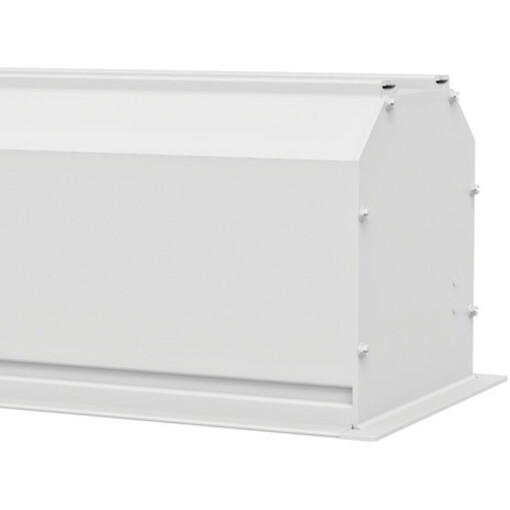

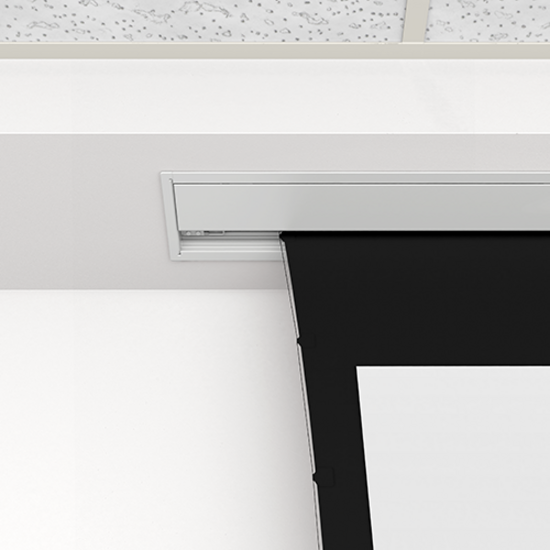

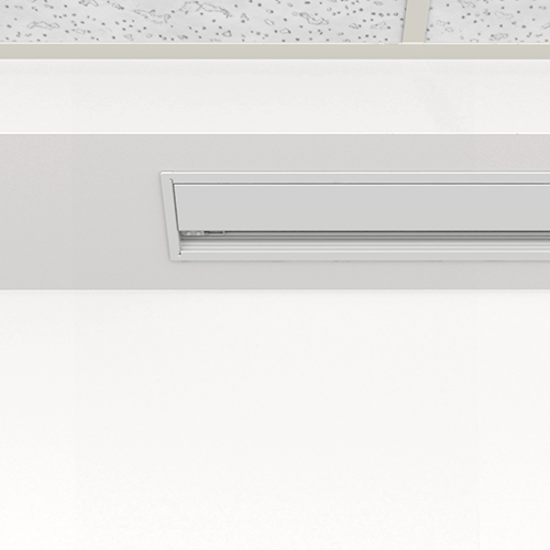

For larger venue installs, the Tensioned Large Advantage® Deluxe Electrol® is designed to eliminate the extra step of finishing the screen with trim. The Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening eliminating the need to complete additional trim work. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling. Tensioned screens ensure the smoothest surface possible, and all Deluxe screens feature a closure door that hides the open space and screen in the ceiling, providing a cleaner aesthetic. The screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage.
Warranty
Limited Warranty: 5 Year
About Legrand
Da-Lite, founded in 1909 by Adele De Berri, is the leading producer of high quality commercial and residential projection screens. With headquarters in Warsaw, Indiana, Da-Lite manufactures and provides projection screens, surfaces and accessories to organizations and venues around the world. Found in classrooms, houses of worship, offices and rental and staging spaces, our expansive lineup of electric, fixed frame, portable and manual screens are available with 16K-ready and Ambient Light Rejection screen surfaces.
Highlights
Standard Low Voltage Control (LVC) to keep your screen operation flexible
Smooth Roll Technology to keep your screen perfectly flat
Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
Tensioning Cable System to prevent warping and ensure even lateral tension
UL Plenum rated case
White powder-coated closure doors and case for a clean aesthetic
Decora-style, three-button wall switch
Standard black backing retains projected brightness on front projection surfaces
Seamless surfaces in all models
Specifications
General Information
Manufacturer
Legrand Group
Manufacturer Part Number
21824L
Brand Name
Da-Lite
Product Line
Tensioned Large Advantage Deluxe Electrol
Product Name
Tensioned Large Advantage Deluxe Electrol Projection Screen
Product Type
Projection Screen
Physical Characteristics
Mount Type
Wall Mount, Ceiling Mount
Technical Information
Diagonal Image Size
275"
Screen Height
135"
Screen Width
240.2"
Screen Fabric
HD Progressive 1.1
Aspect Ratio
16:9
Screen Folding Mechanism
Electric
Warranty
Limited Warranty
5 Year
Miscellaneous
Package Contents
Tensioned Large Advantage Deluxe Electrol Projection Screen
