SKU
S1200V3RPS
Category
Motherboards
Overview

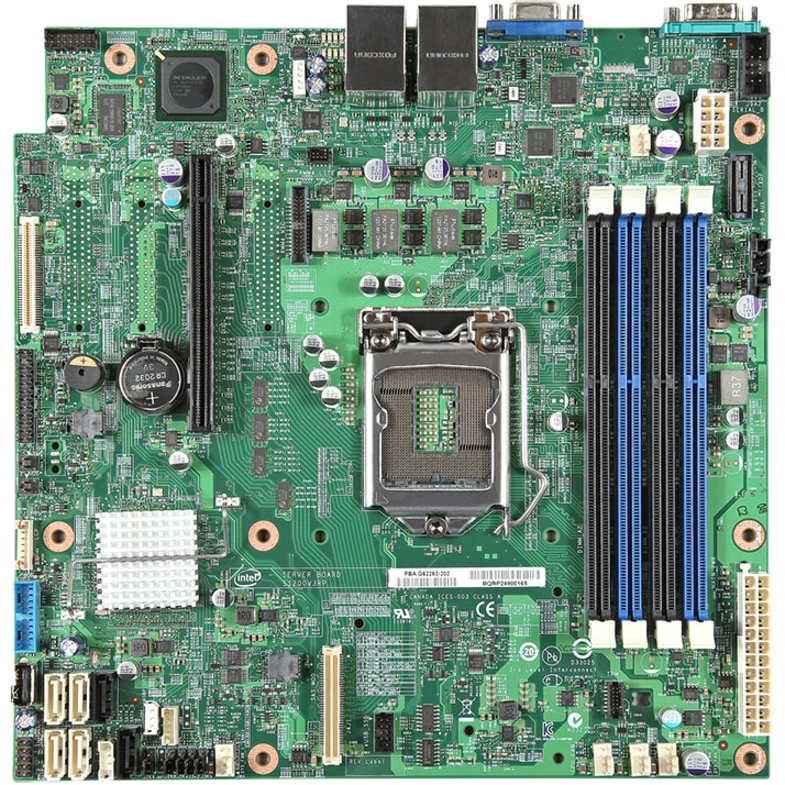

Intel® Server Board S1200V3RP Family
Cost-effective single-socket server boards with small uATX form factor for small and medium businesses
The Intel ® Server Board S1200V3RP family is a cost-effective, one-socket Intel® Xeon® processor E3 v3 product family solution that has simple setup and deployment while offering a solid upgrade path, making it an ideal first server for small and medium businesses.
Warranty
Limited Warranty: 3 Year
Highlights
Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
DDR3 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
Micro ATX form factor for your accessibility convenience and simplicity of usage for Server Motherboard
Specifications
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
S1200V3RPS
Brand Name
Intel
Product Model
S1200V3RPS
Product Name
S1200V3RPS Server Motherboard
Product Type
Server Motherboard
I/O Controller
Controller Type
Serial ATA
RAID Supported
Yes
RAID Levels
0, 1, 5, 1+0
I/O Expansions
Total Number of Expansion Slots
4
Total Number of PCI Express Slots
4
Number of PCI Express x1 Slots
1
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
1
PCI Express Standard
PCI Express 3.0, PCI Express 2.0
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
VGA
Yes
Number of Network (RJ-45) Ports
2
Memory
Number of Memory Slots
4
Memory Form Factor
DIMM, UDIMM
Maximum Memory Supported
32 GB
Memory Speed Supported
1600 MHz, 1333 MHz
Memory Standard
DDR3-1600/PC3-12800, DDR3-1333/PC3-10600
Memory Technology
DDR3 SDRAM
Network & Communication
Gigabit Ethernet
Yes
Onboard Interfaces
Number of SATA Interfaces
6
Physical Characteristics
Form Factor
Micro ATX
Width
9.6"
Depth
9.6"
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C222
Total Processor Supported
1
Processor Socket
Socket H3 LGA-1150
Processor Supported
Xeon
Video
Onboard Video
On-board Video Chipset
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
S1200V3RPS Server Motherboard
Intel® Server Board S1200V3RPS With (4) SATA Cables
