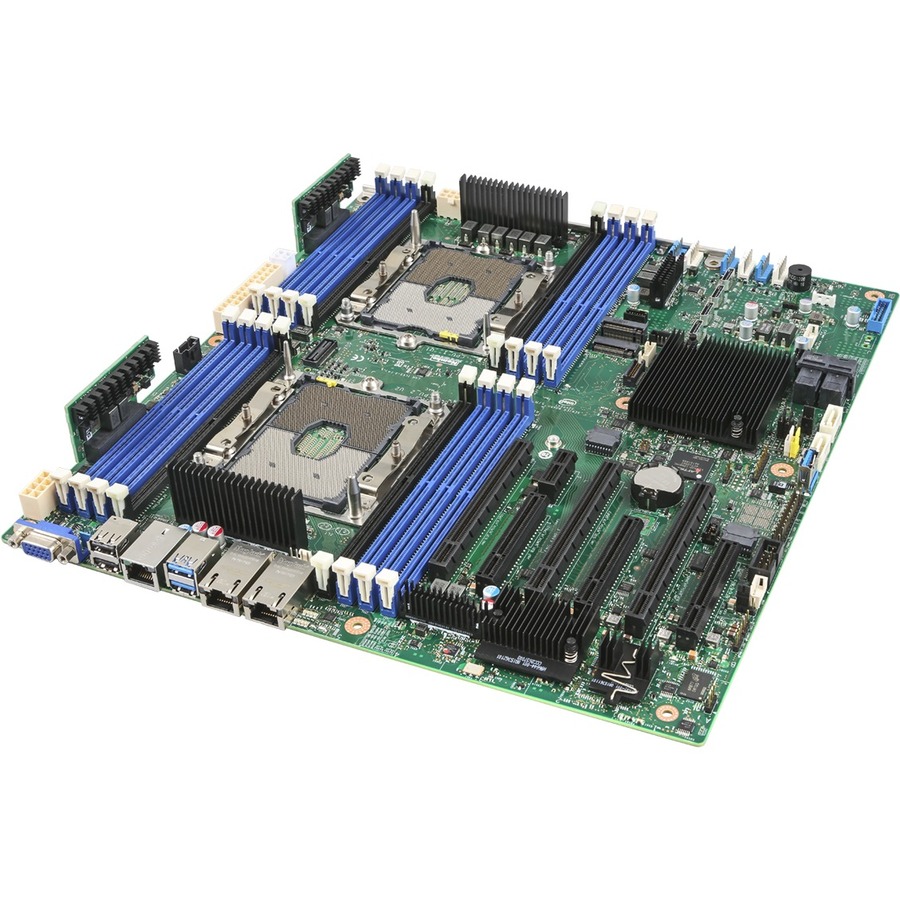

INTEL® SERVER BOARD S2600ST FAMILY
The Intel® Server Board S2600ST offers small and medium businesses a general-purpose, price-performance solution for networking scenarios involving storage, security and embedded appliances. Optimized for use with the 2nd Generation Intel® Xeon® processor Scalable family, the board features multiple PCIe lanes and a standard form factor for greater versatility in a variety of use cases including cloud, storage, and telecommunications. Together, this standard form factor and rich feature set helps an organizations' ability to move, store, and process data more quickly in a variety of environments.
Warranty
Limited Warranty: 3 Year
Highlights
Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
The SSI EEB server standard motherboard enables a solid foundation for PC components and magnifies the performance by supporting multiple processors
Specifications
General Information
Manufacturer
Intel Corporation
Manufacturer Part Number
BBS2600STBR
Brand Name
Intel
Product Model
S2600STBR
Product Name
Server Board S2600STBR
Packaged Quantity
10
Package Type
OEM
Product Type
Server Motherboard
I/O Controller
Controller Type
Serial ATA
RAID Supported
Yes
RAID Levels
0, 1, 10
I/O Expansions
Total Number of Expansion Slots
6
Total Number of PCI Express Slots
6
Number of PCI Express x8 Slots
3
Number of PCI Express x16 Slots
3
Interfaces/Ports
Total Number of USB Ports
7
VGA
Yes
Memory
Number of Memory Slots
16
Memory Form Factor
DIMM, RDIMM, LRDIMM
Maximum Memory Supported
2 TB
Memory Speed Supported
2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz
Memory Technology
DDR4 SDRAM
Intel Optane Memory Ready
Yes
Network & Communication
10Gigabit Ethernet
Yes
Onboard Interfaces
Number of SATA Interfaces
12
Number of NVMe Ports
4
Physical Characteristics
Form Factor
SSI EEB
Width
12"
Depth
13"
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C624
Total Processor Supported
2
Processor Socket
Socket P
Processor Supported
Xeon
Video
Onboard Video
CPU Dependent Video
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
Server Board S2600STBR
2 x SATA Cables 880.00mm
1 x IO Shield
1 x Protective Insulator
1 x Configuration Label (Sticker to be Added to Chassis)
