320 W (PMPO) - 11.25" - 1" - 105 Hz to 20 kHz - 8 Ohm
MSRP$386.00
$370.17
Save 4%In stock: 4
Genuine Harman International Industries through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

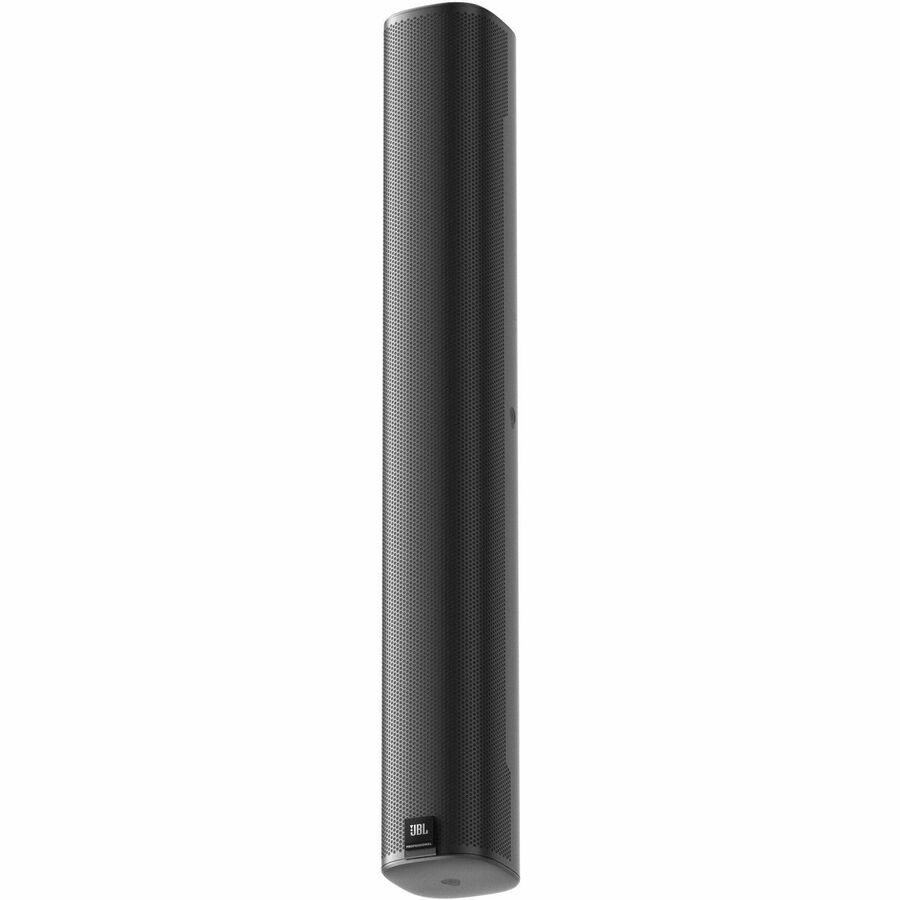

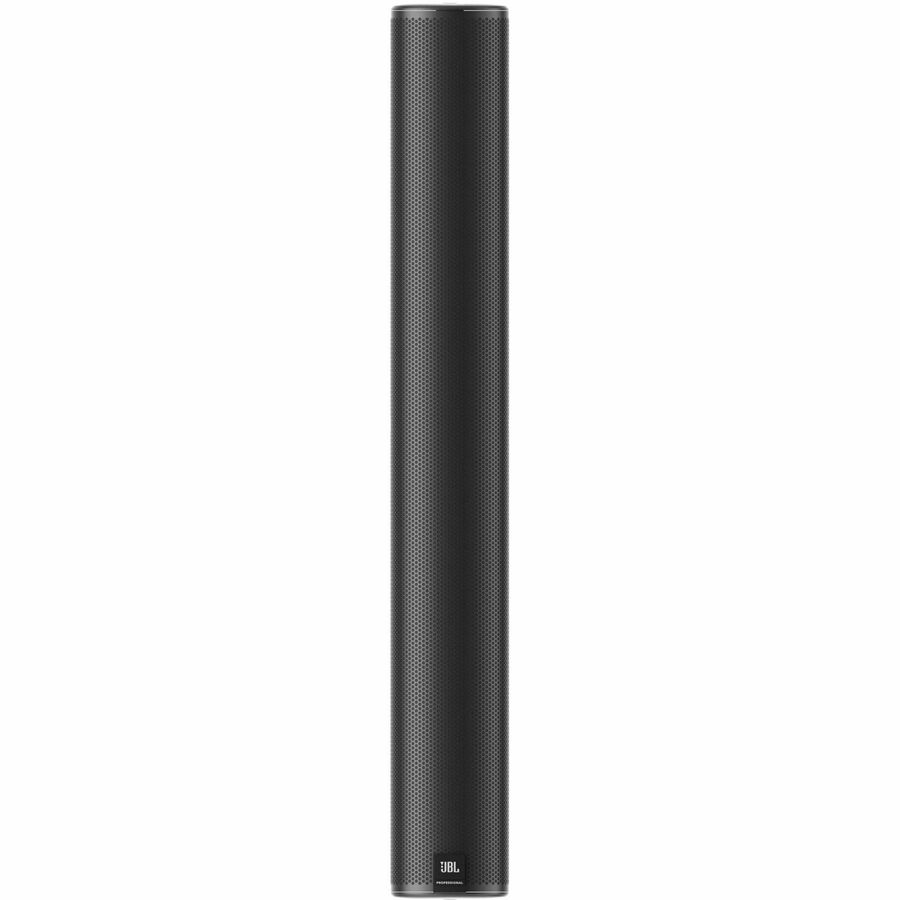

The JBL COL600 is an elegant 24-inch (600 mm) slim column loudspeaker that provides wide horizontal and narrow vertical coverage, with a built-in 10° down-tilt to the aim, providing optimum coverage for most listening areas while allowing the speaker to be installed flat to the wall. The slim, compact design-winner of international design awards for industrial design excellence-complements virtually any architectural décor.
A combination of stylish design and outstanding performance features makes the COL600 ideal for a wide variety of applications, such as conference/meeting rooms, lecture halls, retail stores, concourses, transit spaces, fill applications, audio for video, and other applications where slim, compact design and high performance is desired.
Two 5-inch x 2.25 inch racetrack woofers provide maximum radiating area in a column form factor. The tweeter is located at top of array for less obstructed coverage of the listening space and is aimed at a down angle, allowing down-tilted coverage aim, even with the cabinet flat to the wall. The shallow cabinet depth of 3.7 inches (93 mm) qualifies for ADA (Americans with Disabilities Act) projects when installed with the back of the cabinet flush to the wall.
A 20-watt multi-tap transformer allows for use on either 70V or 100V distributed speaker lines, while the speaker is switchable for direct 8-ohm operation with power handling of 80W continuous (320W peak, 2 hrs.) The 70 Hz to 20 kHz frequency range delivers clean, clear sound for music or speech.

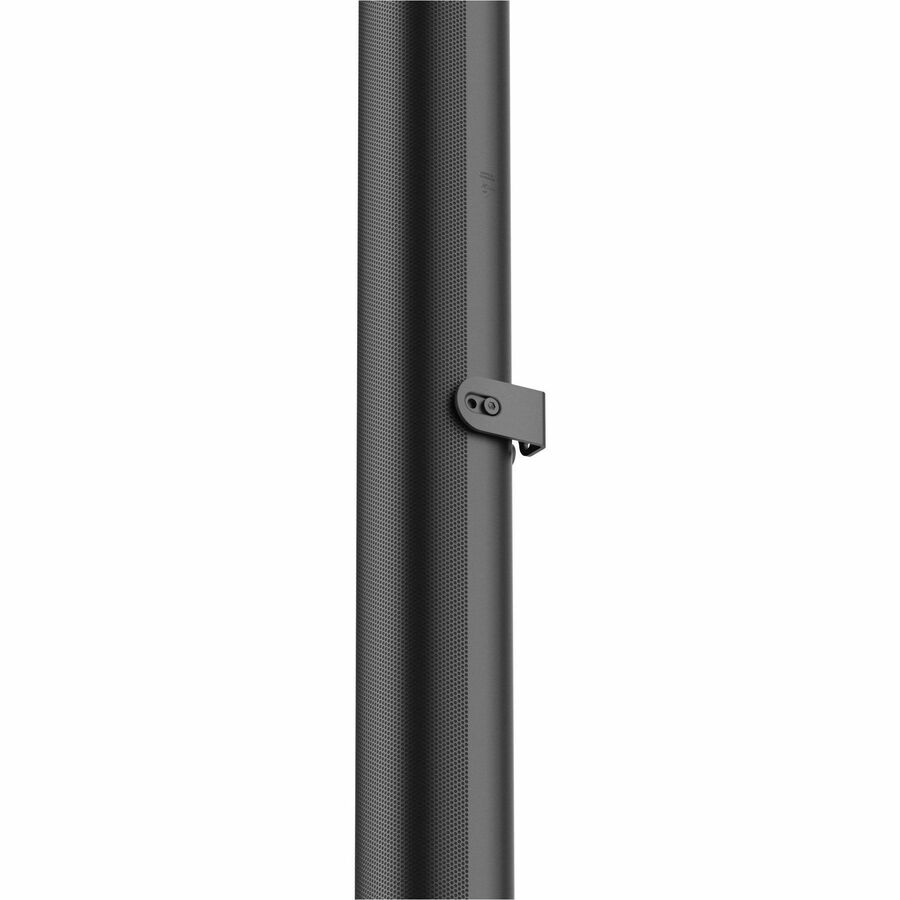

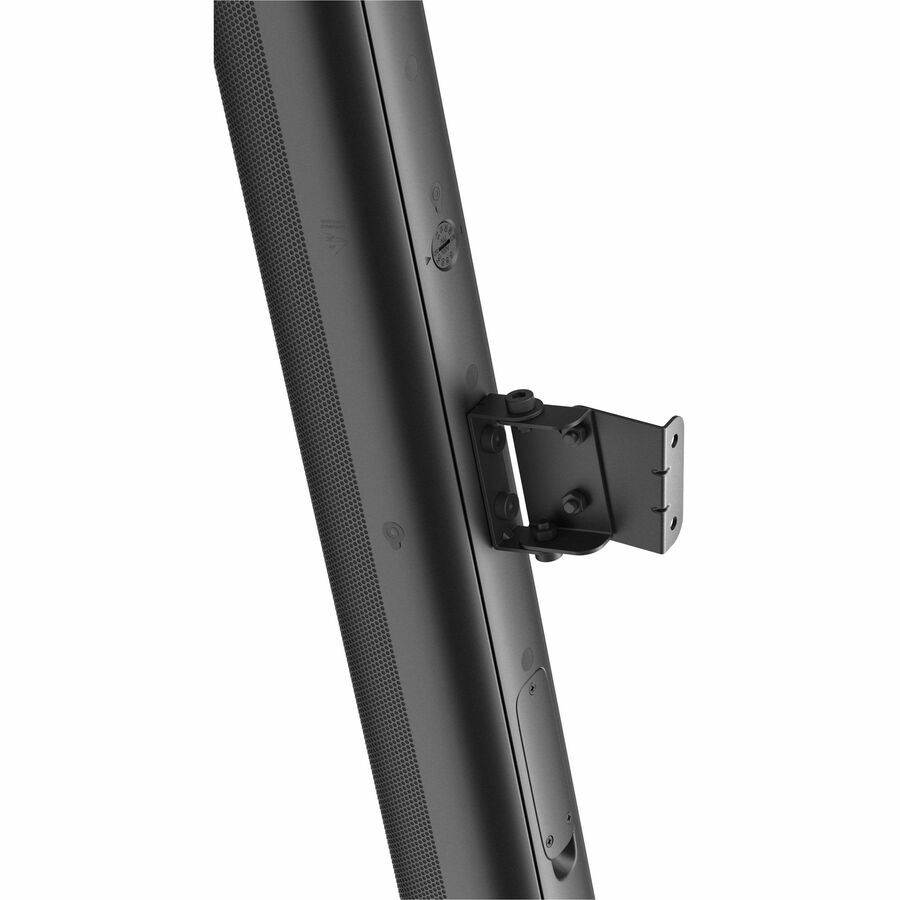

Versatile installation is accommodated by two included L-brackets, which can be installed on either the top and bottom panels (for horizontal pan aiming) or on the left and right side panels. Both locations allow for close-to-the-wall installation. In addition, a low-profile swivel (pan) / tilt wall bracket is also included, for adding up to 10° down-tilt to the cabinet aiming (in addition to the built-in 10° down-tilt aim when the speaker is installed flat to the wall).
The COL600 has an IP54 rating (per IEC60529) for protection against ingress of dust or water. The drivers are water-treated, the grille has a water-backing, and a cover is included to protect the input terminals. Available in black (JBL-COL600-BK) or white (JBL-COL600-WH).
Features
• Two 5 x 2.25 inch racetrack woofers & one 1 inch tweeter
• 24 inch tall with shallow 3.7 inch cabinet depth
• Wide 160° horizontal and focused 110° vertical coverage
• 10° downward tilt to aim for covering most listening areas without requiring physical down- tilting of the cabinet
• 80W continuous pink noise power handling (320W peak)
• 70 Hz - 20 kHz frequency range
• Built-in 20W 70V/100V multi-tap transformer, plus 8 ohm direct input.
• 111 dB peak SPL (105 dB continuous), 2 hrs
• Tweeter near top of column for unobstructed coverage of listening space
• Versatile mounting brackets included - both
JBL Professional: Legendary Audio for Over 70 Years At JBL, audio technology is at the core of everything we do. For 70 years we have employed the best methodology and tools. As established at the very beginning by our founder, James B. Lansing, we develop everything from the ground up. This not only ensures success in the marketplace, but it also guarantees our efforts exceed the needs and expectations of audio professionals throughout the world. Never straying from this exacting formula, our journey has produced a prolific list of audio achievements, groundbreaking technologies, revolutionary advances in the art and science of professional audio, many patents, and many awards. It’s a journey that is legendary worldwide and has positioned JBL as the world leader in professional audio.
| General Information | |
|---|---|
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | JBL-COL600-BK |
| Brand Name | JBL Professional |
| Product Model | COL600 |
| Product Name | COL600 Slim Column Loudspeaker |
| Product Type | Speaker |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Wall Mountable |
| Height | 23.5" |
| Width | 4" |
| Depth | 3.66" |
| Weight (Approximate) | 7.72 lb |
| Technical Information | |
| RMS Output Power | 80 W |
| PMPO Output Power | 320 W |
| Woofer Driver Size | 11.25" |
| Tweeter Driver Size | 1" |
| Minimum Frequency Response | 105 Hz |
| Maximum Frequency Response | 20 kHz |
| Impedance | 8 Ohm |
| Sensitivity | 86 dB |
| Ingress Protection (IP) Rating | IP54 |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Conference Room, Meeting, Lecture Hall, Retail Store, Concourse, Transit Center |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
