Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
HPD9320
Category
Component Speakers
Overview
Key Features:
• Large PT (Progressive Transition) high frequency waveguide for superior coverage control and smooth frequency response
• 120° x 60° coverage
• 98 dB sensitivity
• 2408H-1 high frequency compression driver
• MB12-8, 12" low frequency driver
• Rotatable waveguide for vertical or horizontal orientation
• Multiple mounting point options with M-10 threaded attachment points on the top, sides and rear

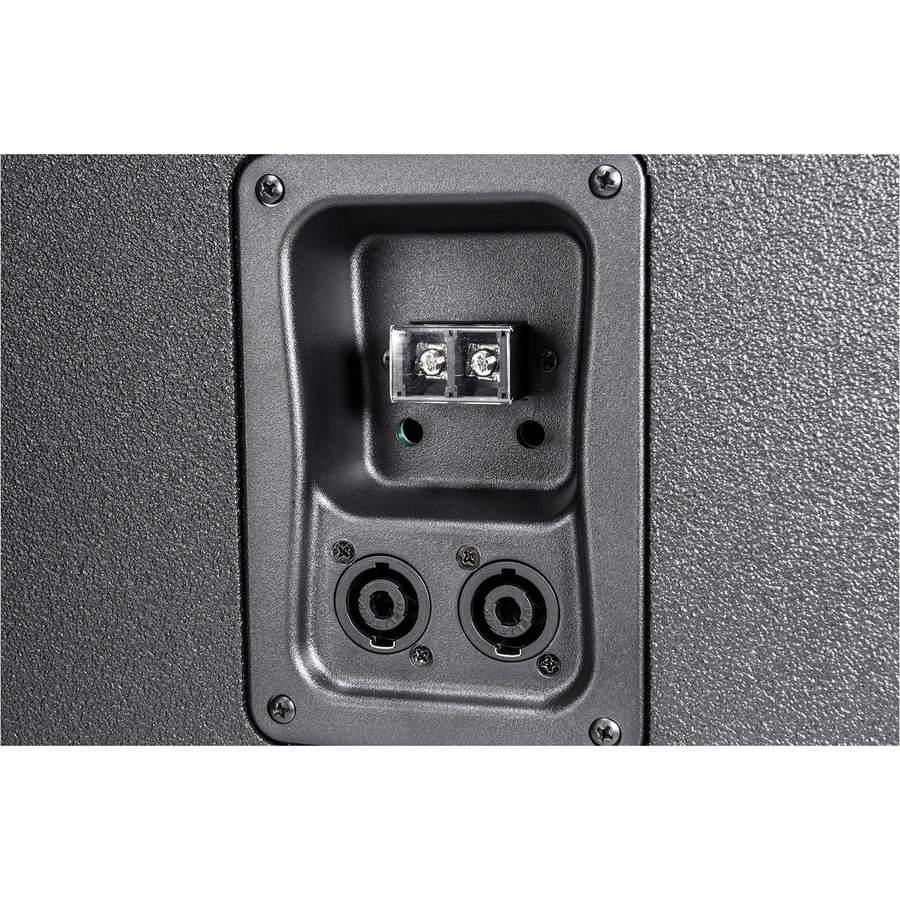

• Input terminals on top of cabinet for easy access
Description:

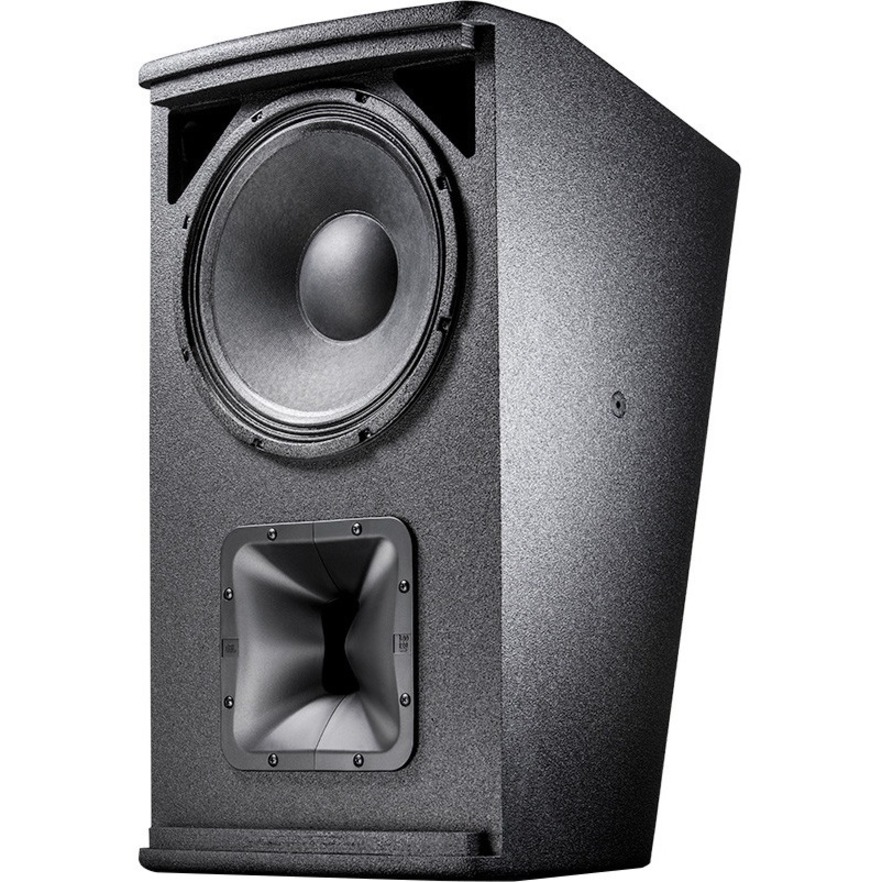

he 9320 Cinema Surround Speaker offers high power handling with extended bass response for large-format cinemas and multi-channel surround formats where wide dynamic range is required. The 9320 is a powerful, 2-way, full-range surround comprised of an MB12-8, 300 mm (12") low frequency driver and a 2408H-1, 38 mm (1.5") voice coil compression driver. The large format Progressive Transition waveguide provides exceptional 120° x 60° coverage. The waveguide is rotatable so the speaker can be used in the vertical or horizontal position.
The enclosure is constructed of multi-ply birch coated with JBL's rugged DuraFlex finish and is heavily braced to maximize low frequency performance. The enclosure is fitted with M-10 threaded points on the top and on the sides to facilitate U-bracket mounting. There are four M-10 threaded points on the rear, positioned in a standard pattern, to accept a variety of multi-mount brackets.

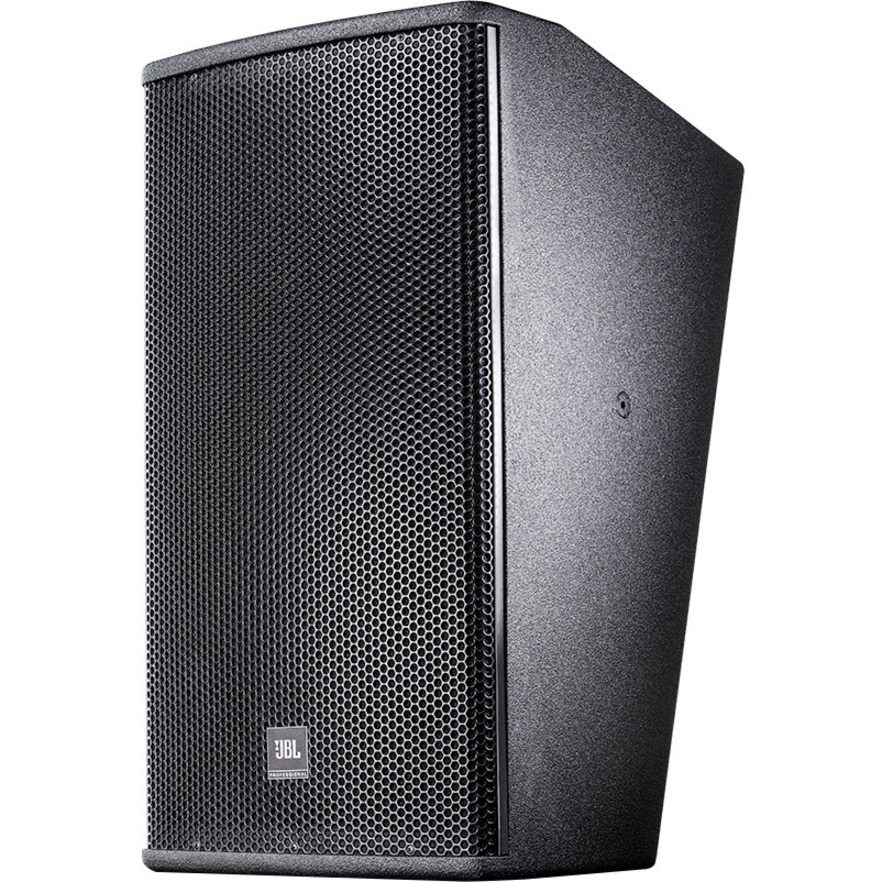

The 9320 Surround utilizes a steel grill to give a very professional appearance and to provide driver protection.
About Harman International Industries
JBL Professional: Legendary Audio for Over 70 Years
At JBL, audio technology is at the core of everything we do. For 70 years we have employed the best methodology and tools. As established at the very beginning by our founder, James B. Lansing, we develop everything from the ground up. This not only ensures success in the marketplace, but it also guarantees our efforts exceed the needs and expectations of audio professionals throughout the world. Never straying from this exacting formula, our journey has produced a prolific list of audio achievements, groundbreaking technologies, revolutionary advances in the art and science of professional audio, many patents, and many awards. It’s a journey that is legendary worldwide and has positioned JBL as the world leader in professional audio.
Highlights
Listen to your favorite music and enjoy great sound with optimal audio output and maximum playback efficiency
The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
8 Ohm impedance extracts maximum power so you will get more output from your speakers
Hear low subs and soaring vocals with a frequency range of sound from 35 Hz-20 kHz
12" woofer driver size allows better stereo imaging with maximum sound feasibility
1.50" tweeter driver size provides crispier, well-detailed sound with maximum productivity
Delivers reliable sound with 20 kHz maximum frequency response
124 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
Wall mount is cost-effective, reusable, and long-lasting
25.1" height for efficient frequency access and optimal operation
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
HPD9320
Brand Name
JBL Professional
Product Series
9300
Product Model
9320
Product Name
9320 Large Format High Power Cinema Surround Loudspeaker
