175 W (PMPO) - 6.50" Kevlar Woofer - 1" - 70 Hz to 18 kHz - 8 Ohm
MSRP$450.00
$435.13
Save 3%In stock: 1
Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Applications:
The AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/ paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

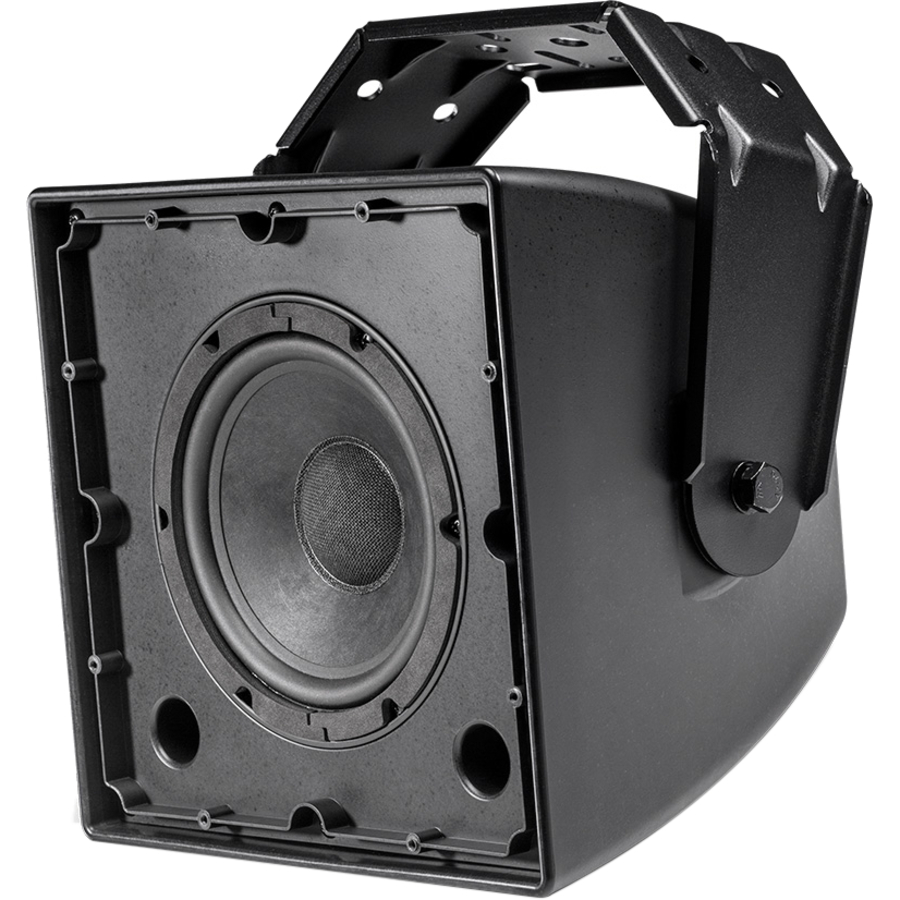

The AWC62 is comprised of a high-power coaxial 165 mm (6.5 in) low frequency driver and 25 mm (1 in) high frequency compression driver. The co-axial design utilizes a unique tapered pole-piece design and transitions to the cone of the low frequency driver as a large diameter pattern control horn for the high frequencies, both eliminating high-frequency beaming which is common among this category of speaker and extending pattern control to the lowest possible frequencies. The result is a coaxial speaker with wide, extremely consistent 110° coverage on a broadband basis.
Component features include a Kevlar-reinforced low frequency cone for reliability, well-damped surround for smooth frequency response, high temperature voice coil and a reduced distortion design through saturated-gap magnet geometry.

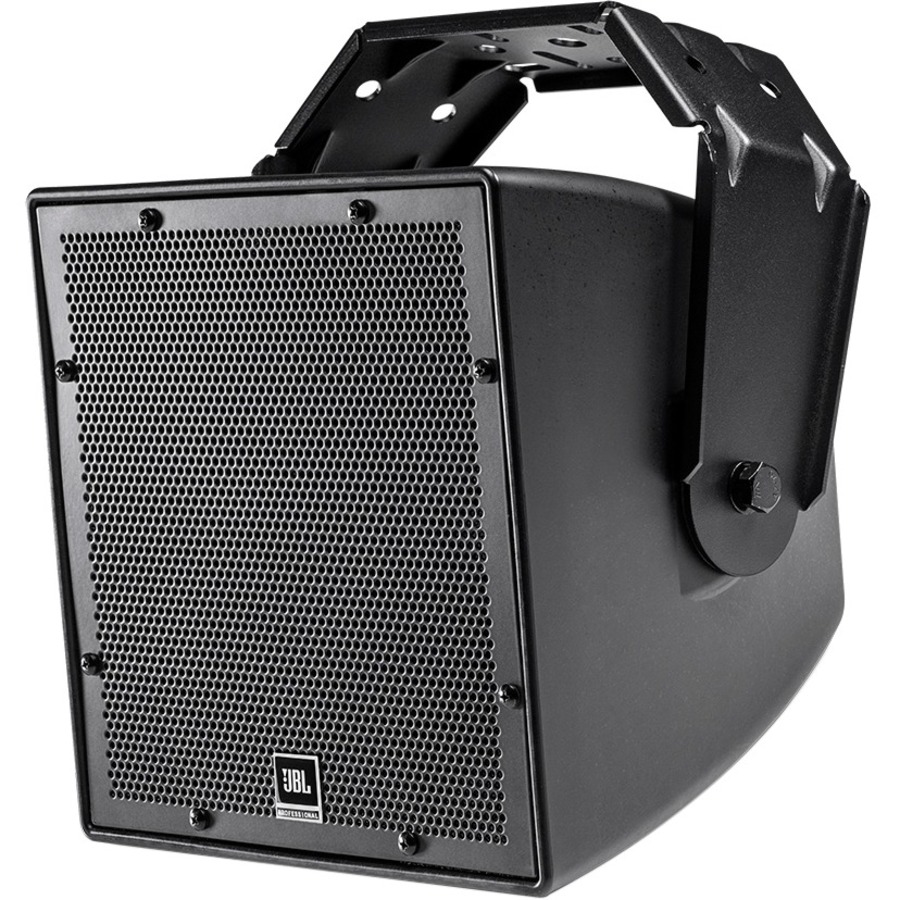

The paintable enclosure is constructed of thick, ABS plus fiberglass and is heavily braced to maximize low-frequency performance. The corrosion-resistant zinc-rich extra-thick powder coated steel grille is backed with open cell foam and high thread-count mesh, providing excellent protection in the harshest environments. The system is rated IP-56, per IEC529 when installed at minimum 5° down-tilt.
The system is equipped with a 120W 70V/100V multi-tap transformer. Connection is made via outdoor-rated terminals in a recessed terminal cup. A protective terminal compartment cover is included, along with gland nut, which forms a water-tight seal with round-jacketed cable having outside diameter between 4 mm (0.16 in) and 9 mm (0.36 in).
A heavy-duty weather-capable zinc-rich, thick powder coated U-type mounting bracket is included.
JBL Professional: Legendary Audio for Over 70 Years At JBL, audio technology is at the core of everything we do. For 70 years we have employed the best methodology and tools. As established at the very beginning by our founder, James B. Lansing, we develop everything from the ground up. This not only ensures success in the marketplace, but it also guarantees our efforts exceed the needs and expectations of audio professionals throughout the world. Never straying from this exacting formula, our journey has produced a prolific list of audio achievements, groundbreaking technologies, revolutionary advances in the art and science of professional audio, many patents, and many awards. It’s a journey that is legendary worldwide and has positioned JBL as the world leader in professional audio.
| General Information | |
|---|---|
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | AWC62-BK |
| Brand Name | JBL Professional |
| Product Line | All Weather |
| Product Model | AWC62 |
| Product Name | All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF |
| Product Type | Speaker |
| Physical Characteristics | |
| Product Color | Black |
| Durability | Weather Proof |
| Speaker Installation | Indoor/Outdoor |
| Weight (Approximate) | 14.99 lb |
| Technical Information | |
| Crossover Type | 2-way |
| RMS Output Power | 120 W |
| PMPO Output Power | 175 W |
| Woofer Driver Size | 6.50" |
| Woofer Driver Material | Kevlar |
| Tweeter Driver Size | 1" |
| Minimum Frequency Response | 70 Hz |
| Maximum Frequency Response | 18 kHz |
| Impedance | 8 Ohm |
| Sensitivity | 120 dB |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Indoor/Outdoor, Swimming Pool, Amusement Park, Music/Paging System, Cruise Ship, Entertainment Center, Skating Rink, Rodeo, Fairground, Stadium, Racetrack, Sports Bar |
| Country of Origin | China |
