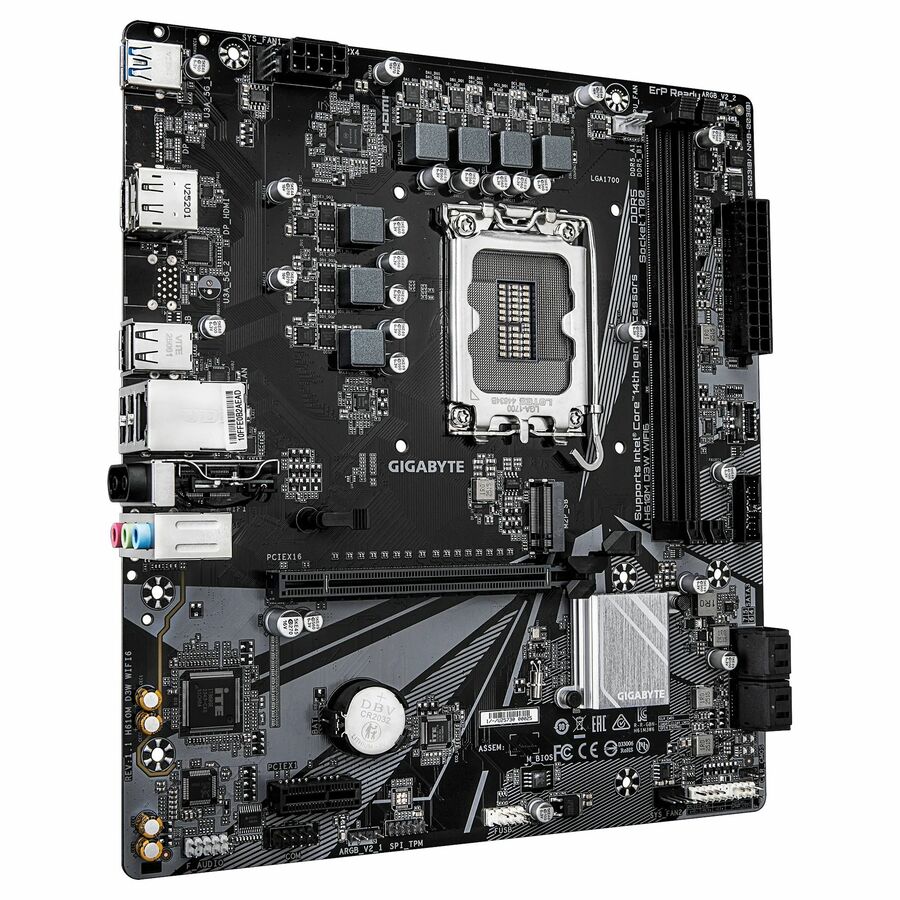

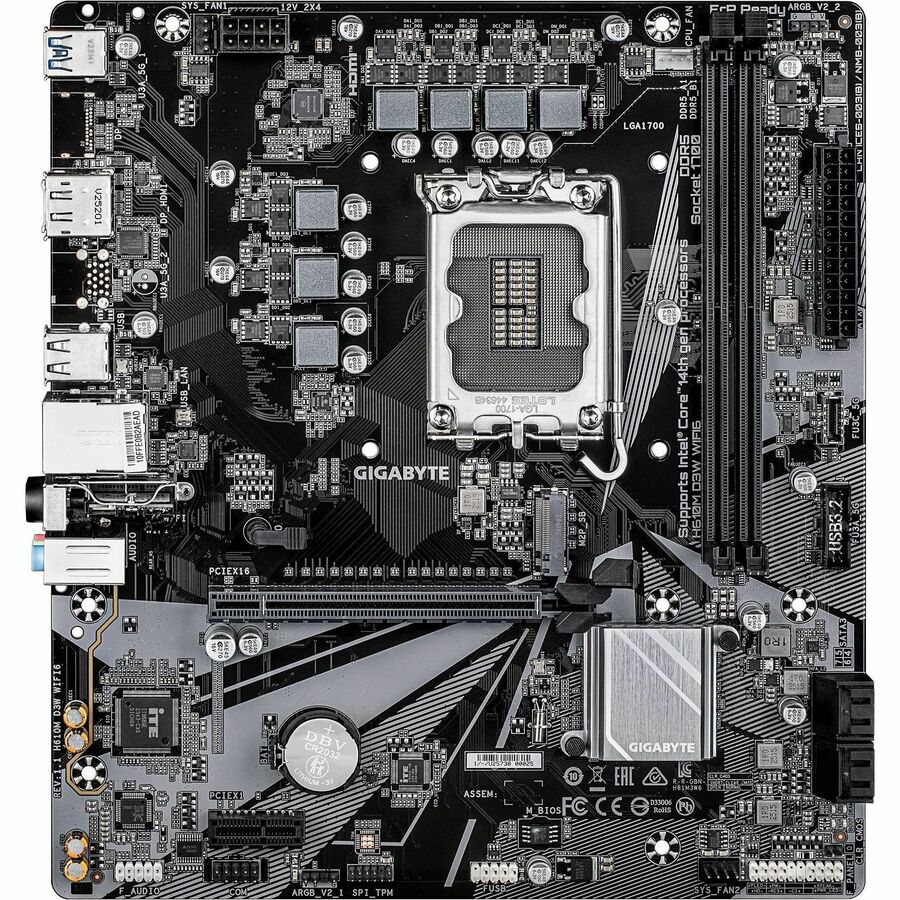

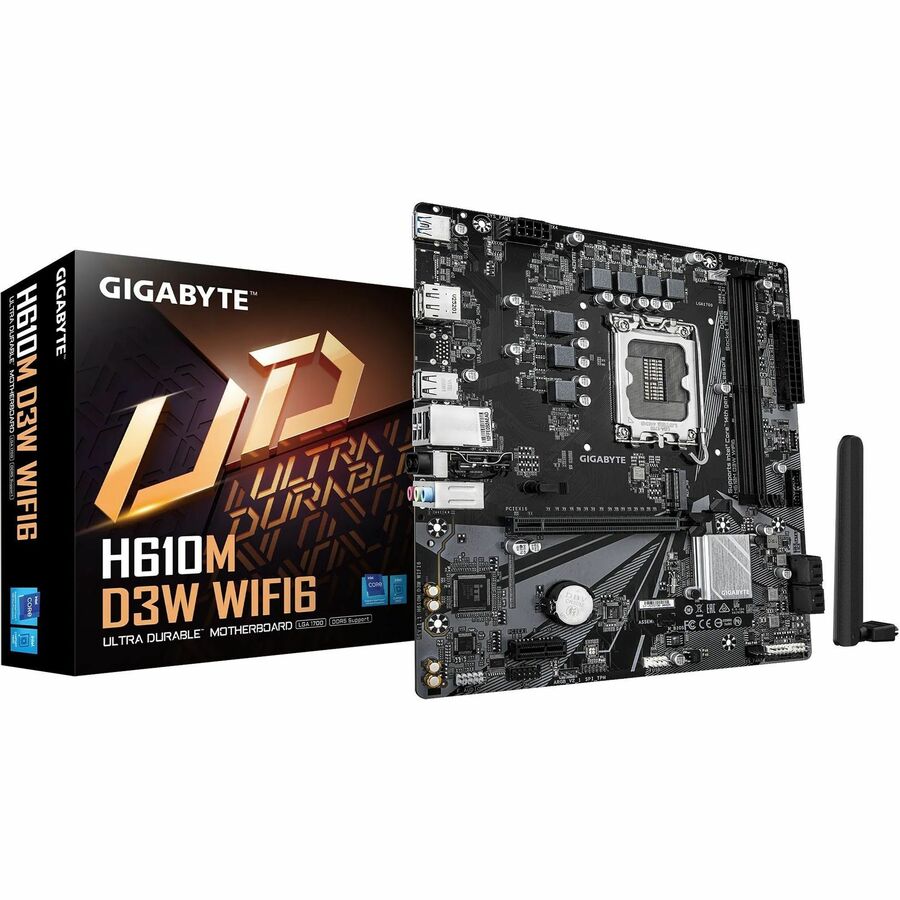

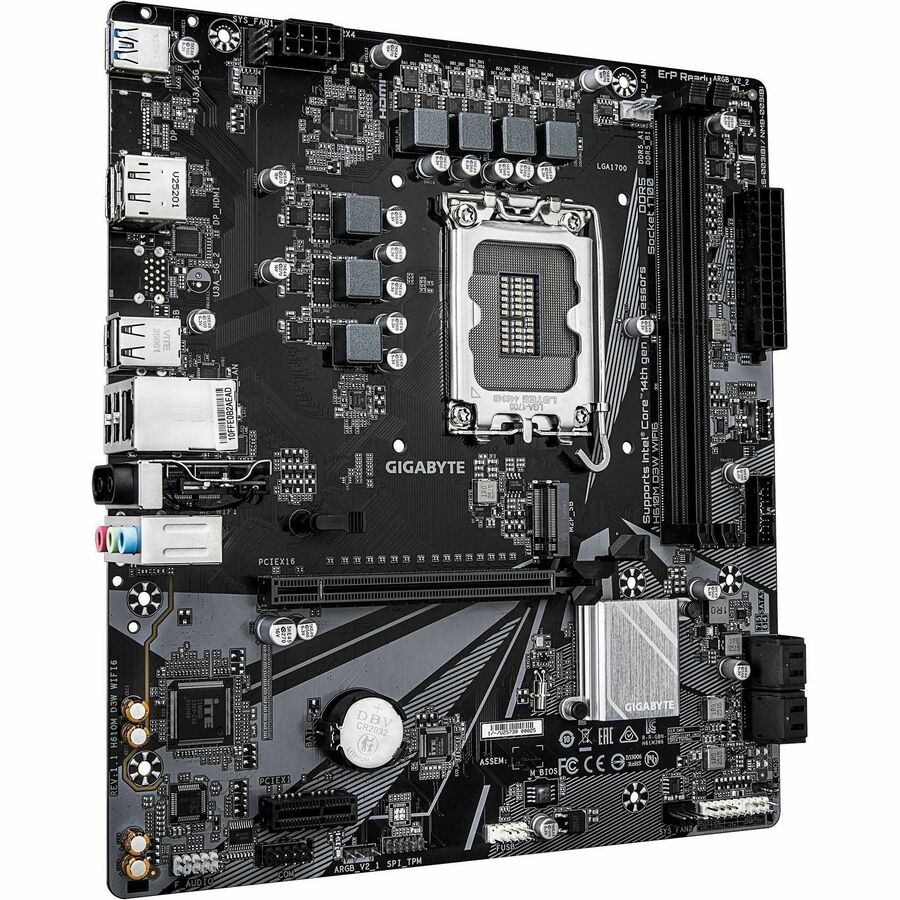

GIGABYTE Ultra Durable H610M D3W WIFI6 Desktop Motherboard - Intel H610 Chipset - Socket LGA-1700 - Micro ATX

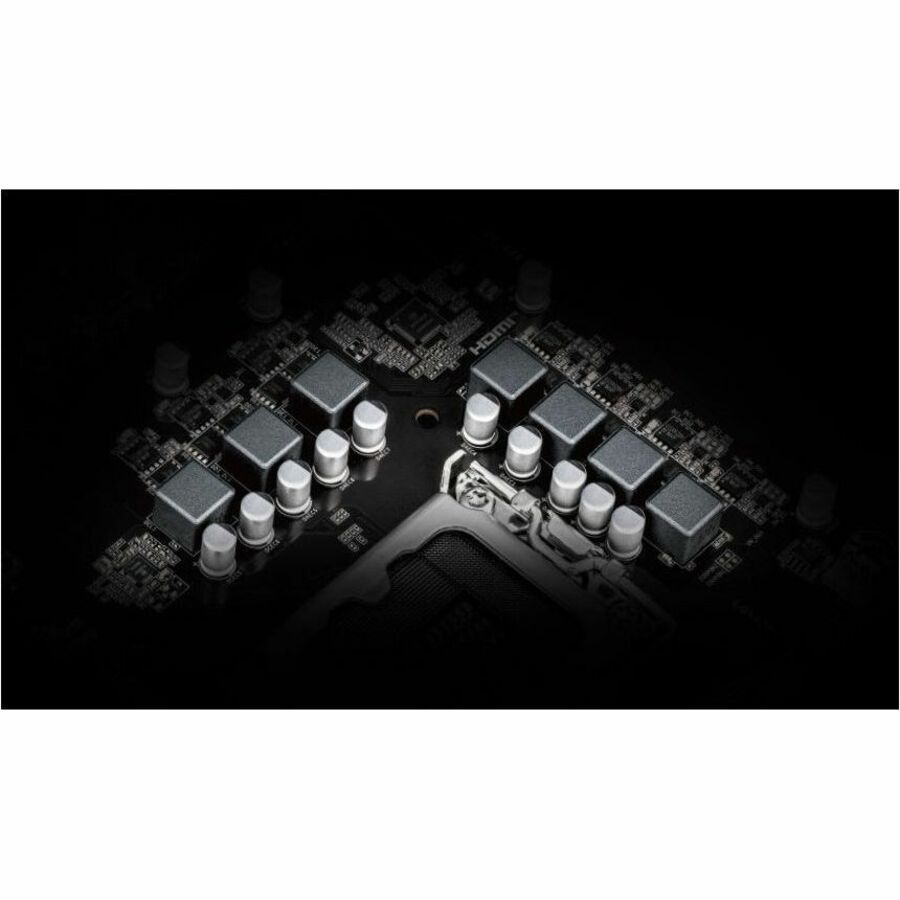

POWER | 5+1+1 Phases Hybrid Power Design

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

• 5+1+1 Phases Low RDS(on) MOSFETs.

• Solid capacitors to improve transient response and minimize oscillation.

• 8-pin Solid Pin CPU Power Connector

DDR5 | XMP 5600+| Support for DDR5 XMP Up to 5600 and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5600 and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.

Unlock DDR5 Voltage | GIGABYTE Exclusive DDR5 Circuit Design | Programmable Mode

GIGABYTE's exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.

• GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control

• Transforms Native DDR5 memory module to Overclocked DDR5 memory

• Increases DDR5 memory overclocking performance and capability

• Supports all PMIC vendors for maximum compatibility

Shielded Memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

XMP 3.0 User Profile

Define and create your own SPD profile into Native and XMP 3.0 memory modules or apply the pre-tuned profiles to XMP 3.0 User Profile. Two user-defined profiles can be saved, loaded either locally or from/to an external storage device.

• Two empty SPD profiles can be defined by users and carry to next computer

• Transfer DDR5 XMP Booster profiles into XMP 3.0 User Profiles

• Quick memory performance simulation based on user input clock and timing parameters

• Profile save and load function to share your memory parameters online
