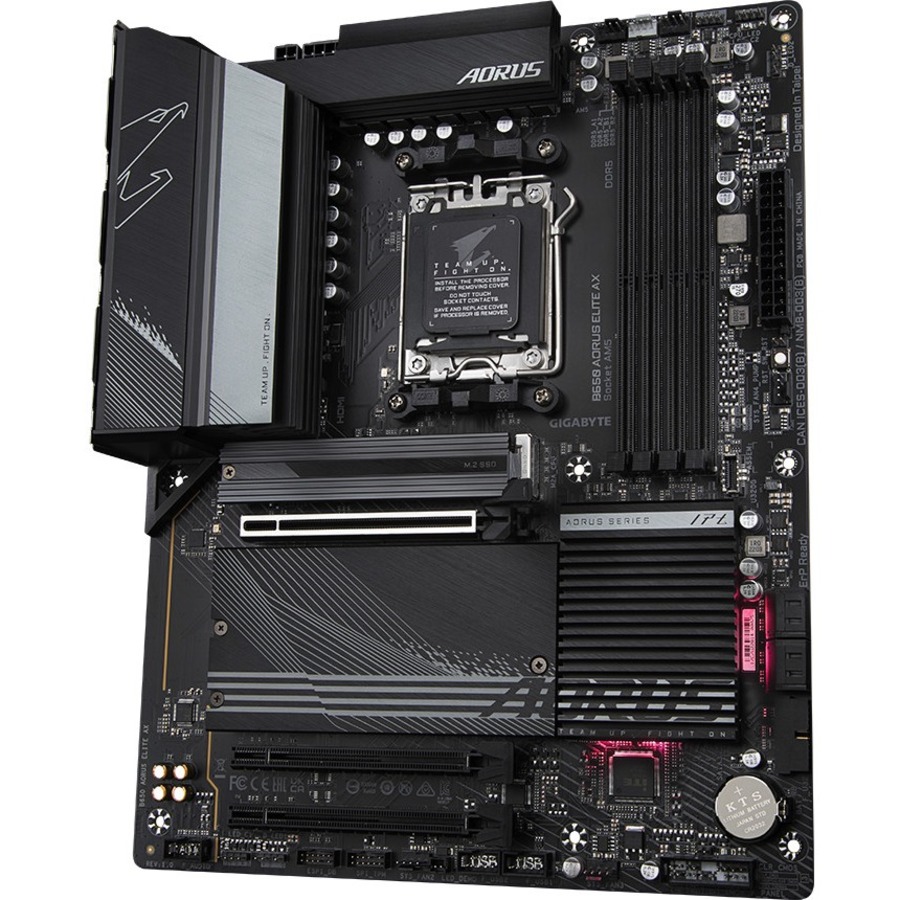

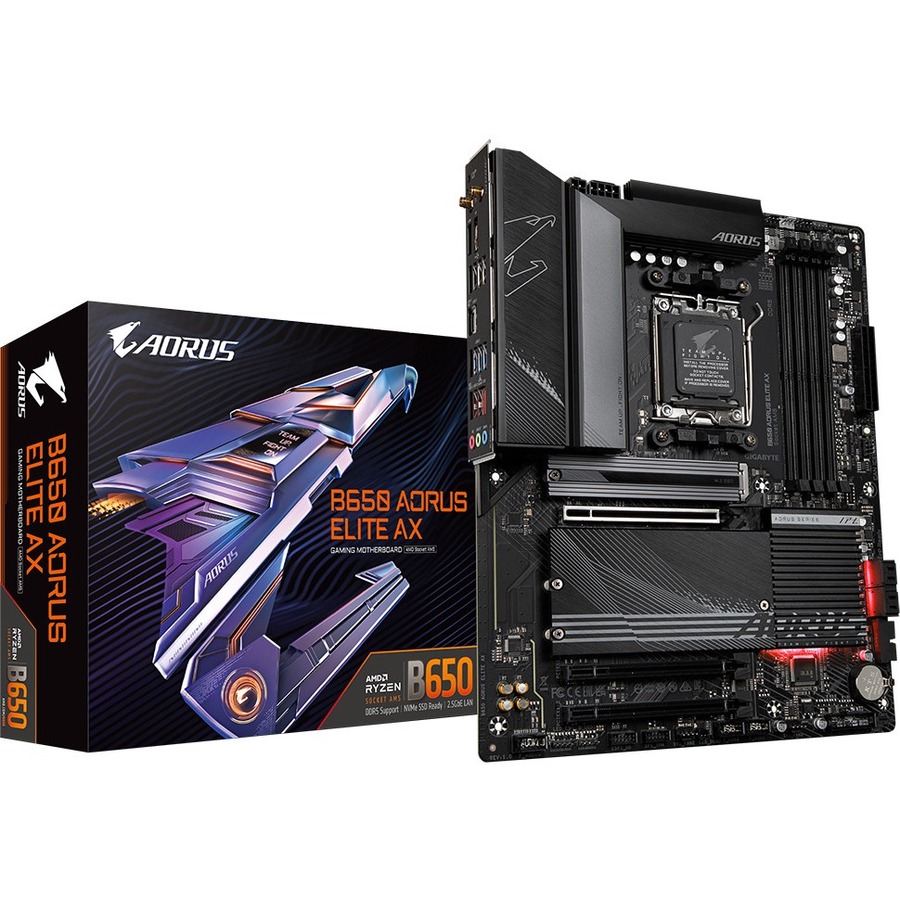

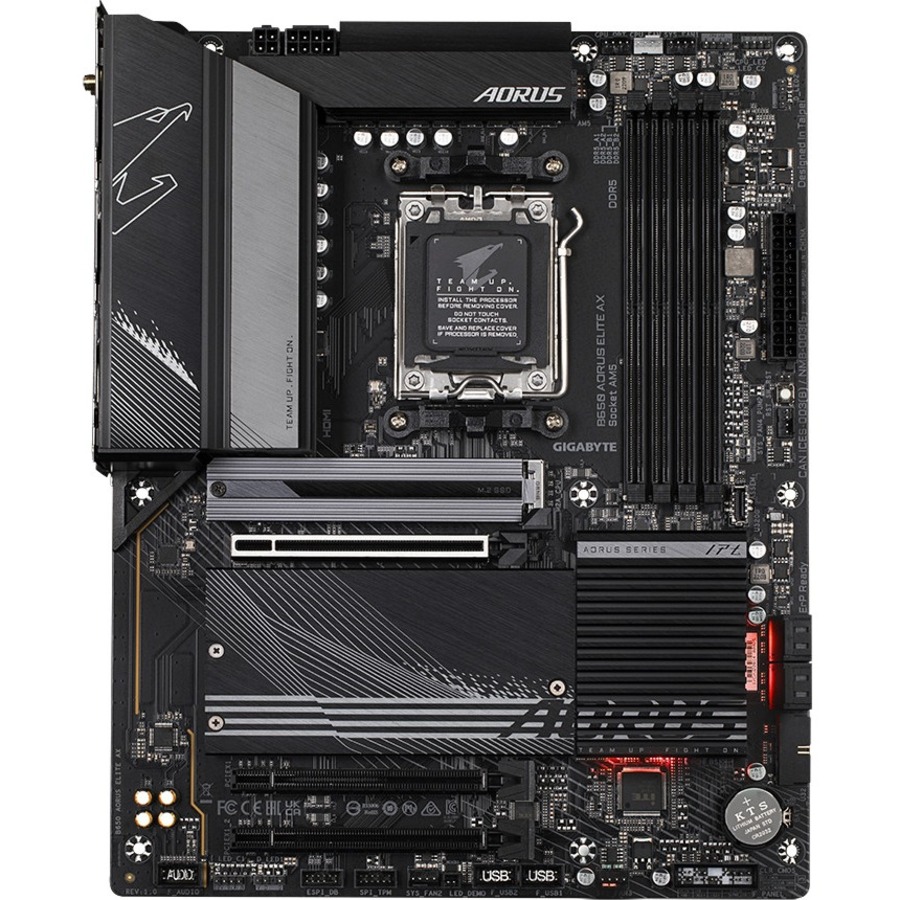

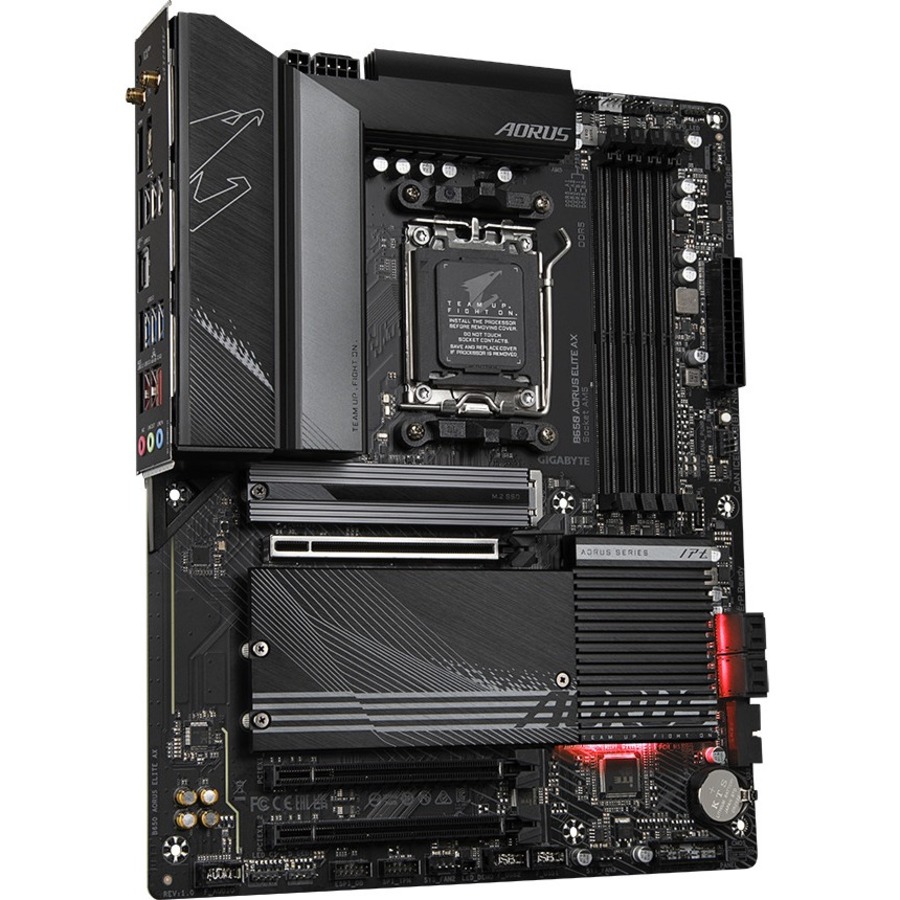

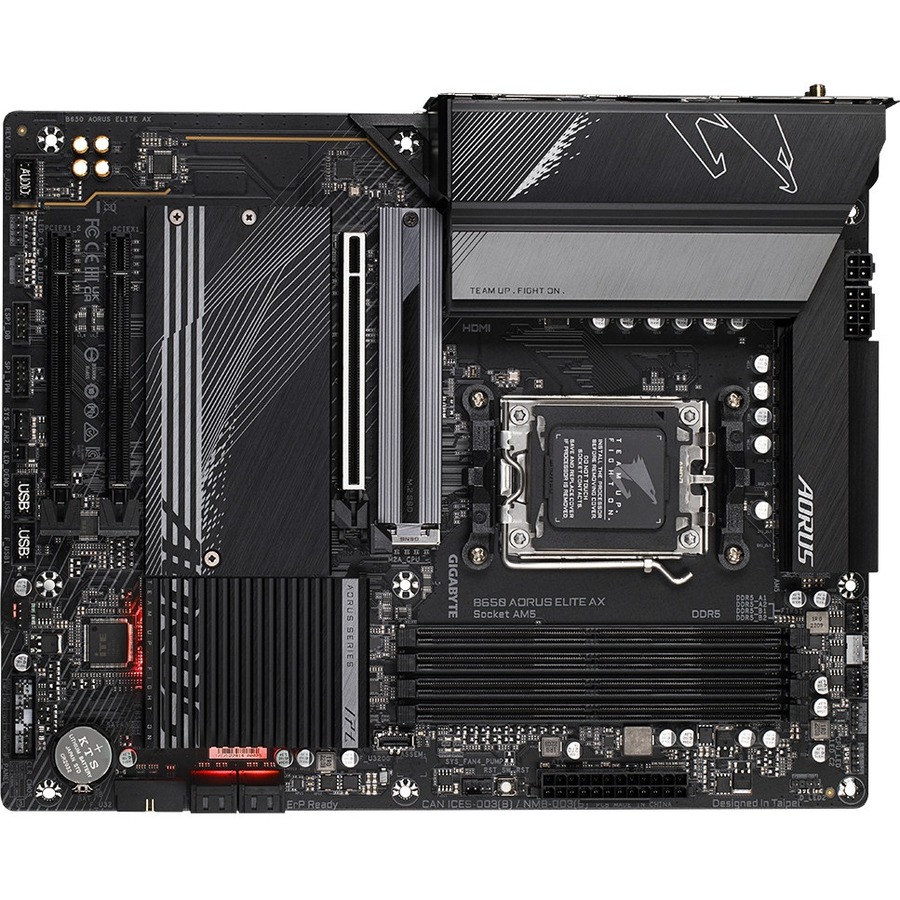

GIGABYTE B650 ELITE AX Gaming Desktop Motherboard - AMD B650 Chipset - Socket AM5 - ATX
Ryzen Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
- SKU
- B650 AORUS ELITE AX
- Category
- Motherboards
$244.97
Back ordered — ships when restocked.
Genuine GIGABYTE Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- B650 AORUS ELITE AX
- Category
- Motherboards
Overview
Twin Digital VRM Design
PCIe 5.0 Design
EXPO & XMP Support
OC GUIDE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and WIFI connectivity.
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
GIGABYTE Ultra Durable? design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Highlights
- AMD Socket AM5?Supports AMD Ryzen? 7000 Series Processors
- Unparalleled Performance?Twin 14*+2+1 Phases Digital VRM Solution
- Dual Channel DDR5?4*SMD DIMMs with AMD EXPO? & Intel® XMP Memory Module Support
- Next Generation Storage?1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
- Fully Covered Heatpipe & M.2 Thermal Guard?To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch?PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks?2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity?DP, HDMI, Rear USB-C® 10Gb/s, Front USB-C® 20Gb/s
- Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications
| Product Type | Gaming Desktop Motherboard |
|---|---|
| Manufacturer Part Number | B650 AORUS ELITE AX |
| Maximum Memory Supported | 128 GB |
| Form Factor | ATX |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | B650 ELITE AX |
| Product Name | Elite Gaming Desktop Motherboard |
| Processor Supported | Ryzen |
| RAID Levels | 0, 10, 1 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket AM5 |
| Brand Name | GIGABYTE |
| Memory Technology | DDR5 SDRAM |
| Width | 12" |
| Depth | 9.6" |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Number of Memory Slots | 4 |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 4 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard | Bluetooth 5.2 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| PCI Express Standard | PCI Express 3.0, PCI Express 4.0 |
| Total Number of PCI Express Slots | 3 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 3 |
| Number of M.2 Interfaces | 2 |
| Memory Speed Supported | 6666 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5600 MHz, 5200 MHz, 4800 MHz, 4400 MHz |
| Number of USB 3.2 Gen 1 Ports | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| 2.5Gigabit Ethernet | Yes |
