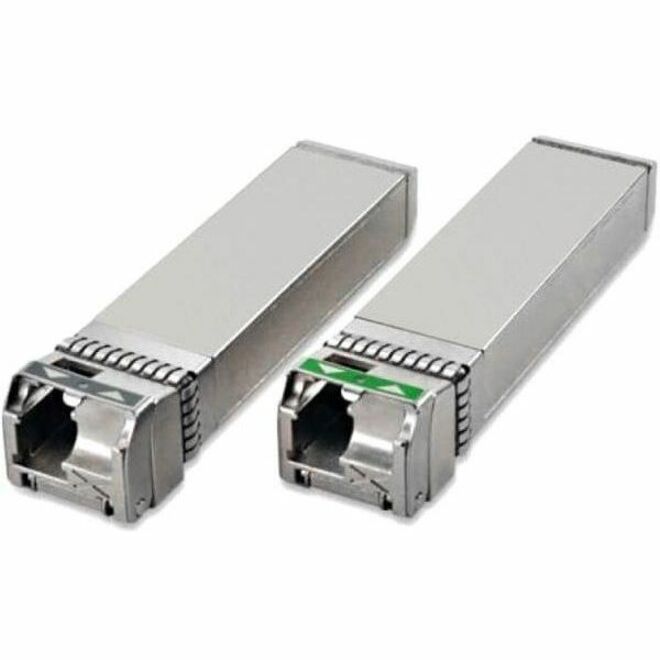

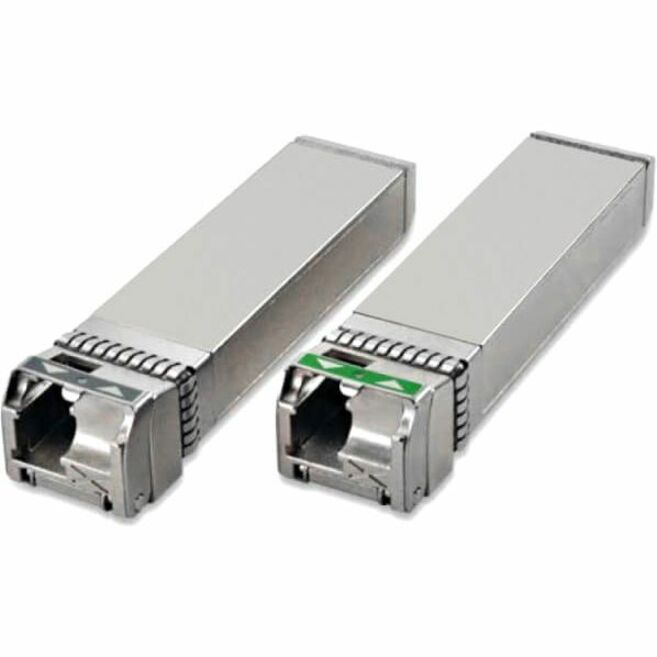

Finisar 10Gb/s 10km Single Mode Bidirectional SFP+ Transceiver
For Data Networking, Optical Network - 1 x LC 10GBase-LR/LW Network - Optical Fiber - Single-mode - 10 Gigabit Ethernet - 10GBase-LR/LW - 10 Gbit/s - 10 km Maximum Distance - Hot-pluggable
SKU
Category
Modules
MSRP$374.94
$343.06
Save 9%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 21 and Dec 26, then process your delivery right after.
Genuine Finisar through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Modules
Country of origin
Malaysia
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
Finisar's FTLX2072D327/FTLX2072D333 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 10km over a single-strand Single Mode fiber. This capability doubles the capacity of installed legacy single mode fiber links. They are compliant with SFF-84311 and IEEE 802.3ae 10GBASELR/LW3 , and 10G Fibre Channel 1200-SM-LL-L 4 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84725 . The FTLX2072D327/FTLX2072D333 is a "limiting module", i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceiver is compliant per the RoHS Directive 2011/65/EU6 . See Finisar Application Note AN-2038 for more details7 .
Highlights
Hot-pluggable SFP+ footprint
Bidirectional 10G over single strand single mode fiber
Supports 1.0 to 11.3 Gb/s bit rates
Power dissipation <1W
RoHS compliant
Industrial temperature range -40°C to 85°C
Single 3.3V power supply
Maximum link length of 10km
Uncooled DFB
Receiver limiting electrical interface
Single LC connector
Built-in digital diagnostic functions
Specifications
General Information
Manufacturer
Finisar Corporation
Manufacturer Part Number
FTLX2072D327
Brand Name
Finisar
Product Name
10Gb/s 10km Single Mode Bidirectional SFP+ Transceiver
