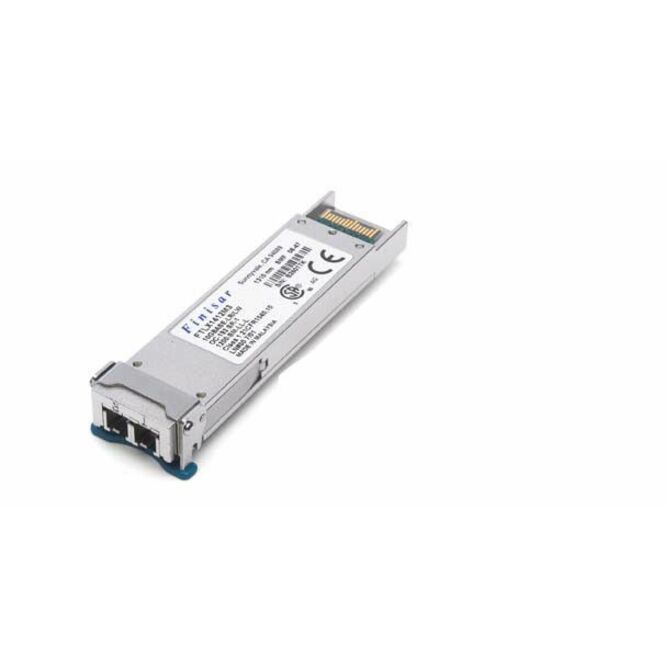

Finisar 10Gb/s, 10km XFP Optical Transceiver
Finisar

Finisar 10Gb/s, 10km XFP Optical Transceiver

For Data Networking, Optical NetworkOptical Fiber - Single-mode - 10 Gigabit Ethernet - 10GBase-LR/LW - 11.32 Gbit/s - 10 km Maximum Distance - Hot-pluggable - 2

SKU
FTLX1413M3BCL
Category
Modules

MSRP$77.19

$71.24

Save 8%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Finisar through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FTLX1413M3BCL
Category
Modules

Overview

Finisar's FTLX1413M3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification1 . They are a true multi-protocol transceiver complying with SONET OC-192 SR-1, SDH STM I64.1, 10-Gigabit Ethernet 10GBASE-LR /LW per IEEE 802.3ae, 10G Fibre Channel 1200-SM-LL-L, 8G Fibre Channel 800-SM-LC-L, 10G CPRI, and ITU-T. G709 OTN/FEC protocols OTU1e, OTU2, and OTU2e. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU3 .

Highlights

  • Supports 8.5Gb/s to 11.32Gb/s bit rates
  • Power dissipation <1.5W
  • Commercial temperature range: -5°C to 75°C
  • RoHS-6 Compliant (lead-free)
  • Hot-pluggable XFP footprint
  • Single Power supply: 3.3V
  • Maximum link length of 10km
  • Uncooled 1310nm DFB laser
  • No Reference Clock required
  • Built-in digital diagnostic functions

Specifications

Application/UsageData Networking, Optical Network
Product TypeXFP
Manufacturer Part NumberFTLX1413M3BCL
Maximum Distance Supported10 km
Packaged Quantity2
Weight (Approximate)0.12 lb
Connector TypeLC
Form FactorHot-pluggable
ManufacturerFinisar Corporation
Product Name10Gb/s, 10km XFP Optical Transceiver
Network Technology10GBase-LR/LW
Brand NameFinisar
Environmentally FriendlyYes
Maximum Data Transfer Rate11.32 Gbit/s
Ethernet Technology10 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
