6U Rack/Tower - AVR - 3 Minute Stand-by - 230 V AC Input - 230 V AC, 240 V AC, 220 V AC, 208 V AC, 200 V AC, 100 V AC, 110 V AC, 120 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 18 x NEMA 5-20R, 2 x NEMA L6-20R, 1 x NEMA L6-30R - Network Card, DB-9 RS-232, Dry Contact, USB, SNMP
MSRP$8,886.24
$8,175.34
Save 8%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 4 and Nov 8, then process your delivery right after.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

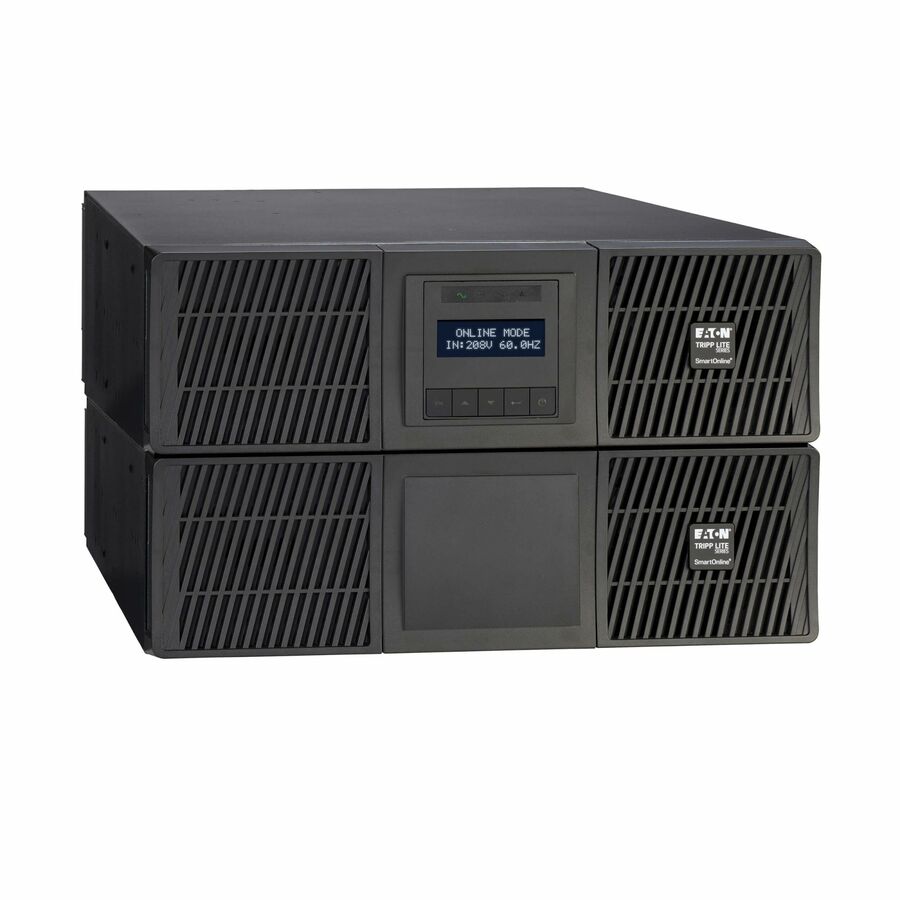

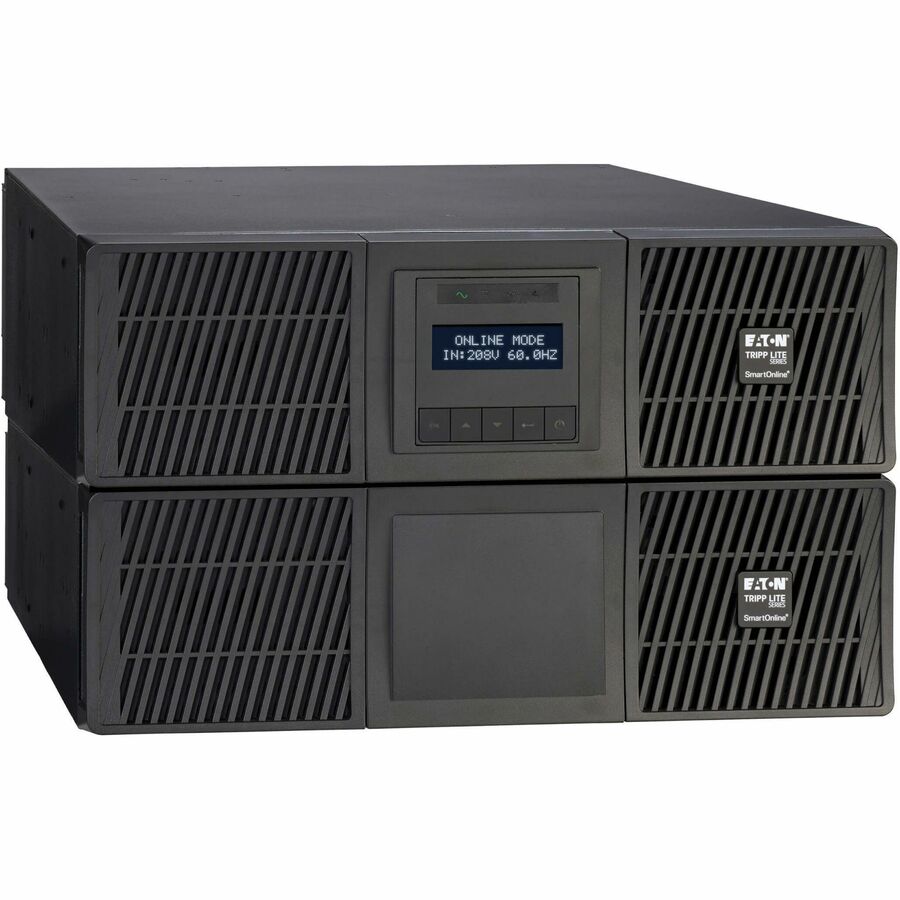

5kVA/4.5kW/208V Battery Backup for IT Installations and Edge Networks
This SmartOnline® rack-mount online double-conversion UPS system provides uninterrupted battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. An included stepdown transformer converts your UPS, utility or generator's 208V high-voltage input to 120V low-voltage output to allow connection of a wider range of components.
Expandable Internal Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Automatic restart after power outages reduces costly on-site visits. You can also connect up to four extended battery modules (BP180RT, sold separately) for hours of extended runtime.
Included Bypass Switch Isolates UPS from Connected Loads for Maintenance
The manual bypass lets you remove the UPS for maintenance without disrupting power to the connected load. The bypass reroutes utility power to keep essential equipment operational while you're servicing or replacing the UPS system.
Pre-Installed Network Interface Offers 24/7 Remote Access
The WEBCARDLXE network interface turns the SU5000RTFMB into a managed device on your network. It enables full remote configuration and SNMP-based UPS management, including load shedding, safe shutdowns and automated alerts. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment without an on-site visit. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA Outlets Protect Your Connected Components

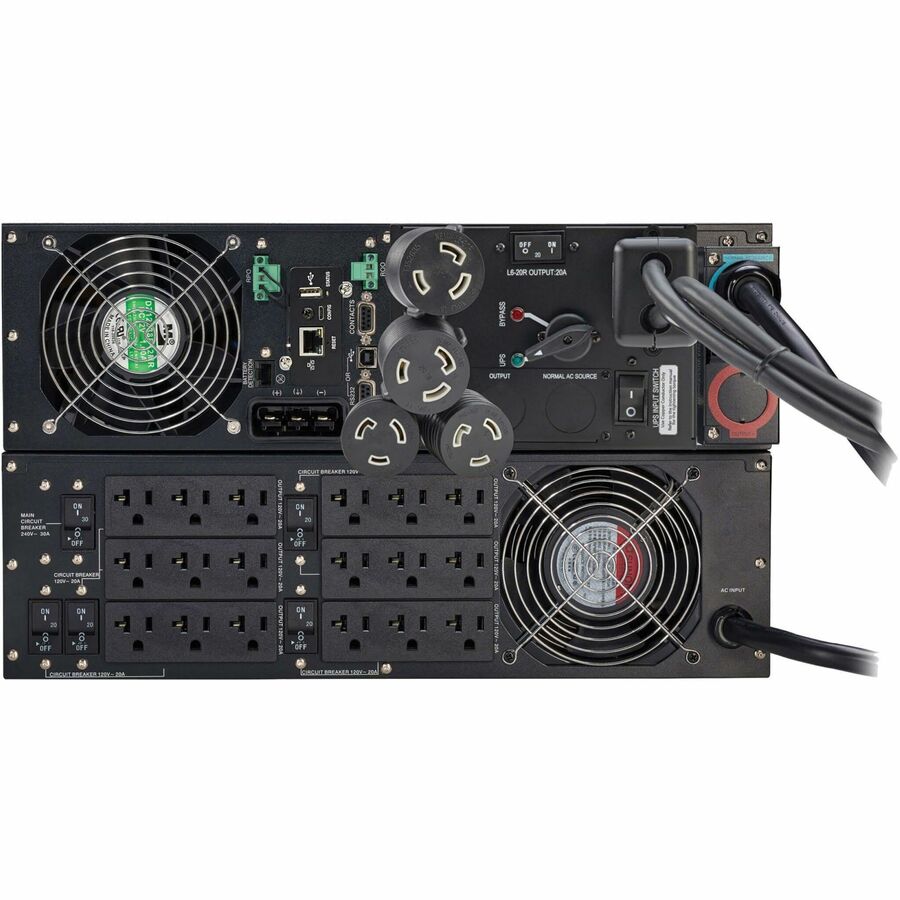

One L6-30R, two L6-20R and 18 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The SU5000RTFMB also supports hardwired output.
Intuitive LCD Interface Keeps You Informed at a Glance

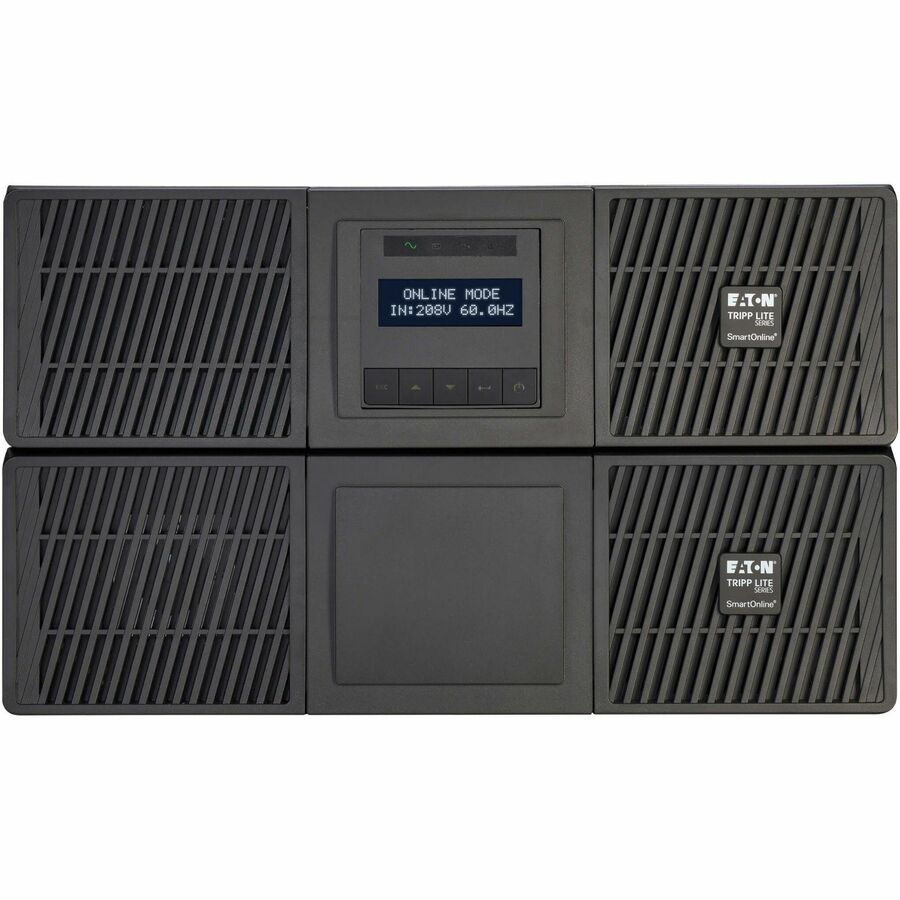

The menu-driven LCD provides control settings and critical information to help diagnose any issues, including alarm and fault notifications. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connectors permit emergency shutdown or remote restart of all connected equipment.
Versatile Installation Options

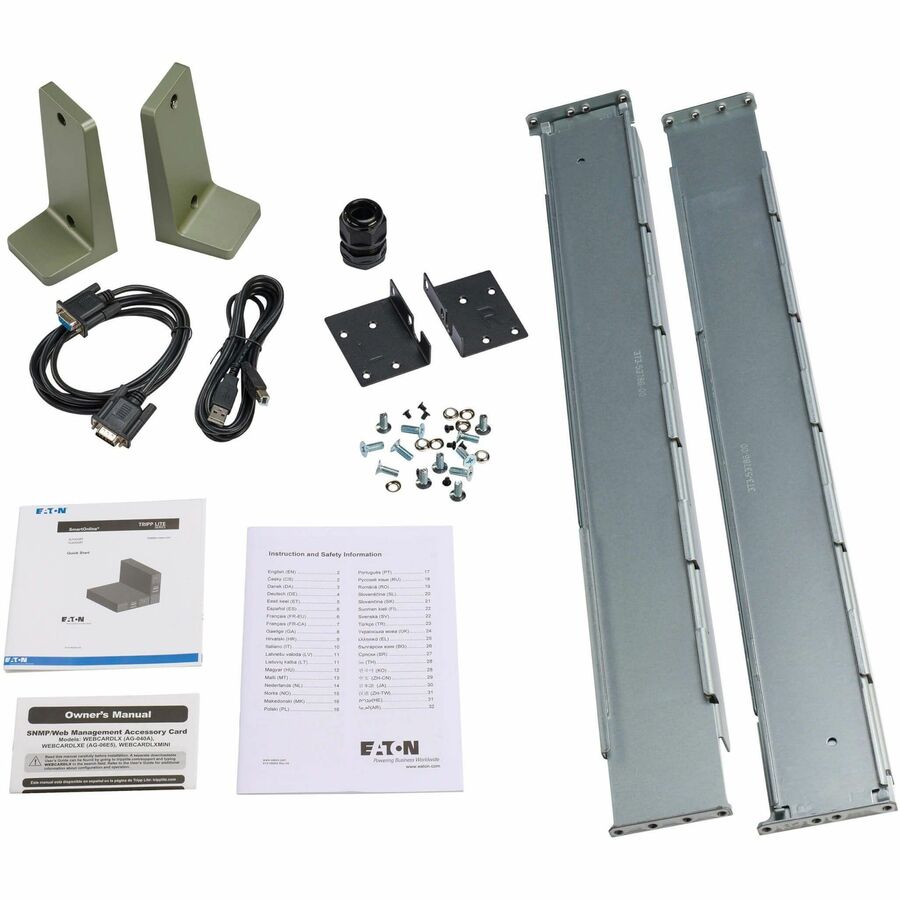

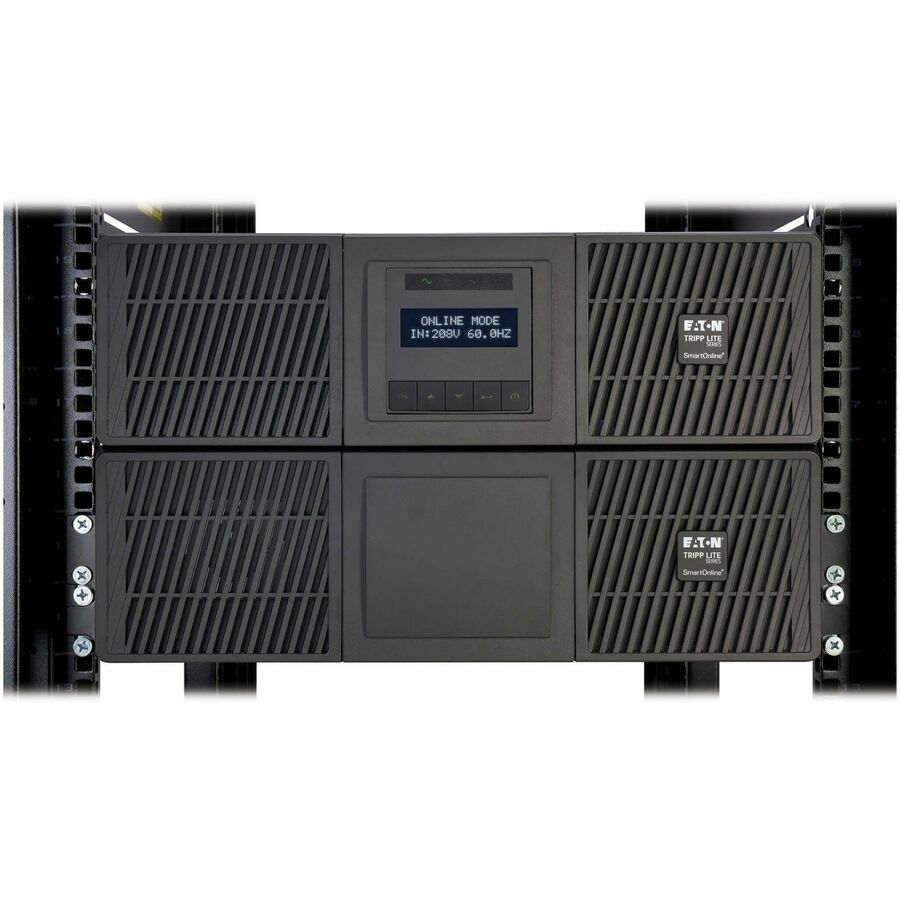

You can mount the SU5000RTFMB in 6U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately, one required for each UPS, EBM or transformer). You can also adapt it for tower installation using the included support stands. The 10-foot power cord with NEMA L6-30P plug connects to a compatible AC outlet. A cable gland is included for alternate hardwire input.
Additional Warranty Information: $250,000 Ultimate Lifetime Insurance Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Battery Information | |
|---|---|
| DC System Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | LED Indicators: 4 status-indicating LEDs |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 457.19 W |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU5000RTFMB |
| Brand Name | Tripp Lite series |
| Product Line | SmartOnline |
| Product Model | SU5000RTFMB |
| Product Name | SmartOnline SU5000RTFMB 5000VA Rack/tower UPS |
| Product Type | Double Conversion Online UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Management | |
| Network Management | Network Card, DB-9 RS-232, Dry Contact, USB, SNMP |
| Alarm | Utility Power Failure, Low Battery, Overload, Battery Fault, Remote Shutdown |
| Physical Characteristics | |
| Height | 10.20" |
| Width | 17.30" |
| Depth | 34" |
| Rack Height | 6U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 206.50 lb |
| Power Description | |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (Watt) | 4500 W |
| Input Voltage | 230 V AC |
| Input Current | 23.30 A |
| Output Voltage | 230 V AC, 240 V AC, 220 V AC, 208 V AC, 200 V AC, 100 V AC, 110 V AC, 120 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Pure Sine Wave |
| Circuit Breaker | Yes |
| Output Power Factor | 0.9 |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L6-30P, Hardwired |
| Receptacle Type | NEMA 5-20R, NEMA L6-20R, NEMA L6-30R, Hardwired |
| Receptacle Detail | 18 x NEMA 5-20R, 2 x NEMA L6-20R, 1 x NEMA L6-30R |
| Cord Length | 10 ft |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 98% (ECO Mode) |
| Application/Usage | Mission Critical Equipment, IT Equipment, Network Device |
| Surge Suppression | Yes |
| Features | Audible Alarm, Cold Start Function, Green Energy Saving, Built-in Bypass Switch |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | $250,000 Ultimate Lifetime Insurance |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
