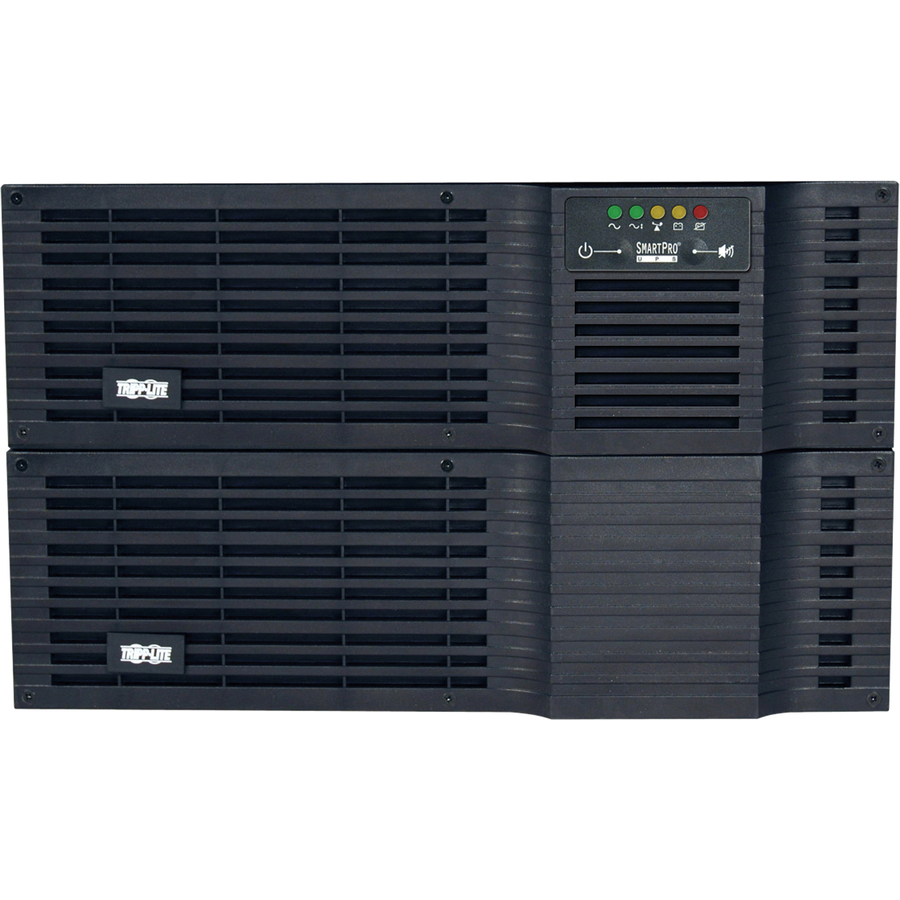

Tripp Lite by Eaton UPS Smart 5000VA 4000W Rackmount AVR 208V/120V Pure Sign Wave 5kVA USB DB9 6URM
Eaton

Tripp Lite by Eaton UPS Smart 5000VA 4000W Rackmount AVR 208V/120V Pure Sign Wave 5kVA USB DB9 6URM

5000VA/4000W - 16 Minute Full Load - 10 x NEMA 5-15R, 2 x NEMA 5-20R, 1 x NEMA L6-30R, 1 x NEMA L14-30R

SKU
SMART5000RT3U
Category
General Purpose UPS

MSRP$7,680.00

$4,850.53

Save 37%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SMART5000RT3U
Category
General Purpose UPS

Overview

Tripp Lite's line-interactive SMART5000RT3U UPS System protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Includes slot for internal SNMP/web card, plus two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. 2 Year Warranty standard. 3 Year Warranty with product registration.

More from the Manufacturer

Plug-Lock Inserts (Blue) Keep IEC Power Cord Connections Secure (100 Pack)

IEC plugs are frequently loose-fitting and can be accidentally disconnected from a PDU by even the slightest nudge or vibration, a common occurrence when performing network maintenance. Tripp Lite’s blue PDU Plug-lock Inserts fit over the input plug for a secure connection so the power stays on.

Avoid Accidental Power Loss with a Simple and Inexpensive Installation

With over 10x more retention force than a standard plug-to-inlet connection, the PLC19BL strengthens the connection of the plug to the outlet, keeping critical equipment plugged-in and running during routine rack access and maintenance.

The PLC19BL is universally compatible, with no special cables or brand-specific locking schemes. Installing a PLC19BL couldn’t be easier: simply place the plug-lock insert over any C20 input cord and connect it to any C19 outlet. The PLC19BL ships in quantities of 100 as a no-clutter alternative to common zip-tie cord retention schemes. The PLC19BL is also a low-cost answer to expensive proprietary locking plug and outlet hardware.

2-Year Warranty and Environmentally Responsible Design

The PLC19BL comes backed by a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.

Warranty

Limited Warranty: 3 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • 5kVA / 5000VA / 4000W line interactive 6U rack/tower UPS; Sine wave output
  • 208 & 120V output during brownouts to 151V and overvoltages to 260V
  • USB, Serial, EPO & optional SNMP/Web card monitoring options
  • Expandable runtime; 8 single-outlet switched output load banks
  • NEMA L6-30P input; 10 5-15R, 2 5-15/20R, 1 L6-30R & 1 L14-30R outlets

Specifications

Battery Life6 Year
Battery ChemistryLead Acid
Package Contents
  • SMART5000RT3U UPS
  • SMART5000RT3U UPS System
  • BP48V60RT3U battery pack
  • PowerAlert Software and cabling
  • Mounting hardware
  • Instruction manual with warranty information
Product TypeLine-interactive UPS
Hot SwappableYes
Input Voltage220 V AC
Manufacturer Part NumberSMART5000RT3U
Limited Warranty3 Year
Output Voltage208 V AC
Weight (Approximate)58.50 lb
Status Indicators5 front panel LEDs - Green 5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LED, red BATTERY WARNING LED
ManufacturerEaton Corporation
Product ModelSMART5000RT3U
Product NameSMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS
Network ManagementSNMP Manageable
Product LineSmartPro
Waveform TypeSine Wave
Rack Height6U
Brand NameTripp Lite series
Plug/Connector TypeNEMA L6-30P
AlarmOn Battery, Overload, Low Battery
Country of OriginChina
Cord Length10 ft
Height3.50"
Width17.25"
Depth16.75"
Receptacle TypeNEMA 5-20R, NEMA L14-30R, NEMA 5-15R, NEMA L6-30R
USBYes
Maximum Operating Temperature104°F (40°C)
Backup/Run Time (Half Load)38 Minute
Backup/Run Time (Full Load)16 Minute
Load Capacity (VA)5000 VA
Load Capacity (Watt)4000 W
Transfer Time4 ms
Typical Battery Recharge Time4 Hour
Receptacle Detail2 x NEMA 5-20R, 1 x NEMA L14-30R, 10 x NEMA 5-15R, 1 x NEMA L6-30R
