Eaton Tripp Lite Series Keystone Jack Cat6/Cat5e, RJ45, Shuttered, Dust Cap - Toolless, PoE/PoE+ Compliant, White, TAA

Toolless Keystone Jack Strengthens Your High-Speed Cat5e/Cat6 Network

Terminate your network patch cable without the time, effort and expense of a punchdown tool. Ideal for Cat6 premise wiring, the RJ45 keystone jack snaps into wall plates, patch panels and surface-mount boxes and works with all shielded Cat6 cables. Toolless punchdown connection is compatible with 22-24 AWG solid wire cabling. A shutter/dust cap protects the jack from dust and other contaminants when not in use.

Specifically Designed for Use in Surveillance, VoIP and Other PoE+ Applications

This PoE+ (Power over Ethernet) jack prevents spark-gap erosion that degrades the plug and jack contacts over time and can affect data and/or power transmission capabilities to maximize performance with PoE applications. The N238-001-GY-TF handles the frequent mating and unmating of surveillance cameras, VoIP phone systems, wireless access points and other PoE and PoE+ devices under electrical load.

TAA-Compliant for GSA Schedule Purchases

The N238-001-GY-TF is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

More from the Manufacturer

Product Summary

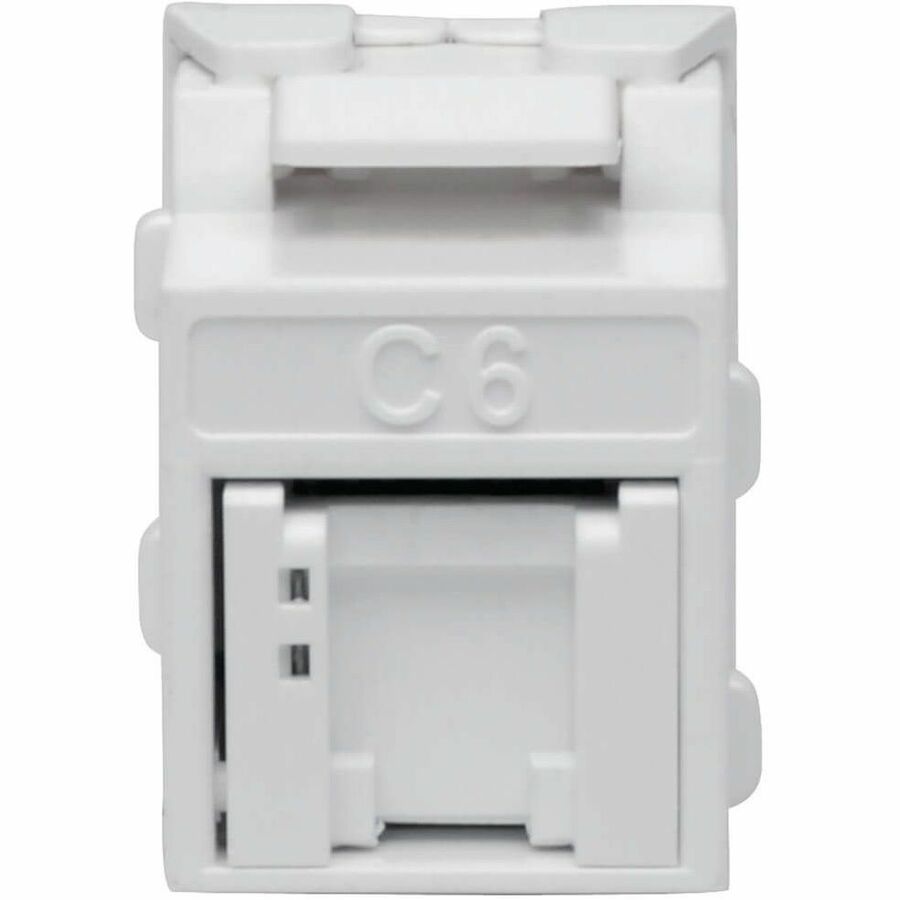

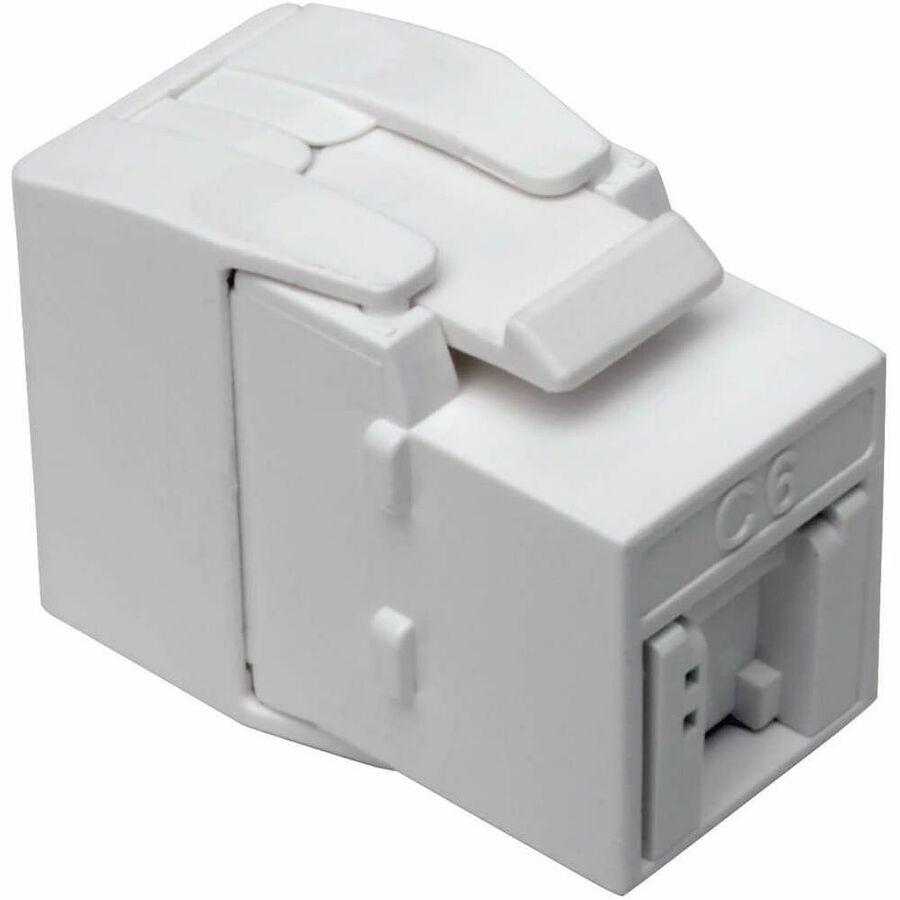

White keystone jack terminates a Cat6a/6/5e cable in a 110 IDC wall jack

110 IDC connector compatible with 22-24 AWG solid wire cabling

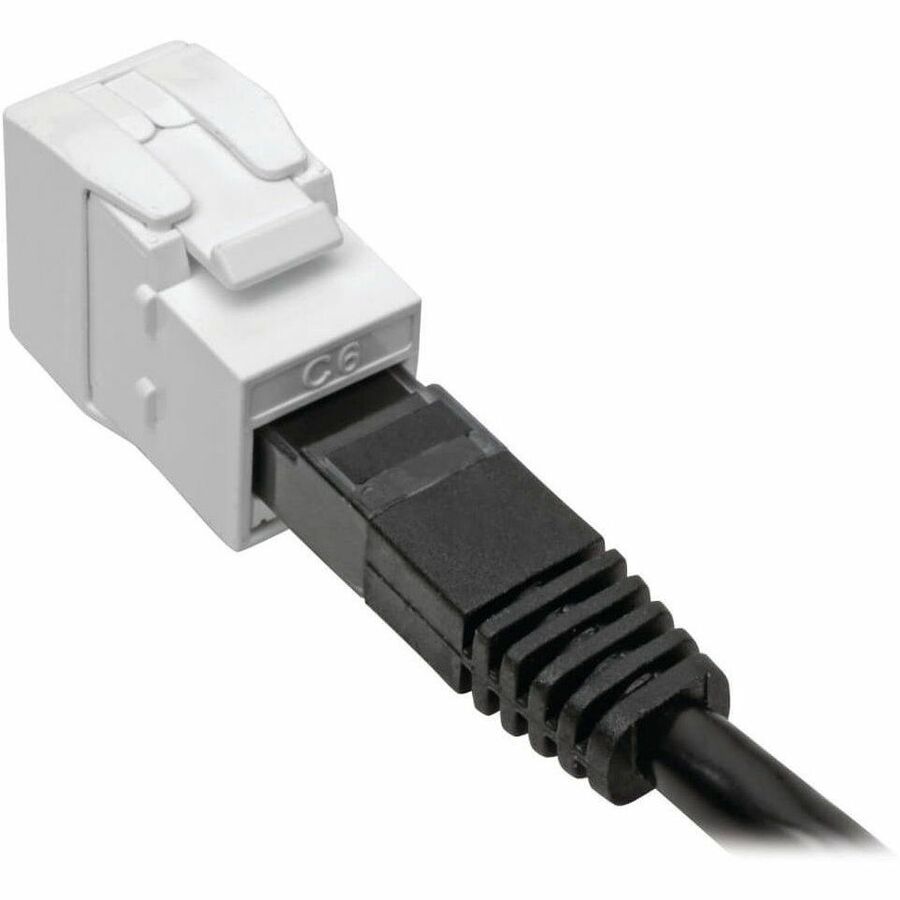

Female RJ45 connector compatible with all Cat6a/6/5e cabling

PoE+ compliant

UL-listed and compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

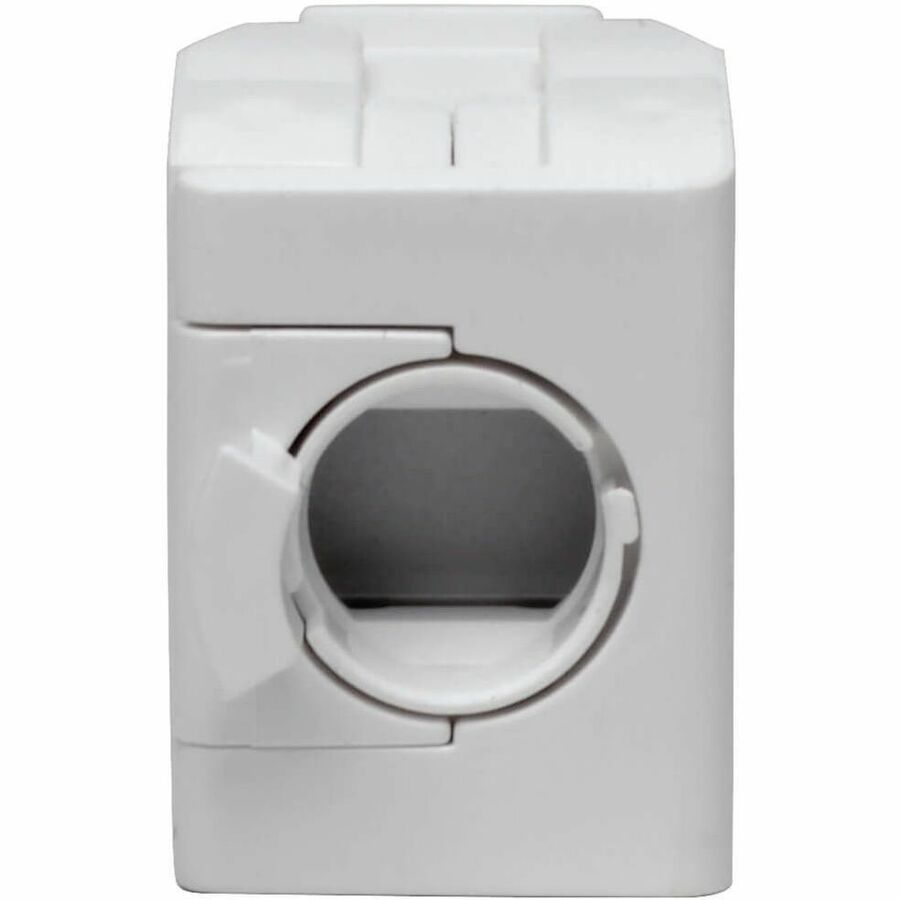

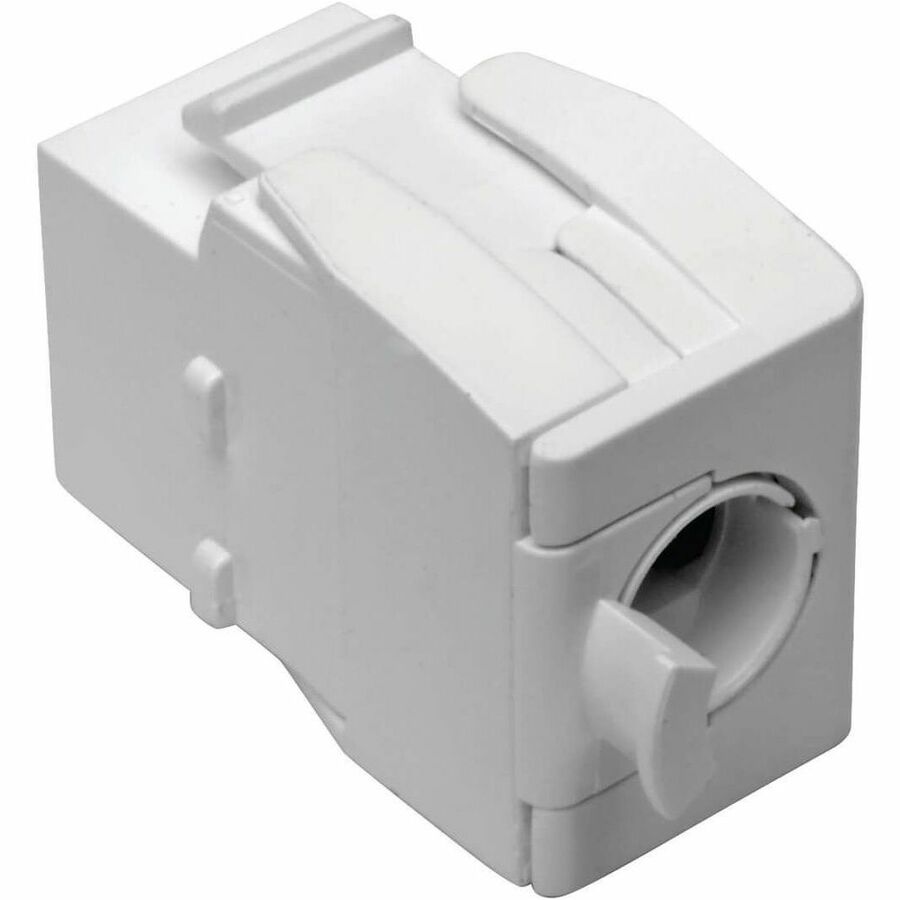

Shutter/dust cap protects it from dust and contaminants when not in use

Quality Construction for Superior Performance

The specially designed N238-001-GY-TF jack prevents spark-gap erosion, making it ideal for PoE+ (Power over Ethernet Plus) applications like surveillance and unified communications by adding longevity to the plug and contacts, and protecting their transmission quality. Its fully shielded protective metal housing helps fight against EMI/RFI line noise that interferes with your network signal and can distort or destroy data. Its shutter/dust cap protects it from dust and contaminants when not in use.

Designed for Simple, Toolless Termination

There’s no need for a 110-style punchdown tool with the N238-001-GY-TF keystone jack. Simply lace the cable’s conductors into the stuffer cap, press them onto the 110 connectors and lock the jack in place to make the connection.

Broad Compatibility for a Range of IT Applications

The N238-001-GY-TF’s punchdown connection is compatible with 22-24 AWG solid wire cabling in all standard keystone wallplates, patch panels and surface-mount boxes. Its female RJ45 port is compatible with all shielded Cat6a/6/5e cables.
