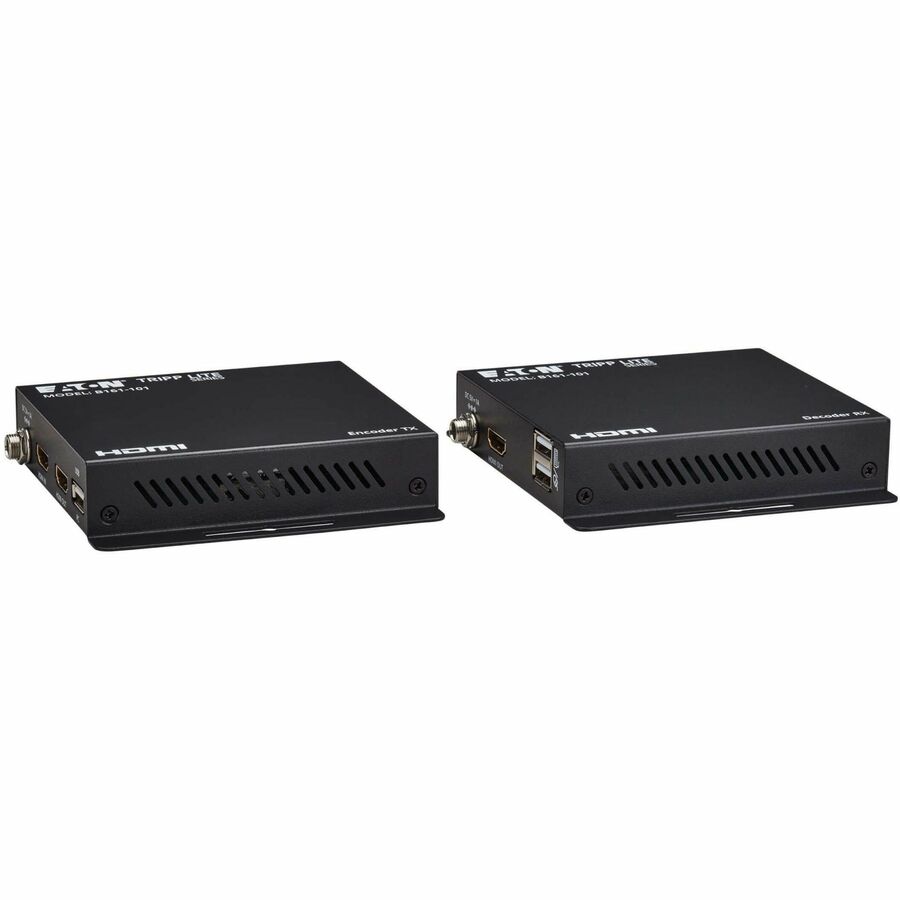

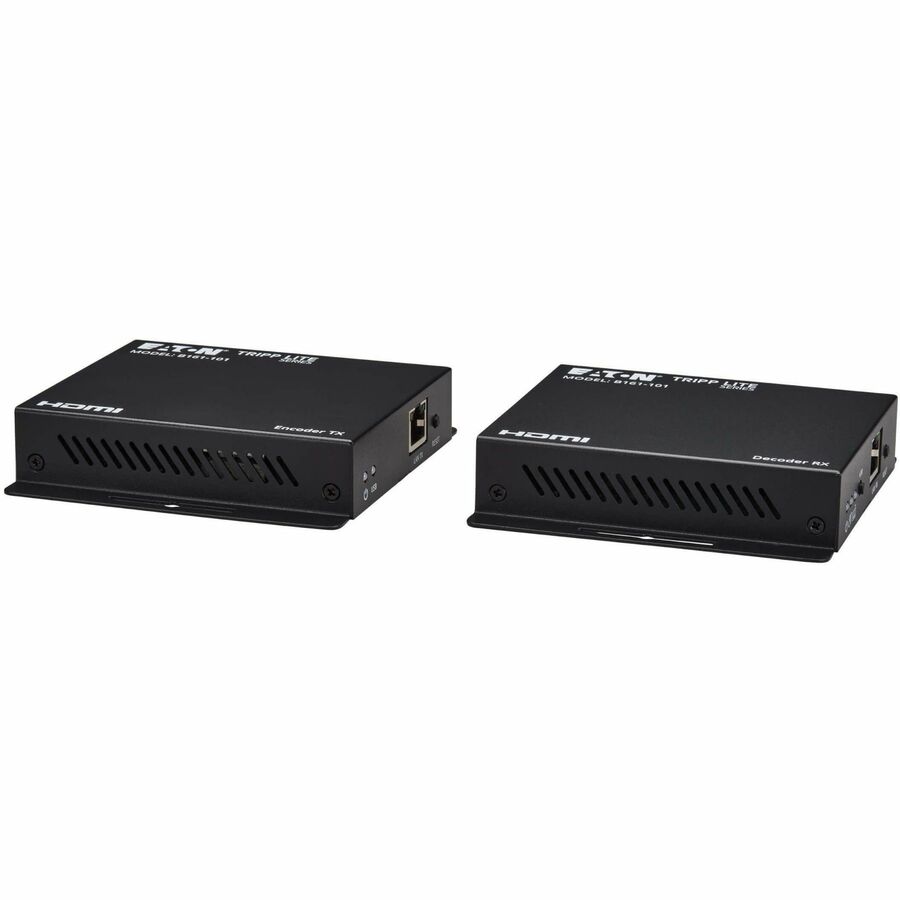

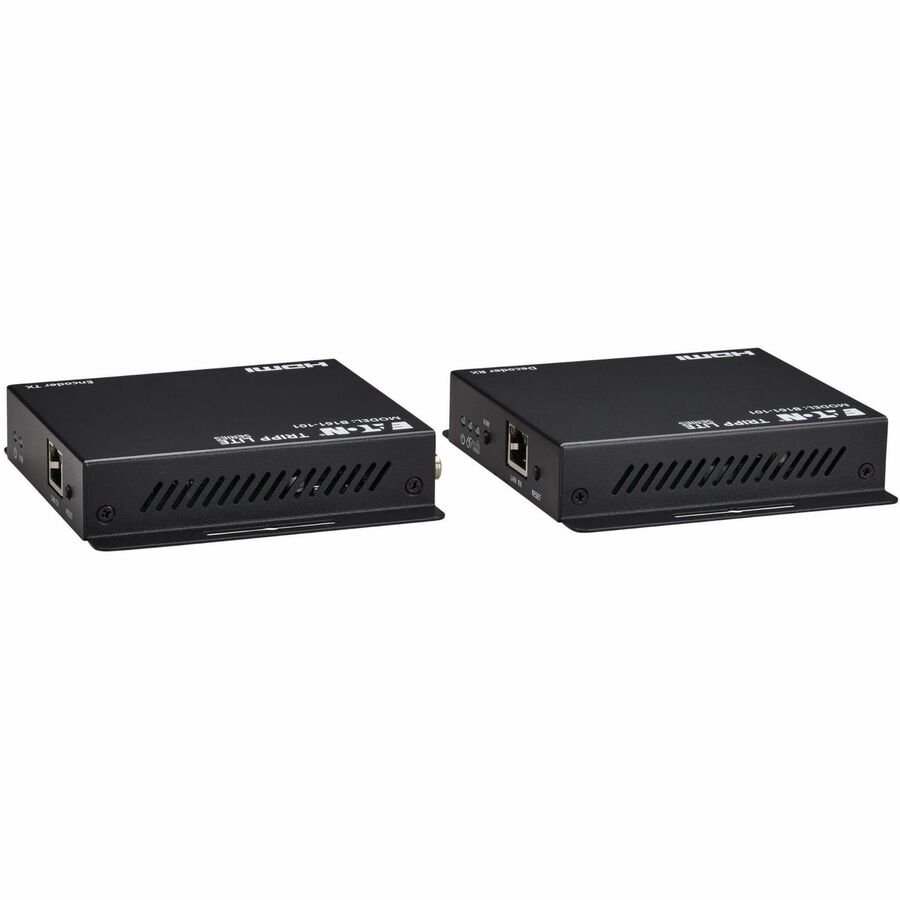

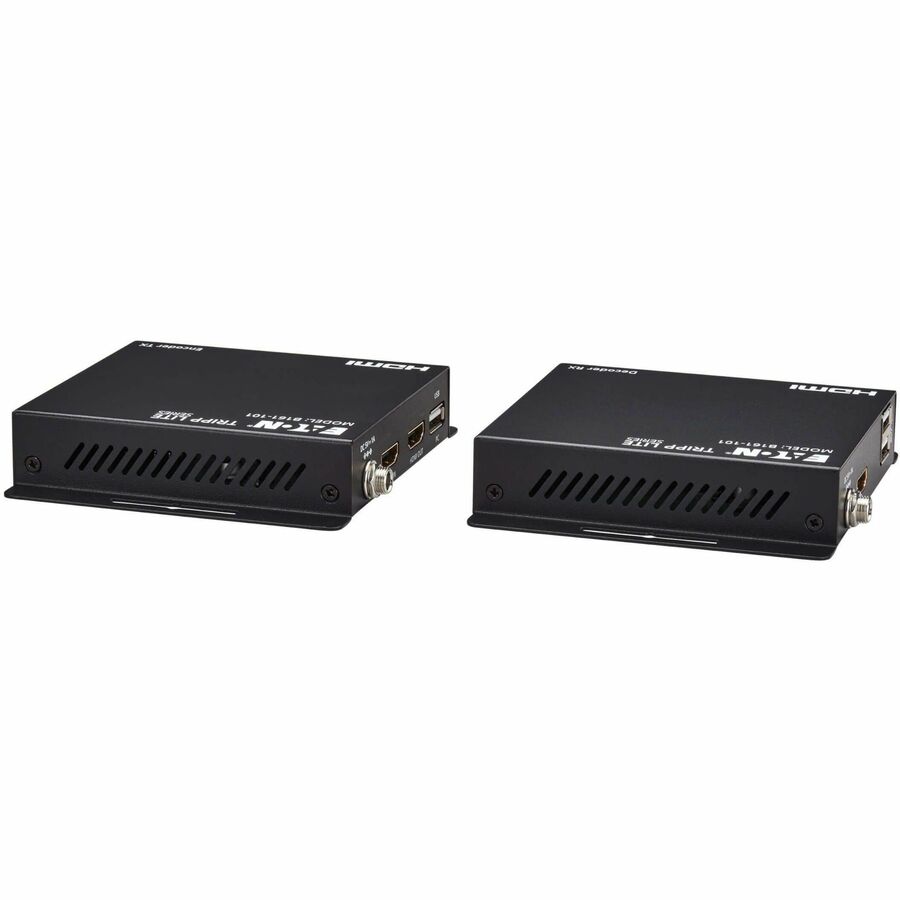

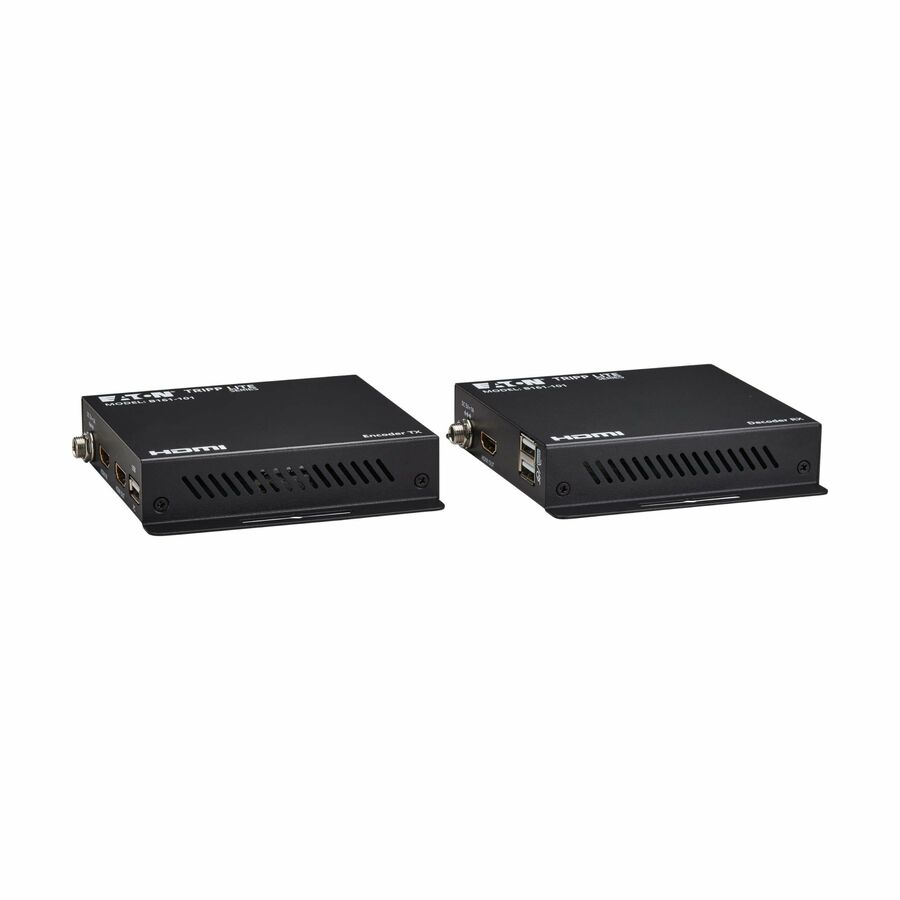

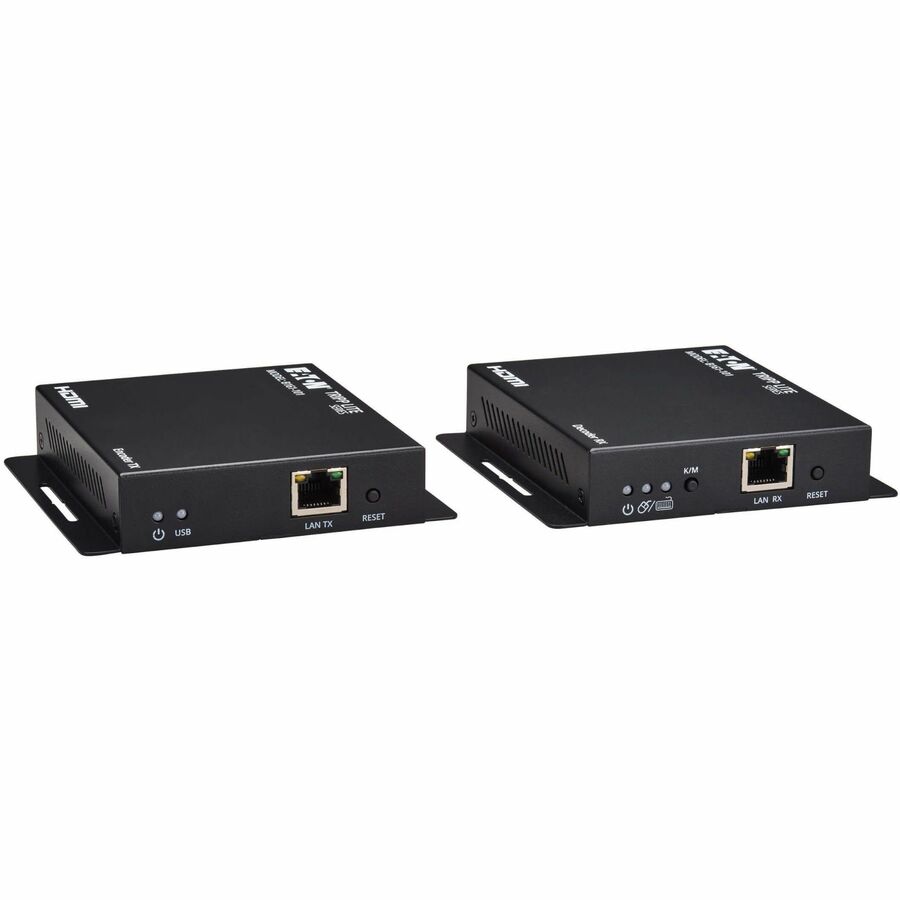

Tripp Lite series HDMI over IP Encoder/Decoder Kit with KVM - 4K, TCP/IP, Up to 393 ft. (120 m)
1 Input Device - 2 Output Device - 393.70 ft Range - 2 x Network (RJ-45) - 3 x USB - 1 x HDMI In - 2 x HDMI Out - 480p, 720p, 1080i, 1080p - 4K - 3840 x 2160 - Twisted Pair - Category 5, Category 5e, Category 6 - Power over Ethernet (PoE) - Display, Trade Show, Educational Facilities, Airport, Conference Room, Shopping Center, A/V Equipment, Notebook, Desktop PC, Mouse, Keyboard, ... - Wall Mountable
- SKU
- B161-101
- Category
- Audio & Video Consoles/Extenders
MSRP$370.00
$219.11
Save 41%In stock: 183
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- B161-101
- Category
- Audio & Video Consoles/Extenders
Overview
An Effective Digital Signage Solution Designed for Easy Setup and Operation
This HDMI over IP encoder and decoder kit supports visually lossless 4K signals with low latency up to 393 feet (120 meters) point to point or via a standard Gigabit Ethernet switch. Engineered to meet today's demands of large-scale, multi-display 4K signal transmission, the B161-101 is ideal for a wide range of indoor environments, such as trade shows, airports, university campuses, conference centers and shopping centers. The kit follows TCP/IP standards for reliable AV over IP installations.
Lightweight Compression with Ultra-Low Latency
The kit uses advanced video lossless compression technology to extend 4K video at 30 Hz with 3.4 Gbps/340 mHz per channel (10.2 Gbps all channels), 3D video support and 12-bit per channel color depth.
Limitless Scalability and Flexibility
Mix and match the latest 4K displays in simple point-to-point setups or more elaborate point-to-multipoint setups via LAN (local area network) without distance limitations. In conjunction with multiple B161-001 extender receivers (sold separately), this kits offers multi-functionality in video wall and daisy-chain applications.
Configure Video Installations with a Keyboard and Mouse
Connect the transmitter's USB-A port to a computer and connect a keyboard and mouse to the KVM ports on the receiver to control the video installation from the display side.
Extend Multiple B161-Series Decoders
Connect multiple B161-001 decoder units (sold separately) through a dedicated Ethernet network switch. Cabling and system deployment is easy with fewer cables needed. The daisy-chain function is especially ideal for large-scale deployment covering a wide area, such as hotels, airports, shopping malls and expo centers.
Warranty
Limited Warranty: 1 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Complete 4K HDMI over IP kit includes both an encoder and a decoder
- Supports 1-to-1 or 1-to-many AV installations with additional B161-001 receivers
- Supports 4K @ 30 Hz video resolutions with 3D and 12 bits per channel
- Supports remote USB mouse/keyboard connections for KVM functionality
- Plug-and-play operation with no software required for easy, immediate installation
Specifications
| Application/Usage | Display, Trade Show, Educational Facilities, Airport, Conference Room, Shopping Center, A/V Equipment, Notebook, Desktop PC, Mouse, Keyboard, Hotel Room, HDTV, Projector, Monitor |
|---|---|
| Package Contents |
|
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | B161-101 |
| Limited Warranty | 1 Year |
| Connectivity Technology | Wired |
| Form Factor | Wall Mountable |
| Manufacturer | Eaton Corporation |
| Product Model | B161-101 |
| Product Name | HDMI over IP Encoder/Decoder Kit with KVM - 4K, TCP/IP, Up to 393 ft. (120 m) |
| Brand Name | Tripp Lite series |
| Country of Origin | Philippines |
| Graphics Modes | 4K |
| Environmentally Friendly | Yes |
| Environmental Certification | TÜV Rheinland Green Product |
| Maximum Video Resolution | 3840 x 2160 |
| Twisted Pair Cable Standard | Category 5, Category 5e, Category 6 |
| Maximum Operating Distance | 393.70 ft |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 3 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 2 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 2 |
| Number of Input Devices Supported | 1 |
| Transmitter Height | 6.70" |
| Transmitter Width | 5.01" |
| Transmitter Depth | 1.14" |
| Receiver Height | 6.70" |
| Receiver Width | 5.01" |
| Receiver Depth | 1.14" |
| Transmitter Weight (Approximate) | 1.48 lb |
| Receiver Weight (Approximate) | 1.48 lb |
| Product Color | Black |
| Supported Video Modes | 480p, 720p, 1080i, 1080p |
| Data Link Protocols | TCP/IP |
| Power over Ethernet (PoE) | Yes |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
