3840 x 2160 - DisplayPort - 4 x HDMI Out - Gold, Nickel Plated - Plastic - TAA Compliant
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

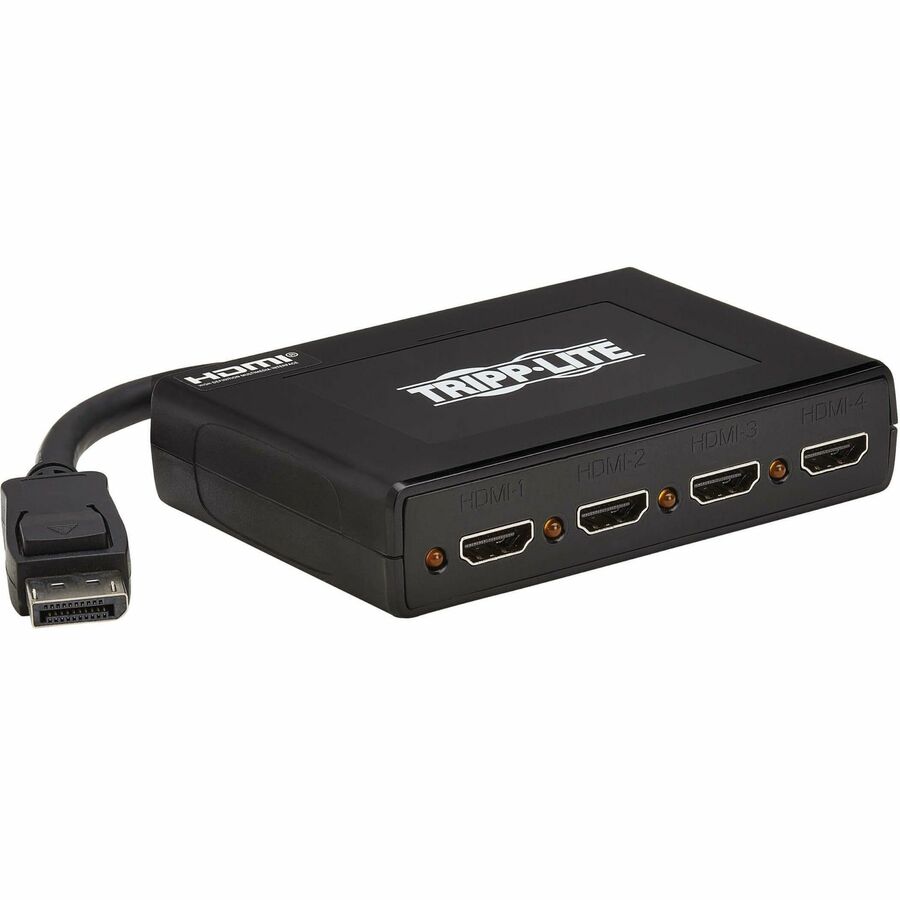

Features | Connect up to 4 HDMI Monitors to Your DisplayPort Computer
This multi-display splitter connects as many as four 4K HDMI monitors, projectors or televisions to the DisplayPort output on your laptop or desktop computer. Recommended for digital signage in schools, churches, trade shows, hotels, office conference rooms, restaurants, bars and retail outlets, the B156- 004-HD-V3 helps you create video walls, give audio/video presentations in front of large audiences or stream 4K video to multiple locations.
DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays

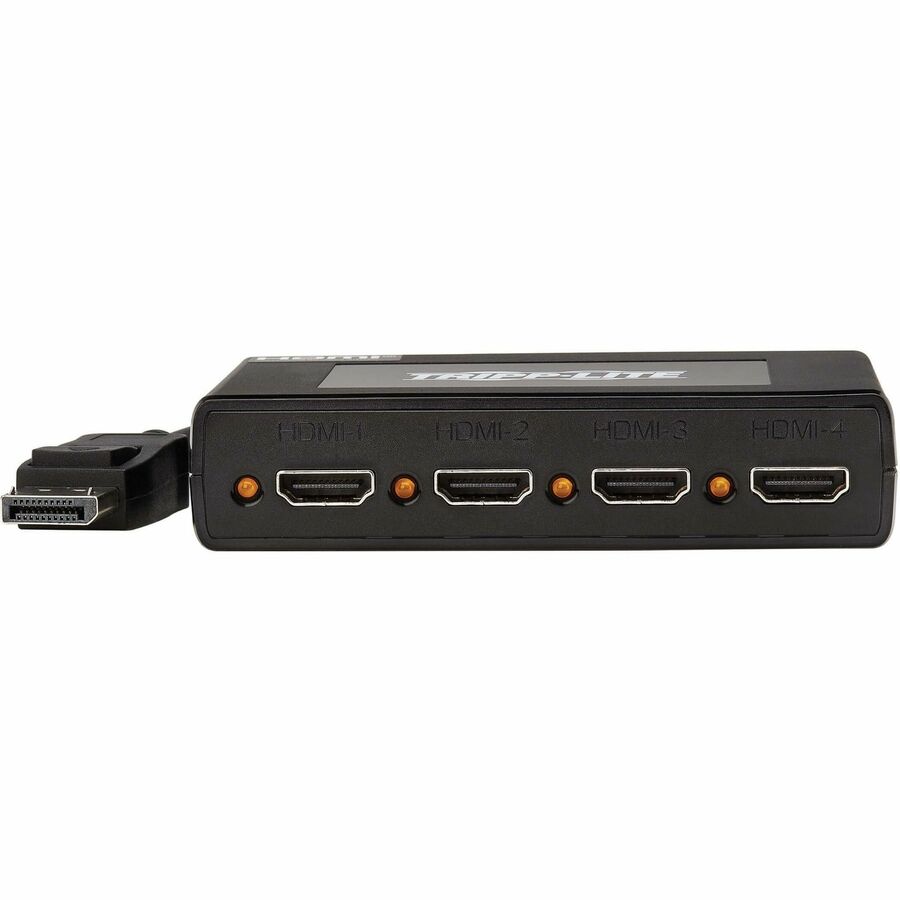

By connecting the built-in DisplayPort cable to a source that supports DisplayPort MST Mode, you may connect up to four displays simultaneously. This allows you to display the same image on each monitor, extend your host desktop across all four monitors or combine all four monitors into one large display as a video wall. LED indicators let you know which monitors are receiving an AV signal.
Transmits 4K Video with 4:4:4 Color
The B156-004-HD-V3 supports HD resolutions up to 1920 x 1080 at 60 Hz per monitor with 16-bit Deep Color and 2-channel LPCM audio. In video wall mode, it supports expanded resolutions, including 3840 x 2160 at 60 Hz (2x2 monitor configuration), 7680 x 1080 at 60 Hz (4x1 vertical configuration) and 1920 x 4320 at 60 Hz (1x4 horizontal configuration). The B156-004-HD-V3 is compliant with DisplayPort 1.2 standards and is backward compatible with previous versions.
Designed for Plug-and-Play Convenience

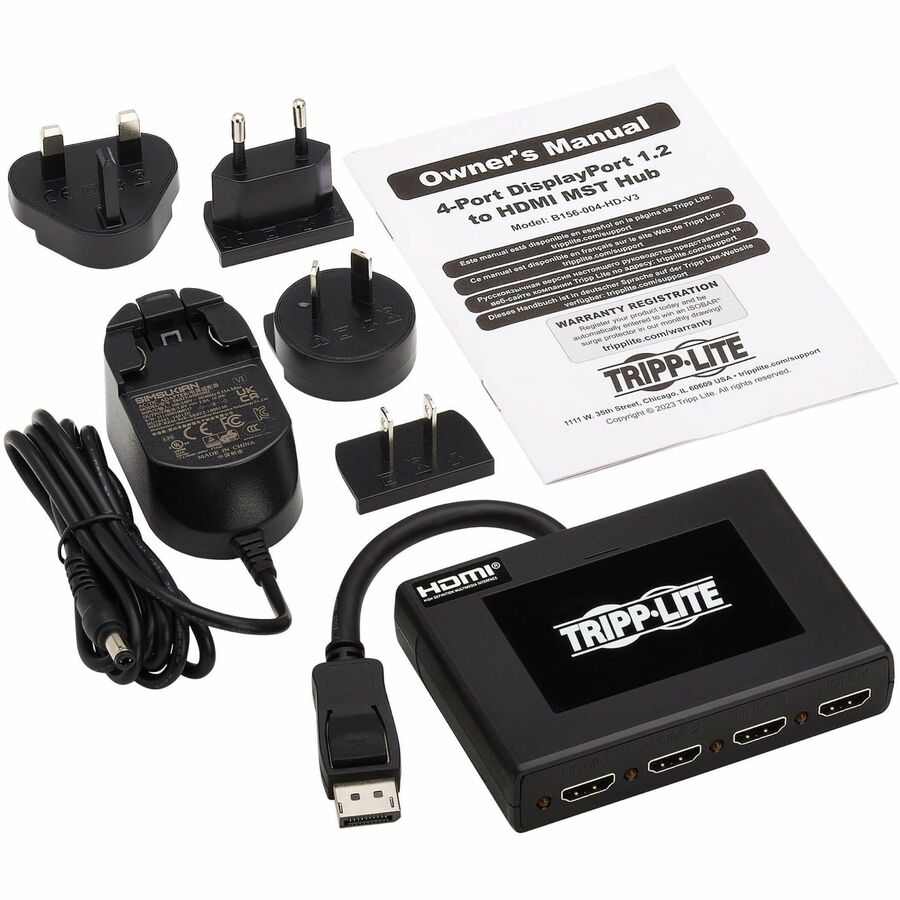

Just connect your source device using the built-in DisplayPort cable and your display devices with usersupplied HDMI cables up to 15 feet (4.6 meters). No software or drivers are needed. Plug the included external power supply into a compatible AC outlet. Four international plug adapters (North America, U.K., Europe, Australia) are also included.
TAA-Compliant for GSA Schedule Purchases
The B156-004-HD-V3 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Limited Warranty: 3 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B156-004-HD-V3 |
| Brand Name | Tripp Lite series |
| Product Model | B156-004-HD-V3 |
| Product Name | B156-004-HD-V3 4-Port DisplayPort to HDMI MultiMonitor Splitter |
| Product Type | Signal Splitter |
| Interfaces/Ports | |
| DisplayPort | Yes |
| HDMI Out | Yes |
| Number of DisplayPort Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Physical Characteristics | |
| Product Material | Plastic |
| Connector Plating | Gold, Nickel |
| Height | 4.3" |
| Width | 3" |
| Depth | 0.9" |
| Weight (Approximate) | 3.20 oz |
| Power Description | |
| Input Voltage | 120 V AC, 230 V AC |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
