Tripp Lite by Eaton NetDirector 16-Port Cat5 KVM over IP Switch - Virtual Media 2 Remote + 1 Local User 1U Rack-Mount TAA

Tripp Lite's 16-port NetDirector Cat5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to 3 (1 Local and 2 Remote) independent, simultaneous users. A single unit occupies a mere 1U of rack space, yet can control up to 16 directly connected computers, and a maximum of 256 computers when a second level of B064-016 KVM switches are cascaded. A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows based log server or Syslog server. Accessing the connected computers is a breeze; view multiple computers at the same time using panel array mode, automatically sync USB mice, access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Other features include dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing. 3 year limited warranty.

More from the Manufacturer

Control up to 16 Computers from Anywhere in the World

Tripp Lite’s B064-016-02-IPG NetDirector 16-Port Multi-User Cat5 IP KVM Switch is an optimal solution for remotely controlling multiple servers, including blade servers, and a combination of PS/2, USB and serial computers. (Tripp Lite B055-001-Series server interface units and Cat5 patch cables are required; sold separately). A single B064-016-02-IPG occupies a mere 1U of rack space, yet can control up to 16 directly connected computers up to 165 ft. away. This switch uses inexpensive Cat5 cabling, allowing you to integrate it into your existing installation with ease.

Built-In Features Simplify IT Management Tasks

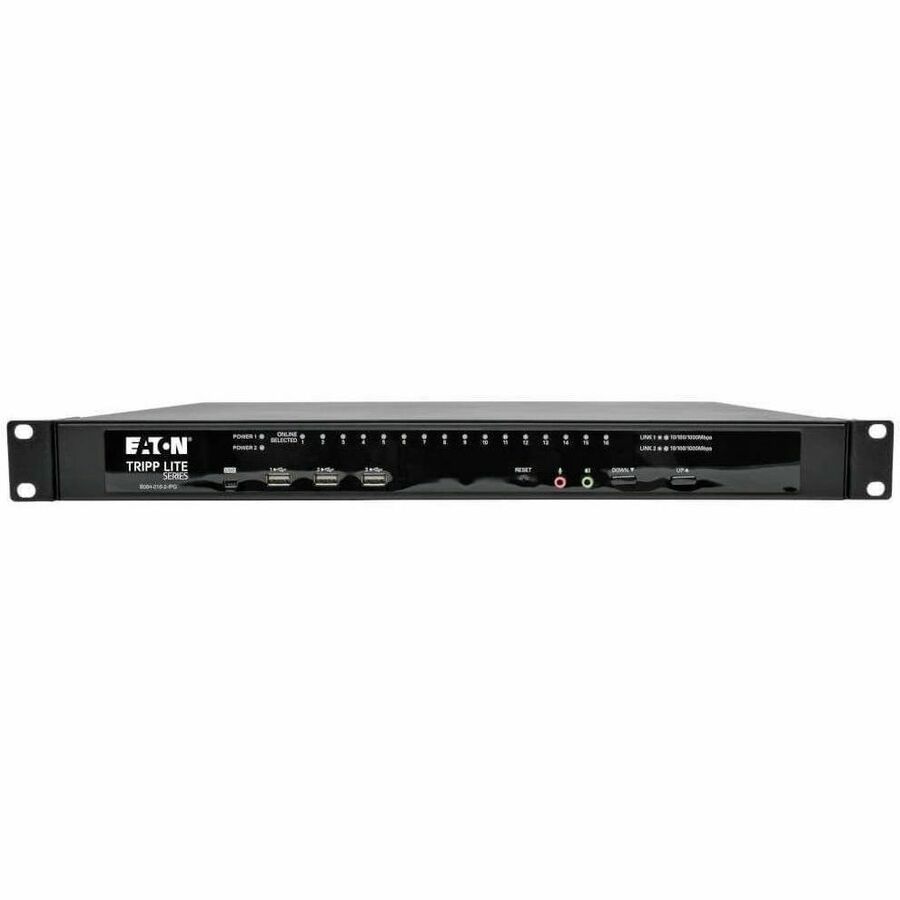

You can access connected computers with the on-console pushbuttons, keyboard hot keys or the on-screen display. Two LEDs per KVM port indicate servers’ connected, selected and powered-on statuses, making local management convenient. The 1600 x 1200 high-resolution OSD provides a graphical user interface with management tools that include custom port labeling, auto-scanning and panel array mode. The OSD can be displayed in English, German, Russian, Japanese, traditional Chinese or simplified Chinese. Accessing the connected computers is a breeze and multiple computers can be viewed at the same time using panel array mode. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows-based log server or Syslog server.

All-in-One Solution for Critical Systems

The B064-016-02-IPS offers a comprehensive, cost-effective network management solution. No server-resident software is required, so server performance and reliability are never compromised. Flash-upgradable firmware fine-tunes compatibility with emerging standards. It is compatible with all major operating systems.

Virtual Media allows connected computers using select Tripp Lite B055-001-Series Server Interface Units to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the controlling computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse.

Adapts to Virtually Any Type of Display

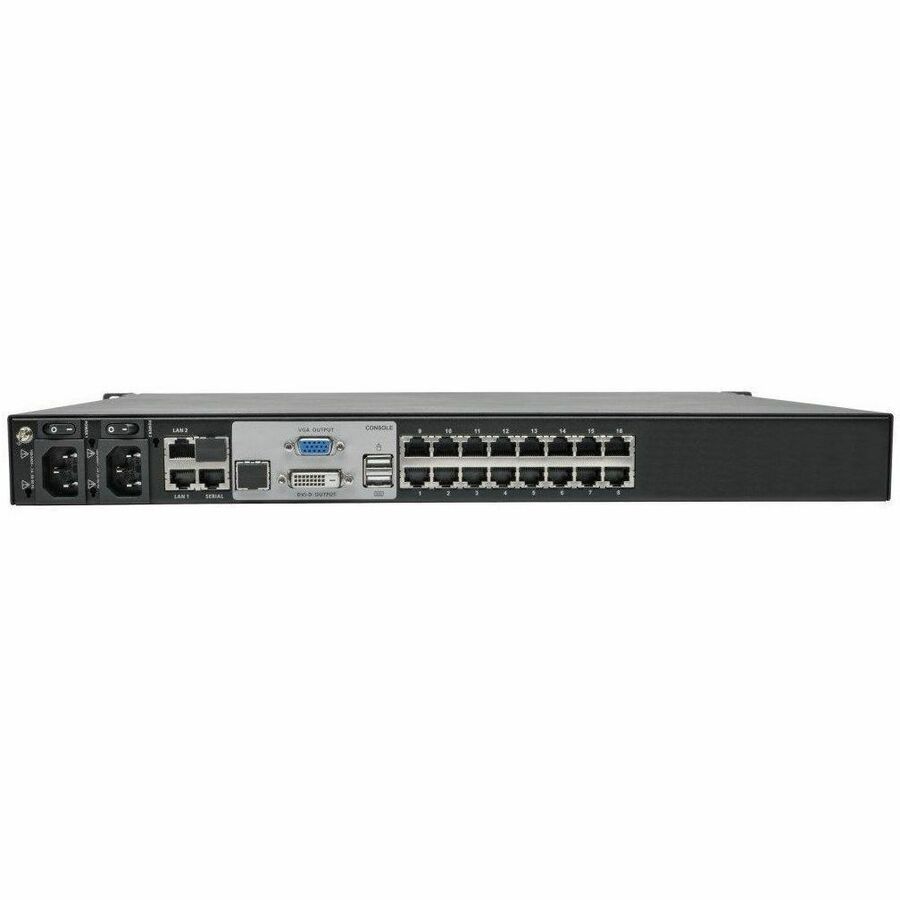

The B064-016-02-IPG includes connectors for both VGA and DVI displays. With the addition of an optional B055-001-Series Server Interface, you can connect this switch to a console that supports HDMI or DisplayPort.

The B064-016-02-IPG features built-in IP access that supports up to three simultaneous users: one local and two remote. This KVM switch supports IPv4, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols. Two 10/100/1000 Mbps network connections give you redundant LAN or two-IP operation.

Advanced Security and Rugged Construction

To keep connected computers secure, the B064-016-02-IPG supports multi-level user authentication; remote authentication via RADIUS, LDAP, LDAPS and Active Directory; and advanced encryption technologies: 1024-bit RSA, 56-bit DES, 256-bit AES and 128-bit SSL. Other features that make this switch ideal for high-density IT environments include dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, optional dial-in modem access and non-browser access using Windows and Java applications. A heavy-duty steel housing ensures the unit will stand up to frequent use.

3-Year Warranty and Environmentally Responsible Design and TAA

For peace of mind, the B064-016-02-IPG comes with a 3-year warranty. It’s also manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.

The B064-016-02-IPG is compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
