Hardwired Input/Output, Cybersecure Network Card, Extended Run, 6U Rack/Tower
6U Rack/Tower - 3 Hour Recharge - 3.50 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 100 V AC, 110 V AC, 120 V AC Output - Single Phase - Sine Wave, Pure Sine Wave - Serial Port - USB - LCD Display - INDGW-M2 Card, Relay-MS Card, Network-M3 Card, Network Card
Request pricing
Confirmed with stock before any payment.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Features | 5kVA/5kW/120V/208V Battery Backup for Distributed IT and Edge Networks

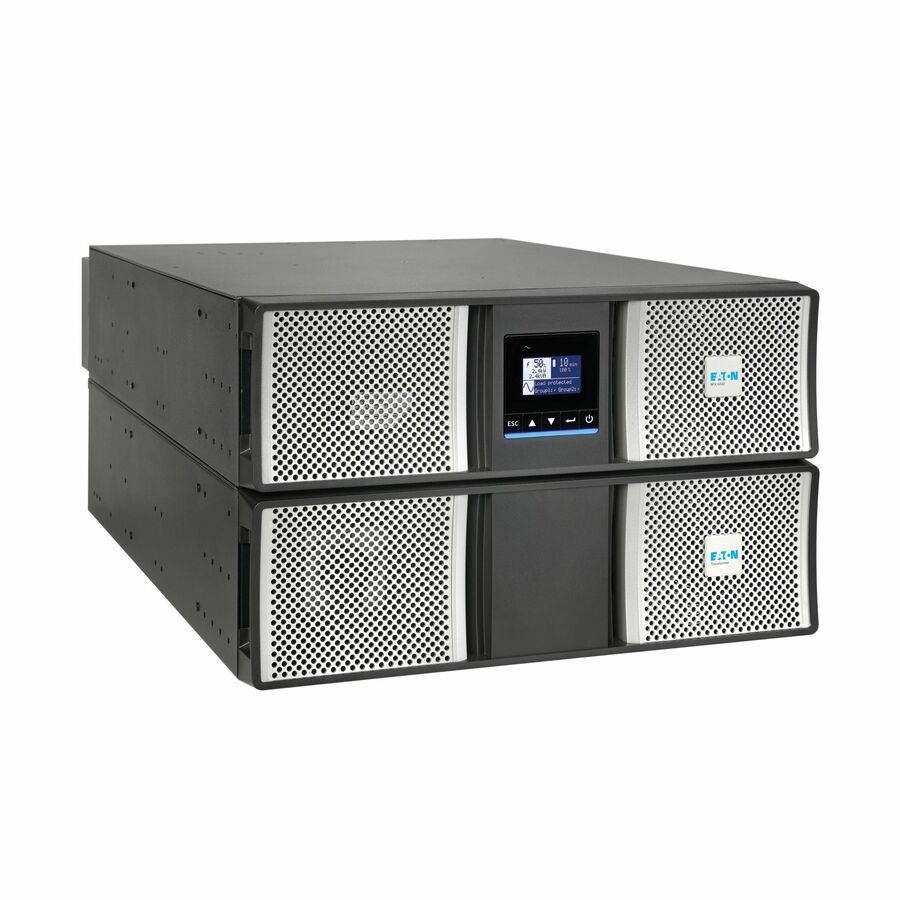

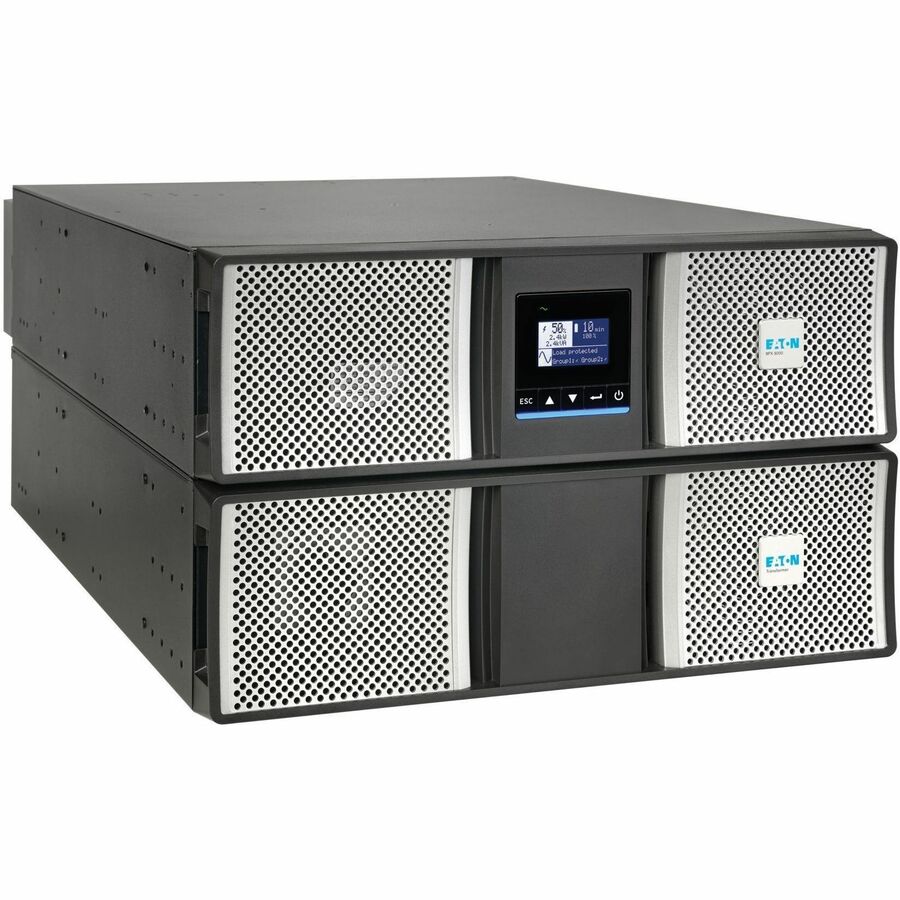

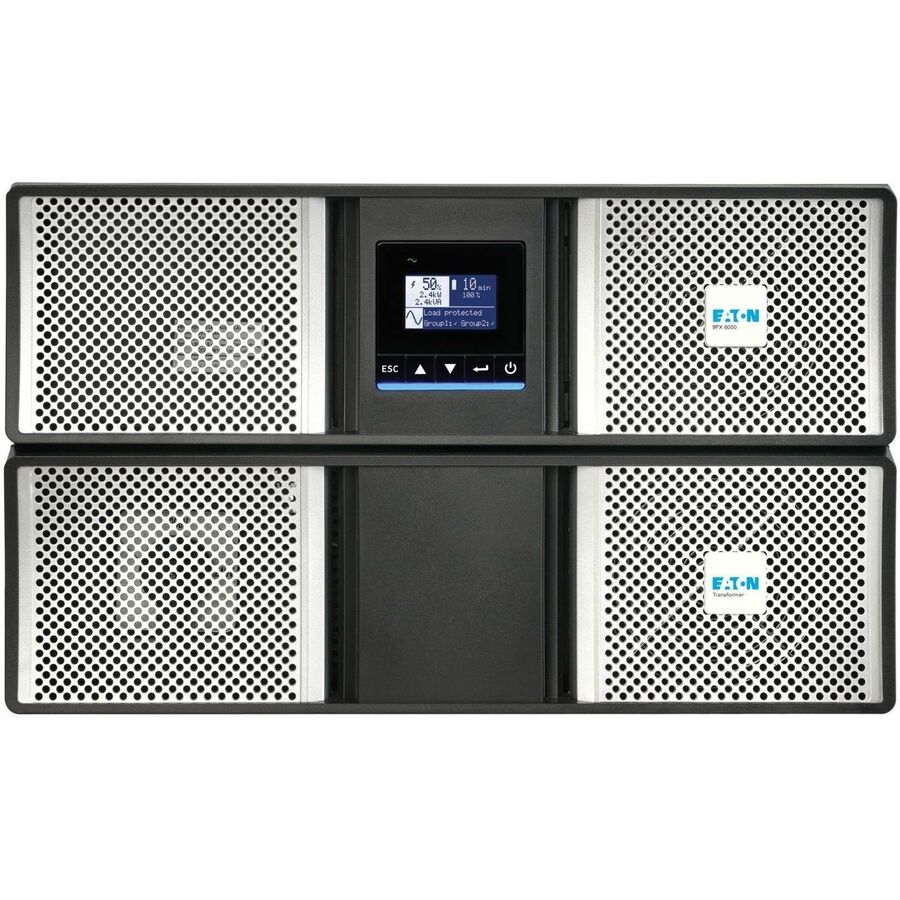

This 9PX G2 rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage critical IT equipment or destroy data. The 9PX5KP2G2 is ideal power management for IT managers, data center managers, electrical contractors, integrators, specifying engineers and other end users in business, edge computing, education, government, healthcare, retail and other networking applications.
Delivers Maximum Power Reliability with Best-in-Class Efficiency
With unity power factor (5000VA/5000W output), the 9PX5KP2G2 maximizes usable output power and allows you to support more devices, including servers, PoE switches and other networking equipment. The most efficient UPS system in its class, the 9PX5KP2G2 complies with the latest ENERGY STAR standards to reduce greenhouse gas emissions and to save you money on energy and cooling costs. Load segments with energy metering help you optimize energy use.
Expandable Internal Battery Backup Keeps You Operational Through Power Outages
Exclusive ABM+ technology improves predictive battery replacement analytics to better pinpoint when you should replace UPS batteries. By adding this predictive algorithm, you can determine the expected battery failure date based on real-life usage and conditions. This prevents unexpected downtime caused by waiting too long and unnecessary expense caused by replacing too soon. ABM+ also optimizes charging to increase battery lifespan up to 50%. You can connect up to 12 extended battery modules (9PXEBM180RTG2, sold separately) to add necessary runtime during prolonged power outages.
Included Distribution Module Helps Accommodate a Range of Connected Equipment

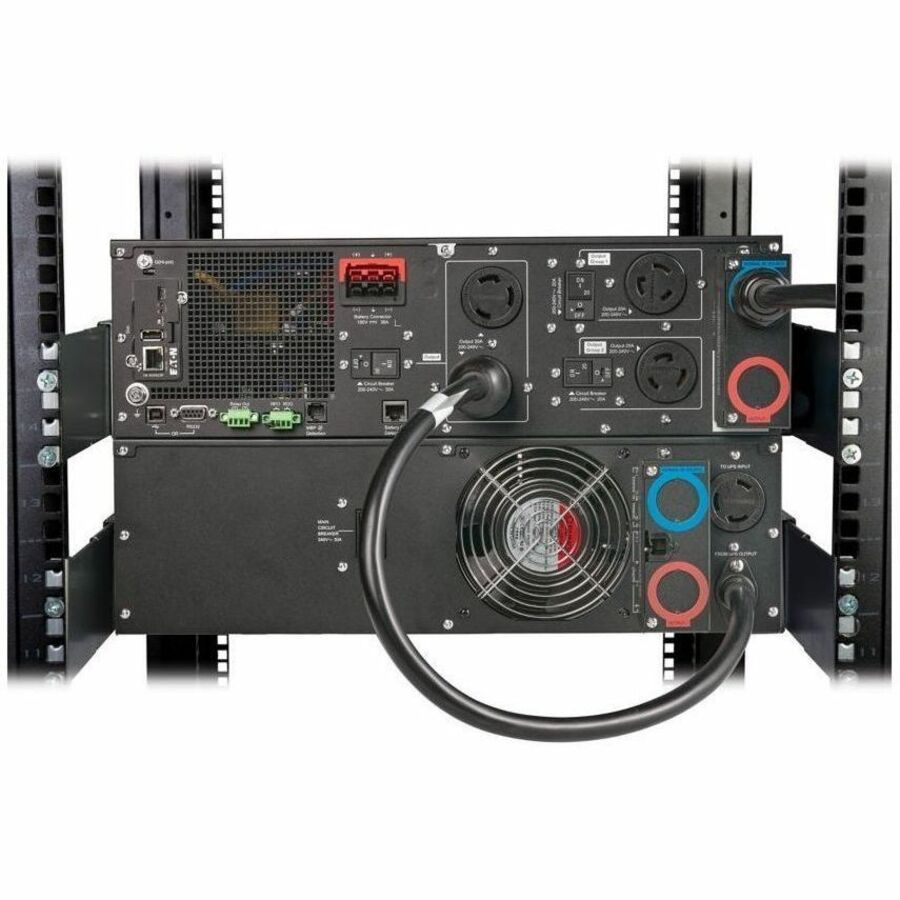

The 9PXPPDM2G2 PowerPass Distribution Module permits step-down voltage from 208V to 120V to allow the connection of a variety of IT components. It also features a maintenance bypass, which lets you service or replace the UPS power module without powering down any connected equipment.
Included Gigabit Network Interface Offers 24/7 Remote Access
The NETWORK-M3 cybersecure network management card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be upgraded remotely through the NETWORK-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks.

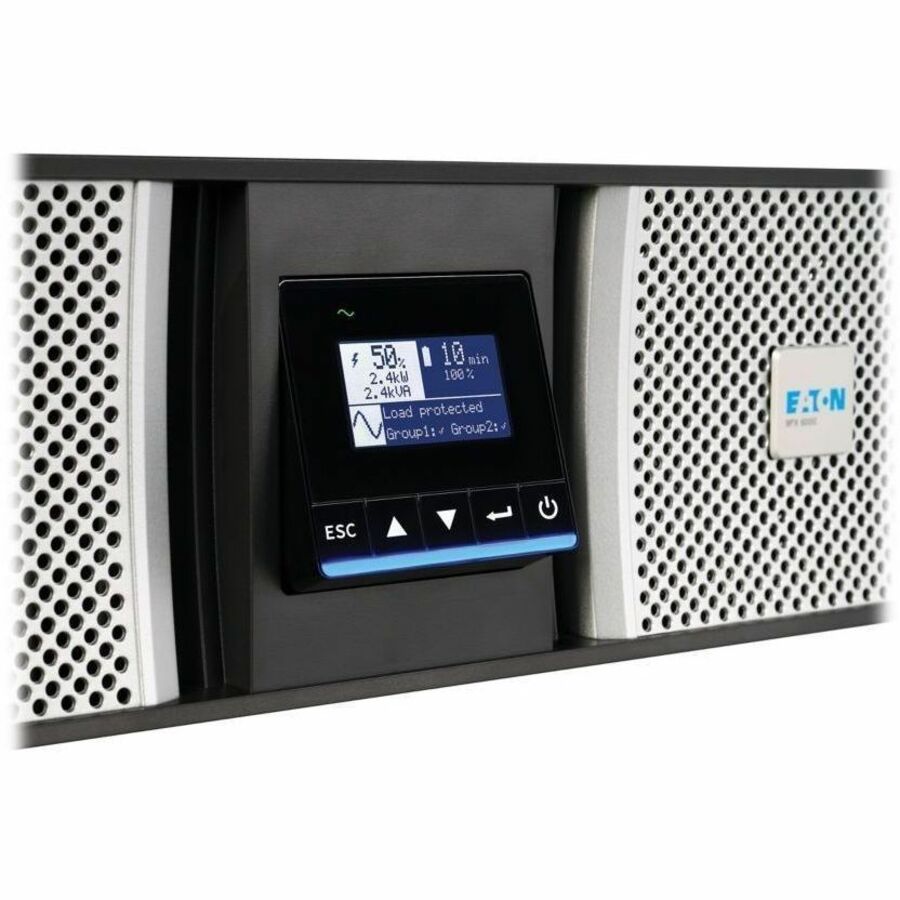

High-Visibility LCD Interface Keeps You Informed at a Glance
The high-contrast color LCD provides control settings and critical information to help diagnose any issues. A large color LED bar makes it easy to diagnose UPS status from a distance and quickly locate units that require attention. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing.
Versatile Installation Options

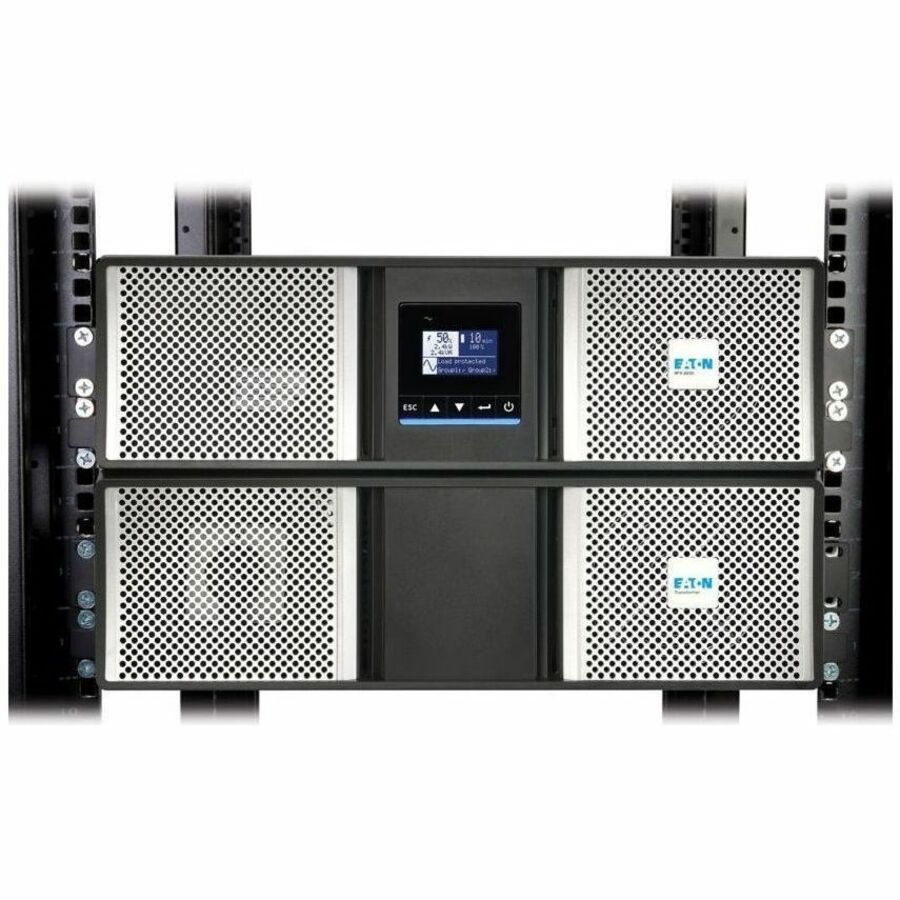

You can mount the 9PX5KP2G2 in 6U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation. A cable gland is included for hardwire input.
Limited Warranty: 3 Year
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
| Battery Information | |
|---|---|
| DC System Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 9.40 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | LED Indicators: LED status bar |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 274.02 W |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX5KP2G2 |
| Brand Name | Eaton |
| Product Series | 9PX G2 |
| Product Model | 9PX5KP2G2 |
| Product Name | 9PX G2 9PX5KP2G2 5000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Management | |
| Network Management | INDGW-M2 Card, Relay-MS Card, Network-M3 Card, Network Card |
| Alarm | Utility Power Failure, Low Battery, Overload, UPS Fault, Battery Fault, Remote Shutdown |
| Physical Characteristics | |
| Height | 10.20" |
| Width | 17.30" |
| Depth | 27" |
| Rack Height | 6U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 203 lb |
| Power Description | |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (Watt) | 5000 W |
| Input Voltage | 230 V AC |
| Input Current | 24.40 A |
| Output Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 100 V AC, 110 V AC, 120 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Sine Wave, Pure Sine Wave |
| Output Power Factor | 1 |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 98.9% (Eco Mode), 96.3% (AC Mode) |
| Application/Usage | Mission Critical Equipment, IT, Edge Computing, Network, Equipment, IT Equipment, Data Center, Business, Education, Government, Healthcare, Retail, Server, PoE System, Switch |
| Surge Suppression | Yes |
| Features | Advanced Battery Management (ABM+), Built-in Bypass Switch |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
