SKU
ES-842
Category
Multiport Serial Adapters
Overview
Ethernet to Serial device server providing access to eight RS422/485 serial ports. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Warranty
Limited Warranty: Lifetime
Highlights

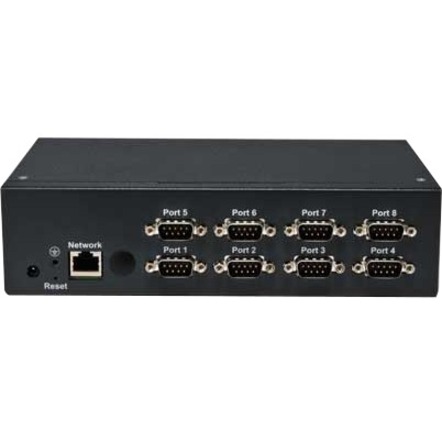

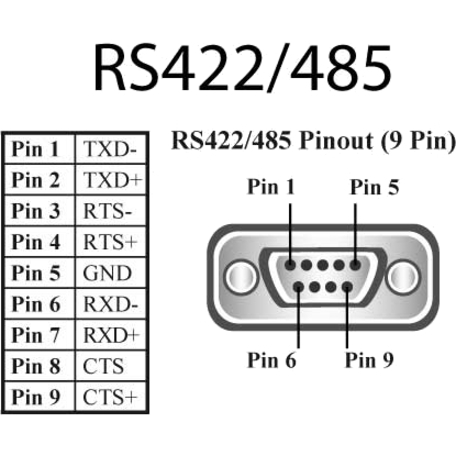

8 port RS422/485
Max baud rate 1,000,000 1 MegaBaud
10/100Base TX Ethernet port
User friendly interface, simple to use, powerful in operation
Web configuration and RFC2217 compliant interface
IP-30 rated enclosure
LED status indication
Optional DIN rail mounting kit
Serial Port Tunneling (individually configurable) allows serial cable replacement over any distance, no software required
Power supply included with screw fix connector (5-30V DC)
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
ES-842
Brand Name
Brainboxes
Product Model
ES-842
Product Name

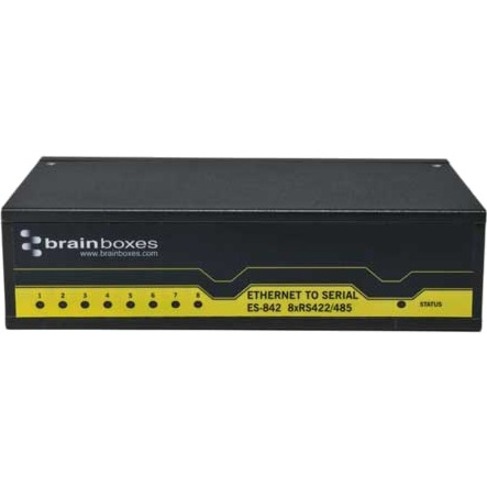

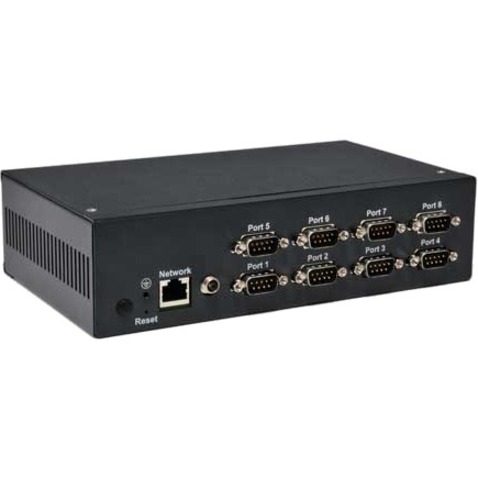

8 Port RS422/485 Ethernet to Serial Adapter
Product Type
Multiport Serial Adapter
Physical Characteristics
Form Factor
DIN Rail Mountable, Wall-mountable

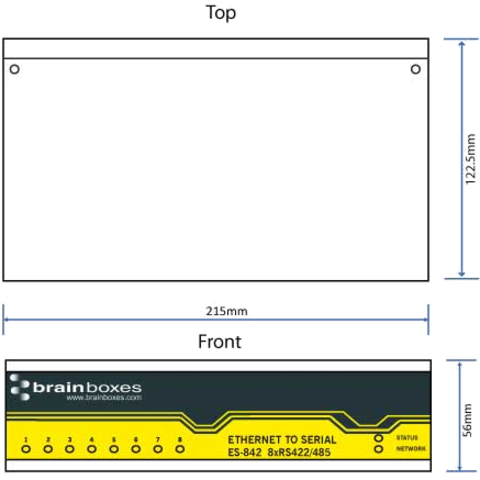

Height
2.2"
Width
8.5"
Thickness
4.8"
Weight (Approximate)
1.92 lb
Warranty
Limited Warranty
Lifetime
Interfaces/Ports
Number of Serial Ports
8
Miscellaneous
Package Contents
8 Port RS422/485 Ethernet to Serial Adapter
Installation CD including Manual
Microsoft Signed Drivers & Utilities
TAA Compliant
Yes
Country of Origin
United Kingdom
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
