SKU
Category
Transceivers/Media Converters
Overview
10/100/1000BASE-TX to 1000BASE-SX
Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-SX. Includes broadcast storm control, flow control, and CRC error checking.
Auto-negotiation
Completely compatible with IEEE802.3/802.3u auto-negotiation function.
Complies with Standards
The media converter meets EN60950, UL62368, and EN62368 standards.
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure. On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
Compliant to EN60950, UL62368, and EN62368
Converts 10/100/1000BASE-TX to 1000BASE-SX
Maximum transmission distance up to 550 m
Use as a standalone unit or with available chassis (LHGC-RACK)
Supports frame size of 9000 bytes
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
LGC211A-R2
Brand Name
Black Box
Product Line
Pure Networking
Product Name
Pure Networking Transceiver Media Converter
Packaged Quantity
1
Product Type
Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports
2
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Number of SC Ports
1
SC Port Type
Duplex
Media & Performance
Media Type Supported
Optical Fiber, Twisted Pair
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Wavelength
850 nm
Maximum Distance Supported
0.55 km
Fiber Optic Cable Core/Cladding Specification
50/125 µm, 62.5/125 µm
Network & Communication
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-TX, 1000Base-SX
Physical Characteristics
Form Factor
Standalone, Rack-mountable
Height
1"
Width
3.7"
Depth
2.7"
Weight (Approximate)
11.20 oz
Power Description
Power Source
AC Adapter
Plug/Connector Type
Barrel
Warranty
Limited Warranty
3 Year
Additional Warranty Information
Double Diamond Warranty (Standard)
Miscellaneous

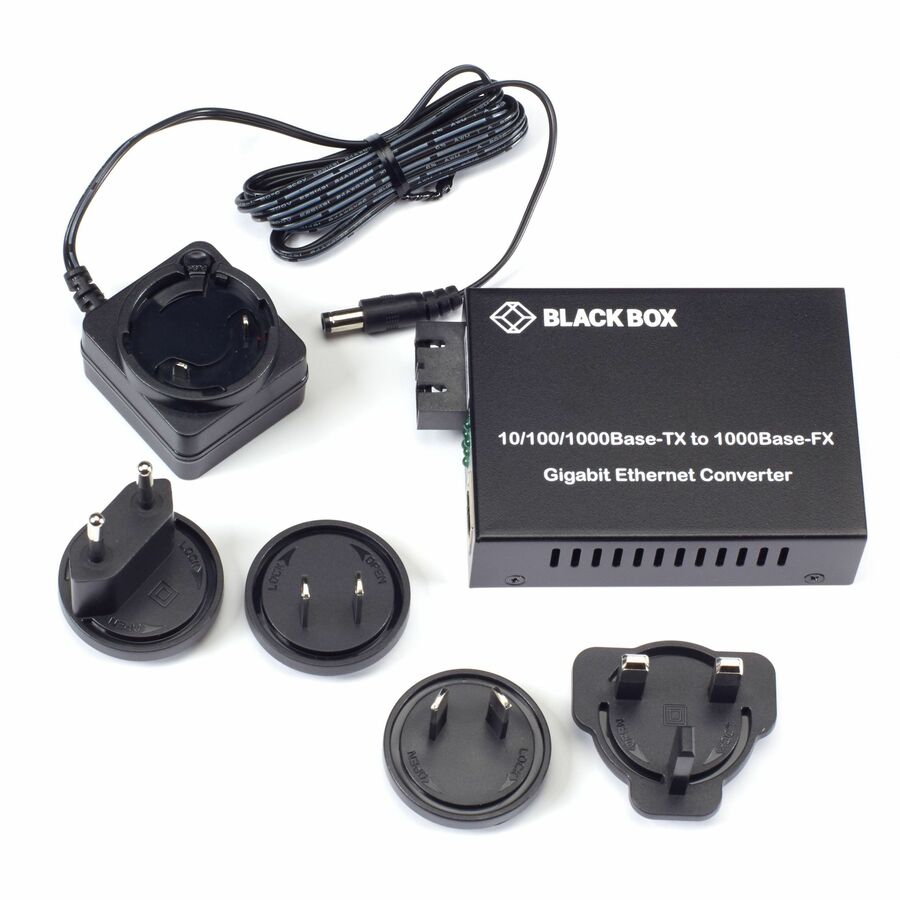

Package Contents
Pure Networking Transceiver Media Converter
1 x 5-VDC Power Adapter (US, EU, UK and AU Power Clips)
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
