SKU
ADD-GMC-SX-LC-POE
Category
Transceivers/Media Converters
Overview

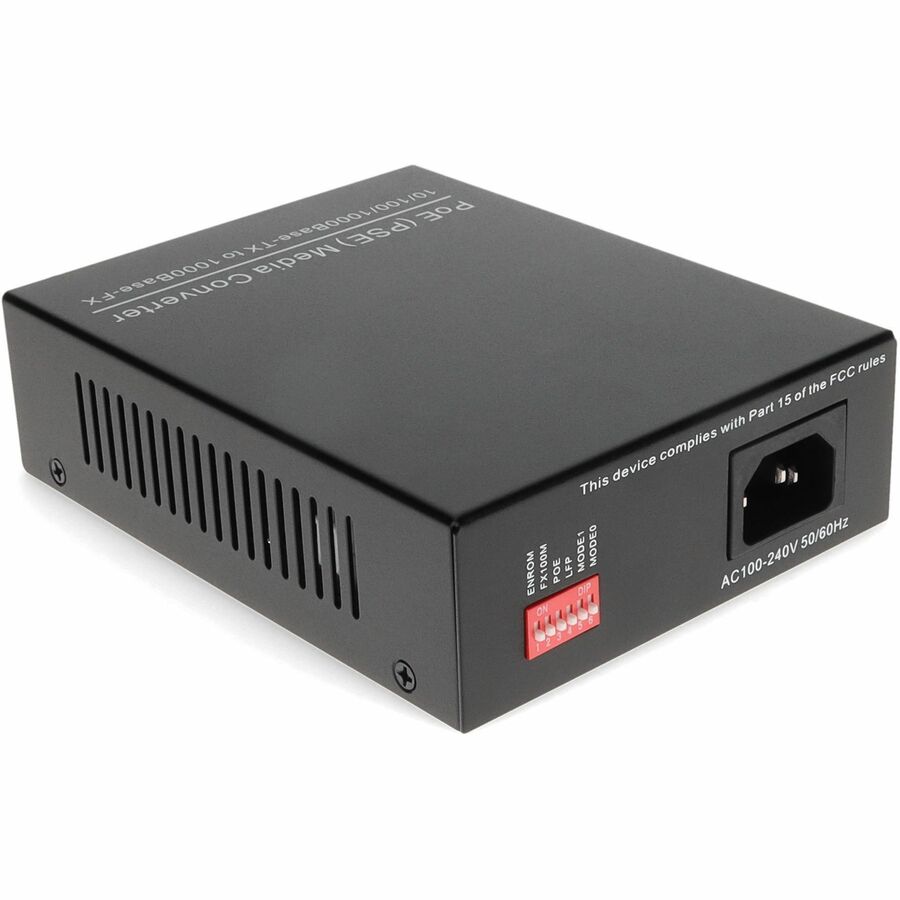

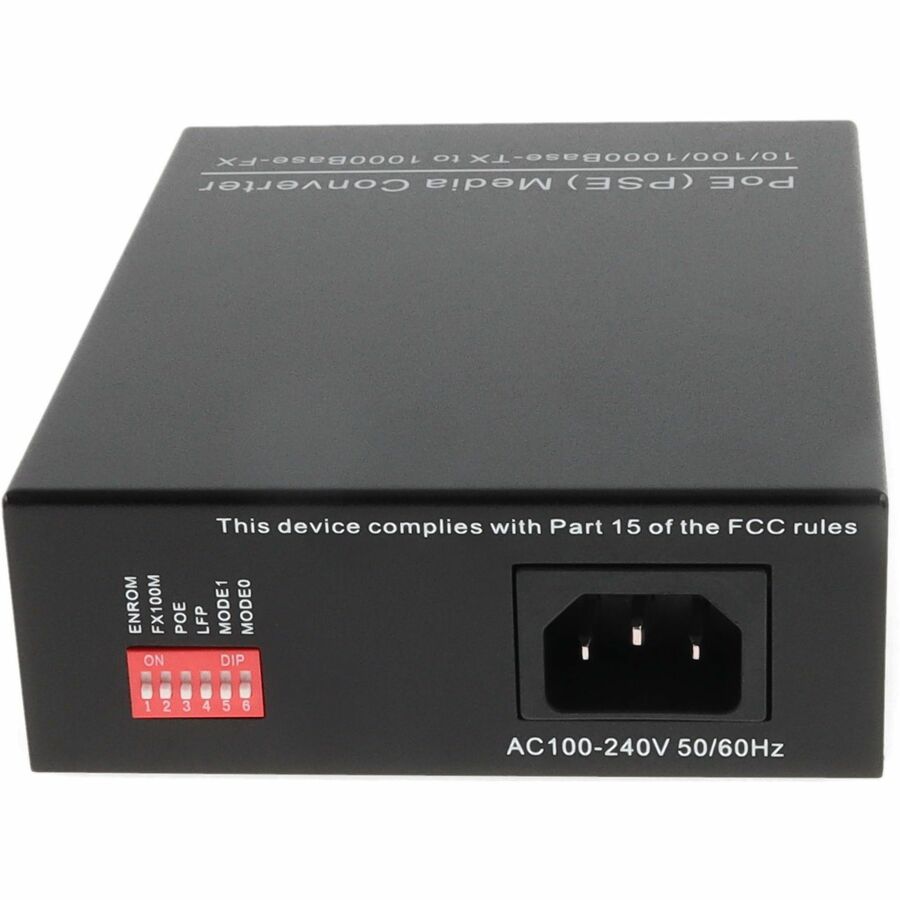

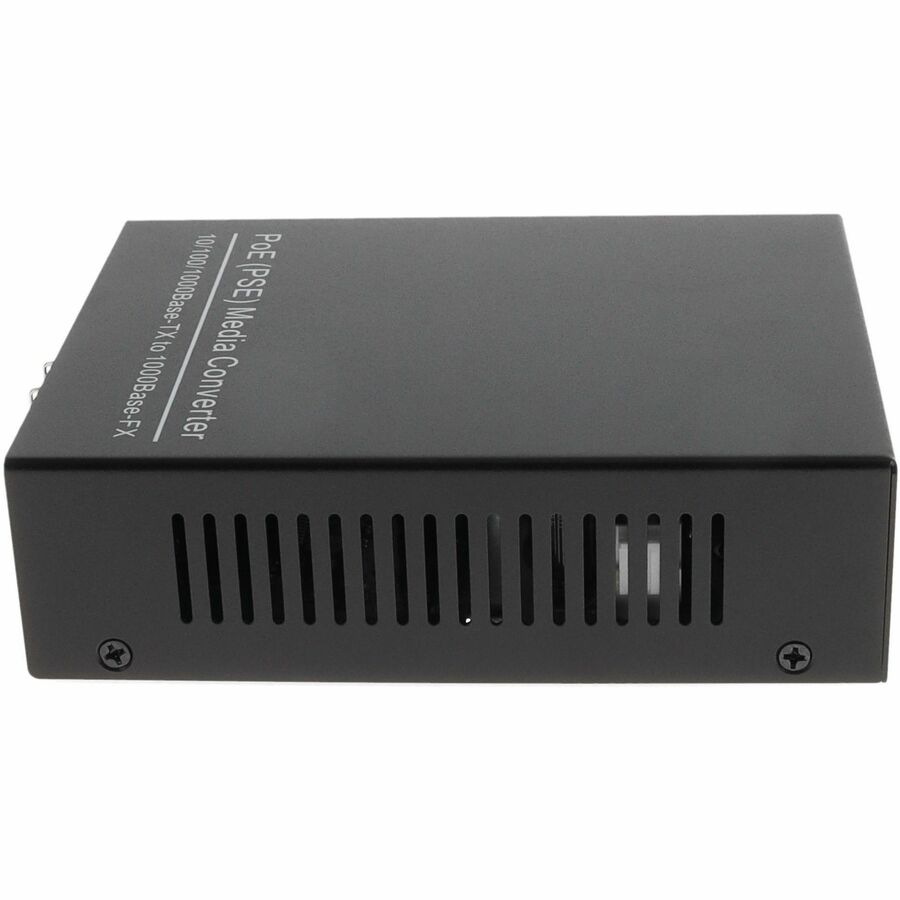

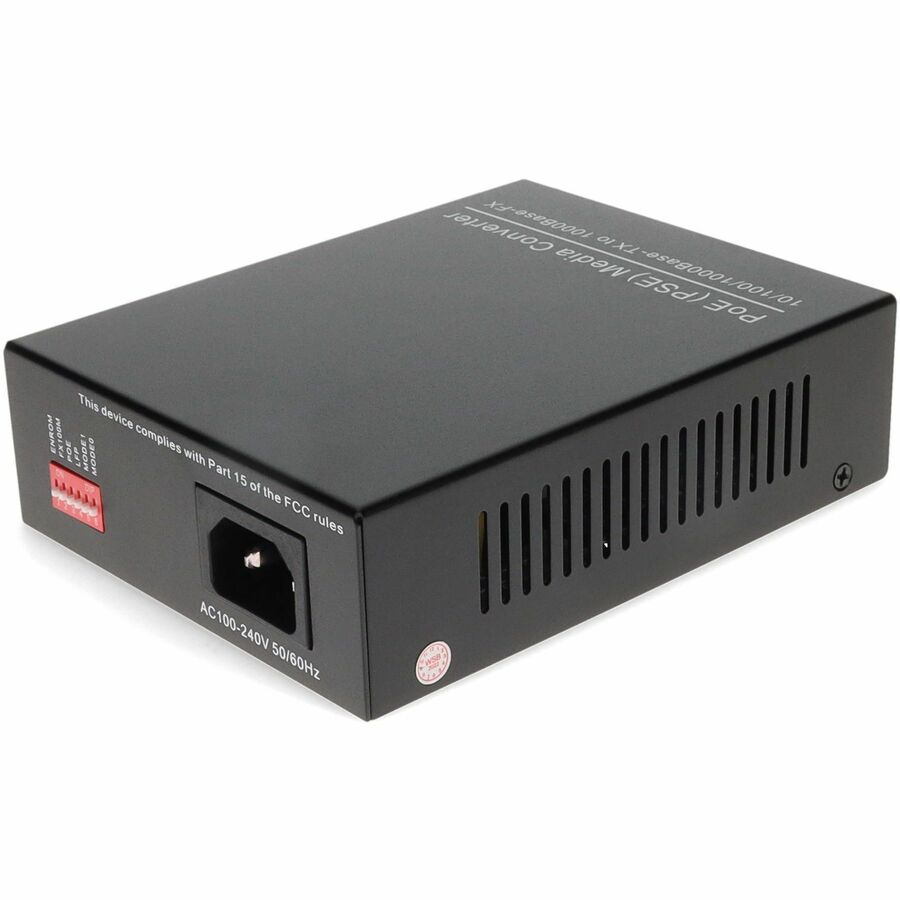

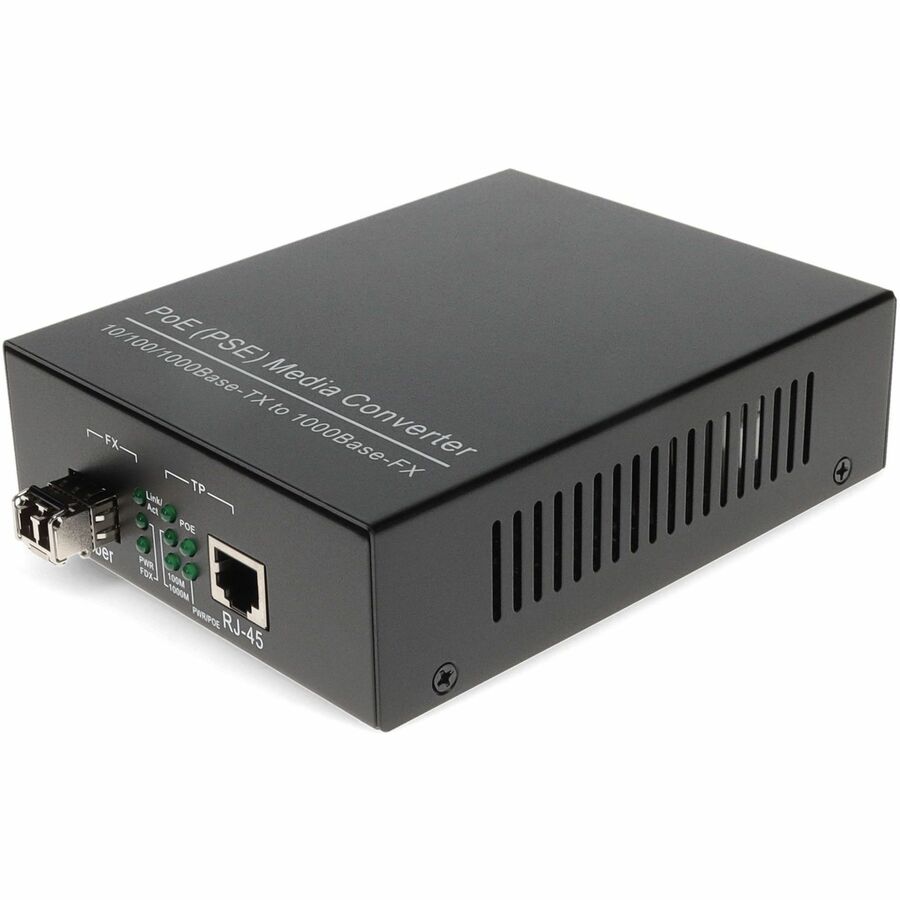

This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-SX(LC) via a 850nm multi-mode fiber (MMF) LC connector, which allows distance reach up to 550m. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Highlights
Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
Specifications
Package Contents
Transceiver/Media Converter
1 x Transceiver
Product Type
Transceiver/Media Converter
Manufacturer Part Number
ADD-GMC-SX-LC-POE
Maximum Distance Supported
0.55 km
Packaged Quantity
1
Power Source
Power Supply
Limited Warranty
3 Year
Manufacturer
AddOn
Product Name
Transceiver/Media Converter
Network Technology
10/100/1000Base-TX, 1000Base-SX
Brand Name
AddOn
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of PoE (RJ-45) Ports
1
Number of LC Ports
1
Media Type Supported
Optical Fiber, Twisted Pair
Fiber Mode Supported
Multi-mode
Total Number of Ports
2
PoE Port Type
PSE
TAA Compliant
No
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
