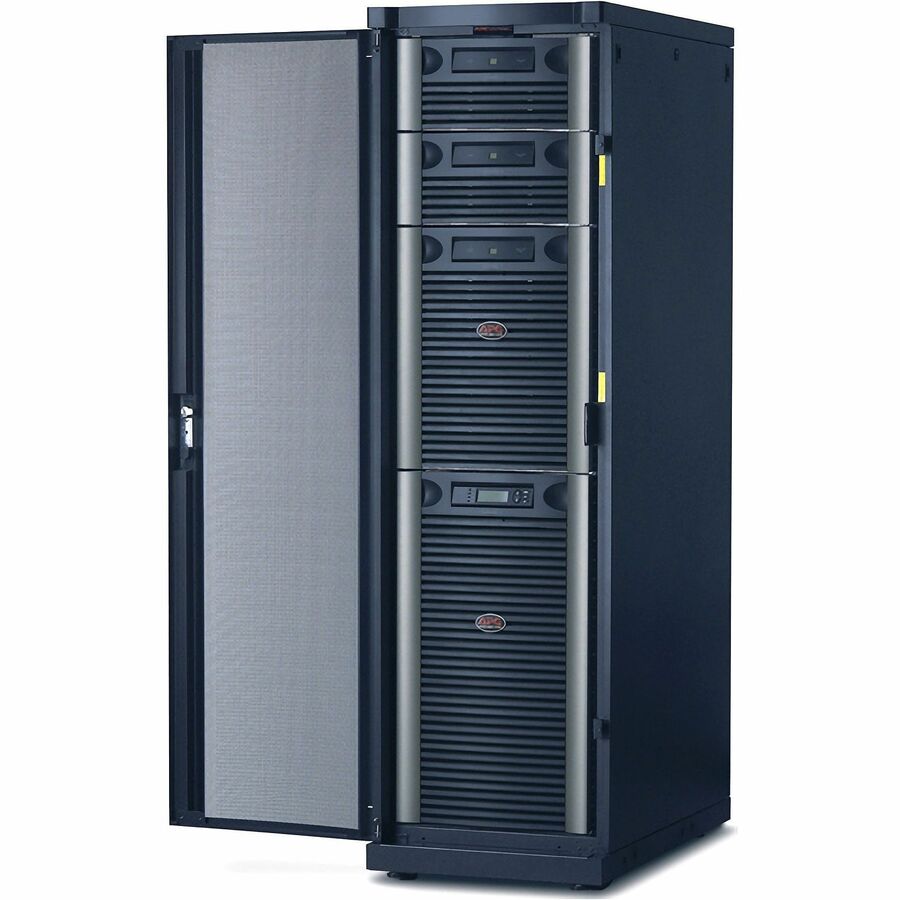

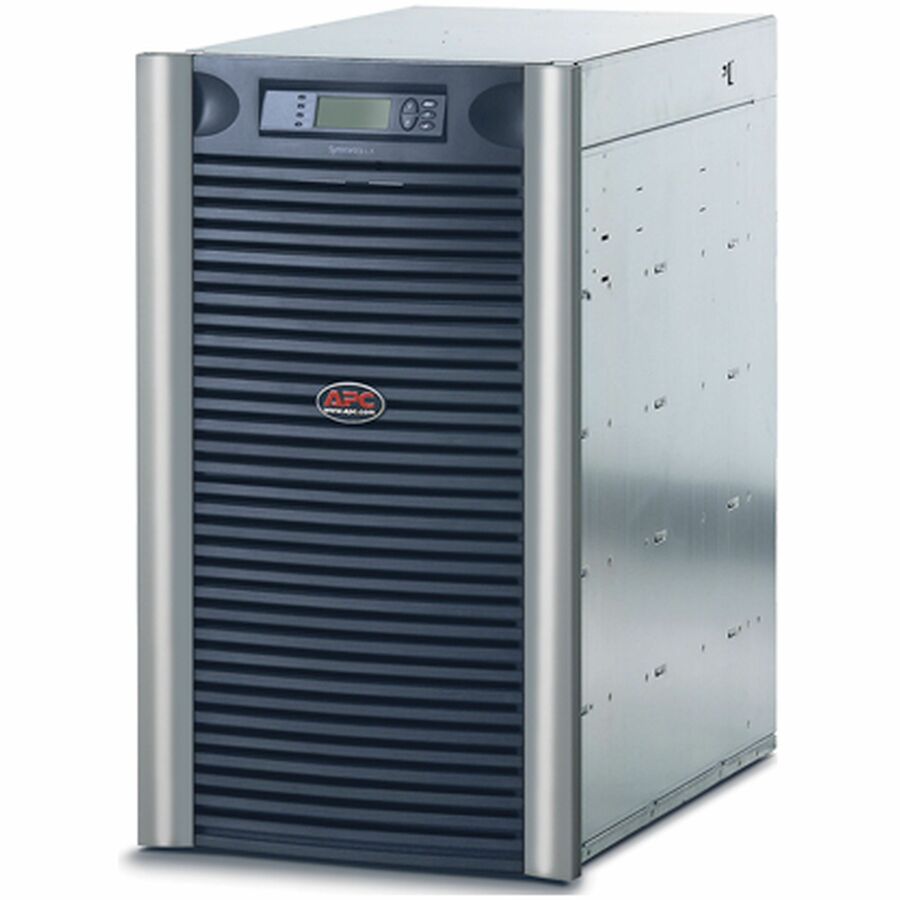

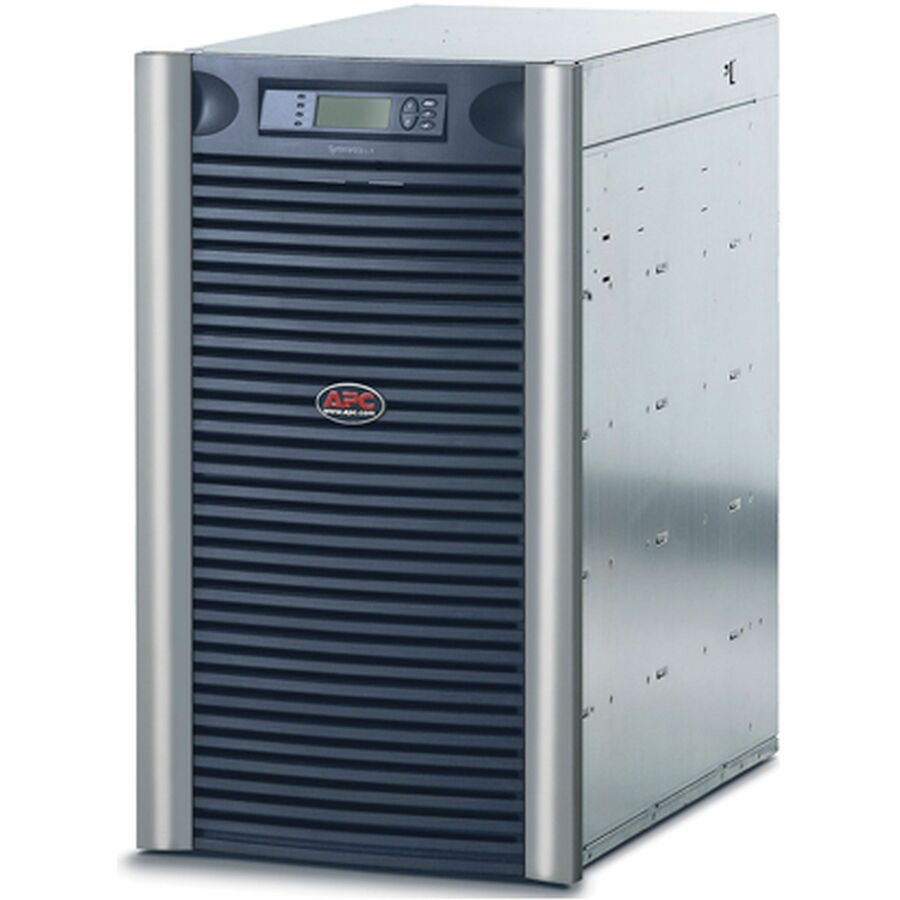

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mount, 208/240V

19U Rack-mountable - 3 Hour Recharge - 208 V AC Input - 120 V AC, 208 V AC Output - 1 x Hard Wire 4-wire (2PH+N+G), 8 x NEMA L5-20R, 4 x NEMA L14-30R - Sine Wave - Serial Port

SKU: SYA16K16RMP
Category: Industrial UPS

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SYA16K16RMP
Category: Industrial UPS

Overview

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Warranty

Additional Warranty Information: 2 years repair or replace Limited Warranty: 2 Year

Specifications

Additional Warranty Information	2 years repair or replace
Battery Chemistry	Lead Acid

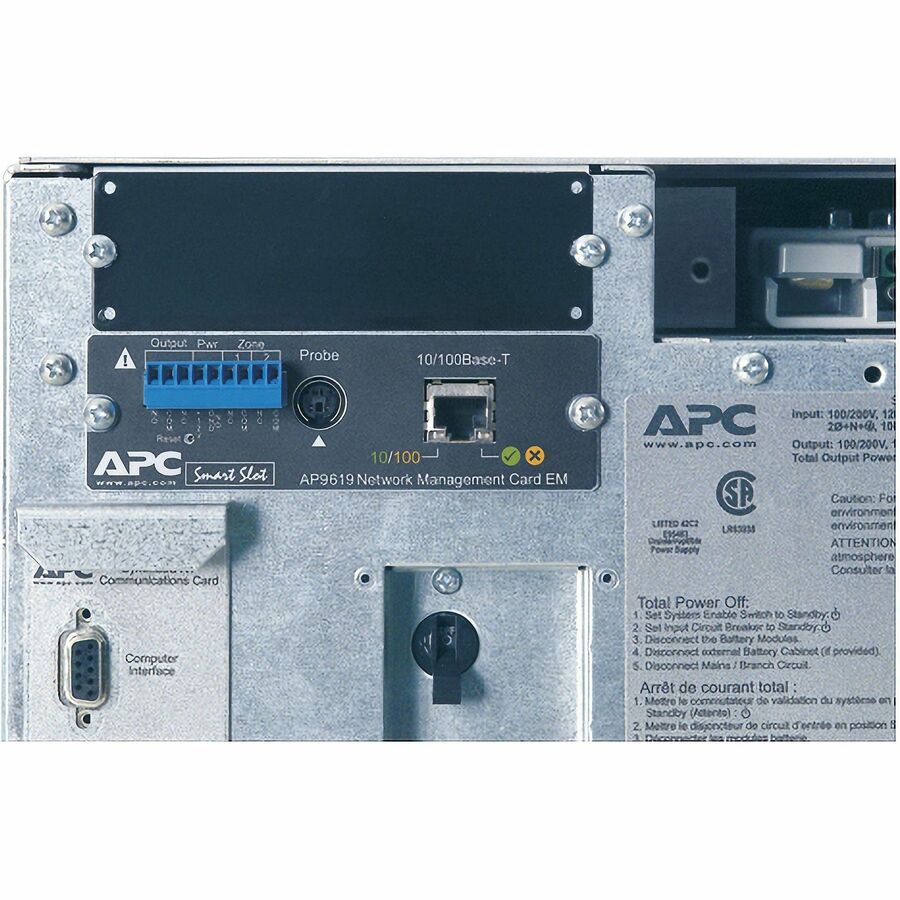

Package Contents	Symmetra LX 16kVA Rack-Mountable UPS CD with software Documentation CD Installation guide Rack mounting support rails Temperature probe User manual Web/SNMP management card
Product Type	Double Conversion Online UPS
Input Voltage	208 V AC
Manufacturer Part Number	SYA16K16RMP
Limited Warranty	2 Year
Output Voltage	120 V AC, 208 V AC
Weight (Approximate)	632.33 lb
Form Factor	Rack-mountable
Manufacturer	Schneider Electric SA
Product Name	Symmetra LX 16kVA Rack-Mountable UPS
Network Management	SNMP Manageable
Overload Protection	Yes
Product Line	Symmetra
Waveform Type	Sine Wave
Product Series	LX
Rack Height	19U
Brand Name	APC by Schneider Electric
Plug/Connector Type	Hard Wire 4-wire
Height	32.9"
Width	18.6"
Depth	27.1"
Receptacle Type	Hard Wire 4-wire (2PH+N+G), NEMA L5-20R, NEMA L14-30R
Environmentally Friendly	Yes
Serial Port	Yes
Battery Characteristics	Spill-proof/Maintenance-free
Load Capacity (VA)	16 kVA
Number of Battery & Surge Outlets	13
Typical Battery Recharge Time	3 Hour
Product Color	Black, Silver
Receptacle Detail	1 x Hard Wire 4-wire (2PH+N+G), 8 x NEMA L5-20R, 4 x NEMA L14-30R
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
