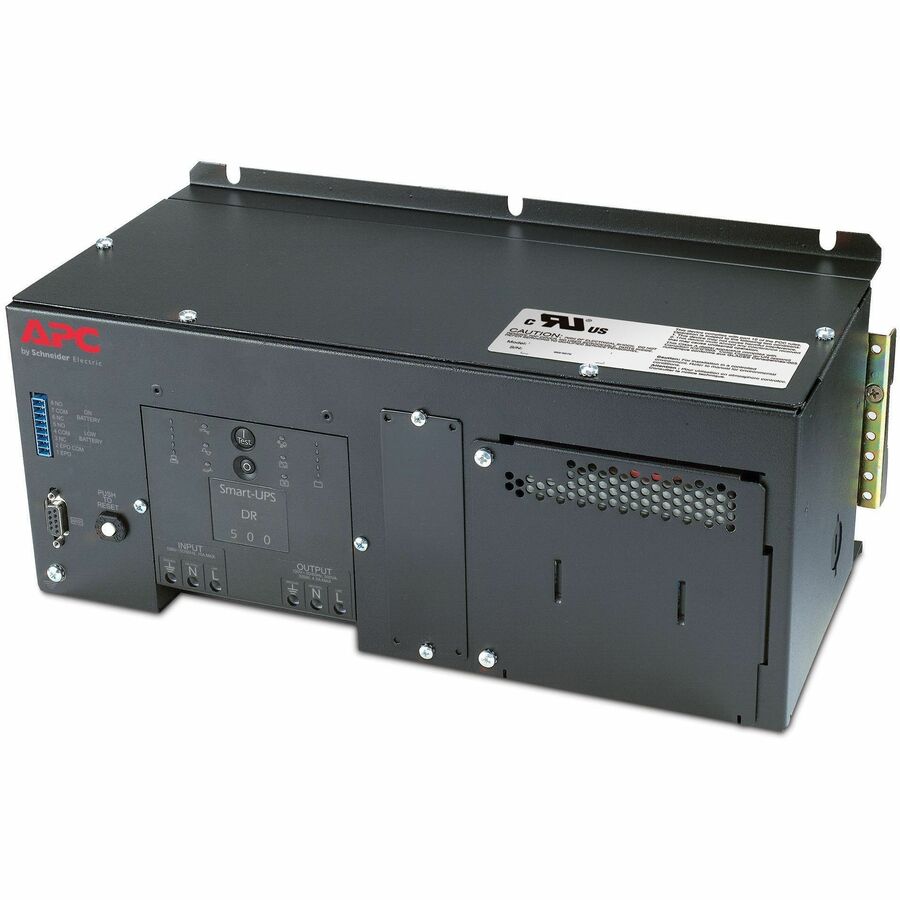

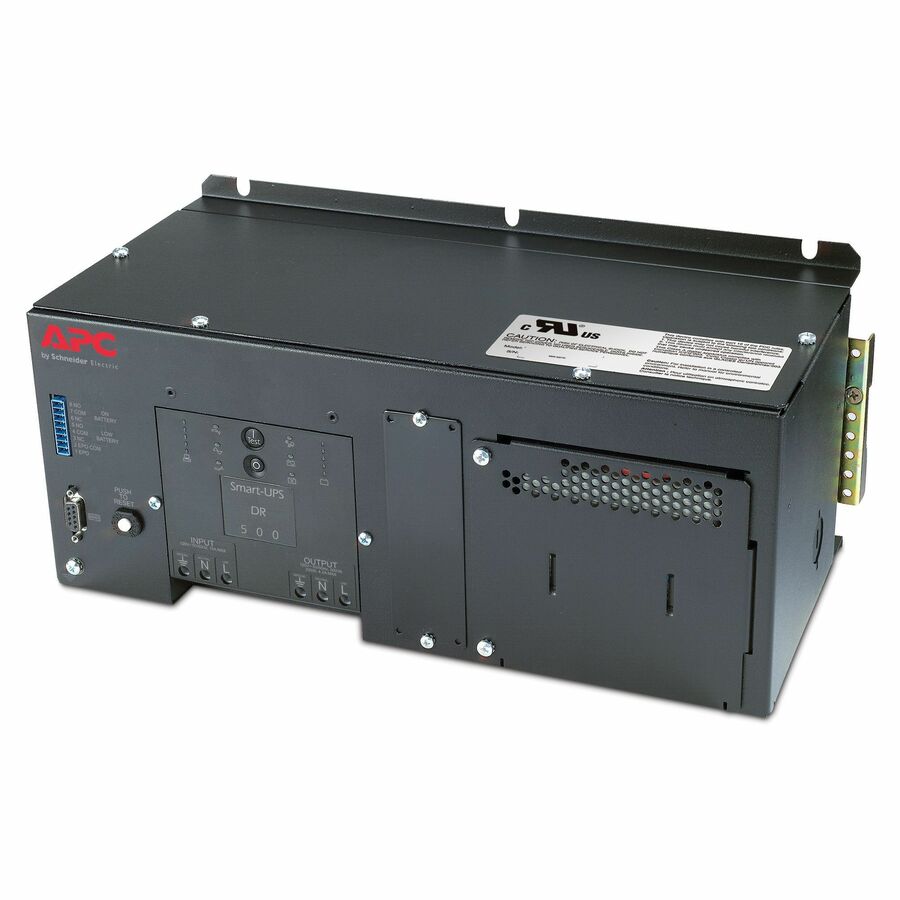

APC DIN Rail - Panel Mount UPS with High Temp Battery 500VA 120V

Tower - 2 Hour Recharge - 8.10 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 1 x Hard Wire 3-wire (H N + E) Receptacle(s) - 1 x Battery/Surge Outlet

SKU: SUA500PDR-H
Category: General Purpose UPS

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SUA500PDR-H
Category: General Purpose UPS

Overview

The APC DIN Rail Panel Mount UPS with a high-temperature battery has a power rating of 500VA and 325 watts. It operates at a nominal voltage of 120V and includes a hard wire 3-wire output connection. The UPS is designed for high-temperature environments and uses a lead-acid battery.

Warranty

Limited Warranty: 2 Year

Highlights

Designed to operate in high-temperature environments, enhancing reliability
DIN rail mountable makes it ideal for industrial control panels
Supports a wide input voltage range, ensuring compatibility with various power sources
Provides clear visual indicators for operational status and battery condition

Specifications

Application/Usage	Industry, Transportation, Mission Critical Equipment, Pharmaceutical, Chemical, Automotive
Battery Chemistry	Lead Acid
Package Contents	500VA Panel Mount UPS CD with software Documentation CD Installation guide Smart UPS signalling RS-232 cable
Product Type	Line-interactive UPS
Hot Swappable	Yes
Input Voltage	120 V
Manufacturer Part Number	SUA500PDR-H
Limited Warranty	2 Year
Output Voltage	120 V AC
Weight (Approximate)	25.31 lb
Form Factor	Tower
Status Indicators	LED Status Display: On Line On Battery Replace Battery Overload
Manufacturer	Schneider Electric SA
Product Name	500VA Panel Mount UPS
Network Management	DB9 RS-232/SmartSlot
Surge Energy Rating	540 J
Thermal Dissipation	26.38 W
Waveform Type	Sine Wave
Brand Name	APC
Plug/Connector Type	Hard Wire 3 wire (1PH+N+G)
Input Voltage Range	82 V AC - 144 V AC
Alarm	On Battery, Low Battery, Overload, Configurable Delay
Country of Origin	Philippines
Height	5.83"
Width	14.25"
Depth	6.73"
Input Frequency	60 Hz
Receptacle Type	Hard Wire 3-wire (H N + G)
Environmentally Friendly	Yes
Battery Energy	432 kJ
Maximum Operating Temperature	122°F (50°C)
Serial Port	Yes
Number of Batteries	1
Backup/Run Time (Half Load)	24.40 Minute
Backup/Run Time (Full Load)	8.10 Minute
Battery Characteristics	Maintenance-free, Sealed, Leak-proof
Load Capacity (VA)	500 VA
Load Capacity (Watt)	325 W
Replaceable Battery	Yes
EPO Port	Yes
Maximum Operating Elevation	9842.52 ft
Maximum Storage Elevation	49212.60 ft
Number of Battery & Surge Outlets	1
Storage Relative Humidity	0% - 95%
Storage Temperature	23°F (-5°C) - 131°F (55°C)
Transfer Time	0 ns
Typical Battery Recharge Time	2 Hour
Receptacle Detail	1 x Hard Wire 3-wire (H N + E)
Sound Emission (A-Weighted)	55 dB(A)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
