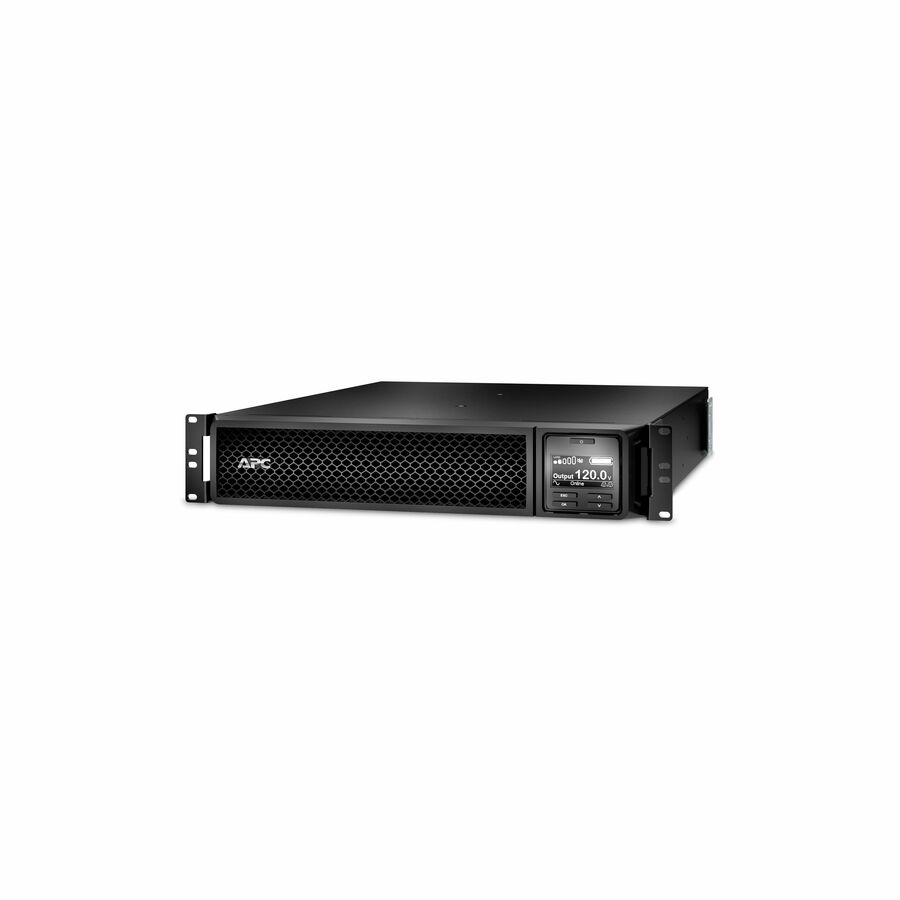

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail kit, W/ 10ft input cord
2U Rack-mountable - 3 Hour Recharge - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - USB - LCD Display - 1 x NEMA L5-20R, 6 x NEMA 5-20R Receptacle(s) - 7 x Battery/Surge Outlet
- SKU
- SRT2K2RXLNX145
- Category
- General Purpose UPS
MSRP$4,680.00
$3,150.57
Save 33%Back ordered — ships when restocked.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SRT2K2RXLNX145
- Category
- General Purpose UPS
Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Warranty
Additional Warranty Information: Battery: 24 month(s)|UPS: 36 month(s) Limited Warranty: 3 Year
Highlights
- 2200VA/1800W double-conversion on-line pure sine wave 2U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT72RMBP) for extended runtime
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Specifications
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
|---|---|
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Software Included | Powerchute Serial Edition |
| Product Type | Double Conversion Online UPS |
| Display | LCD |
| Input Voltage | 120 V AC |
| Manufacturer Part Number | SRT2K2RXLNX145 |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 55.01 lb |
| Form Factor | Rack-mountable |
| Status Indicators | Multi-function LCD status and control console |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS On-Line 2200VA Rack-mountable UPS |
| Network Management | SmartSlot |
| Product Line | Smart-UPS On-Line |
| Surge Energy Rating | 340 J |
| Thermal Dissipation | 156.79 W |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | APC |
| Plug/Connector Type | NEMA 5-20P |
| Output Frequency | 60 Hz |
| Alarm | Yes |
| Country of Origin | Philippines |
| Cord Length | 10.01 ft |
| Height | 3.35" |
| Width | 17.01" |
| Depth | 22.99" |
| Input Frequency | 70 Hz |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20P |
| Environmentally Friendly | Yes |
| Battery Energy | 0 J |
| USB | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 1800 W |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| DC System Voltage | 72 V DC |
| EPO Port | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Number of Battery & Surge Outlets | 7 |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | -4°F (-20°C) - 122°F (50°C) |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |
| Receptacle Detail | 1 x NEMA L5-20R, 6 x NEMA 5-20R |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
