NEMA outlets, Network Card, Extended runtime, W/ rail kit
2U Rack-mountable - 3 Hour Recharge - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave - 1 x NEMA L5-20R, 6 x NEMA 5-20R Receptacle(s) - 7 x Battery/Surge Outlet
MSRP$4,295.00
$3,822.55
Save 11%Special order — we expect to receive stock the week of Sep 21–27 and will process your delivery right after.
Genuine Schneider Electric through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.

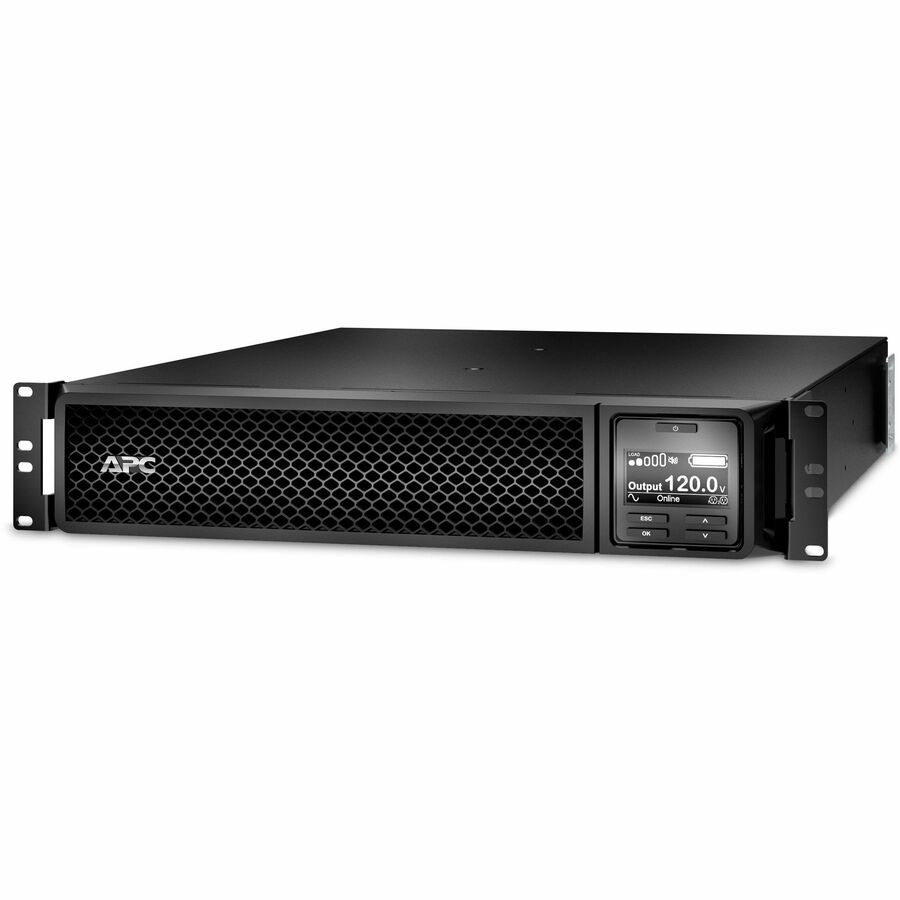

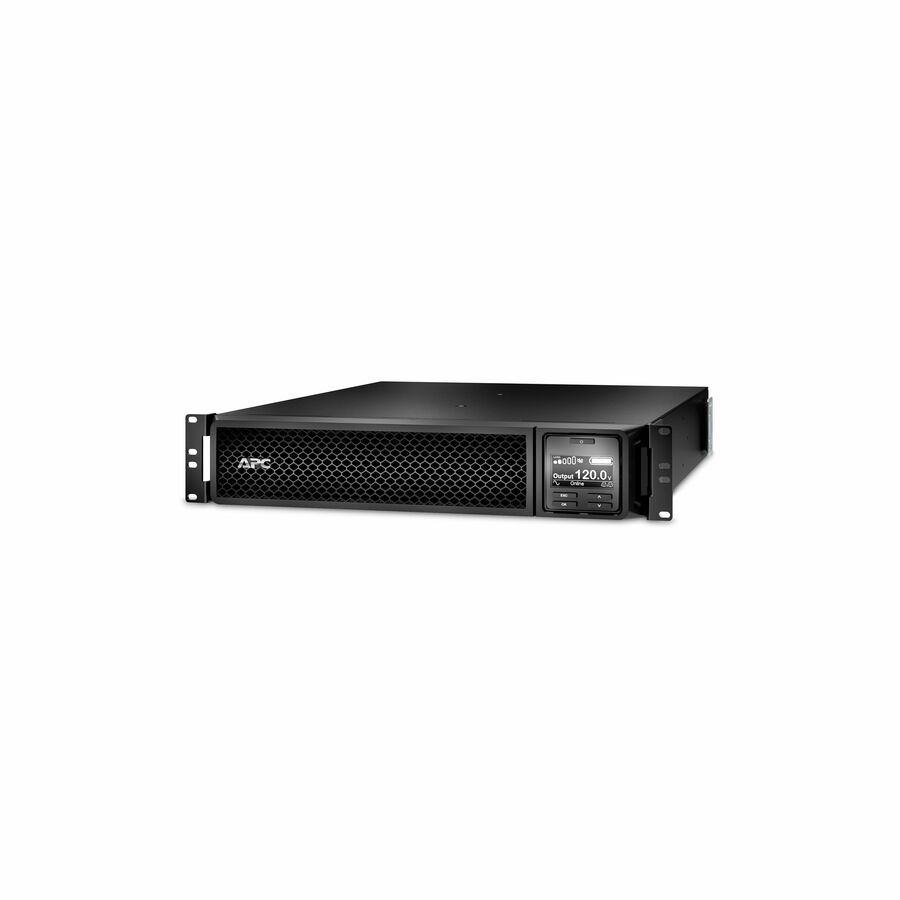

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
More from the Manufacturer
Key Features
Ease of use
Software Capabilities
Hot Spots

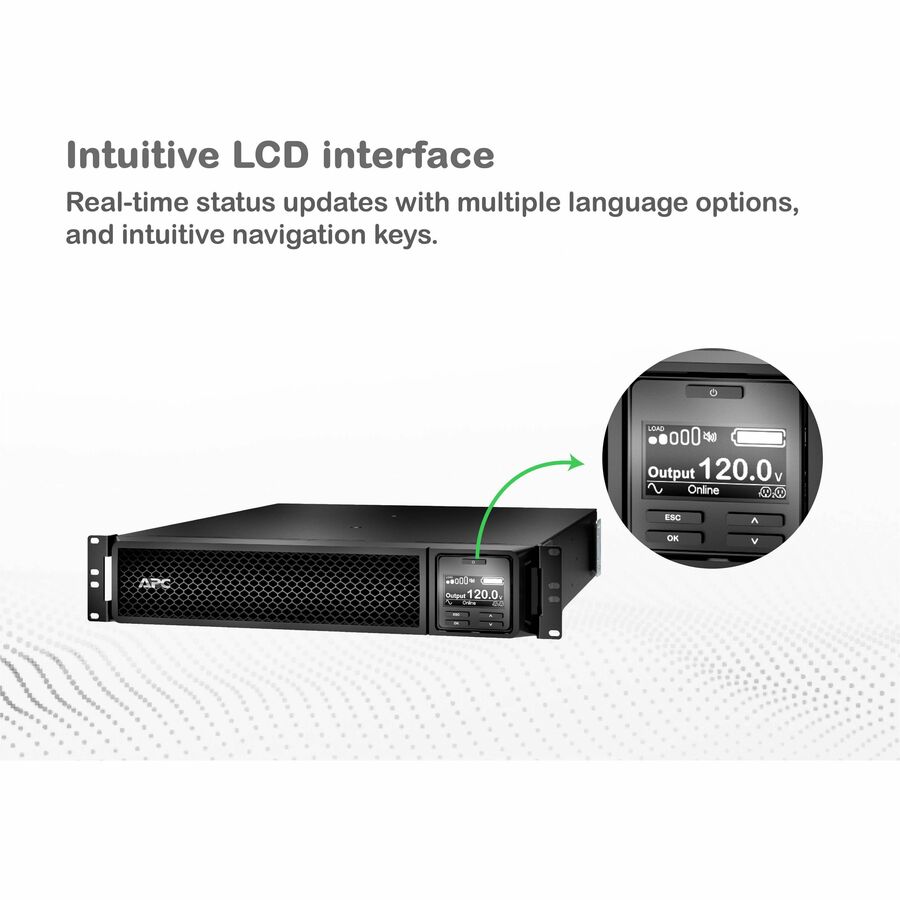

Graphical LCD display
Quick, easy-to-read, intuitive LCD provides information about the utility and UPS conditions.
Pre-installed network management card
Enables network-based monitoring and management of UPS
Interface ports
USB Type A and Serial (RJ45)

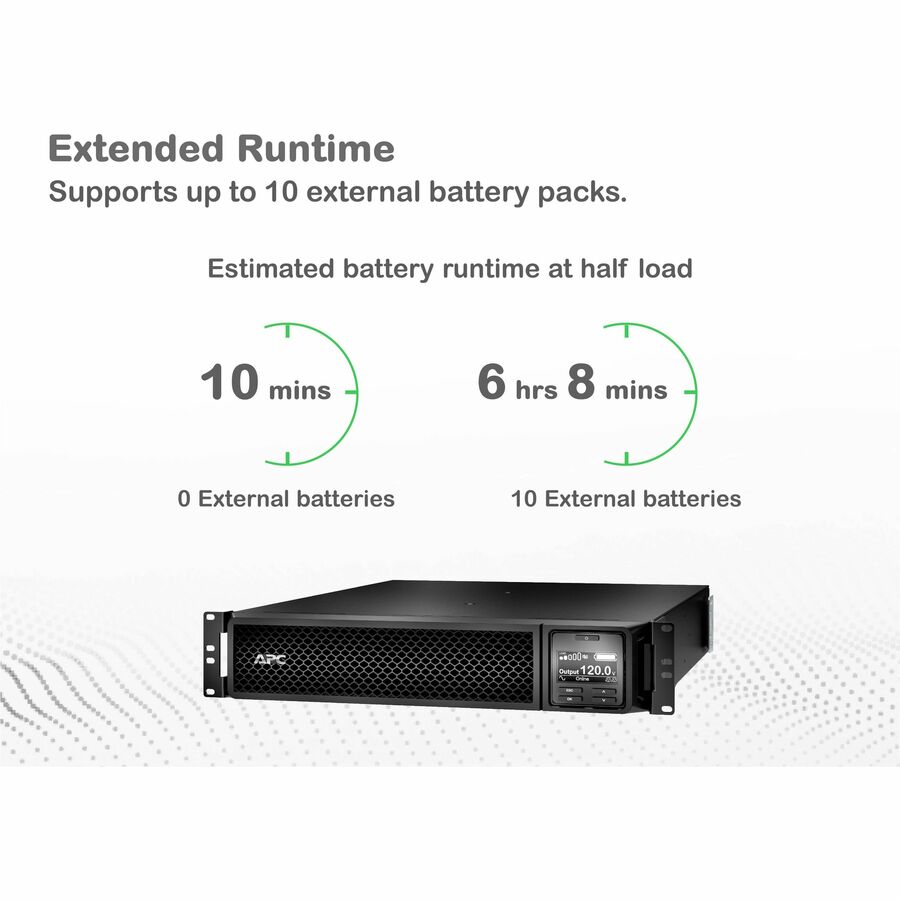

Extended runtime options
Connect up to 10 external battery packs for extended runtime needs

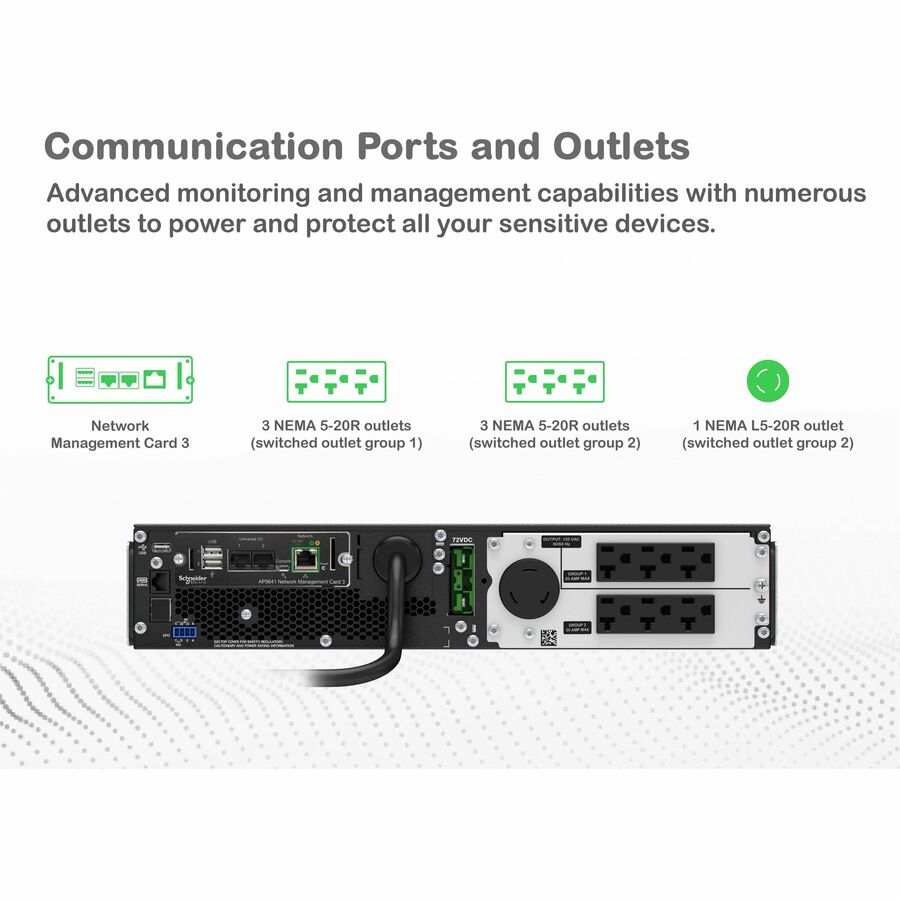

7 outlets in 2U
6 NEMA 5-20R and 1 NEMA L5-20R outlets, including 2 switched outlet groups
FAQ
Can I add external battery packs? How many?
Yes, Smart-UPS Ultra SRT2200RMXLA-NC supports up to 10 APC external SRT72RMBP battery packs.
What are my options for UPS management and software?
Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card, and PowerChute™ Network Shutdown Software.
What are the key benefits of upgrading to PowerChute Network Shutdown v5.0?
PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy is provided with the Network Management Card 3.
Comparison Table
About APC
APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s) Limited Warranty: 3 Year
| Battery Information | |
|---|---|
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT2200RMXLA-NC |
| Brand Name | APC |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS SRT 2200VA RM 120V Network Card |
| Product Type | Double Conversion Online UPS |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.35" |
| Width | 17.01" |
| Depth | 22.99" |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 55.12 lb |
| Power Description | |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 1800 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail | 1 x NEMA L5-20R, 6 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 7 |
| Cord Length | 5.91 ft |
| Phase | Single Phase |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
