Genuine Schneider Electric through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Rack Equipment
Overview

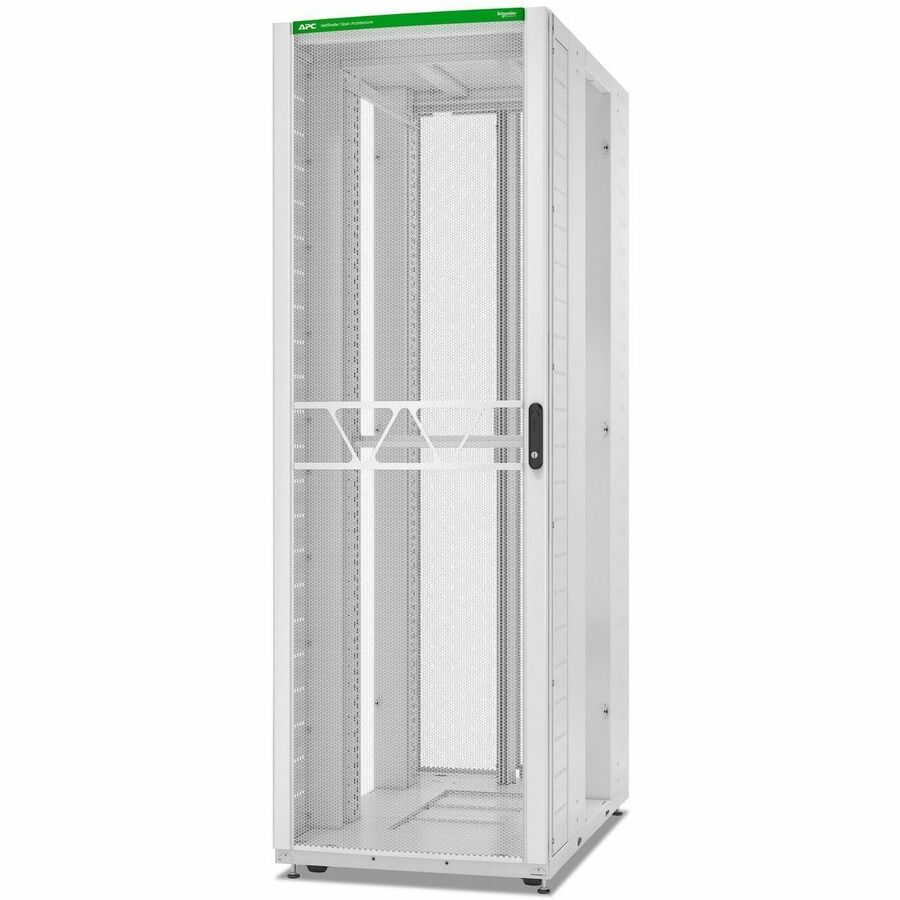

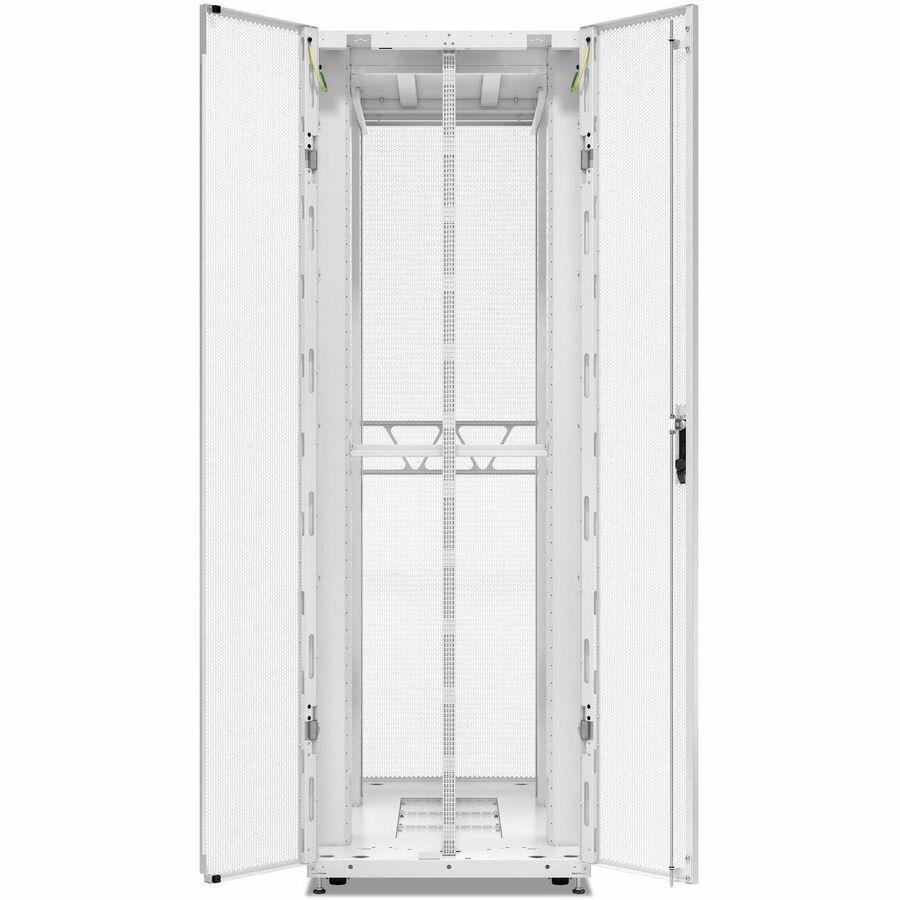

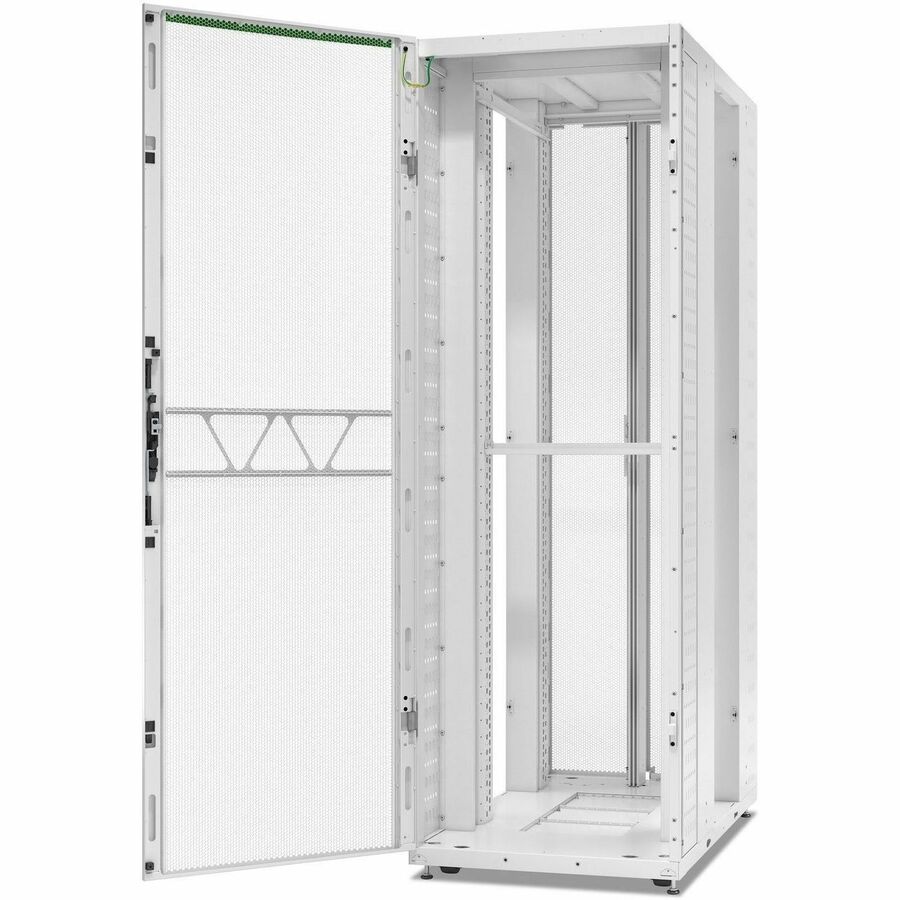

APC NetShelter Open Architecture ORV3 provides a strong, versatile, and customizable framework. Our Open Compute Project (OCP) compliant racks are ideal for various configurations to support high density computing. This rack meets all Open Rack Version 3 (ORV3) specification requirements. Integrated busbar has tool-less connection design and a maximum current rating of 1400A at 48VDC. Large enclosure 1200 mm deep and 750 mm wide to accommodate larger equipment in cabinet with cable trays and space for liquid cooling manifold. Both 48mm vertical OpenU (OU) and 44.45mm EIA standard rack unit (RU) equipment is supported. All models feature 4 casters which swivel 360-degrees and remain fully within the rack envelope and leveling feet. Tool-free mounting for simplified installation and design. Cable tray for more organized cable management. Optional accessories include doors, side panels, 1OU and 2OU slide brackets, 19-inch 1U adapter brackets, stabilizier kits and air baffle kits. Part of Schneider Electric's portfolio for AI bringing engineering and supply chain knowledge along with new rack and power distribution designs.
Warranty
Limited Warranty: 24 Month
Highlights
OCP-compliant Open Rack Version 3 (ORv3) rack with integrated 1400A busbar
Improved stability with leveling feet and heavy-duty casters which swivel 360° and remain inside the rack envelope
Designed for AI and high-performance computing (HPC) applications
Supports a dynamic load of 1600kg with center support
Optional accessories include side panels, stabilizer kits, slide brackets, and more for enhanced customization
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SEOCP3002
Brand Name
APC
Product Line
NetShelter
Product Name
NetShelter Open Architecture ORV3, OCP Rack, 1400A, 44OU, 2286H 750W 1200D mm
Packaged Quantity
1 Unit
Product Type
Rack Cabinet
Physical Characteristics
Form Factor
Floor Standing
Color Family
White
Product Color
White
Dynamic/Rolling Weight Capacity
3527.40 lb
Height
90"
Width
29.5"
Depth
47.2"
Rack Height
44OU
Rack Width
21"
Weight (Approximate)
798.07 lb
Technical Information
Rack Type
Enclosed Cabinet
Application/Usage
Panel, Airflow System, Equipment, Door
Features
Heavy Duty, Casters, Cable Management, Leveling Feet
Warranty
Limited Warranty
24 Month
Miscellaneous
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
