620VA/390W - 5.5 Minute Full Load
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Smart-UPS protects your data by supplying reliable, network grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's.
More from the Manufacturer
Overview

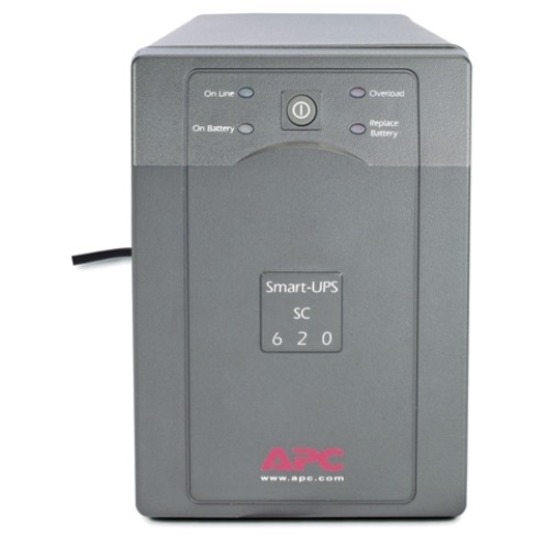

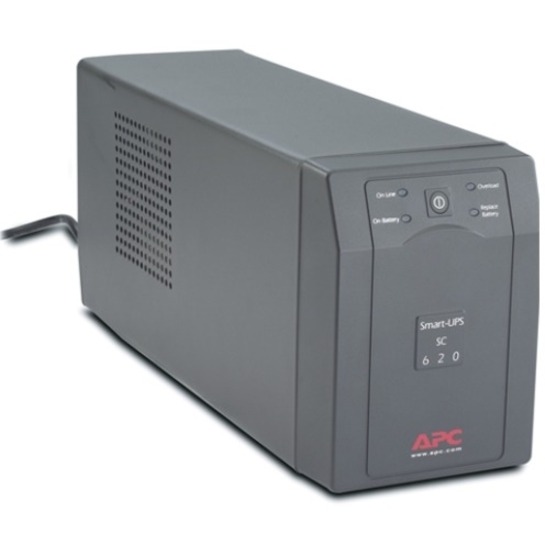

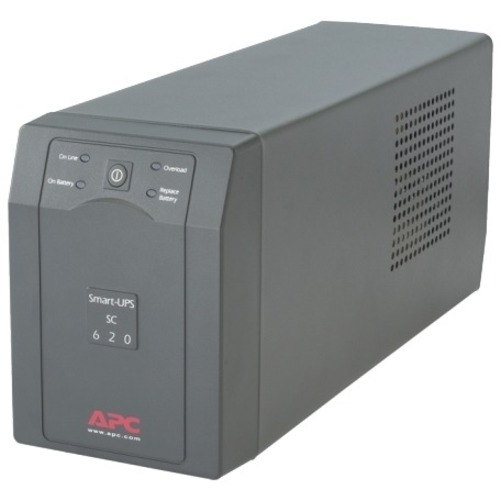

APC Smart-UPS SC620 (Not for sale in Vermont)
Instant backup battery power during an outage
Four battery and surge protected outlets
Protects electronic equipment from harmful power conditions
LED display lets you quickly view UPS and power status
PowerChute software provides safe shutdown
Two-year limited warranty
$150,000 equipment protection policy
Product not for sale in Vermont
Features
Backup Battery Lets You Keep Working through Outages
Protect your point-of-sale, workstation, small switch and networking devices with the APC Smart-UPS SC620. This UPS provides backup battery power in the event of a power outage, monitoring and safeguarding your equipment from harmful power conditions, spikes and surges. With a 390-watt and four battery and surge protected outlets, this Smart-UPS is ideal for home offices or small businesses.
Battery Management Features Ensure Optimal Performance
A periodic battery self-test ensures you will detect any batteries that need to be replaced in your Smart-UPS ensuring you have optimal runtime.
LED Display and Alarms Keep You Updated on Unit Status
Stay up-to-date on the Smart-UPS power status thanks to the LED display and alarm system. Visual indicators on the bright LED display make it easy to quickly understand the unit and power status, and alarms will sound if the unit switches to battery, the battery is low, or if there is an overload condition.
PowerChute Software Provides Safe System Shutdown
Designed for exceptional usability, PowerChute Business Edition software provides safe system shutdown in the event of an extended power outage while preventing potential data corruption. It's fast and easy to install, and you can tailor settings to meet your individual needs.
Warranty and Equipment Protection Policy
This Smart-UPS is covered by a two-year limited warranty. This product also comes with a lifetime equipment protection policy of up to $150,000. APC will repair or replace office equipment that sustains surge-related damage while properly connected to a registered APC Smart-UPS unit.
Package Contents
APC Smart-UPS SC620, CD with PowerChute software, Smart-UPS signaling RS-232 cable, and user manual.
Technical Specifications
Technical Specifications
Output
Output Power Capacity: 390 Watts / 620VA
Max Configurable Power: 390 Watts / 620VA
Nominal Ouput Voltage: 120V
Output Voltage Distortion: Less than 5% at full load
Outpout Frequency (sync to mains): 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology: Line interactive
Waveform Type: Stepped approximation to a sine wave

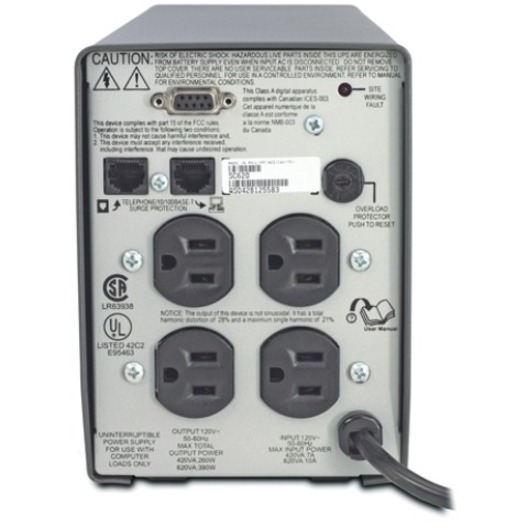

Output Connections: (4) NEMA 5-15R
Input
Nominal Input Voltage: 120V
Input Frequency: 50/60Hz +/- 3Hz (auto sensing)
Input Connections: NEMA 5-15P
Cord Length: 1.83 meters
Input Voltage Range for Main Operations: 82 - 144V
Input Voltage Adjustable Range for Mains Operation: 75 - 154V
Batteries & Runtime
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
Typical Recharge Time
: 5 hour(s)
RBC Quantity: 1
Communications & Management
Interface Port(s): DB-9 RS-232
Control Panel: LED status display with On Line, On Battery, Replace Battery and Overload indicators
Audible Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
Emergency Power Off (EPO): Optional
Surge Protection & Filtering
Surge Energy Rating: 412 Joules
Filtering: Full time multi-pole noise filtering, 0.3% IEEE surge let-through, zero clamping response time, meets UL 1449
Physical
Maximum Height: 6.60 in
Maximum Width: 4.70 in
Maximum Depth: 14.50 in
Net Weight: 27.00 lbs
Shipping Weight: 29.00 lbs
Shipping Height: 12.50 in
Shipping Width: 10.30 in
Shipping Depth: 20.00 in
Color: Black
Conformance
Regulatory Approvals: CSA, FCC Part 15 Class A, UL 1778
Sustainable Offer Status
RoHS: Compliant
REACH: Contains no SVCHCs
About APC
APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
Limited Warranty: 2 Year
| Battery Chemistry | Lead Acid |
|---|---|
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Hot Swappable | Yes |
| Input Voltage | 110 V AC |
| Manufacturer Part Number | SC620 |
| Limited Warranty | 2 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 27 lb |
| Dataline Protection | RJ-45 |
| Form Factor | Tower |
| Status Indicators | LED status display with: On Line On Battery Replace Battery Overload indicators |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SC 620VA |
| Product Line | Smart-UPS |
| Surge Energy Rating | 412 J |
| Thermal Dissipation | 20.51 W |
| Waveform Type | Stepped Sine Wave |
| Product Series | SC |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | NEMA 5-15P |
| Alarm | On Battery, Low Battery |
| Cord Length | 6 ft |
| Height | 7" |
| Width | 5" |
| Depth | 15" |
| Receptacle Type | NEMA 5-15R |
| Environmentally Friendly | Yes |
| Maximum Operating Temperature | 113°F (45°C) |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 15.70 Minute |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Battery Characteristics | Maintenance-free |
| Load Capacity (VA) | 620 VA |
| Load Capacity (Watt) | 390 W |
| Product Color | Gray |
| Receptacle Detail | 4 x NEMA 5-15R |
