SKU
Category
Industrial UPS
Overview
Highly efficient 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V) 3-phase UPS for edge, small, and medium data centers and other business-critical applications.
Galaxy VS is a highly efficient, modular, easy-to-deploy 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V), three-phase uninterruptible power supply that delivers top performance for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial facilities. Its compact design, high-density technology, N+1 redundancy, and fault-tolerant architecture maximize availability, operational efficiency, and critical load protection, while minimizing total cost of ownership. Thanks to patented technologies, this UPS delivers up to 97% efficiency in normal operating mode and up to 99% in ECOnversion mode, equivalent to 66% higher energy savings. Galaxy VS is EcoStruxure Ready to give you peace of mind anytime, anywhere. Smart modular batteries integrated in the UPS cabinet optimize footprint and ensure critical loads have highly predictable runtimes. Start-up service is included to optimize your system's performance, quality, and safety. With its robust design and industry-leading performance, Galaxy VS is the ideal backbone for your critical infrastructure.
Warranty
Limited Warranty: 1 Year
Videos
APC by Schneider Electric Galaxy VS 30kVA Tower UPS
Specifications
Battery Information
DC System Voltage
480 V DC
Number of Batteries
2
Battery Characteristics
Sealed
Battery Chemistry
Lead Acid
Battery Capacity
9000 mAh
Backup/Run Time (Full Load)
6.10 Minute
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Storage Temperature
5°F (-15°C) - 104°F (40°C)
Maximum Operating Elevation
3229.33 ft
Maximum Storage Elevation
9842.52 ft
Storage Relative Humidity
10% - 80%
Sound Emission (A-Weighted)
61 dB(A)
Thermal Dissipation
930.50 W
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
GVSUPS30KB4GS
Brand Name
APC by Schneider Electric
Product Line
Galaxy VS
Product Name

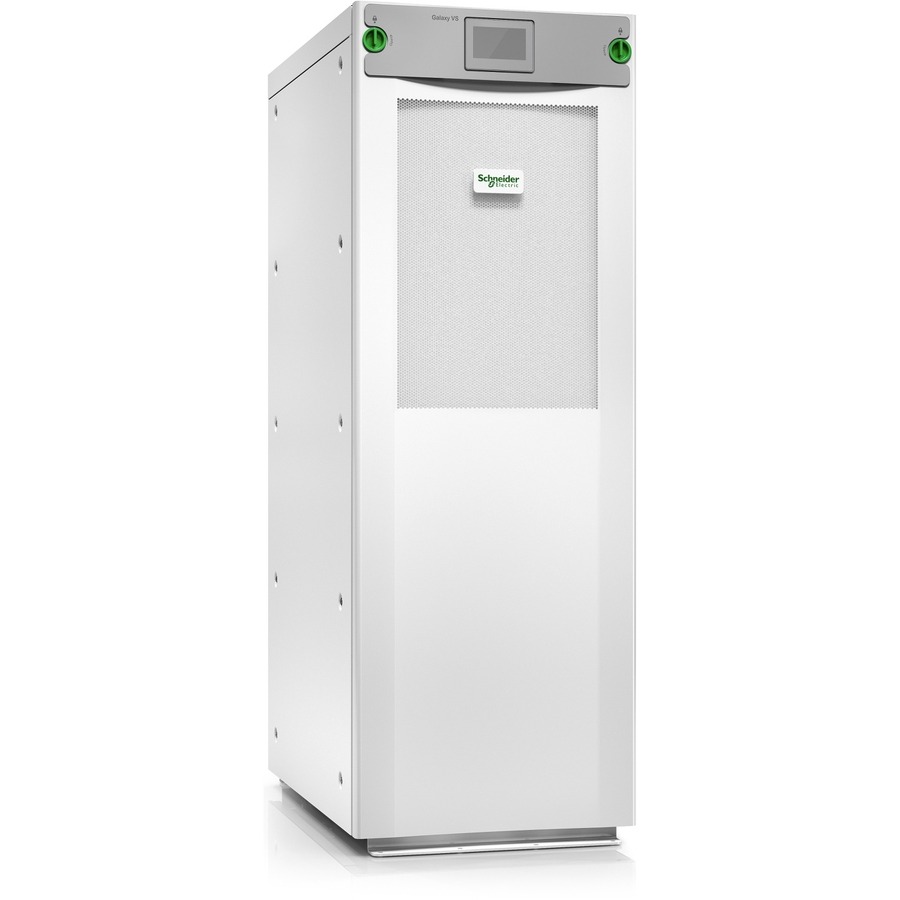

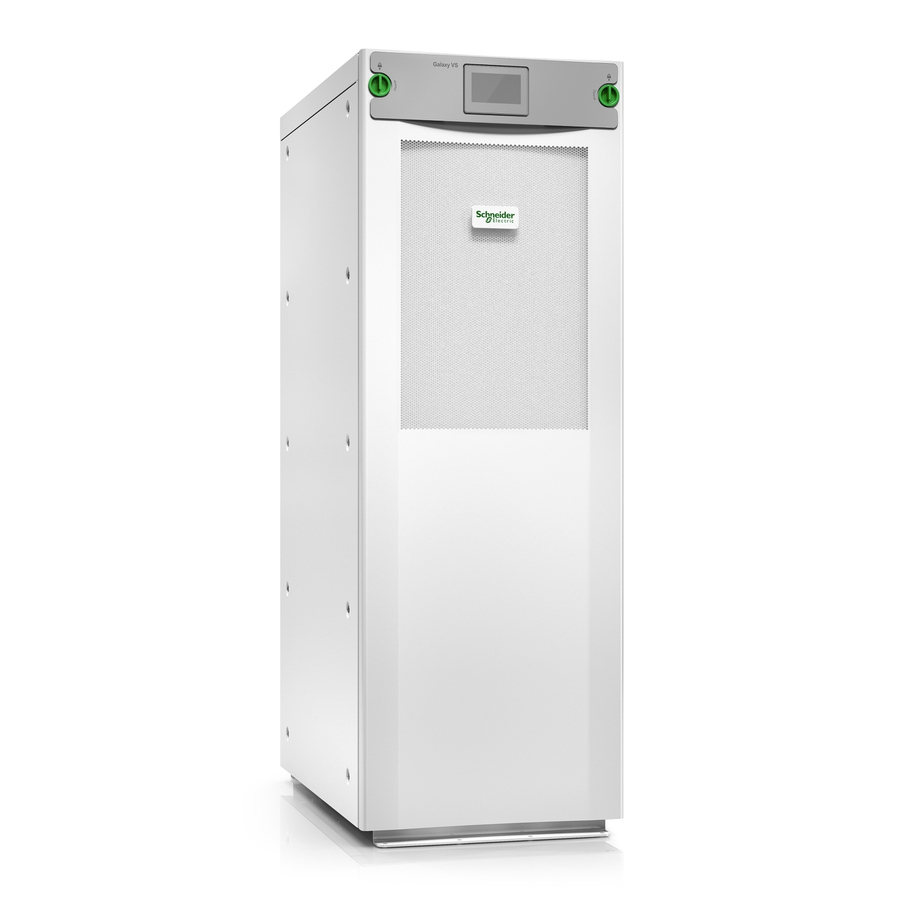

Galaxy VS 30kVA Tower UPS
Product Type
Double Conversion Online UPS
Physical Characteristics
Form Factor
Tower
Height
58.5"
Width
20.5"
Depth
33.4"
Weight (Approximate)
1014.13 lb
Power Description
Load Capacity (VA)
30 kVA
Input Voltage
480 V AC
Input Voltage Range
408 V AC - 552 V AC
Output Voltage
480 V AC
Input Frequency
70 Hz
Output Frequency
60 Hz
Waveform Type
Sine Wave
Technical Information
Phase
Three Phase
Application/Usage
Data Center, Critical System, Business, Commercial, Industrial
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
Galaxy VS 30kVA Tower UPS
Battery Modules
Dust Filter
EcoStruxure Ready (UPS)
Installation Guide
Integrated Network Management
Power Modules
Start-Up Service
Software Included
EcoStruxure
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
