Overview

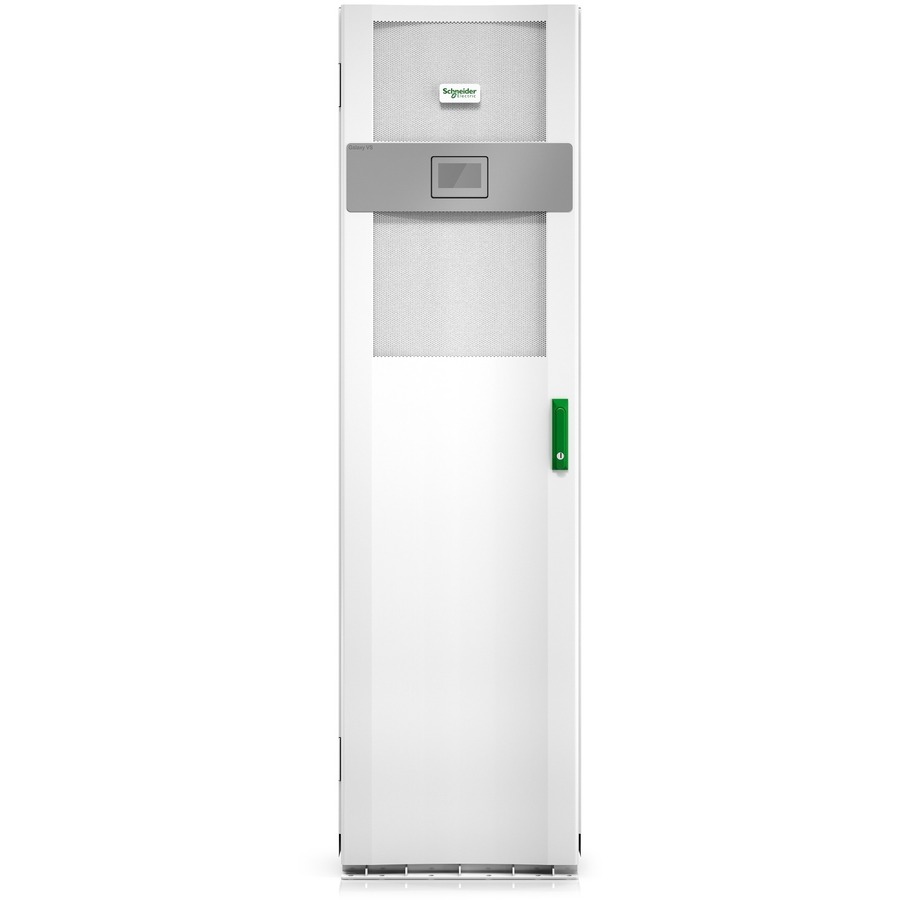

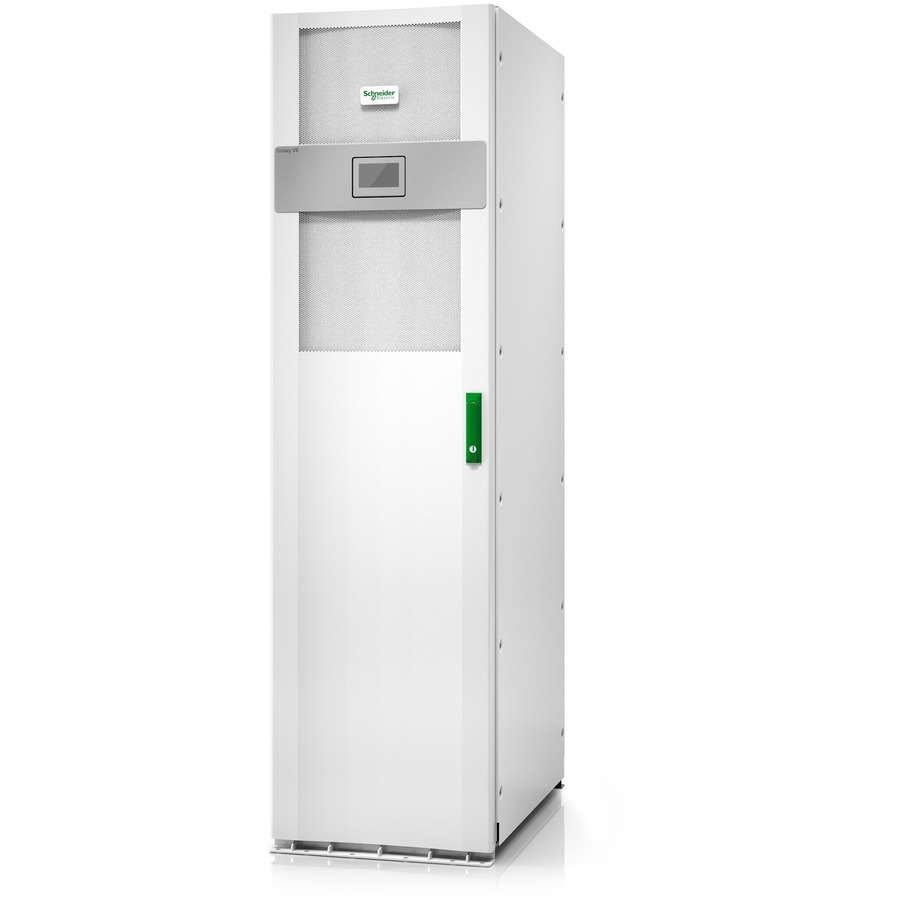

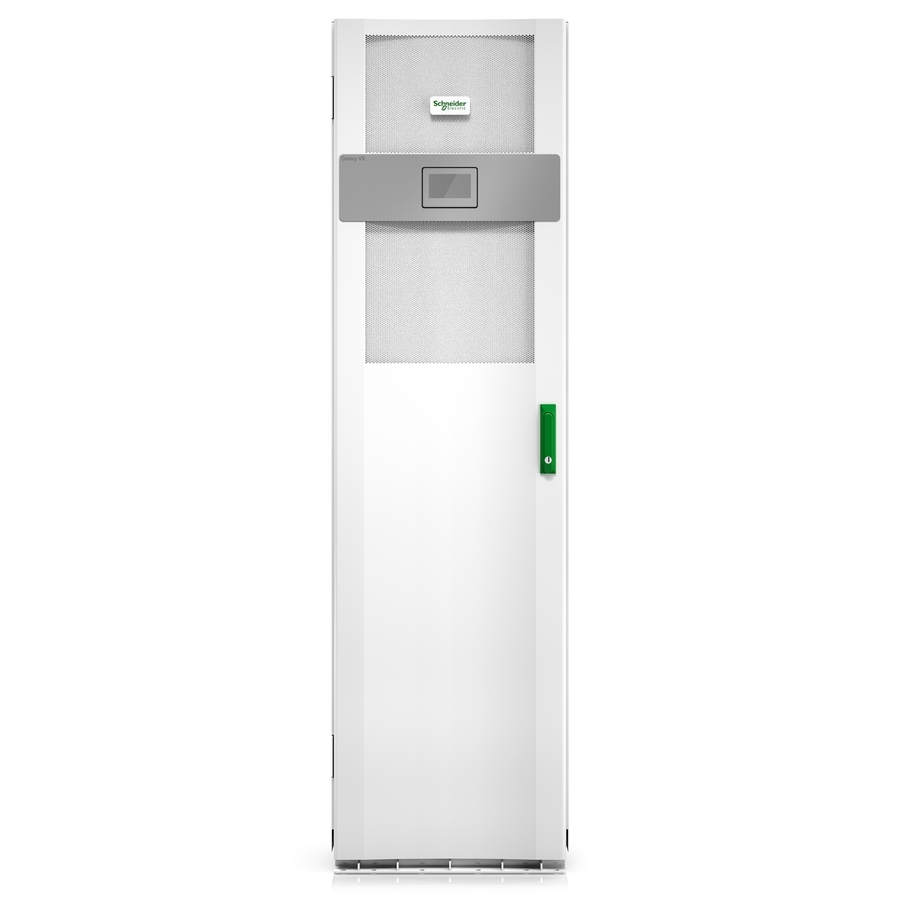

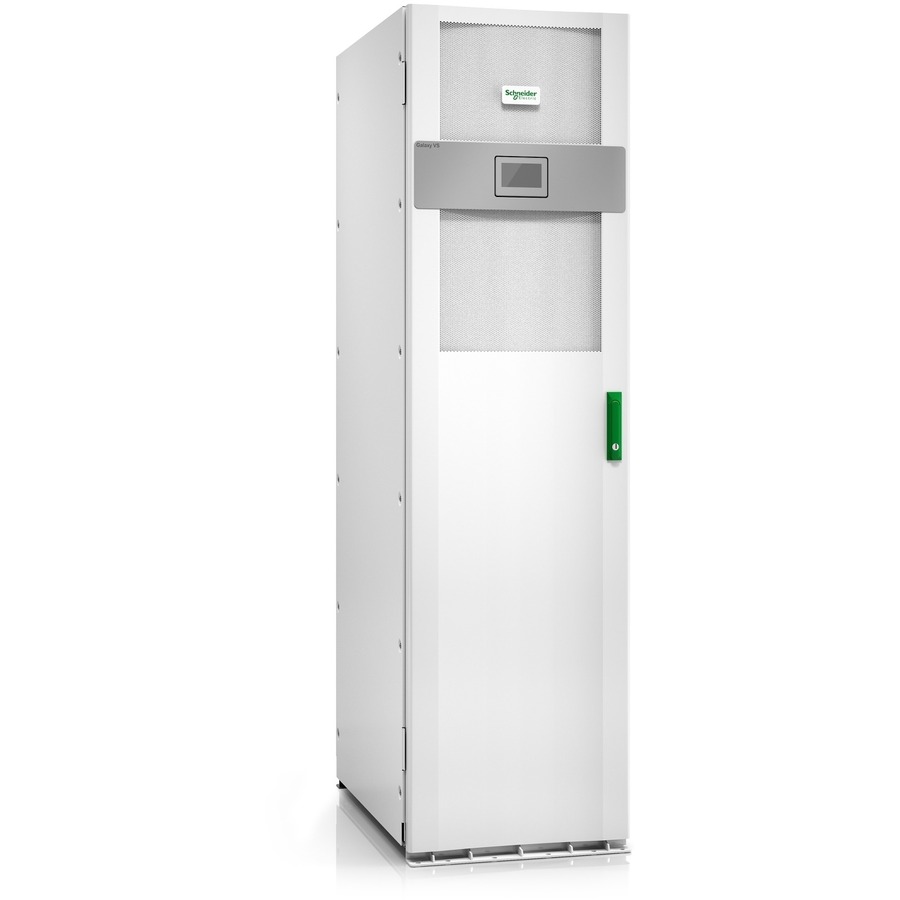

Galaxy VS
Highly efficient 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V) 3-phase UPS for edge, small, and medium data centers and other business-critical applications.
Galaxy VS is a highly efficient, modular, easy-to-deploy 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V), three-phase uninterruptible power supply that delivers top performance for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial facilities. Its compact design, high-density technology, N+1 redundancy, and fault-tolerant architecture maximize availability, operational efficiency, and critical load protection, while minimizing total cost of ownership. Thanks to patented technologies, this UPS delivers up to 97% efficiency in normal operating mode and up to 99% in ECOnversion mode, equivalent to 66% higher energy savings. Galaxy VS is EcoStruxure Ready to give you peace of mind anytime, anywhere. Smart modular batteries integrated in the UPS cabinet optimize footprint and ensure critical loads have highly predictable runtimes. Start-up service is included to optimize your system's performance, quality, and safety. With its robust design and industry-leading performance, Galaxy VS is the ideal backbone for your critical infrastructure.
Warranty
Limited Warranty: 1 Year
Specifications
Battery Information
DC System Voltage
480 V DC
Battery Characteristics
Valve Regulated Lead Acid (VRLA)
Battery Chemistry
Lead Acid
Battery Capacity
9000 mAh
Replaceable Battery
Yes
Controls/Indicators
Status Indicators
Control Panel: Touch Screen LCD User Interface
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Storage Temperature
5°F (-15°C) - 104°F (40°C)
Maximum Operating Elevation
3248.03 ft
Maximum Storage Elevation
118.11"
Storage Relative Humidity
10% - 80%
Sound Emission (A-Weighted)
54 dB(A)
Thermal Dissipation
947.79 W
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
GVSUPS20KR0B5FS
Brand Name
APC by Schneider Electric
Product Line
Galaxy VS
Product Name
Galaxy VS 20kVA Tower UPS
Product Type
Double Conversion Online UPS
Management
Network Management
SNMP Manageable
Physical Characteristics
Form Factor
Tower
Height
78"
Width
22"
Depth
34"
Weight (Approximate)
551.16 lb
Power Description
Load Capacity (VA)
20 kVA
Input Voltage
230 V AC
Input Voltage Range
177 V AC - 239 V AC
Output Voltage
200 V AC, 208 V AC, 220 V AC
Input Frequency
70 Hz
Output Frequency
60 Hz
Waveform Type
Sine Wave
Technical Information
Transfer Time
0 ns
Phase
Three Phase
Application/Usage
Mission Critical Equipment, Business, Data Center, Commercial, Industrial, Smartphone, Computer
