Overview
Highly efficient 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V) 3-phase UPS for edge, small, and medium data centers and other business-critical applications.
Galaxy VS is a highly efficient, modular, easy-to-deploy 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V), three-phase uninterruptible power supply that delivers top performance for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial facilities. Its compact design, high-density technology, N+1 redundancy, and fault-tolerant architecture maximize availability, operational efficiency, and critical load protection, while minimizing total cost of ownership. Thanks to patented technologies, this UPS delivers up to 97% efficiency in normal operating mode and up to 99% in ECOnversion mode, equivalent to 66% higher energy savings. Galaxy VS is EcoStruxure Ready to give you peace of mind anytime, anywhere. Smart modular batteries integrated in the UPS cabinet optimize footprint and ensure critical loads have highly predictable runtimes. Start-up service is included to optimize your system's performance, quality, and safety. With its robust design and industry-leading performance, Galaxy VS is the ideal backbone for your critical infrastructure.
Specifications
Battery Information
DC System Voltage
480 V DC
Number of Batteries
1
Battery Characteristics
Sealed
Battery Chemistry
Lead Acid
Battery Capacity
7000 mAh
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Storage Temperature
5°F (-15°C) - 104°F (40°C)
Maximum Operating Elevation
3229.33 ft
Maximum Storage Elevation
9842.52 ft
Storage Relative Humidity
0% - 95%
Sound Emission (A-Weighted)
65 dB(A)
Thermal Dissipation
516.10 W
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
GVSUPS15KB2HS
Brand Name
APC by Schneider Electric
Product Line
Galaxy VS

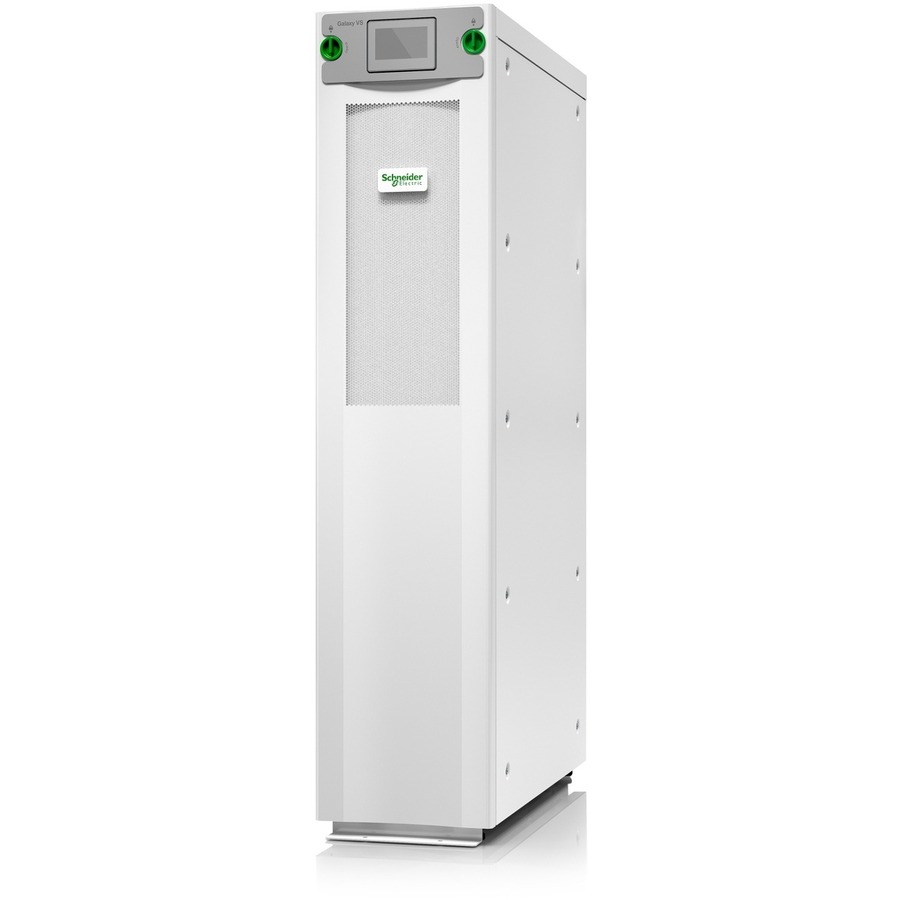

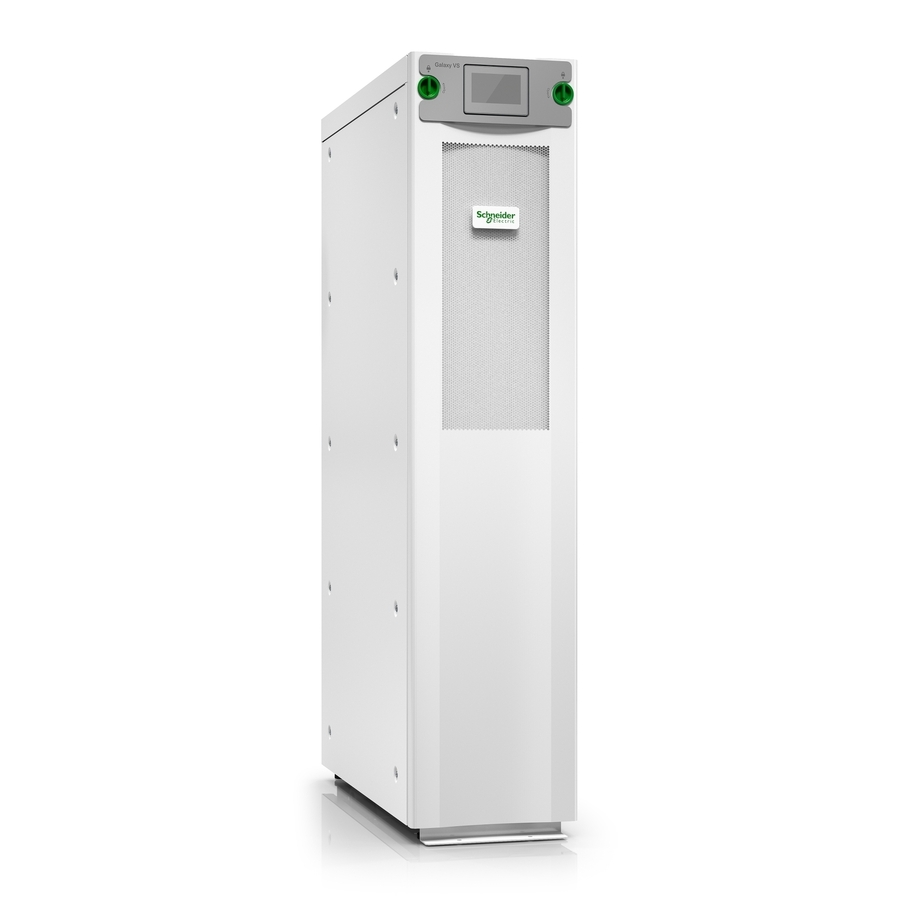

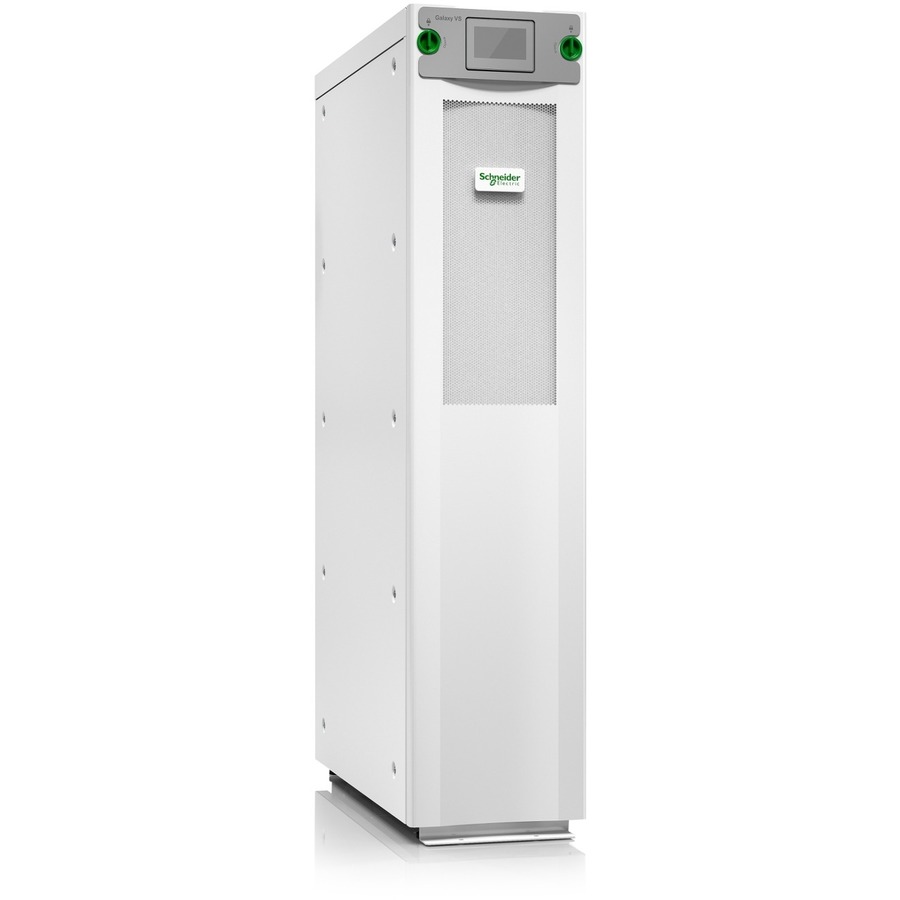

Product Name
Galaxy VS 15kVA Tower UPS
Product Type
Double Conversion Online UPS
Management
Network Management
SNMP/HTTP Remote Monitoring
Physical Characteristics
Form Factor
Tower
Height
58.5"
Width
13.1"
Depth
33.3"
Weight (Approximate)
540.13 lb
Power Description
Load Capacity (VA)
15 kVA
Input Voltage Range
340 V AC - 460 V AC
Output Voltage
400 V AC, 380 V AC, 415 V AC
Input Frequency
70 Hz
Output Frequency
60 Hz
Waveform Type
Sine Wave
Technical Information
Transfer Time
0 ns
Overload Protection
Yes
Phase
Three Phase
Application/Usage
Data Center, Business, Critical System, Industry, Commercial
