Genuine Schneider Electric through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
General Purpose UPS
Overview
Warranty
Limited Warranty: 2 Year
Highlights
Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Audible alarms - Provides notification of changing utility power and UPS power conditions
Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Boost Automatic Voltage Regulation (AVR) - Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Resettable circuit breaker - Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Safety-agency approved - The UPS is UL1778 Listed
Status Indicator LED's - Dual Status Indicator - Alerts you to the unit's power status. Green indicates it's ready for use. The Red indicator signals the unit's shutdown to save your automobile battery from draining.
Specifications
Battery Information
Number of Batteries
1
Battery Characteristics
Spill-proof, Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
3 Minute
Backup/Run Time (Half Load)
12 Minute
Hot Swappable
Yes
Typical Battery Recharge Time
10 Hour
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
BR500CI-AS
Brand Name
APC by Schneider Electric
Product Line
Back-UPS
Product Series
RS
Product Model
BR500CI-AS
Product Name

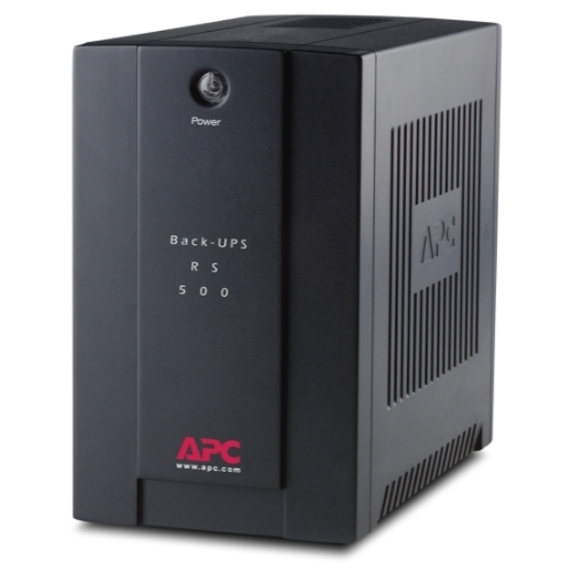

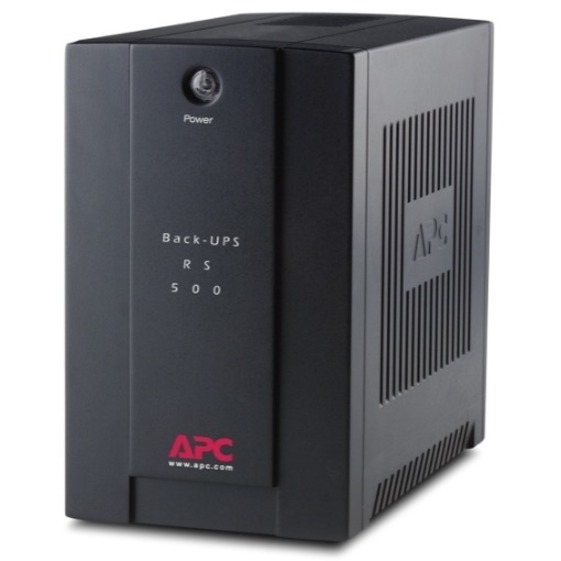

Back-UPS RS BR500CI-AS 500 VA Tower UPS
Product Type
Line-interactive UPS
Physical Characteristics
Product Color
Black
Height
7.28"
Width
4.53"
Depth
8.39"
Form Factor
Tower
Weight (Approximate)
10.80 lb
Power Description
Load Capacity (VA)
500 VA
Load Capacity (Watt)
300 W
Output Voltage
230 V AC
Waveform Type
Stepped Sine Wave
Technical Information

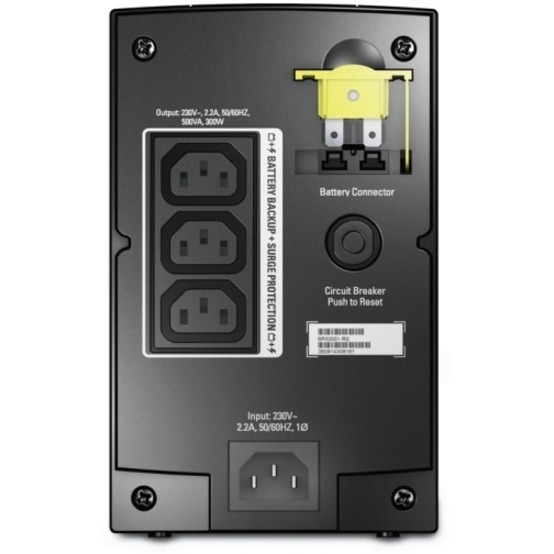

Number of Battery & Surge Outlets
3
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
Back-UPS RS BR500CI-AS 500 VA Tower UPS
(2) Detachable 1.8 m IEC power cords
User manual
Warranty card
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
