Attention: Due to high order volume, orders may require an additional business day to process.
12Gb/s SAS Host Interface - 3U Rack-mountable
16 x HDD Supported - 16 x Total Bay - 16 x 3.5" Bay
MSRP$15,889.00
$13,419.44
Save 16%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 15 and Dec 20, then process your delivery right after.
Genuine Promise Technology through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Cost-effective Storage Expansion Platform
As the demands for capacity expansion explode for IT applications and video surveillance, it is imperative that IT administrators find a cost-effective way to meet performance and expansion goals. The Vess J3000 Series is a robust storage expansion platform that serves as a building block to provide reliability and flexibility in a cost effective package that is simple to administer and meets the demands of your application. The 3U-16 bay Vess J3000 models are fully expandable to meet your needs today and in the future.

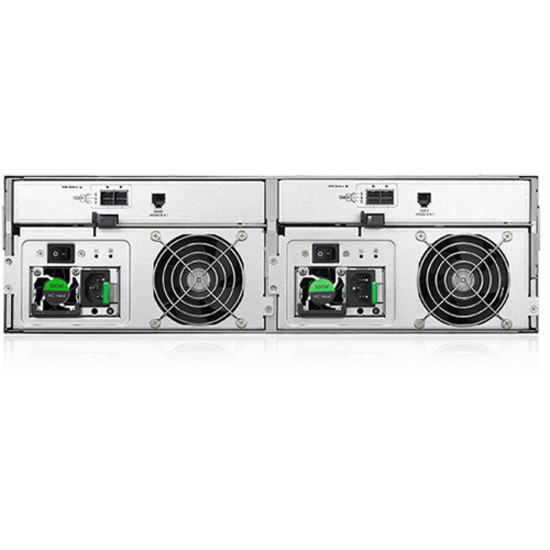

Redundant Power Supplies
The Vess J3000 Series is equipped with redundant power supplies. The advantage of power supplies is that should one fail, the other continues to power the subsystem until the faulty one can be replaced. Additionally, the power supplies are hot-swappable, which enables you to leave the subsystem running when you replace the one that failed.
Reduce Power and Cooling Costs
The Vess J3000 series utilize environmentally friendly production methods and materials as well as a high-efficiency design that saves energy. Sporting 80 Plus Gold Certified power supplies delivering up to 90% power efficiency, the Vess J3000 Series improves total cost of ownership by conserving power, reducing heat output and improving cooling costs.
Single System Offering 1PB Raw Capacity for Surveillance Applications
With the latest Vess A6000/A7000 series and Vess J3600 series, it's now available to deliver 1PB raw capacity with 12/14TB HDD fully populated. Vess A6000 series can directly attach a maximum of 5 JBOD units without an extra RAID head to provide you the best TCO(Total Cost Ownership) for your surveillance projects.
Make your Surveillance Storage Management even Easier
Considering the high surveillance storage demands in certain territories and vertical markets like Banking, Prisons, City Surveillance, Large-Scale system, ...etc, the Vess J3600sS paired with Vess A6000 or Vess A7000 is a perfect combination. This potent combination not only delivers an optional cost-effective portfolio to meet the storage performance and expansion goal but also simplifies the management efforts of the entire surveillance storage system via a single web GUI for the Vess A6000/A7000 series.
Limited Warranty: 3 Year
| Controllers | |
|---|---|
| Non-RAID Mode | JBOD |
| General Information | |
| Manufacturer | Promise Technology |
| Manufacturer Part Number | J3600SDQS8 |
| Brand Name | Promise |
| Product Line | Vess |
| Product Series | J3000 |
| Product Model | J3600SD |
| Product Name | Vess J3600SD Drive Enclosure With Dual Controller |
| Product Type | Drive Enclosure |
| Interfaces/Ports | |
| Host Interface | 12Gb/s SAS |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Height | 5.2" |
| Width | 17.6" |
| Depth | 20" |
| Technical Information | |
| Number of Hard Drives Supported | 16 |
| Number of Hard Drives Installed | 16 |
| Total Hard Drive Capacity Installed | 128 TB |
| I/O Expansions | |
| Number of Total Expansion Bays | 16 |
| Number of 3.5" Bays | 16 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Compatibility | Promise Storage Systems: Vess R3000 Vess A6000 Vess A7000 |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
