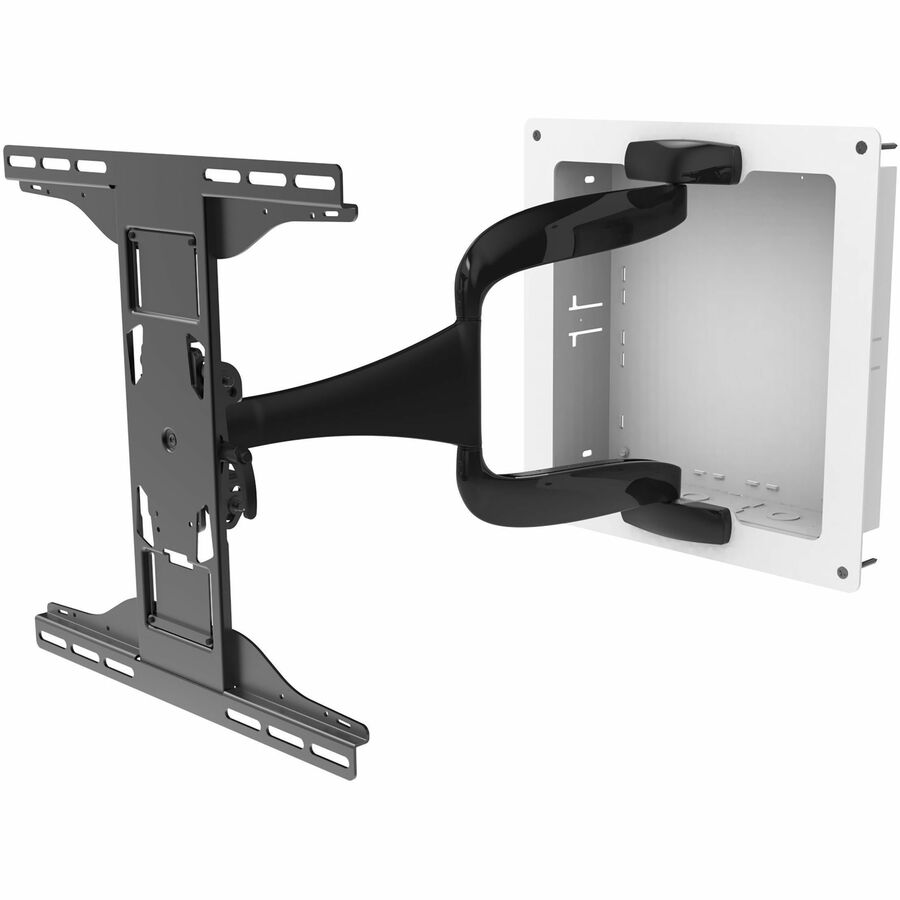

Peerless-AV® DesignerSeries Articulating Mount with In-Wall Box for 37"…
to 65" Ultra-Thin Displays
1 Display(s) Supported - 37" to 65" Screen Support - 80 lb Load Capacity - 200 x 100, 400 x 400 - VESA Mount Compatible - 1 Unit
SKU
Category
Mounting Kits
MSRP$725.00
$464.98*
Save 36%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 14 and Dec 19, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine Peerless Industries through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Mounting Kits
Overview
Peerless-AV's Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM747PU is ADA compliant when used with displays 2" thick or less.
More from the Manufacturer
DesignerSeries™ Articulating Mount with In-Wall Box for 37" to 65" Ultra-Thin Displays
Peerless-AV’s Articulating Mount with a built-in In-Wall Box is designed to provide a robust solution for low profile/recessed applications requiring access to power and ample space for AV electronics. The articulating mount swings away from the wall to provide access to the rear of the display and components inside the In-Wall Box. IM747PU is ADA compliant when used with displays 2" thick or less.
Features
Includes Articulating Mount with 400 x 400mm VESA® adaptors
Up to ±90° of side-to-side swive
Added ±5° of roll for post-installation display leveling without the use of tools
Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
Landscape or portrait mounting options increases display versatility
Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
Knock-outs for 3/4", 1.0", 1.25" and 1.5" conduit |Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
Knock-outs provide the ability to mount up to four single gang outlets
Compatible with RACO 420 gang box or equivalent
Integrated cable tie locations
Warranty
Limited Warranty: 5 Year
Highlights
Includes Articulating Mount with 400 x 400mm VESA® adaptors
Up to ±90° of side-to-side swive
Added ±5° of roll for post-installation display leveling without the use of tools
Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
Landscape or portrait mounting options increases display versatility
Installs between 16" (406mm) stud centers, to a single stud, or directly into a drywall opening
Knock-outs for 3/4" , 1.0" , 1.25" and 1.5" conduit |Cut-Out Dimensions: 14.4" x 14.4" (365 x 365mm)
Adjustable Trim Ring allows use of 3/8" - 3/4" drywall thickness
Knock-outs provide the ability to mount up to four single gang outlets
Compatible with RACO 420 gang box or equivalent
Integrated cable tie locations
Specifications
General Information
Manufacturer
Peerless Industries, Inc
Manufacturer Part Number
IM747PU
Brand Name
DesignerSeries
Product Series
IM747PU
Product Model
IM747PU
Product Name
Articulating Mount with In-Wall Box for 37" to 65" Ultra-Thin Displays
Packaged Quantity
1 Unit
Product Type
Wall Mount
Physical Characteristics
Color Family
Dual Color
Product Color
Black, White
VESA Mount Compatible
Yes
Mounting Pattern
400 x 400
Form Factor
Wall Mountable
Height
17.75"
Width
20.75"
Depth
25.03"
Weight (Approximate)
36.50 lb
Product Information
Device Supported
Display
Minimum Load Capacity
25 lb
Maximum Load Capacity
80 lb
Minimum Screen Size Supported
37"
Maximum Screen Size Supported
65"
Features
Robust, Swing, +/- 5° Roll, Vertical Adjustment, Cable Tie Slot
Minimum Adjustable Depth
1.94"
Maximum Adjustable Depth
25.03"
Mount Profile
Low Profile
Orientation
Landscape/Portrait
Minimum Tilt Angle
-5°
Maximum Tilt Angle
15°
Minimum Swivel Angle
-90°
Maximum Swivel Angle
90°
Mount Function
In-wall Box, Articulating
Mount Surface
Wall
Durability
Scratch Resistant
Warranty
Limited Warranty
5 Year
Miscellaneous
Package Contents
Articulating Mount with In-Wall Box for 37" to 65" Ultra-Thin Displays
