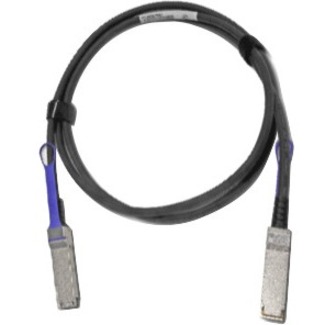

Mellanox MC2210128-003 DAC Cable Ethernet 40GbE QSFP 3m

NVIDIA MC2210128-003 Direct Attach Copper Cable Ethernet 40GbE QSFP 3m 40GbE QSFP+ Direct Attach Copper Cables

NVIDIA Networking QSFP+ direct attach copper (DAC) cables provide robust connections for leading edge 40GbE Ethernet systems. The cables consist of four lanes each operating at data rates of up to 14.0625Gb/s.

Passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8685 specifications and provide connectivity between devices using QSFP+ ports. Each QSFP+ port comprises an EEPROM providing product information, which can be read by the host system.

This integrated cable solution provides reliable transport for aggregate data rates of up to 56Gb/s Virtual Protocol Interconnect (VPI). Optimizing systems to operate with 56Gb/s passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of enterprise data center (EDC) hosts.

unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Highlights

• Up to 40Gb/s data rate for MC22101xx

• SFF-8685 compliant QSFP+

• Operating case temperature of 0-70C

• 3.3V power supply

• BER better than 1E-15

• Hot pluggable

• RoHS compliant

• SFF-8636 compliant I2C management interface
