Overview

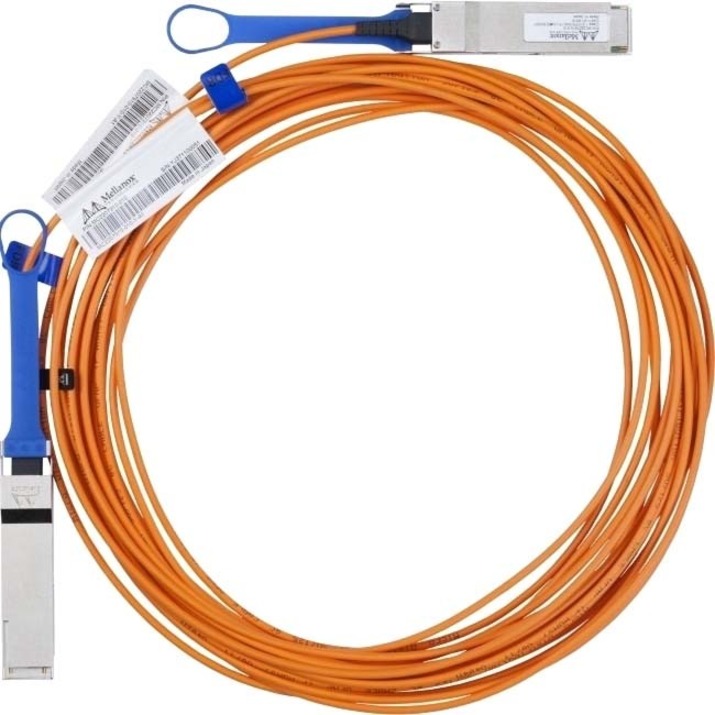

NVIDIA MC220731V-003 Active Optical Cable VPI up to 56Gb/s QSFP 3m
56Gb/s QSFP+ VPI Active Optical Cable
NVIDIA Networking MC220731V is a family of VCSEL-based (Vertical Cavity Surface-Emitting Laser) QSFP+ active optical cable (AOC) designed for use in 40GbE Ethernet and 56Gb/s Virtual Port Interconnect (VPI) systems.
This family of AOCs offers high port density and configurability, as well as a longer reach than passive copper cables in data centers. Since the AOC is hot pluggable, it is easy to install and replace. The MC220731V family has a standard SFF-8685 compliant QSFP+ port on the electrical side towards the host system.
MC220731V AOCs contain four multi-mode fibers (MMF) optical transceivers per end, each operating at data rates of up to 14.0625Gb/s. The transmitters have input equalizers compensating for signal attenuation across the host PCB, and the receivers have programmable output amplitude and pre-emphasis.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
Highlights
• Up to 56Gb/s data rate
• 1W maximum power consumption
• SFF-8685 and SFF-8436 compliant
• Operating case temperature of 0-70C
• 3.3V power supply
• BER better than 1E-15
• Hot pluggable
• Up to 100 meters in length
• Standard multimode fiber
• RoHS compliant
• Plenum rated (OFNP)
