SKU
4XB7B07603
Category
Hard Drives/Solid State Drives
Overview
The ThinkSystem Vendor Agnostic Read Intensive 24Gb SAS SSDs are general-purpose SSDs with an average endurance of 1 drive write per day. Vendor Agnostic SSDs are non-vendor-specific drives which can streamline and simplify the ordering and delivery of SAS SSDs. The drives offered in the Vendor Agnostic SSD program consists of SSDs that are readily available, ensuring the shortest supply lead time.
With SED encryption as standard, Vendor Agnostic SSDs help ensure data security, even when the drive is removed from the server.
Did you know?
Unlike 6 Gb/s SATA drives, the 24 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance, and enterprise-level error recovery for better availability.
Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen from a system while in use. These features are essential for many businesses, especially those storing customer data.
Warranty
Limited Warranty: 1 Year
About Lenovo
Join Lenovo
Transformation is a Team Sport
When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
Low cost SSD for read-intensive workloads from industry leading SSD vendors
24 Gbps SAS interface
SED drive encryption (TCG Opal or TCG Enterprise)
Advanced ECC Engine and End-to-End Data Protection
TLC V-NAND stacks the vertical NAND layers in three dimensions, solving the cell-to-cell interference that causes data corruption in planar NAND.
Power Loss Protection (PLP) architecture
Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T).
Specifications
Drive Performance
Random 4KB Read
380000IOPS
Random 4KB Write
99000IOPS
Endurance (DWPD)
1
Endurance (TBW)
14016 TB
Endurance Type
Read Intensive
Maximum Sequential Read
1.86 GB/s
Maximum Sequential Write
1.76 GB/s
Mean Time Between Failures (MTBF)
228.2 Year
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
4XB7B07603
Brand Name
Lenovo
Product Name

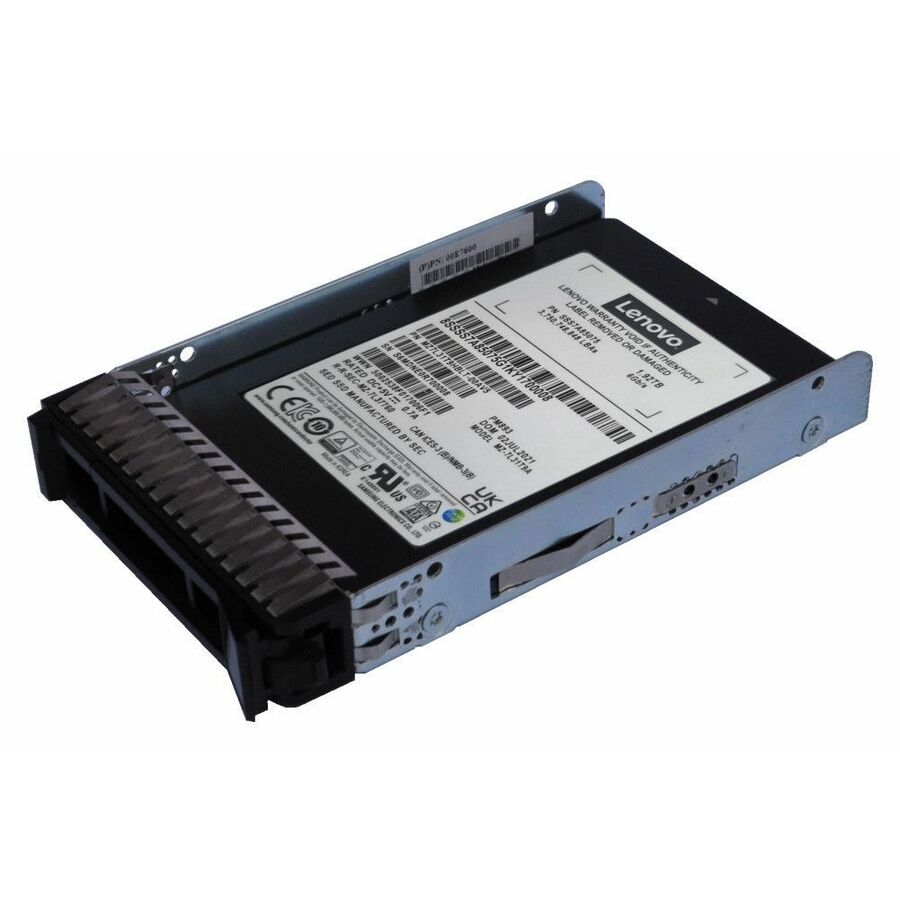

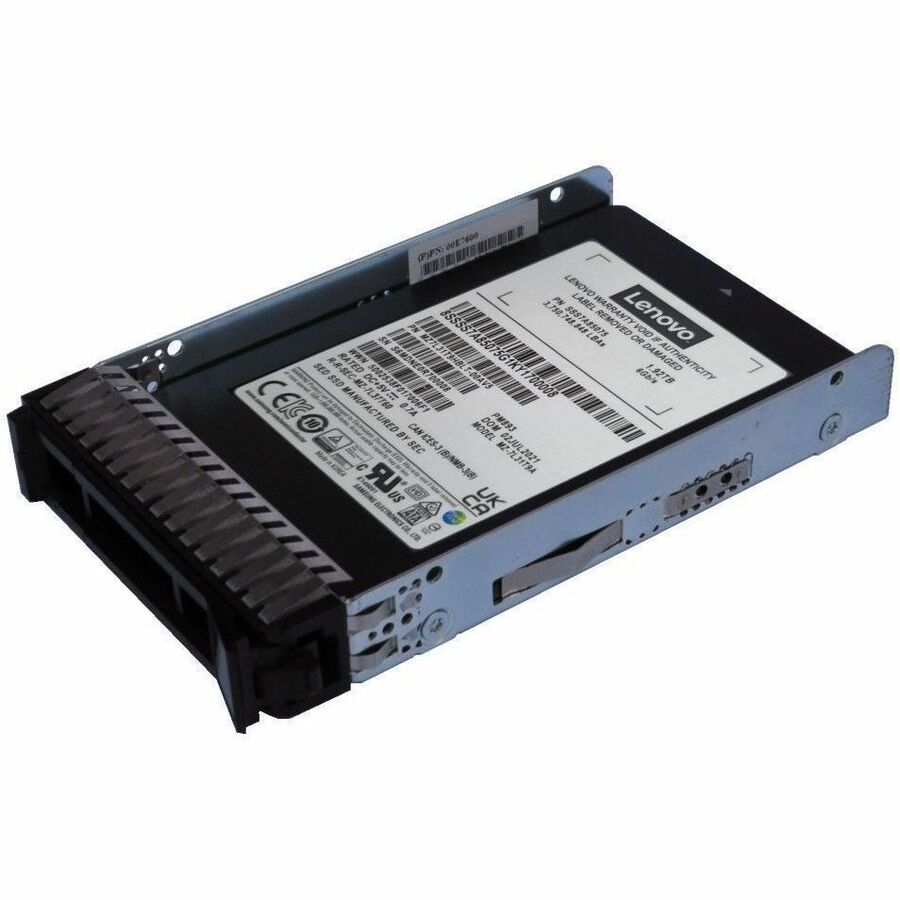

ThinkSystem 2.5" VA 7.68TB Read Intensive SAS 24Gb HS SSD
Packaged Quantity
1
Product Type
Solid State Drive
Interfaces/Ports
Drive Interface
SAS
Drive Interface Standard
24Gb/s SAS
Physical Characteristics
Drive Type
Internal
Form Factor
2.5"
Hot Swappable
Yes
Height
0.6"
Width
2.8"
Depth
3.9"
Technical Information
Storage Capacity
7.68 TB
Warranty
Limited Warranty
1 Year
Miscellaneous
Package Contents
ThinkSystem 2.5" VA 7.68TB Read Intensive SAS 24Gb HS SSD
ThinkSystem Hot-Swap Tray
Documentation Flyer
Device Supported
Server, Data Center, Storage System
Compatibility
Lenovo ThinkSystem S R635 V3 (7D9H / 7D9G) Lenovo ThinkSystem S R655 V3 (7D9F / 7D9E) Lenovo ThinkSystem S R645 V3 (7D9D / 7D9C) Lenovo ThinkSystem S R665 V3 (7D9B / 7D9A) Lenovo ThinkSystem S T650 V3 (7D7B / 7D7A) Lenovo ThinkSystem S R630 V3 (7D72 / 7D73) Lenovo ThinkSystem S R650 V3 (7D75 / 7D76) Lenovo ThinkSystem S D535 V3 (7D D8 / 7D D1) Lenovo ThinkSystem S D550 V3 (7D D9 / 7D D2) Lenovo ThinkSystem S R850 V3 (7D97 / 7D96) https://lenovopress.lenovo.com/lp2216.pdf
