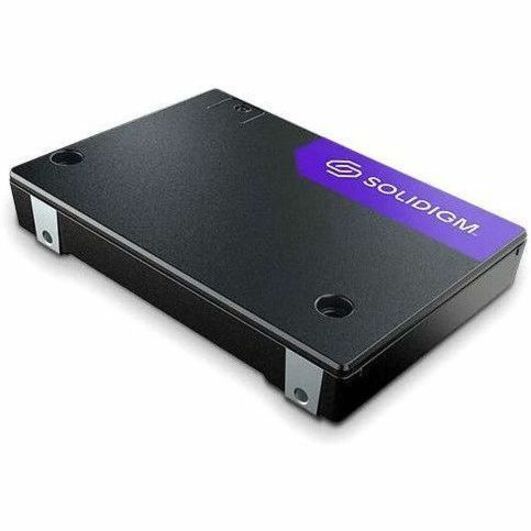

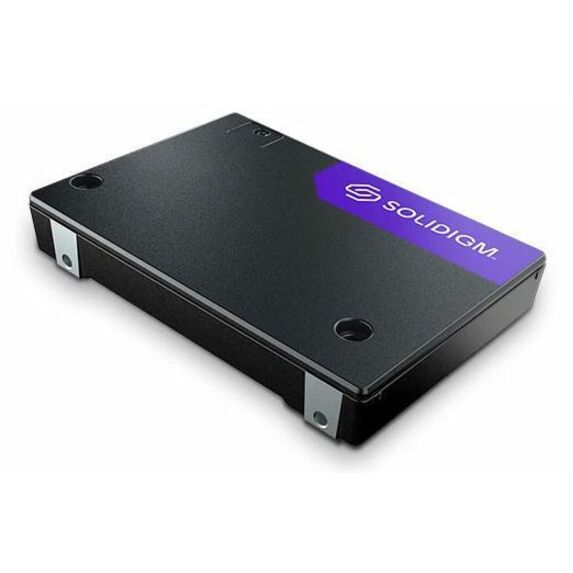

Lenovo 3.20 TB Solid State Drive - 2.5" Internal - U.2 (PCI Express NVMe 5.0 x4) - Mixed Use
Data Center, Server Device Supported - 3 DWPD - 17920 TB TBW - Hot Swappable - 1 Year Warranty - 1
- SKU
- 4XB7A97905
- Category
- Hard Drives/Solid State Drives
MSRP$14,499.00
$13,256.00
Save 9%Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4XB7A97905
- Category
- Hard Drives/Solid State Drives
Overview
The PS1030 SSDs are part of the new family of PCIe 5.0 SSDs that match the performance of the ThinkSystem V4 family of servers. By having a Gen 5 host interface, sequential performance is doubled compared to Gen 4 SSDs. The NVMe host interface also maximizes flash storage performance and minimizes latency.
Lenovo Mixed Used SSDs like the PS1030 SSDs are suitable for mixed read-write and general-purpose data center workloads, however their NVMe PCIe interface means the drives also offer high performance. Overall, these SSDs provide outstanding IOPS/watt and cost/IOPS for enterprise solutions.|
Highlights
- Based on the Solidigm D7-PS1030 SSDs
- PCIe 5.0 connection for each NVMe drive
- Compliant with Trusted Computing Group Opal 2.02 Security Subsystem Class cryptographic
- standard (TCG Opal 2.02 SSC)
- Solidigm V7 TLC 3D NAND Flash Memory
- Suitable for mixed read-write workloads
- Available in capacities up to 12.8 TB
- Variable sector size and end-to-end data-path protection
- Enhanced power-loss data protection
- Thermal throttling and monitoring
- SMART health reporting
Specifications
| Package Contents |
|
|---|---|
| Product Type | Solid State Drive |
| Compatibility | ThinkSystem ST650 V3 (7D7B / 7D7A) Server |
| Device Supported | Data Center, Server |
| Storage Capacity | 3.20 TB |
| Hot Swappable | Yes |
| Manufacturer Part Number | 4XB7A97905 |
| Packaged Quantity | 1 |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 5.78 oz |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 2.5" U.2 PS1030 3.2TB Mixed Use NVMe PCIe 5.0 x4 HS SSD |
| Brand Name | Lenovo |
| Height | 0.6" |
| Width | 2.8" |
| Depth | 3.9" |
| Drive Interface | U.2 |
| Drive Interface Standard | PCI Express NVMe 5.0 x4 |
| Random 4KB Read | 3100000IOPS |
| Random 4KB Write | 716000IOPS |
| Operating System Compatibility | Windows Server 2019, Windows Server 2022, Windows Server 2025, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 8.8, Red Hat Enterprise Linux 8.9, Red Hat Enterprise Linux 8.10, Red Hat Enterprise Linux 9.2, Red Hat Enterprise Linux 9.3, Red Hat Enterprise Linux 9.4, Red Hat Enterprise Linux 9.5, Red Hat Enterprise Linux 9.6, Red Hat Enterprise Linux 10, SUSE Linux Enterprise Server 15 SP4, SUSE Linux Enterprise Server 15 SP5, SUSE Linux Enterprise Server 15 SP6, Ubuntu 22.04 LTS, Ubuntu 24.04 LTS, Red Hat Enterprise Linux 8.7, SUSE Linux Enterprise Server 15 SP7 |
| Drive Carrier | Yes |
| Endurance (DWPD) | 3 |
| Endurance (TBW) | 17920 TB |
| Endurance Type | Mixed Use |
| Mean Time Between Failures (MTBF) | 285.2 Year |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
| Maximum Sequential Read | 14.50 GB/s |
| Maximum Sequential Write | 8.20 GB/s |
