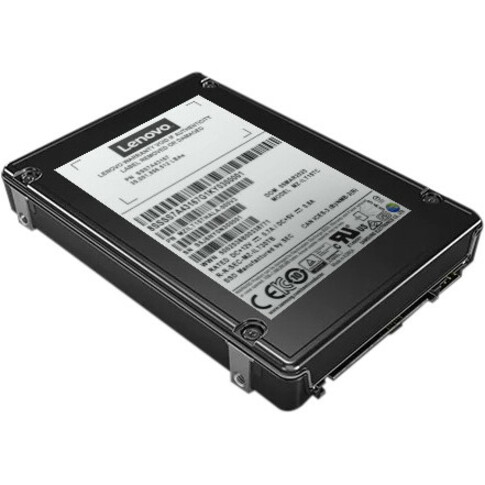

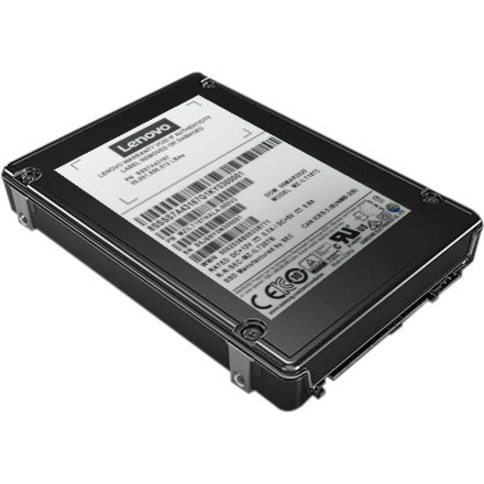

Lenovo PM1653 7.68 TB Solid State Drive - 3.5" Internal - SAS (24Gb/s SAS) - Read Intensive
Lenovo

Lenovo PM1653 7.68 TB Solid State Drive - 3.5" Internal - SAS (24Gb/s SAS) - Read Intensive

Server Device Supported - 1 DWPD - 14016 TB TBW - 2100 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty - 1

SKU
4XB7A80327
Category
Hard Drives/Solid State Drives

MSRP$26,399.00

$24,113.14

Save 9%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4XB7A80327
Category
Hard Drives/Solid State Drives

Overview

The ThinkSystem PM1653 Read Intensive SAS 24Gb SSDs are next-generation high-performance 24Gb SAS SSDs suitable for a wide range of applications of running on ThinkSystem servers. The drives are available in capacities of up to 30.72 TB.

The PM1653 SSDs are the follow-on to the PM1643a SSDs and offer improved performance.

Highlights

  • Server-grade SSD suitable for read-intensive workloads
  • Features Samsung's latest sixth-generation, 128-layer V-NAND storage technology
  • Endurance of 1 drive-writes per day (DWPD)
  • 2.5-inch or 3.5-inch industry standard form factor with hot-swap tray
  • SAS 24 Gb/s interface
  • Compliant with the Trusted Computing Group Enterprise Security Subsystem Class cryptographic standard (TCG Enterprise 1.01)
  • Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture
  • Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
  • End-to-end data protection
  • Support 16 Initiator with Tag Command Queuing (TCQ) Command Set with a queue-depth of up to 128 commands

Specifications

Package Contents
  • ThinkSystem 3.5" PM1653 7.68TB Read Intensive SAS 24Gb HS SSD
  • Documentation flyer
Product TypeSolid State Drive
Compatibility
  • ST650 V2 (7Z75 / 7Z74)
  • SR630 V2 (7Z70 / 7Z71)
  • SR650 V2 (7Z72 / 7Z73)
  • SR635 (7Y98 / 7Y99)
  • SR655 (7Y00 / 7Z01)
  • SR645 (7D2Y / 7D2X)
  • SR665 (7D2W / 7D2V)
  • ST550 (7X09 / 7X10)
  • SR530 (7X07 / 7X08)
  • SR550 (7X03 / 7X04)
  • SR570 (7Y02 / 7Y03)
  • SR590 (7X98 / 7X99)
  • SR630 (7X01 / 7X02)
  • SR650 (7X05 / 7X06)
Device SupportedServer
Storage Capacity7.68 TB
Hot SwappableYes
Manufacturer Part Number4XB7A80327
Packaged Quantity1
Limited Warranty1 Year
Weight (Approximate)5.64 oz
Drive TypeInternal
Form Factor3.5"
ManufacturerLenovo Group Limited
Product NameThinkSystem 3.5" PM1653 7.68TB Read Intensive SAS 24Gb HS SSD
Product SeriesPM1653
Brand NameLenovo
Height0.6"
Width2.8"
Depth3.9"
Environmentally FriendlyYes
Wireless LANNo
Maximum Read Transfer Rate2100 MB/s
Maximum Write Transfer Rate2000 MB/s
Drive InterfaceSAS
Drive Interface Standard24Gb/s SAS
Random 4KB Read420000IOPS
Random 4KB Write110000IOPS
Endurance (DWPD)1
Endurance (TBW)14016 TB
Endurance TypeRead Intensive
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
