Legrand

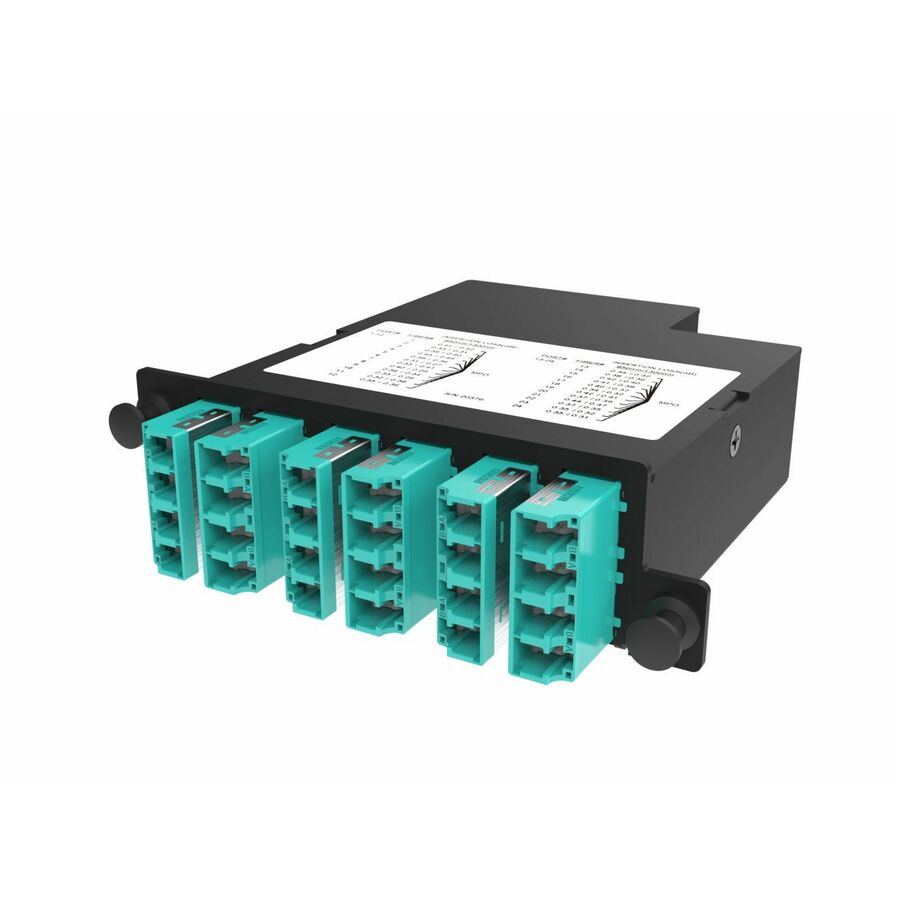

Ortronics Infinium Fiber Cassette
26 Port(s) - 6 x - Optical Fiber - Aqua
- SKU
- LM4-LC24H-2A4UN
- Category
- Patch Panels
MSRP$1,645.13
$1,020.80
Save 38%Back ordered
Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- LM4-LC24H-2A4UN
- Category
- Patch Panels
Overview
No longer bound by Ultra Low Loss - Infinium Quantum has redefined performance in the data center with a total channel connection loss that is an order of magnitude greater than any other fiber system on the market today. Infinium quantum changes everything by opening up the opportunity to challenge what&rsquo-s possible.
Highlights
- High Density: 12 or 24-fiber cassette compatible with Infinium HD M4 Enclosures
- Versatile Installation: Infinium Modular Panel enables mixed media installations
- Fiber Type: Supports either Single-mode OS2 or Multimode Infinium Ultra fiber
- Polarization: Universal
- LC adapter with internal shutter: Ensures eye safety by blocking laser light when the connector is removed. Automatic shutter requires no manual handling. Compatible with LC connectors, keeps the interior clean, and allows visible light to pass through.
- Infinium Ultra: Ultra Low Loss System with Infinium Ultra Trunks and Patch Cords: Single-mode channel loss: 1.2 dB, return loss: 49 dB. Multimode channel loss: 1.0 dB, return loss: 19 dB.
- Infinium Core: Low Loss System with Infinium Core Trunks and Patch Cords: Single-mode channel loss: 2.1 dB, return loss: 49 dB. Multimode channel loss: 2.5 dB, return loss: 19 dB.
Specifications
| Package Contents |
|
|---|---|
| Product Type | Fiber Cassette |
| Manufacturer Part Number | LM4-LC24H-2A4UN |
| Limited Warranty | 5 Year |
| Manufacturer | Legrand Group |
| Product Name | Infinium Fiber Cassette |
| Product Line | Infinium |
| Brand Name | Ortronics |
| Country of Origin | Mexico |
| Height | 1.1" |
| Width | 3.5" |
| Depth | 4.8" |
| Number of LC Ports | 6 |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 26 |
| Product Color | Aqua |
| Color Family | Green |
| Product Material | Aluminum, Steel, Thermoplastic, Zirconia |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
