1920 x 1080 - 4.40 mm - 20x Optical - Exmor R CMOS - HDMI
$4,572.89*
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine Legrand through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).
The system works on an IP-based infrastructure, sending video and control signals over the LAN using IP switching and configuration protocols. By offloading the extension and switching to a PoE switch, total cost of the system is reduced, providing a simple, more affordable alternative to traditional extension systems. The EasyIP solution eliminates the need for more expensive video switchers, controllers, extension systems and dedicated processing devices.
The EasyIP 20 Camera, sends 1080p/60 resolution feeds to the EasyIP Ecosystem for delivery to web-based streaming and conferencing solutions and connects to a 1 Gb PoE+ switch - eliminating the need for costly USB extensions.
IMPORTANT: This camera requires a PoE+ power source to operate (not included). Consider the EasyIP 20 Base Kit 999-30232-000 which includes the Luxul AMS-1208P-EasyIP Switch, EasyIP 20 Camera and EasyIP Decoder.
Designed with an 1/2.5-type Exmor R CMOS sensor, the EasyIP 20 camera delivers striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
Enhanced Wide Dynamic Range
The EasyIP 20 camera is equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
Remote Management
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control.
Smooth Tri-Synchronous Motion
The EasyIP 20 camera is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
Flexible Video Outputs
Video outputs include simultaneous EasyIP (Network PoE+) and local HDMI video output. More from the Manufacturer
Vaddio EasyIP 20 HD PTZ Camera - For Conference Rooms - 20x Optical Zoom
The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).
The system works on an IP-based infrastructure, sending video and control signals over the LAN using IP switching and configuration protocols. By offloading the extension and switching to a PoE switch, total cost of the system is reduced, providing a simple, more affordable alternative to traditional extension systems. The EasyIP solution eliminates the need for more expensive video switchers, controllers, extension systems and dedicated processing devices.
The EasyIP 20 Camera, sends 1080p/60 resolution feeds to the EasyIP Ecosystem for delivery to web-based streaming and conferencing solutions and connects to a 1 Gb PoE+ switch - eliminating the need for costly USB extensions.
IMPORTANT: This camera requires a PoE+ power source to operate (not included). Consider the EasyIP 20 Base Kit 999-30232-000 which includes the Luxul AMS-1208P-EasyIP Switch, EasyIP 20 Camera and EasyIP Decoder.
Designed with an 1/2.5-type Exmor R CMOS sensor, the EasyIP 20 camera delivers striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
Enhanced Wide Dynamic Range
The EasyIP 20 camera is equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
Remote Management
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control.
Smooth Tri-Synchronous Motion
The EasyIP 20 camera is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
Flexible Video Outputs

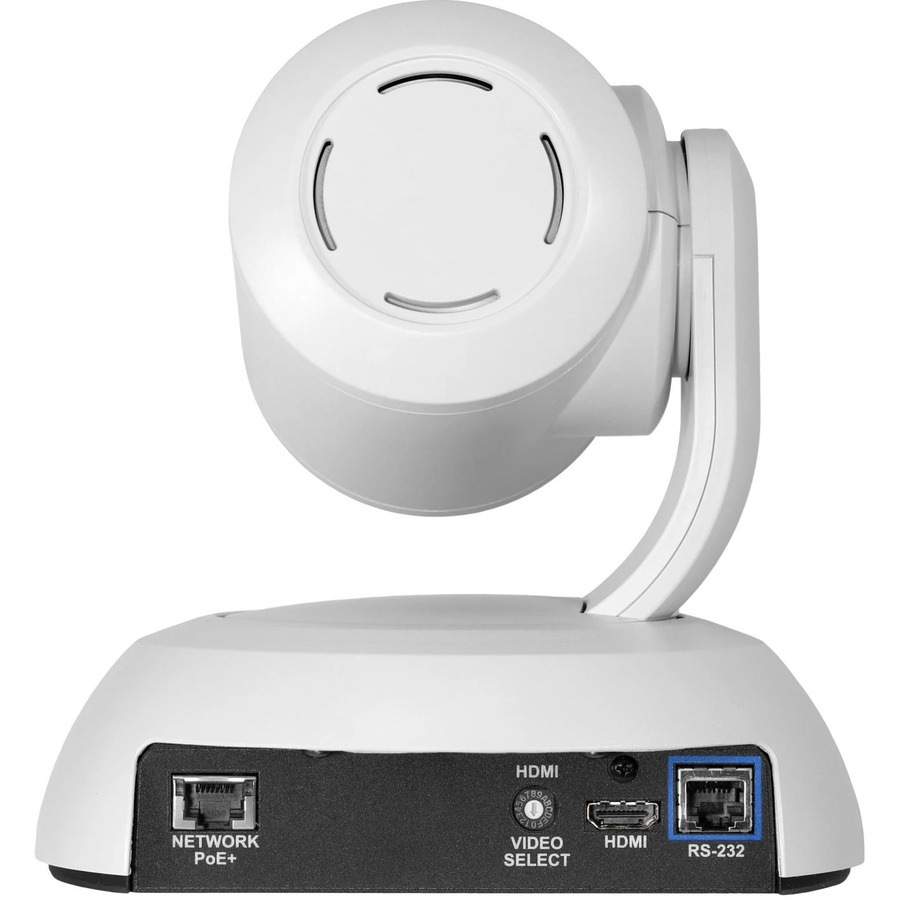

Video outputs include simultaneous EasyIP (Network PoE+) and local HDMI video output.Package Contents:
EasyIP 20 Camera
1 x Quick-Start Guide

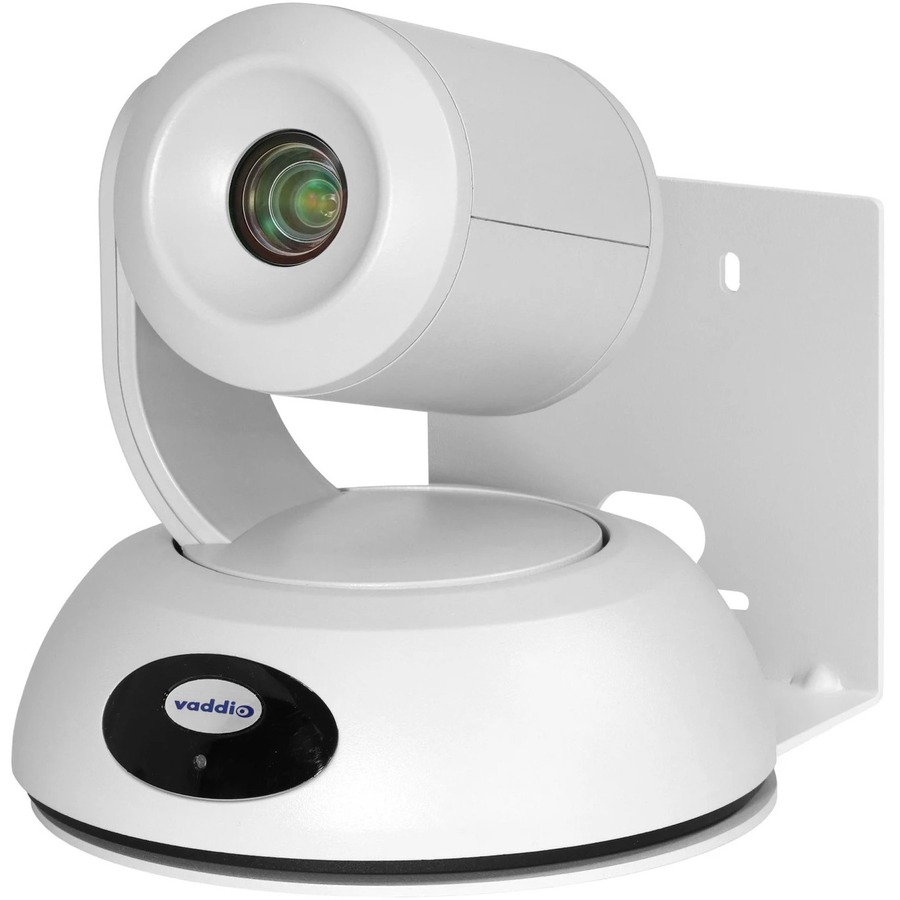

1 x Thin Profile Wall Mount (white) with Mounting Hardware and Installation Manual
1 x Vaddio IR Remote Commander
10 ft (3.05m) cat-5e Snagless Cable, Black
Aenean sit amet pellentesque odio. Maecenas quis tellus non odio pellentesque lobortis. Phasellus eleifend ante a turpis laoreet, quis facilisis risus cursus. Suspendisse convallis convallis turpis, non ornare ipsum ultricies et. In elementum rutrum dui eget dictum. Sed non luctus lacus. Praesent sed turpis viverra, cursus sapien ut, convallis nisi. Mauris sed placerat nibh. Sed mollis vulputate.
EasyIP 20 HD PTZ Camera
The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch – eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).
Features
Back-illuminated 8.51 Megapixel, high definition 1/2.5 Type
Exmor R CMOS Sensor delivers 1080p/60 video
20x Optical zoom horizontal field of view of 70.2°
Simultaneous HDMI and EasyIP streaming outputs
Smooth and precise pan and tilt movements at up to 120° per
second
Integration-ready Telnet control
Pairs with an EasyIP Decoder or EasyIP Mixer, which provide
video and audio connectivity and manage USB output for
videoconferencing or recording
Enterprise-class IT administrative capabilities with full web
controls for remote management
Limited Warranty: 2 Year
Vaddio designs, develops, and manufactures professional audio and video equipment for the audiovisual, collaboration and production markets. Vaddio solutions combine enterprise class performance with system-configured design and are easy to install and easy to use. Backed by industry-leading support, Vaddio products enhance any collaboration experience by elevating the science of communication with the Art of Easy.
Vaddio EasyIP 20 Camera
Vaddio EasyIP 20 Camera
Vaddio EasyIP 20 Camera
| Display & Graphics | |
|---|---|
| Image Sensor Type | Exmor R CMOS |
| Field of View | 70.2º wide end to 4.1º tele end |
| Effective Camera Resolution | 8.5 Megapixel |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Humidity | 80% |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 999-30230-000W |
| Brand Name | Vaddio |
| Product Line | EasyIP |
| Product Name | EasyIP 20 Camera |
| Packaged Quantity | 1 |
| Product Type | Network Camera |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Lens | |
| Minimum Focal Length | 4.40 mm |
| Maximum Focal Length | 88.40 mm |
| Minimum Aperture | f/2 |
| Maximum Aperture | f/3.8 |
| Optical Zoom | 20x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Height | 6.9" |
| Width | 7.1" |
| Depth | 6.8" |
| Weight (Approximate) | 4.85 lb |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Video | |
| Maximum Video Resolution | 1920 x 1080 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Features | PTZ, Noise Reduction |
| Package Contents |
|
| TAA Compliant | Yes |
