1920 x 1080 - 4.40 mm- 88.40 mm - 20x Optical - Exmor R CMOS - HDMI - Wall Mount
MSRP$4,070.00
$3,292.48
Save 19%In stock: 17
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).
The system works on an IP-based infrastructure, sending video and control signals over the LAN using IP switching and configuration protocols. By offloading the extension and switching to a PoE switch, total cost of the system is reduced, providing a simple, more affordable alternative to traditional extension systems. The EasyIP solution eliminates the need for more expensive video switchers, controllers, extension systems and dedicated processing devices.
The EasyIP 20 Camera, sends 1080p/60 resolution feeds to the EasyIP Ecosystem for delivery to web-based streaming and conferencing solutions and connects to a 1 Gb PoE+ switch - eliminating the need for costly USB extensions.
IMPORTANT: This camera requires a PoE+ power source to operate (not included). Consider the EasyIP 20 Base Kit 999-30232-000 which includes the Luxul AMS-1208P-EasyIP Switch, EasyIP 20 Camera and EasyIP Decoder.
Designed with an 1/2.5-type Exmor R CMOS sensor, the EasyIP 20 camera delivers striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
Enhanced Wide Dynamic Range
The EasyIP 20 camera is equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
Remote Management
A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control.
Smooth Tri-Synchronous Motion
The EasyIP 20 camera is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
Flexible Video Outputs

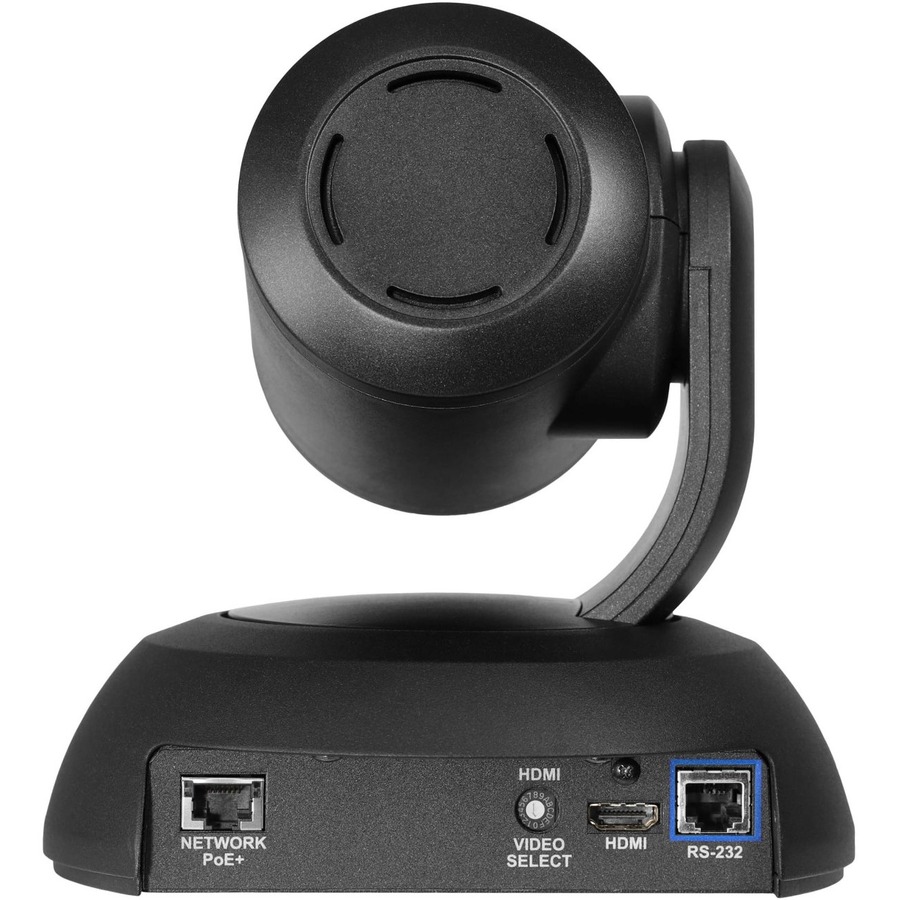

Video outputs include simultaneous EasyIP (Network PoE+) and local HDMI video output. More from the Manufacturer
| Package Contents |
|
|---|---|
| Product Type | Network Camera |
| Manufacturer Part Number | 999-30230-000 |
| Packaged Quantity | 1 |
| Recording Formats | HD |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 3 lb |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Features | PTZ, Noise Reduction |
| Manufacturer | Legrand Group |
| Product Name | EasyIP 20 Camera |
| Mount Type | Wall Mount |
| Product Line | EasyIP |
| Optical Zoom | 20x |
| Brand Name | Vaddio |
| Height | 6.3" |
| Width | 6.1" |
| Depth | 5.5" |
| Maximum Aperture | f/3.8 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Maximum Focal Length | 88.40 mm |
| Minimum Focal Length | 4.40 mm |
| Image Sensor Type | Exmor R CMOS |
| Effective Camera Resolution | 8.5 Megapixel |
| HDMI | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 1/1 Second |
| Shortest Shutter Speed | 1/10000 Second |
| Remote Management | Yes |
| Minimum Aperture | f/2 |
| HD Recording | Yes |
| Lens Included | Yes |
| TAA Compliant | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
| Product Color | Black |
| Color Family | Black |
| Maximum Operating Humidity | 80% |
