Kensington SD5600T Docking Station
for Monitor, Notebook - Charging Capability - Memory Card Reader - SD, microSD - 170 W - USB Type C - 2 Displays Supported - 4K @ 60Hz, 4K @30Hz, FHD @ 60Hz, QHD @ 60Hz - 3840 x 2160, 1920 x 1080, 2560 x 1440 - 7 x USB Ports - 6 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - Network (RJ-45) - HDMI - DisplayPort - Black, Silver - Wired - Gigabit Ethernet - Windows 10, Mac OS X 10.15 Catalina - 96W - Desktop
- SKU
- K34009NA
- Category
- Docking Stations
$308.59
Back ordered — ships when restocked.
Genuine Kensington Computer Products through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- K34009NA
- Category
- Docking Stations
Overview
Universal compatibility
Perfect for hot-desking and mixed deployment environments, the universally compatible SD5600T works with Thunderbolt 3 and USB-C laptops running Windows or macOS. Now compatible with Thunderbolt 4 laptops at Thunderbolt 3 features.
Thunderbolt 3 technology
Allows you to transfer up to 40Gbps of data, video and audio (10Gbps for USB-C Gen2 laptops, 5Gbps for USB-C Gen1 laptops) using the included 0.8m (2.6 ft.) Thunderbolt 3 cable, for a quick and powerful plug and play experience.
Single 4K or Dual 4K video output for Thunderbolt 3 enabled devices
Extend visual productivity with the crisp resolution, contrast and colour depth of Ultra HD (Single or Dual 4K @ 60Hz) via two DisplayPort ports. USB-C laptops must support Alt Mode. For USB-C Alt Mode devices, a maximum resolution of Single 4K 60Hz or Dual 1440p @ 30Hz is supported for HBR3 laptops or Single 4K 30Hz or Dual 1080p @ 60Hz is supported for HBR2 laptops (dual monitors are for devices that support MST).
100W Power Delivery
Quickly and simply charge any Thunderbolt 3 or USB-C enabled laptop. USB-C laptops must support Power Delivery. Ideal for devices that require higher power, such as the newer MacBook Pro.
Productive desktop setup

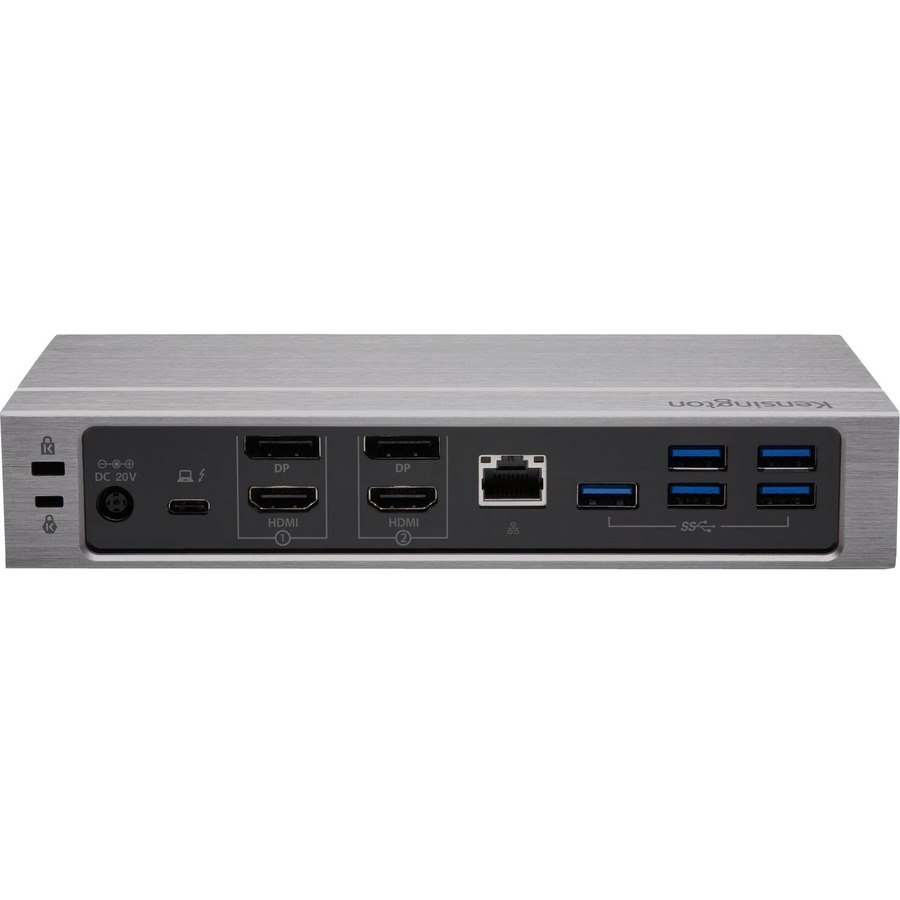

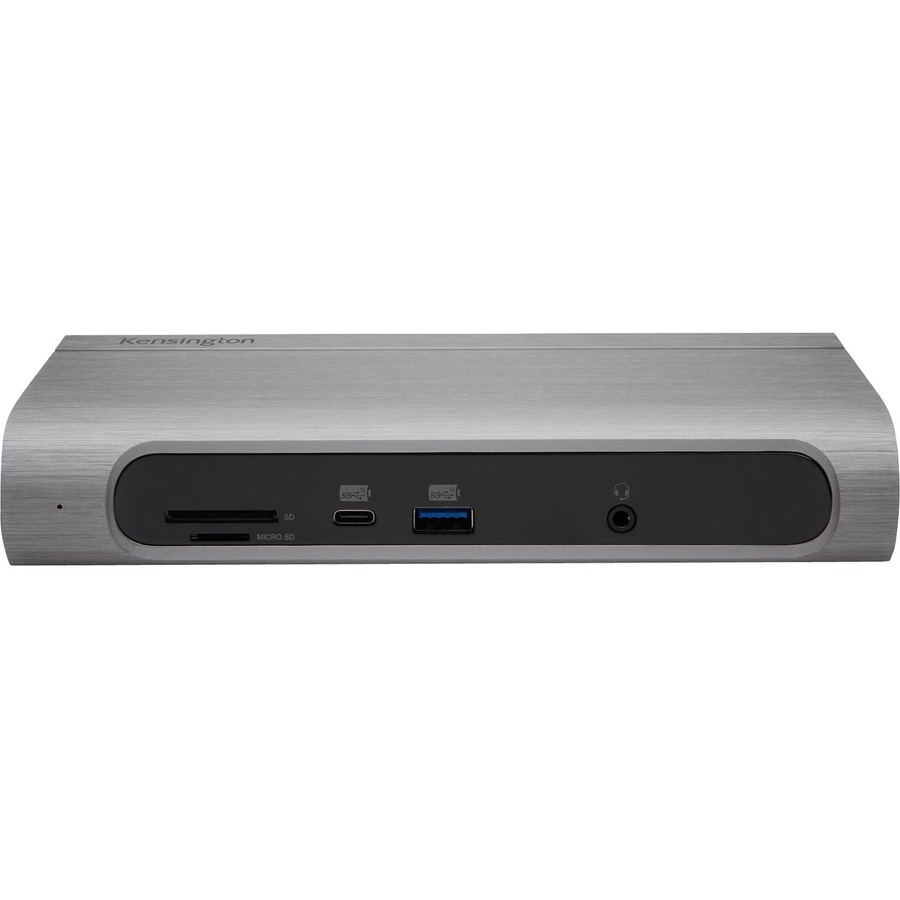

This 15-port universal docking station provides plenty of ports for all your needs: One front USB-C Gen2 port (up to 10Gbps with 5V/1.5A charging), six USB-A ports (1 front Gen2@10Gbps front with 5V/1.5A charging, 5 rear Gen1@5Gbps, 5V/0.9A), one Gigabit Ethernet port, and one audio combo jack.
Flexible mounting options

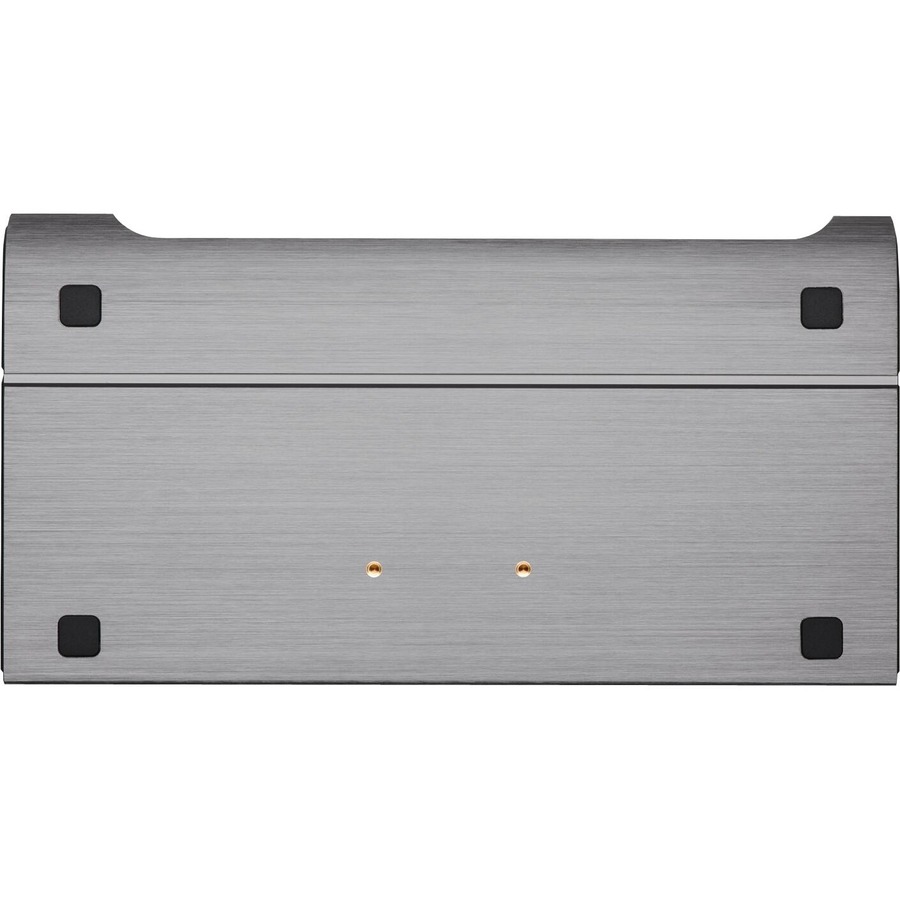

Choose a horizontal or vertical placement on the desktop, alternatively try our optional zero footprint mounting solution (K34050WW).
Built-in SD and Micro SD card readers
UHS II SD 4.0 card readers enable ultra-fast file transfer.
Free Kensington DockWorks? software and three-year warranty
For the best connection, performance and security from your Kensington dock, and the peace of mind knowing you're covered by Kensington.
The SD5600T Thunderbolt? 3 and USB-C? Dual 4K Hybrid Docking Station - 100W PD - Win/Mac is the ultimate docking station for maximum productivity and compatibility. Features include universal compatibility, the flexibility to select between HDMI 2.0 and DP 1.2, horizontal or vertical placement options, built-in SD and Micro SD card readers, seven USB ports (two with charging), one Gigabit Ethernet port and one audio combo jack. Three-year warranty.
• Best for: Thunderbolt 3, Thunderbolt 4 and USB-C Laptops and Monitors that support up to 4K
• Connection Technology: Thunderbolt 3 & USB-C (Thunderbolt 4 laptops supported at Thunderbolt 3 features)
• Power Delivery: Supports USB-C PD 3.0 (100W of laptop charging)
• Compatibility: Windows 10 and macOS X 10.14 or later
• No. of monitors supported: 2
• Video ports: 2 x HDMI v2.0 and 2 x DisplayPort 1.2
• Apple M1 - While this docking station will work with the M1 MacBook, only a single video output is supported. For multi-monitor support on your M1 MacBook, see our Hybrid USB-C DisplayLink docking stations (e.g.: SD4700P, SD4750P, SD4780P or SD4900P) or USB-A DisplayLink adapters (DisplayPort K33989, HDMI K33988, DVI-I K33974)
More from the Manufacturer
Highlights
- Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
- Charging capability puts less strain on the charging port to allow prolonged usability
- USB Type C host interface allows powerful and efficient transfer of data with maximum productivity
- Monitor device supported according to your requirements with maximum productivity
- Plug & Play feature for better reliance and usability
- Desktop form factor for your docking station offers a simpler, easier exhibit design for better dependability
- Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- Power Adapter power source type for your docking station provides optimal performance with maximum usability
- The HDMI supports digital audio/video output to a wide assortment of HD gadgets
- 7 USB ports allows quick transmission of data at a higher rate for your convenience
Specifications
| Host Interface | USB Type C |
|---|---|
| Product Type | Docking Station |
| Compatibility | All laptops with Thunderbolt 3 or USB-C ports |
| Device Supported | Monitor, Notebook |
| Manufacturer Part Number | K34009NA |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 1.84 lb |
| Connectivity Technology | Wired |
| Form Factor | Desktop |
| Manufacturer | Kensington Computer Products Group |
| Product Model | SD5600T |
| Product Name | SD5600T Docking Station |
| Package Type | Bulk |
| Brand Name | Kensington |
| Charging Capability | Yes |
| Operating System Supported | Windows 10, Mac OS X 10.15 Catalina |
| Memory Card Supported | SD, microSD |
| Country of Origin | Thailand |
| Height | 1.45" |
| Width | 7.76" |
| Depth | 4.09" |
| Memory Card Reader | Yes |
| Ethernet Technology | Gigabit Ethernet |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 170 W |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of HDMI Outputs | 2 |
| Total Number of USB Ports | 7 |
| Number of Displays Supported | 2 |
| Headphone/Microphone Combo Port | Yes |
| Kensington Security Slot | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.2 Gen2 (5V/1.5A) |
| DisplayPort Version | 1.2 |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 6 |
| Product Color | Black, Silver |
| USB Power Delivery | 96W |
| Supported Resolutions | 3840 x 2160, 1920 x 1080, 2560 x 1440 |
| Number of USB 3.2 Gen 1 Type-A Ports | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| USB Type-A | Yes |
| Screen Mode Supported | 4K @ 60Hz, 4K @30Hz, FHD @ 60Hz, QHD @ 60Hz |
