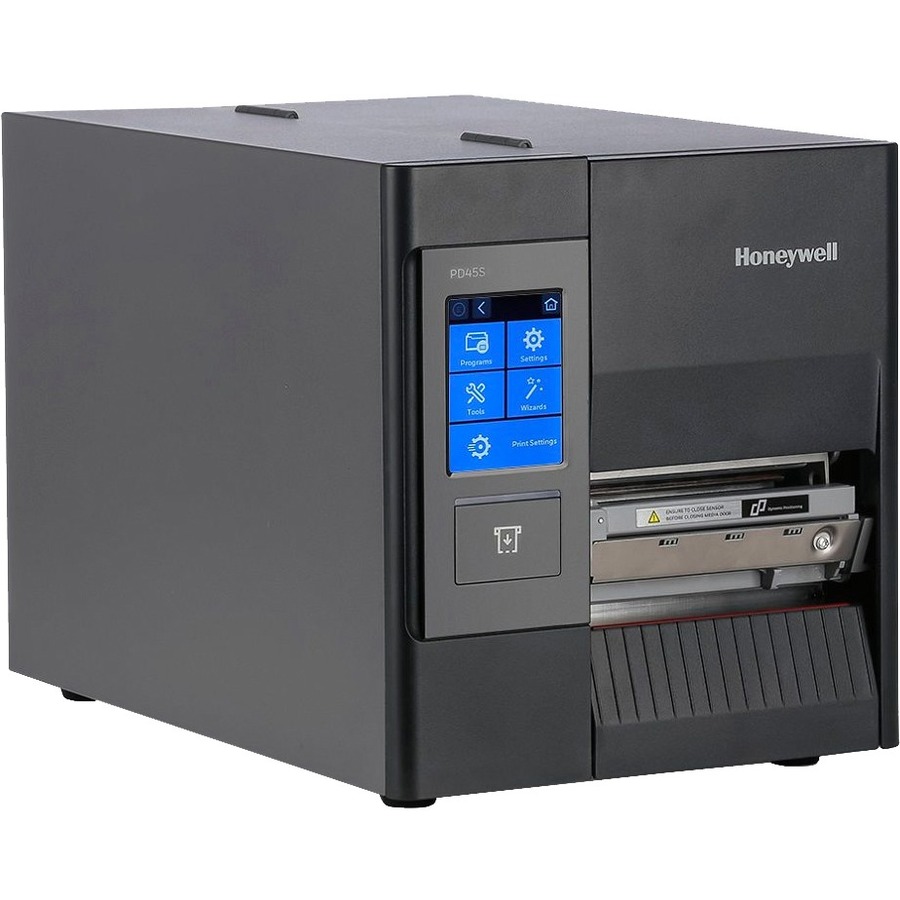

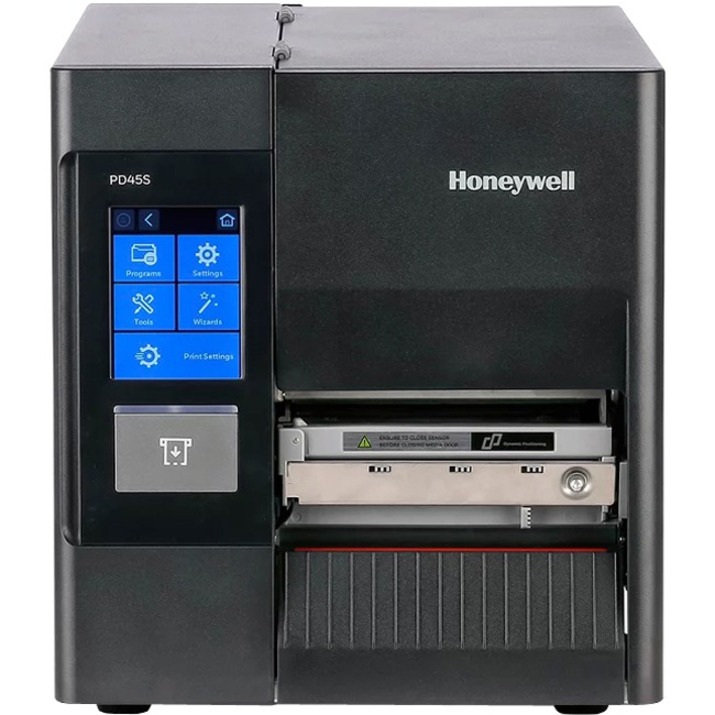

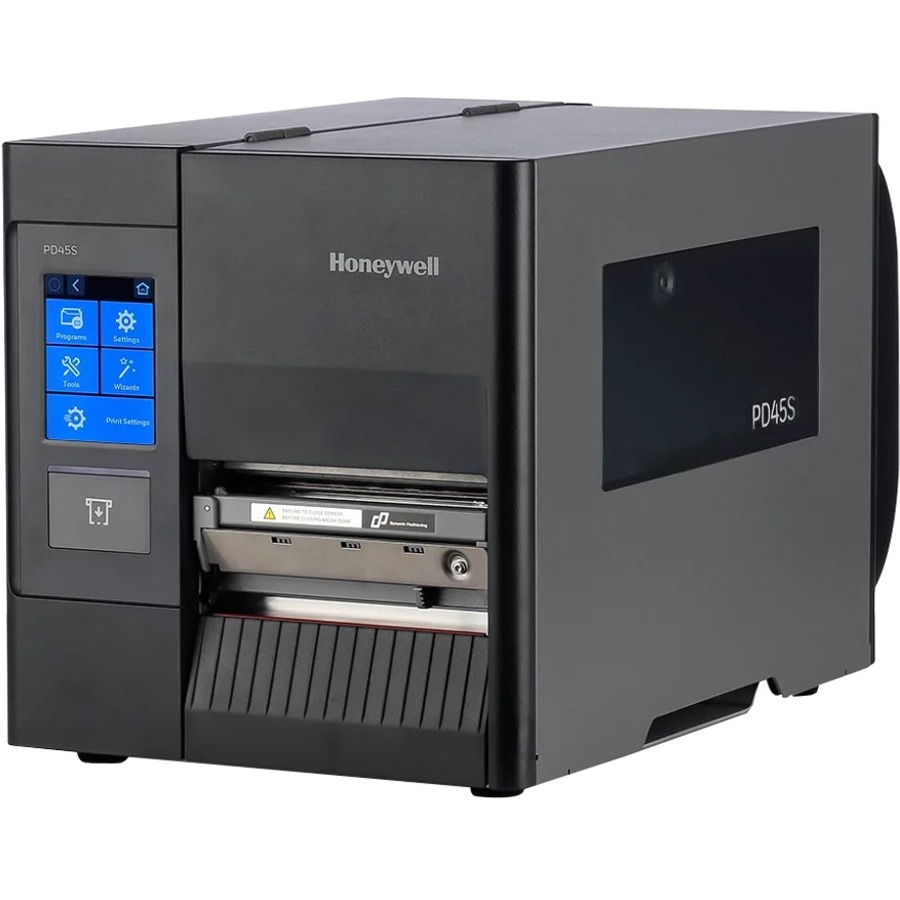

Honeywell PD45S Industrial, Retail, Healthcare, Manufacturing, Transportation & Logistic Thermal Transfer Printer - Monochrome - Label Print - Fast Ethernet - USB - USB Host - Serial
Rewinder - Peel Facility - 7.22" Print Length x 4.16" Print Width - 7.87 in/s Mono - 300 dpi - 4.49" Label Width - ZPL II, ZSim2, IPL, DPL, Direct Protocol (DP), Fingerprint, FP, ZPL Emulation - For PC
- SKU
- PD45S0C0010020300
- Category
- Label/Receipt Printers
MSRP$2,835.11
$1,937.85
Save 32%Back ordered — ships when restocked.
Genuine Honeywell International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PD45S0C0010020300
- Category
- Label/Receipt Printers
Overview
Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.
The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell's patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.
The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.
Highlights
- Use Thermal Transfer Printer for their versatility and compact design, as well as their high-resolution and durable printing capabilities
- 300 maximum print resolution (dpi) for your convenience and easy usage
- The printer is capable of printing sharp and detailed monochrome documents quickly
- Enjoy the optimal performance in today's on-demand labeling applications
- Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
- 4.49" maximum label width to easily accommodate your needs with added productivity
- Supports label media type for better reliance and maximum usability
- Thermal Transfer Printer with industrial application/usage provides maximum usability with better reliance
- Ergonomic feature for maximum productivity with added dependability
Specifications
| Application/Usage | Industrial, Retail, Healthcare, Manufacturing, Transportation & Logistic |
|---|---|
| Barcode Symbology Supported | 1D, 2D, UPC/EAN Shipping Container, UCC/EAN 128 Serial Shipping Container, MH10.8, AIAG, OGMARS, POSTNET, HIBCC, ISBT-128, GM1724 |
| Product Type | Thermal Transfer Printer |
| Manufacturer Part Number | PD45S0C0010020300 |
| Media Thickness | 10 mil |
| Platform Supported | PC |
| Maximum Print Width | 4.16" |
| Power Source | AC Supply |
| Recommended Use | Label Print |
| Maximum Roll Diameter | 3.15" |
| Weight (Approximate) | 23.85 lb |
| Features | Ergonomic, Compact, Rugged, LCD Display |
| Language Emulation | ZPL II, ZSim2, IPL, DPL, Direct Protocol (DP), Fingerprint, FP, ZPL |
| Manufacturer | Honeywell International, Inc |
| Product Model | PD45S |
| Product Name | Industrial Label Printer |
| Brand Name | Honeywell |
| Media Type | Label, Tag, Notch, Continuous Label, Continuous Paper |
| Height | 10.6" |
| Width | 9.8" |
| Depth | 17.2" |
| Maximum Mono Print Speed | 7.87 in/s |
| Ethernet | Yes |
| Media Sensor | Black Mark Sensor, Gap Sensor, Label Taken Sensor |
| Ethernet Technology | Fast Ethernet |
| USB | Yes |
| Serial Port | Yes |
| Maximum Label Width | 4.49" |
| USB Host | Yes |
| Peel Facility | Yes |
| Print Color Capability | Monochrome |
| Maximum Print Length | 7.22" |
| Storage Temperature | -4°F (-20°C) - 158°F (70°C) |
| Optional Connectivity | Wireless LAN |
| Network Ready | Yes |
| Rewinder | Yes |
| Maximum Print Resolution (dpi) | 300 |
| Operating Temperature | 41°F (5°C) - 104°F (40°C) |
| Operating Relative Humidity | 20% - 85% |
