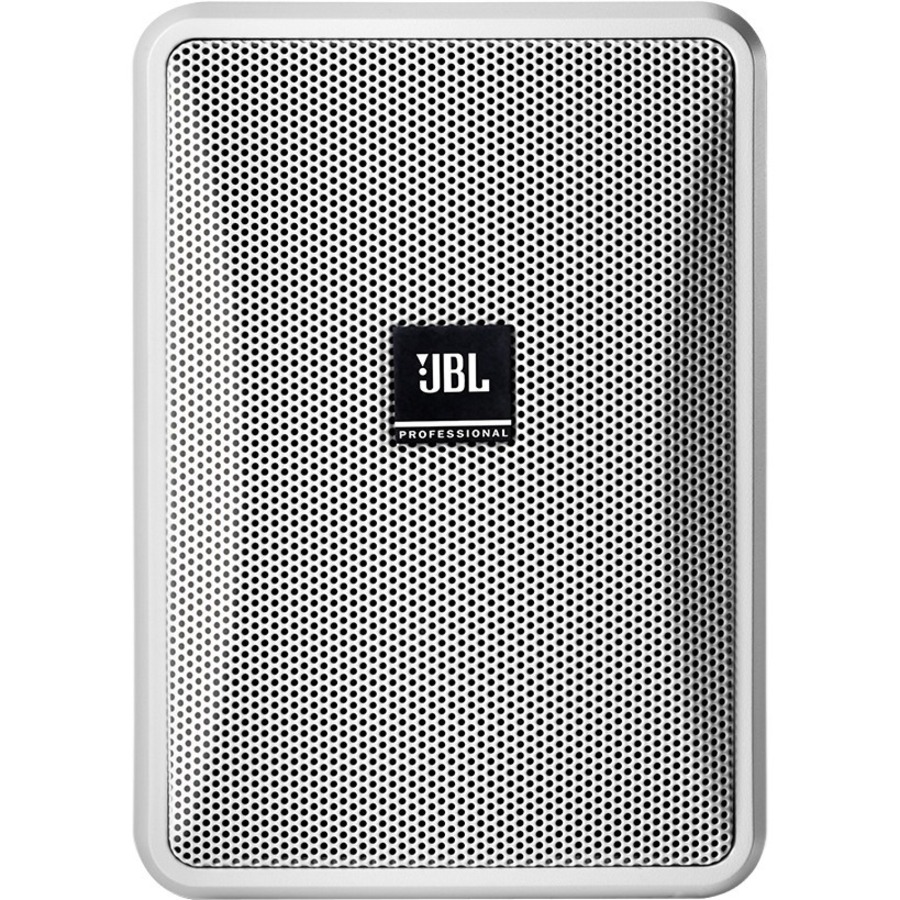

The Control® 23-1L is a two-way 3" speaker with rich sonic character, wide coverage, consistent dispersion, versatile mounting, and a contemporary high-design look that fits into a wide range of decors. This makes Control 23-1L an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality compact indoor/outdoor foreground/background music (and/or paging) speaker is required.
FEATURES
• 3" woofer with woven fiberglass cone
• 1/2" PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall® mounting hardware, plus available U-bracket
• Weather resistant enclosure and transducers
• Wide 100° x 100° coverage
• 50 Watt power handling (100 Watt program)
• High fidelity sound character with broad frequency response of 70 Hz - 20 kHz
About Harman International Industries
JBL Professional: Legendary Audio for Over 70 Years
At JBL, audio technology is at the core of everything we do. For 70 years we have employed the best methodology and tools. As established at the very beginning by our founder, James B. Lansing, we develop everything from the ground up. This not only ensures success in the marketplace, but it also guarantees our efforts exceed the needs and expectations of audio professionals throughout the world. Never straying from this exacting formula, our journey has produced a prolific list of audio achievements, groundbreaking technologies, revolutionary advances in the art and science of professional audio, many patents, and many awards. It’s a journey that is legendary worldwide and has positioned JBL as the world leader in professional audio.
Highlights
Significantly enhance the sound from your devices and drives, get immersed in sound quality
The 2-way Wall Mountable speakers provide the finest sound coverage
8 Ohm impedance extracts maximum power so you will get more output from your speakers
Listen to deep lows and euphoric highs with a frequency range of sound from 70 Hz-20 kHz
Handles up to 100 W of RMS power
3" woofer driver size allows better stereo imaging with maximum sound feasibility
0.50" tweeter driver size provides crispier, well-detailed sound with maximum productivity
Offers great productivity with 20 kHz maximum frequency response
103 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
Wall mount is cost-effective, reusable, and long-lasting
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
CONTROL 23-1L-WH
Brand Name
JBL Professional
Product Line
CONTROL
Product Series
Professional
Product Model
23-1L
Product Name
CONTROL 23-1L Ultra-Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker
Product Type
Speaker
Physical Characteristics
Color Family
White
Product Color
White
Form Factor
Wall Mountable
Speaker Installation
Indoor/Outdoor
Woofer Diameter
3"
Height
7.9"
Width
5.6"
Depth
4.37"
Weight (Approximate)
3.53 lb
Technical Information
Crossover Type
2-way
RMS Output Power
100 W
PMPO Output Power
200 W
Woofer Driver Size
3"
Woofer Driver Material
Fiberglass
Tweeter Driver Size
0.50"
Tweeter Driver Material
Polyetherimide (PEI)
Minimum Frequency Response
70 Hz
Maximum Frequency Response
20 kHz
Impedance
8 Ohm
Sensitivity
103 dB
Miscellaneous
Package Contents
CONTROL 23-1L Ultra-Compact 8-Ohm Indoor/Outdoor Background/Foreground Speaker
InvisiBall Wall-Mounting System
4 mm x 80 mm Hex Key
Application/Usage
Indoor/Outdoor, Foreground, Retail Store, Restaurant, Health Club, Theme Bar, Educational Facility, Hospitality, Music Venue, Cafe, Leisure Center, Music/Paging System
