Genuine Elo Touch Solutions through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Touchscreen Monitors
Overview

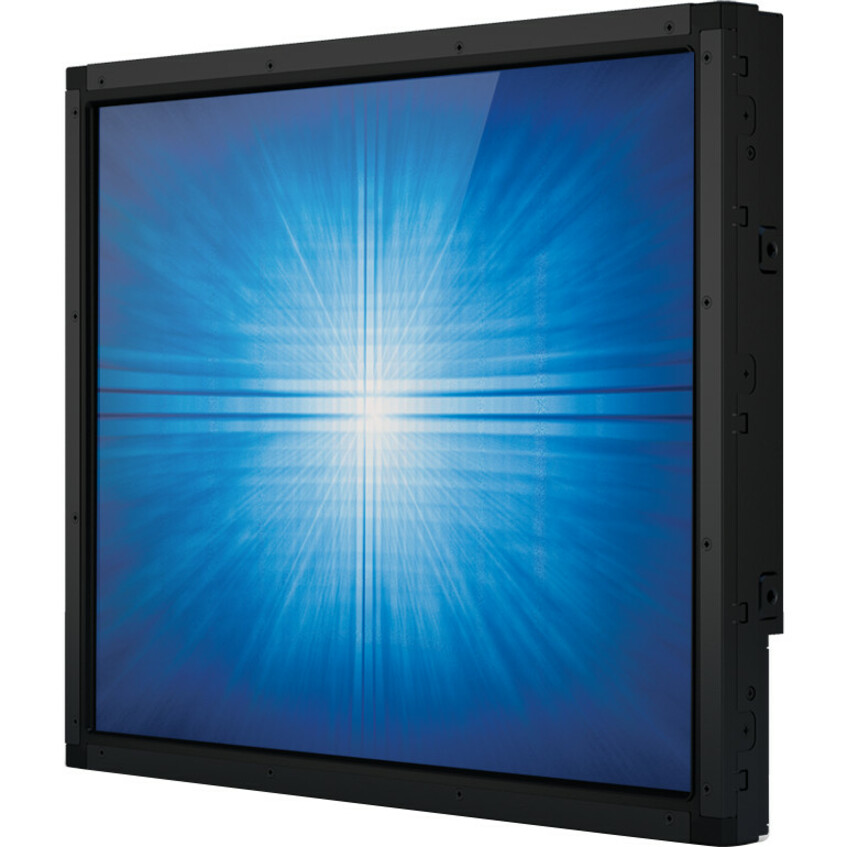

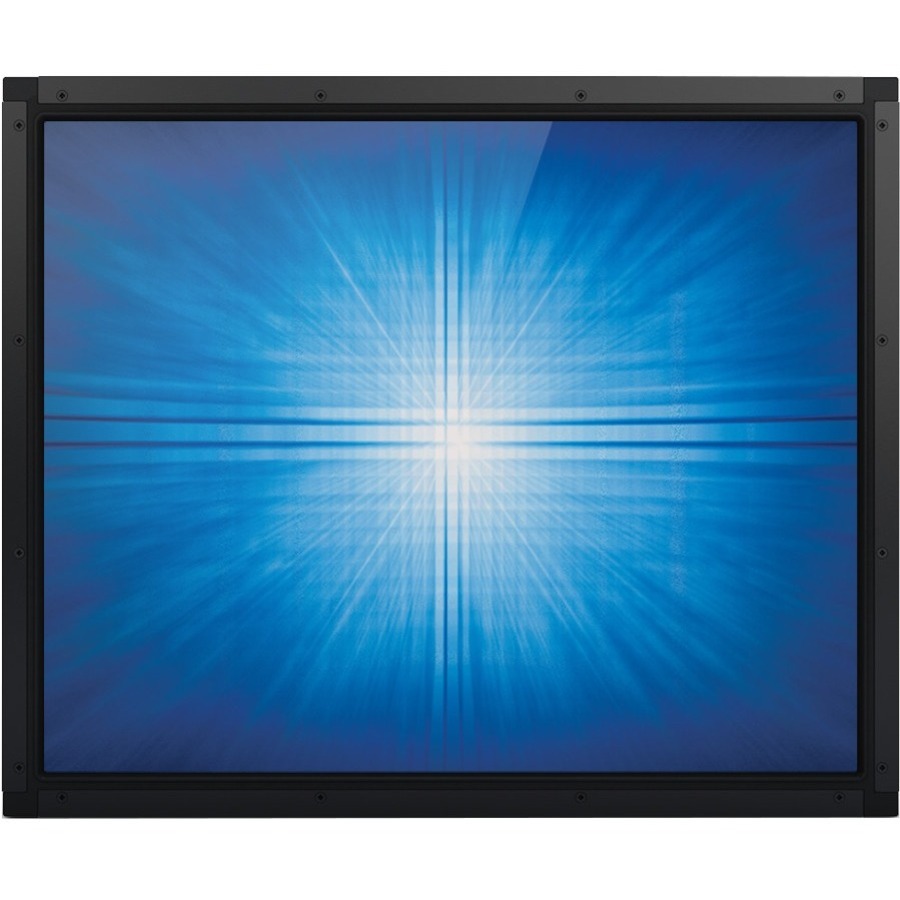

The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
• Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
• LED backlighting allows for state-of-the-art slim design while reducing power consumption
• 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
• Display Port and VGA video interfaces
Warranty
Limited Warranty: 3 Year
Highlights
The open-frame lcd touchscreen monitor is ideal for clubhouse gaming, entertainment, and self-service kiosks with reliable touchscreen performance
SXGA touchscreen offers SXGA resolution up to 1280 x 1024 pixels for sharp, detailed visuals ideal for office and industrial use

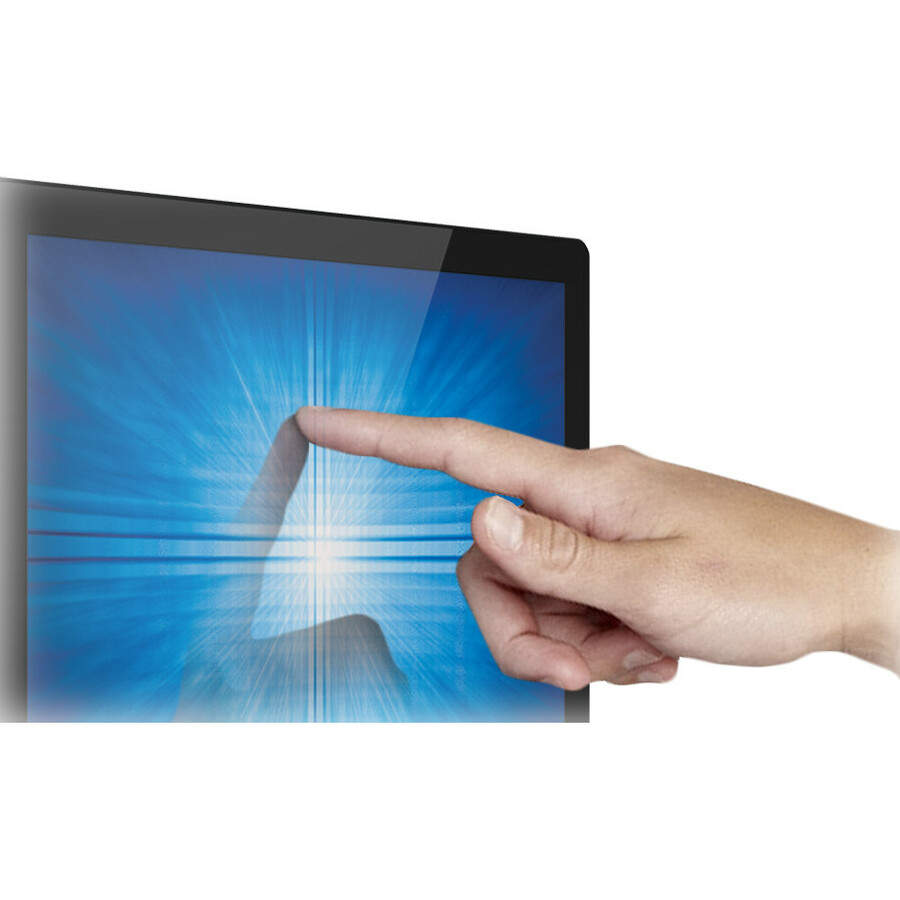

Projective Capacitive technology allows touch with bare fingers or thin gloves for flexibility in medical and industrial use
LED backlight enhances color range and contrast for lifelike visuals and smooth touch navigation
Captivating visuals with about 250 Nit brightness levels for clear and vivid touchscreen performance
The 1,000:1 contrast ratio delivers deep blacks and bright whites for cinematic touchscreen visuals
16.7 million colors supported for lifelike visuals and smooth touch-based creative workflows

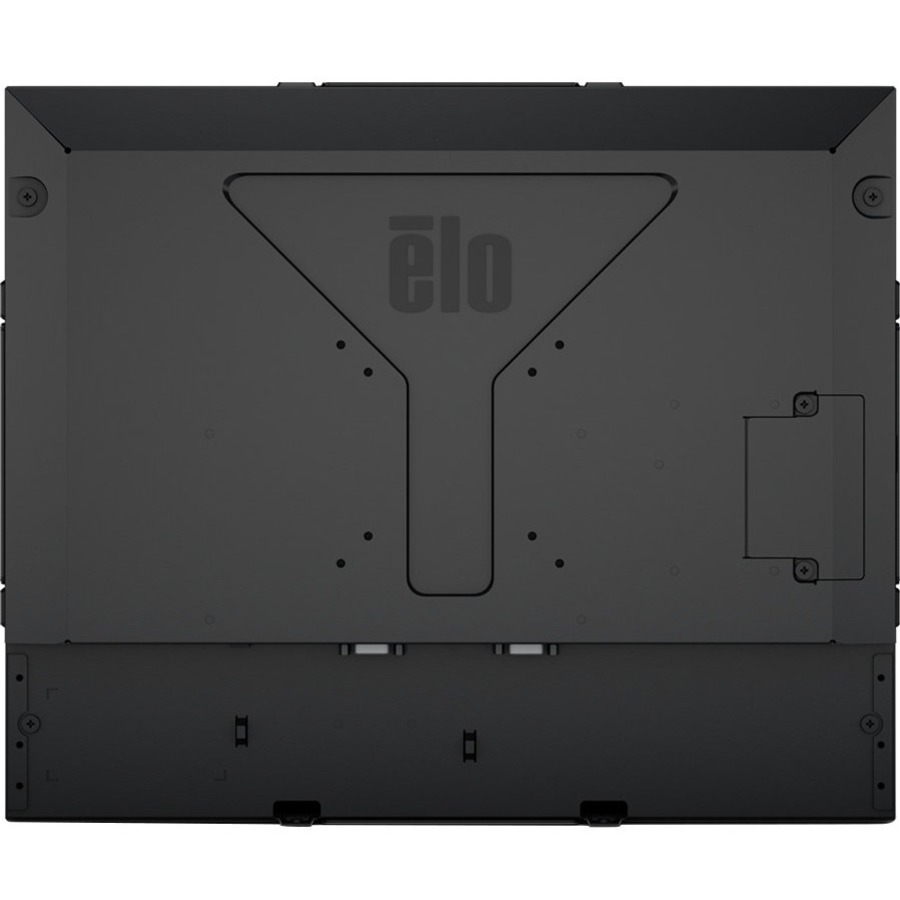

VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
Features HDMI input for seamless connection with PCs, Blu-ray players, and advanced gaming consoles for high-quality visuals
Specifications
General Information
Manufacturer
Elo Touch Solutions, Inc
Manufacturer Part Number
E330817
Brand Name
Elo
Product Model
1990L
Product Name
1990L 19" Open Frame Touchscreen (Rev B)
Product Type
Open-frame LCD Touchscreen Monitor
Interfaces/Ports
HDMI
Yes
USB
Yes
VGA
Yes
DisplayPort
Yes
Physical Characteristics
VESA Mount Compatible
Yes
Product Color
Black
Height
13.5"
Width
16.3"
Depth
2"
Weight (Approximate)
10.14 lb
Technical Information
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
SXGA
Response Time
5 ms
Aspect Ratio
5:4
Mount Type
Front Mount, Rack-mountable
Backlight Technology
LED
Touchscreen Information
Touchscreen Type
Projected Capacitive
Video
Maximum Resolution
1280 x 1024
Color Supported
16.7 Million Colors
Contrast Ratio
1,000:1
Brightness
250 Nit
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
1990L 19" Open Frame Touchscreen (Rev B)
HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
User Manual CD
Quick Install Guide
"L" (Side Mount) Brackets and w/Screws
EEI Label
Japan Class-B TM info sheet
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
