for Notebook/Tablet PC/Desktop PC/Smartphone - USB Type C - 2 x USB Ports - 1 x USB 3.0 - DVI - Thunderbolt - Wired
MSRP$85.41
$43.34
Save 49%Special order — estimated available by September 10, 2026.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Features

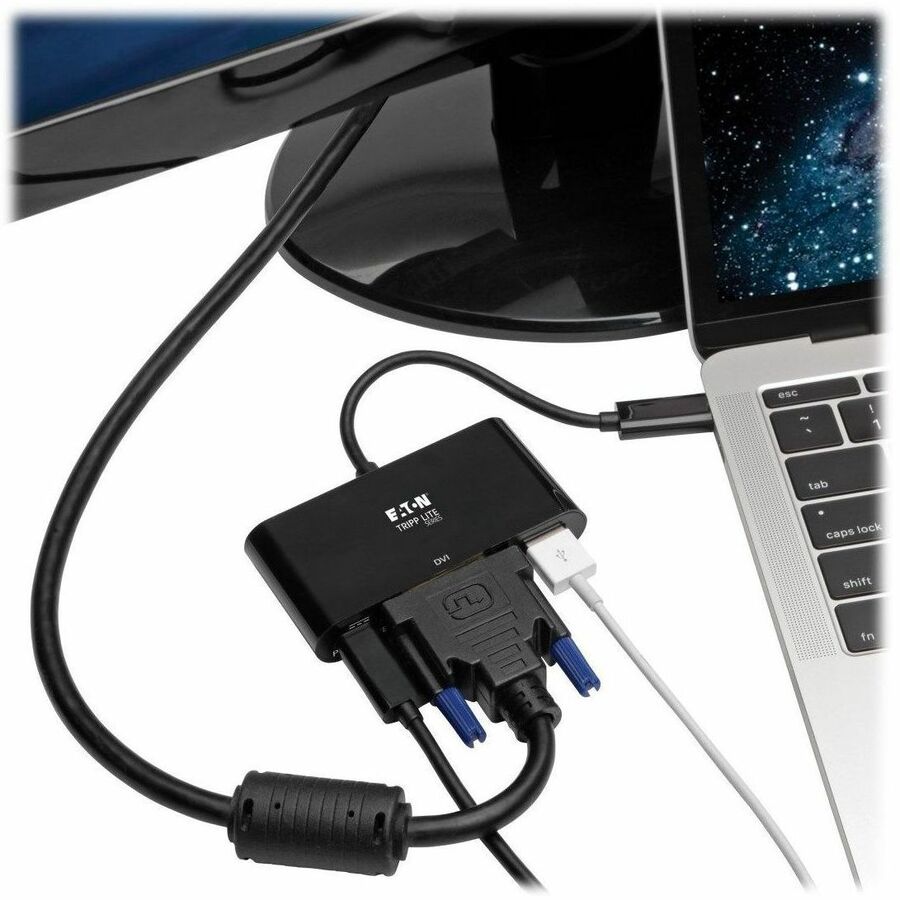

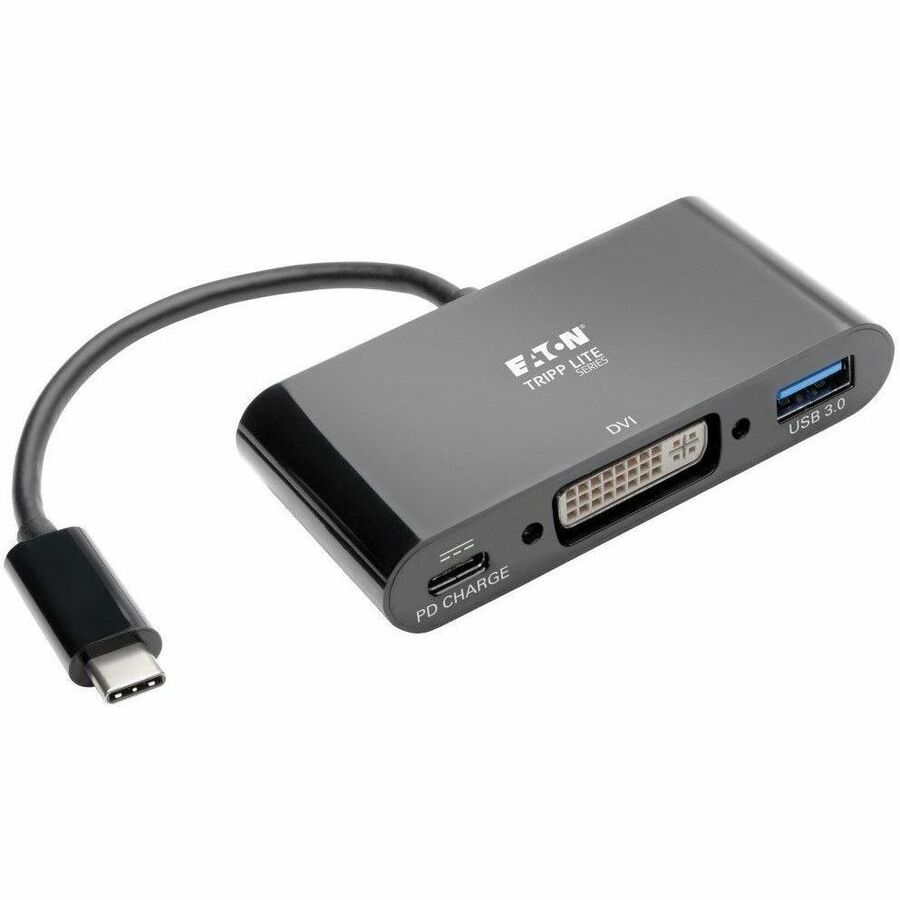

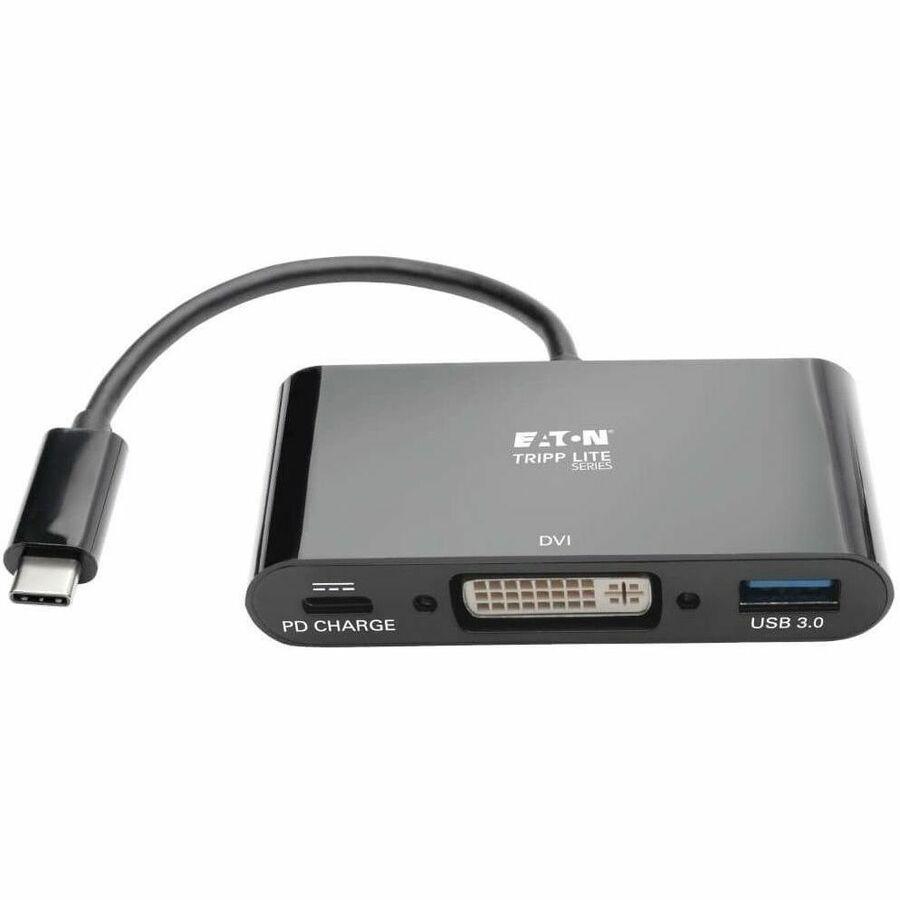

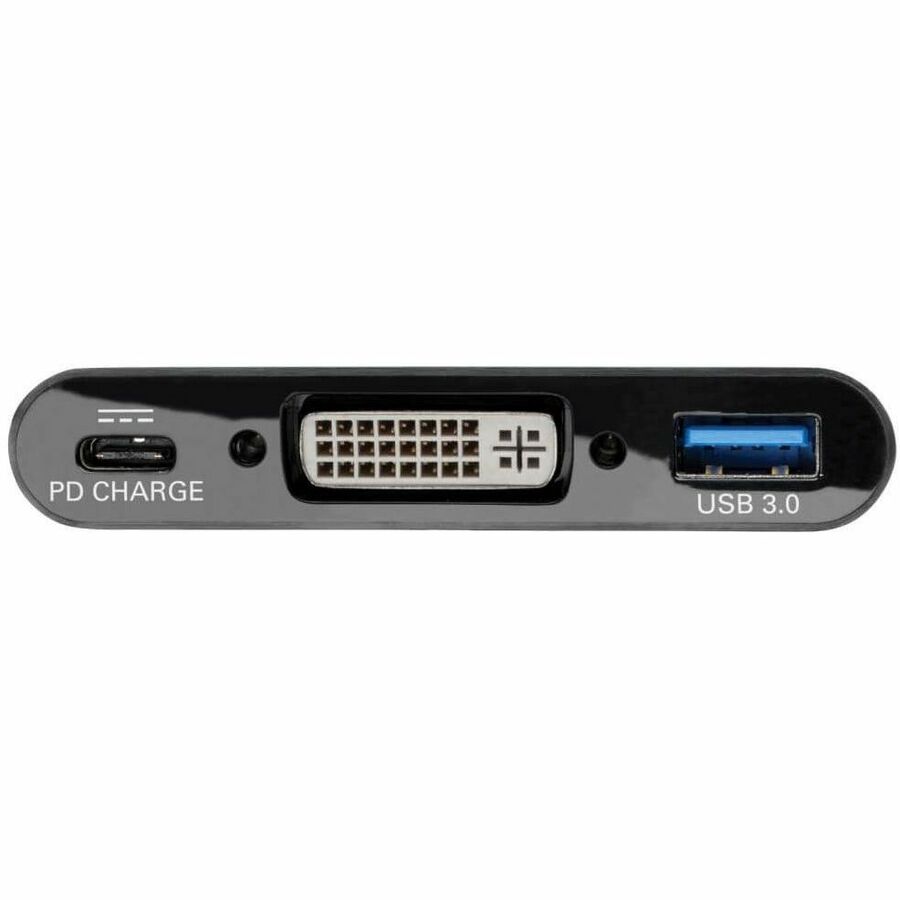

Mini Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into a Multiport Workstation
This USB Type-C to DVI adapter expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC's USB-C or Thunderbolt 3 port. It's ideal for transmitting video to a large display, adding a thumb drive or other USB peripheral, and powering and charging a PD Charging-compliant mobile device-all at the same time.
Supports USB DisplayPort Alternate Mode for Transmitting Video DisplayPort and USB Signals
With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.
Transmits Crystal-Clear 1080p Video to a DVI Display
To send high-definition video to a DVI television, projector or monitor, connect the DVI port to the display using a DVI cable (sold separately). The DVI port supports HD video resolutions up to 1920 x 1080 (1080p) at 60 Hz.
Connects a USB Peripheral
The USB-A port accepts USB peripherals, such as a flash drive, mouse, keyboard or printer. It supports fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices. This dedicated BC 1.2-compliant port provides up to 1.5A of fast-charging power to mobile devices.
Charges a Connected Device
The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the U444-06N-DGUB-C is connected to. Connect the device's AC wall charger to the USB-C PD port, which supports power input up to 20V 3A (60W).

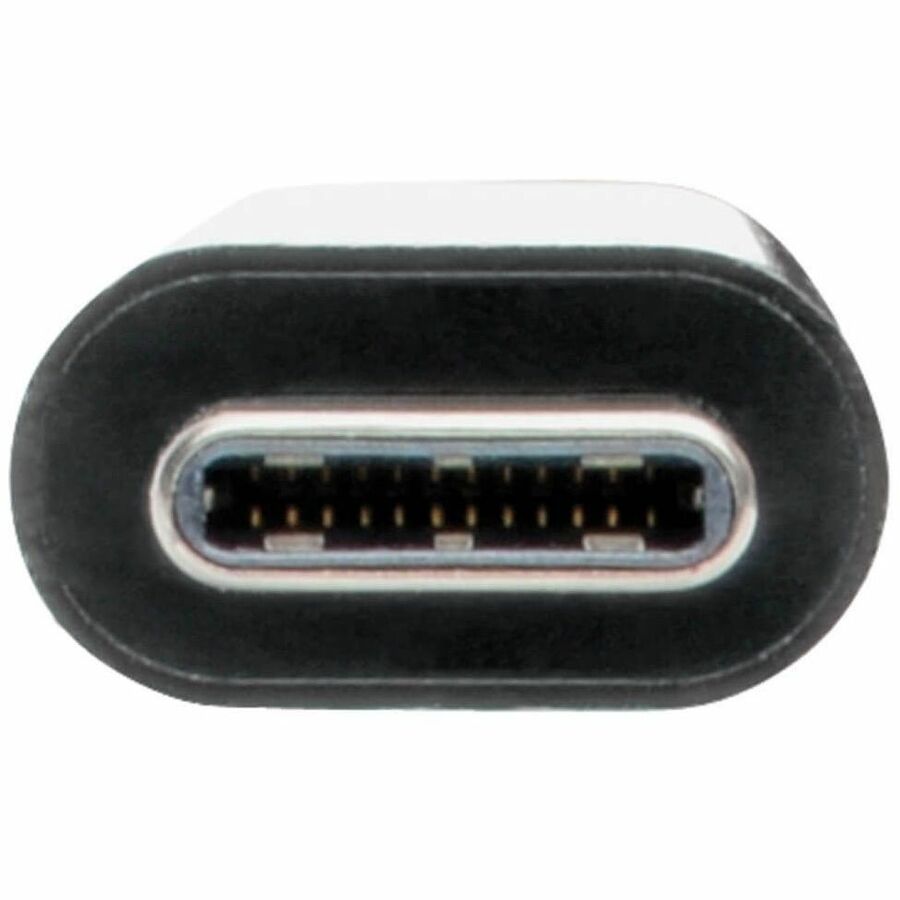

Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Ready to Use Right Out of the Package
The plug-and-play USB-C and Thunderbolt 3 to DVI adapter requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.
3-Year Warranty and Environmentally Responsible Design
The U444-06N-DUB-C comes with a 3-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.
More from the Manufacturer
Transform Your Laptop’s USB-C Port into a Multiport Workstation Wherever You Go
Newer tablets, laptops, Chromebook™ and MacBook® notebooks, desktop computers and even smartphones often have USB Type-C™ ports, but come equipped with few others. This Tripp Lite docking station expands the functionality of the USB-C™ or Thunderbolt™ 3 port on your device and makes it compatible with your existing equipment.
Typical Applications
Send video to a DVI monitor.
Add a USB-A peripheral to your computer.
Power and charge your laptop.
Convert your MacBook or Chromebook into a powerful and portable workstation.
Simplify Travel with a Bus-Powered, All-In-One USB-C Docking Station
Because just one USB-C connection provides three different ports, you don’t need multiple adapters. This docking station is also bus-powered, so you don’t have to travel with an external power supply.
With a footprint similar in size to a credit card, this portable docking station fits almost anywhere.
Lightweight, streamlined design doesn’t add weight to your load.
Built-in cable eliminates the chance of losing or forgetting the USB-C cord.
Plug-and-play operation means you don’t need software or drivers.
Display High-Definition Video on a DVI Monitor
This docking station supports USB DisplayPort Alternate Mode (Alt Mode) for carrying high-definition video to a DVI monitor or projector. It supports DVI single-link video resolutions up to 1920 x 1080 at 60 Hz (including 1080p).
Show the same video on your laptop and a second monitor.
Use a second monitor as your primary screen.
Extend video to a second monitor.
Share video in a conference room, classroom or auditorium setting.
Connect a USB Peripheral
A USB-A port provides a place to connect a USB peripheral, like a flash drive or a USB mouse. Or, you can connect a printer with a USB cable when a wireless connection isn’t feasible. The docking station supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps. It’s also backward compatible with previous USB generations.
Keep Ports Available While Your Laptop Charges
Limited USB-C ports can force you to choose between connecting a peripheral and charging your laptop’s battery. The USB-C Power Delivery (PD) port powers and charges your laptop without affecting the other connections. Your laptop’s wall charger connects to the USB-C PD port, which supports power input up to 20V, 3A (60W).
Limited Warranty: 3 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Package Contents |
|
|---|---|
| Host Interface | USB Type C |
| Product Type | Docking Station |
| Compatibility | Notebooks: Apple MacBook Google Chromebook |
| Device Supported | Smartphone, Tablet PC, Notebook, Desktop PC |
| Manufacturer Part Number | U444-06N-DUB-C |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 1.28 oz |
| Connectivity Technology | Wired |
| Manufacturer | Eaton Corporation |
| Product Model | U444-06N-DUB-C |
| Product Name | U444-06N-DUB-C Docking Station |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Height | 0.57" |
| Width | 3.10" |
| Depth | 1.60" |
| Environmentally Friendly | Yes |
| DVI | Yes |
| Maximum Power Supply Wattage | 60 W |
| Total Number of USB Ports | 3 |
| Thunderbolt | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
