Eaton Tripp Lite Series USB-C Dock, Dual Display - Dual HDMI, USB 3.x (5Gbps) Hub, GbE, 3.5 mm, 85W PD Charging, EU/UK Power Adapters
for Notebook/Tablet/Smartphone/Monitor - 85 W - USB Type C - 2 Displays Supported - Full HD, HD - 2560 x 1440, 1920 x 1200 - 3 x USB Type-A Ports - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - Black - Audio Line Out - Wired - Gigabit Ethernet - Windows, macOS
- SKU
- U442-DOCK20BINT
- Category
- Docking Stations
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- U442-DOCK20BINT
- Category
- Docking Stations
Overview

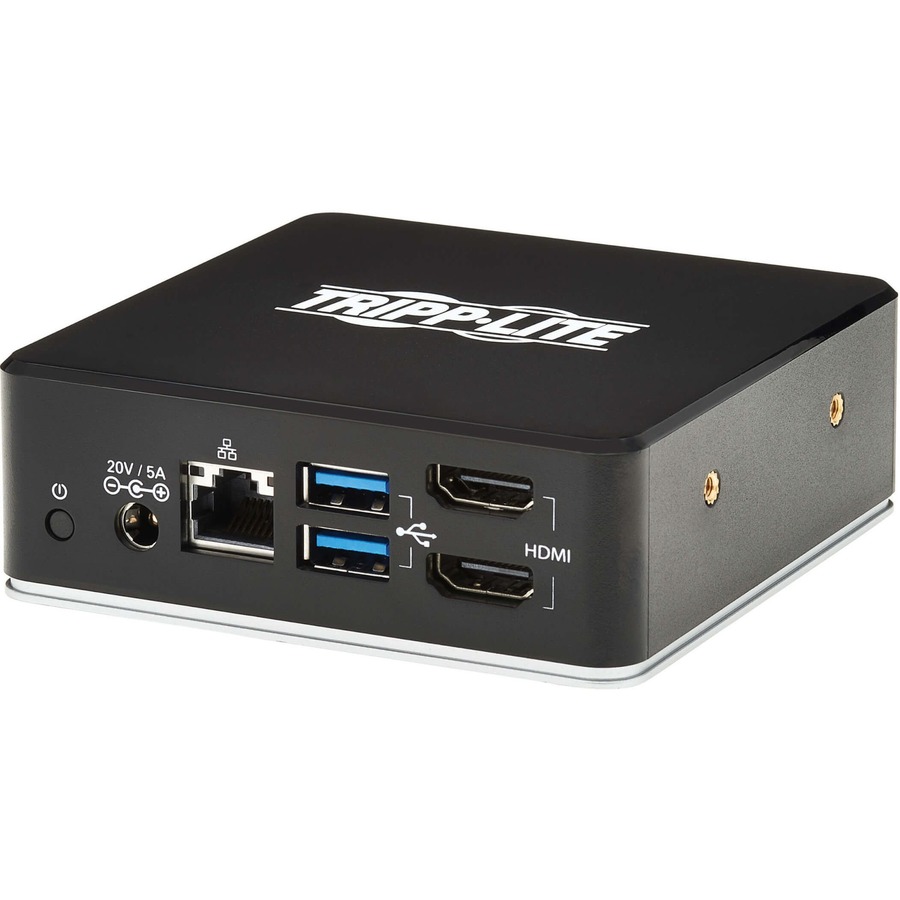

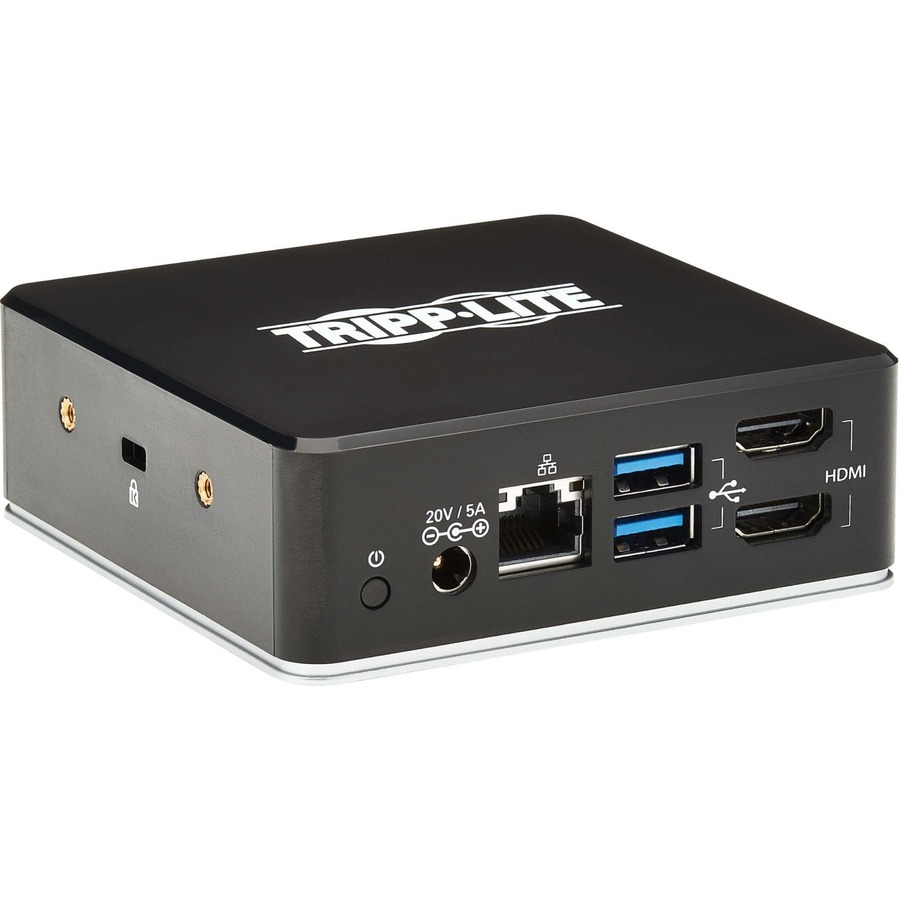

USB-C Docking Station Turns Your Device's USB or Thunderbolt 3 Port into a Workstation

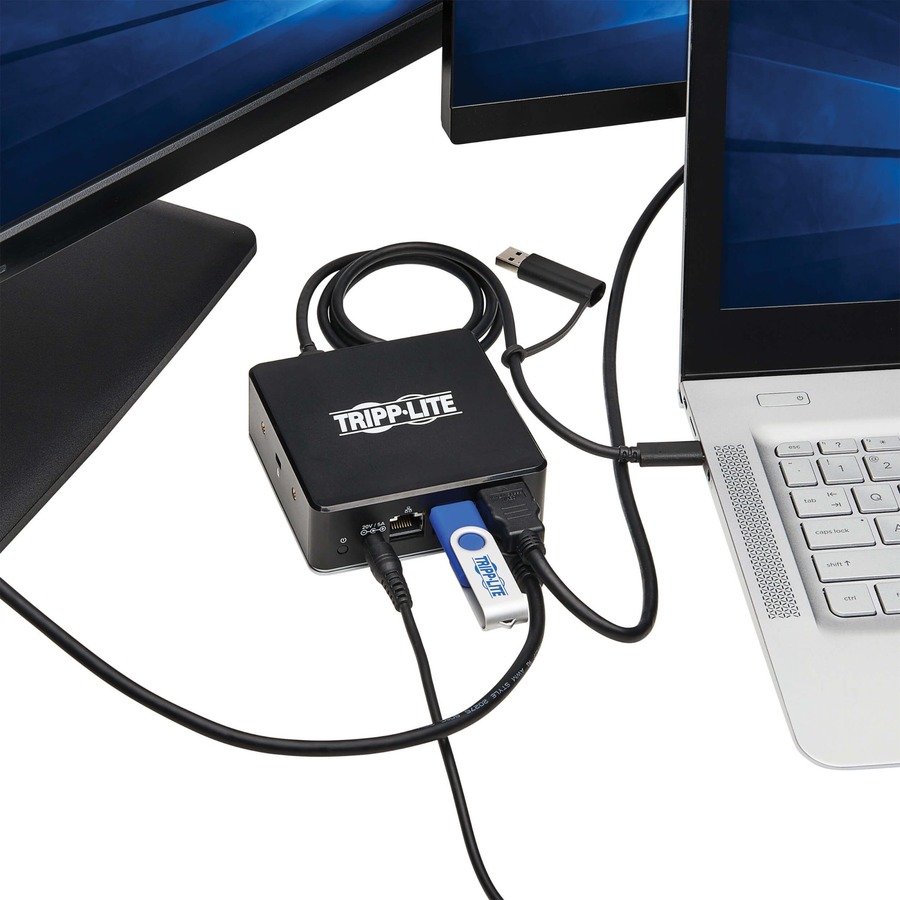

This multiport USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, tablet or other device with a USB-A, USB-C or Thunderbolt 3 port. It's ideal for transmitting 1080p video and digital audio to multiple large displays, adding a thumb drive and other USB peripherals, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network-all at the same time.

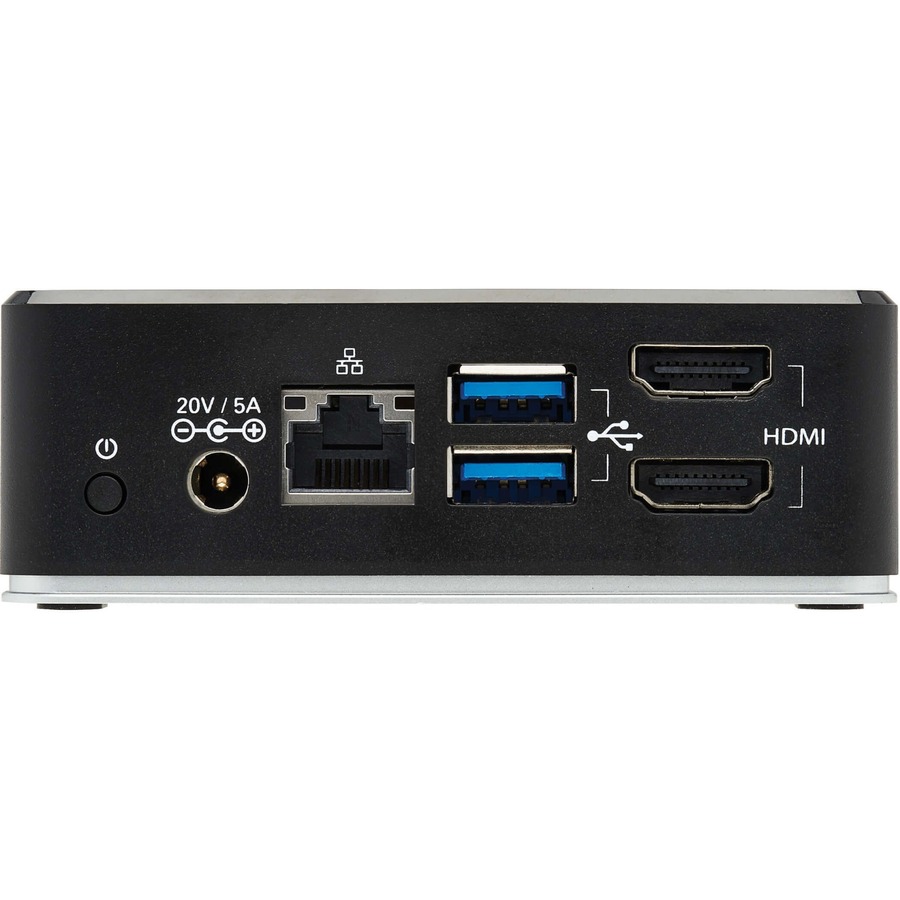

Transmits Crystal-Clear Hi-Def Video and Digital Audio to Multiple HDMI Displays
Two HDMI outputs support individual high-definition resolutions up to 2560 x 1440 at 50 Hz. By downloading and installing the proper DisplayLink drivers to your host device, you may connect two HDMI displays simultaneously. This allows you to display the image from the host computer on both monitors, extend your host desktop across both with different windows open on each, or combine all into one large display as a video wall. Maximum resolution when both video ports are connected at the same time is 1920 x 1080 (1080p) at 60 Hz.
USB Hub Ports Connect Keyboards, Thumb Drives and Other Peripherals
Three USB-A hub ports accept USB peripherals, such as flash drives, mice, keyboards and printers. All support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. One port also supports 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device (and 2.4A for Apple devices).
PD Charging Port Charges the Connected Notebook, Tablet or Other Device
Connect your host device to the USB-C Power Delivery port, which supports PD 3.0 charging of connected PD Charging-compliant devices, such as laptops, Kindles, iPads and Android smartphones, up to 20V 4.25A (85W). The included power supply, when plugged into an AC outlet, provides the charging power.
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

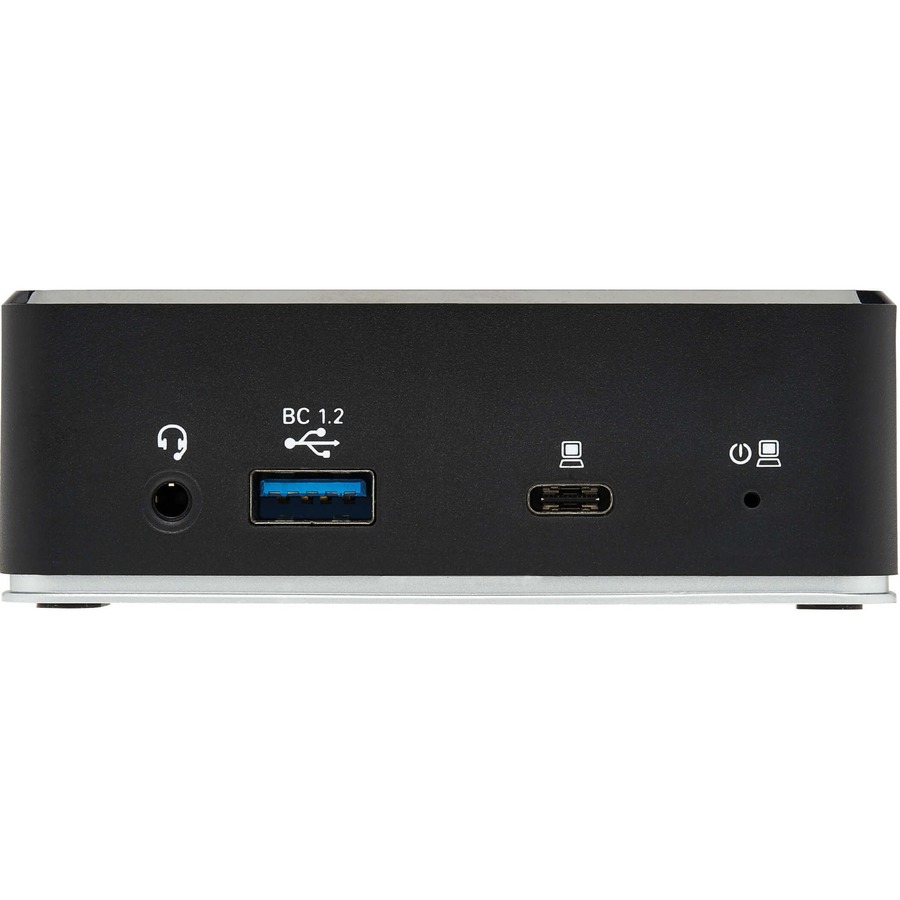

Connects Speakers, Microphone and Other Audio Equipment
The 3.5 mm mini stereo jack is convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast.

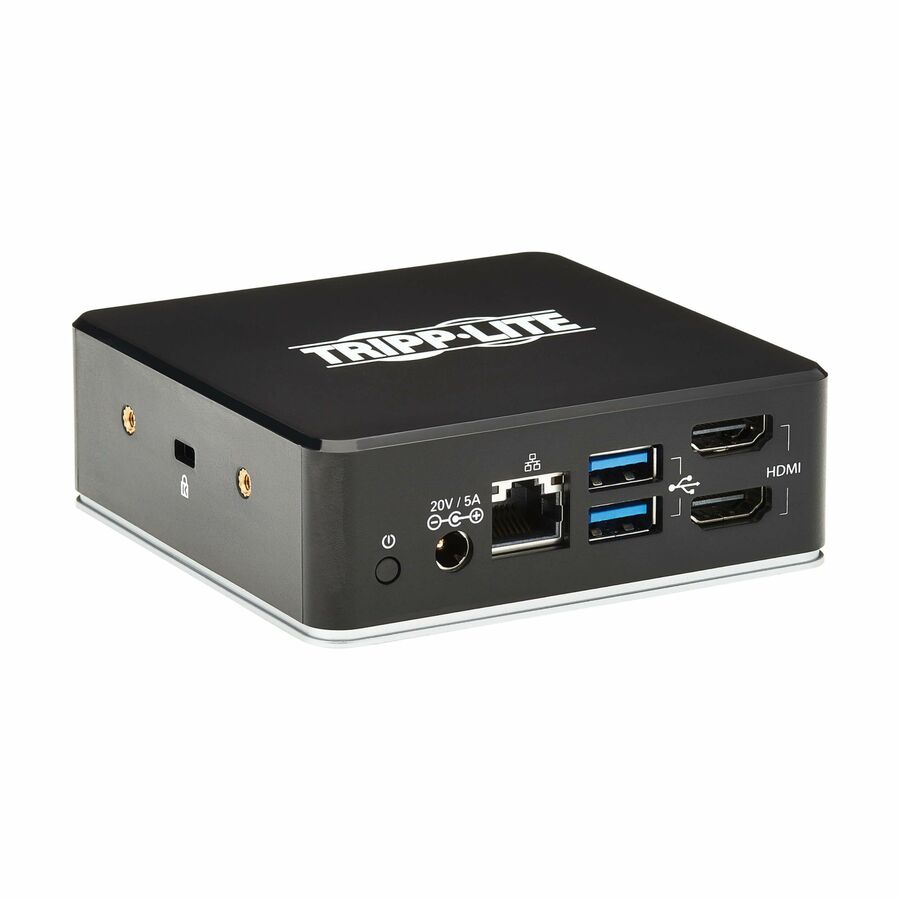

Anti-Theft Lock Protects the USB Docking Station When You Aren't Around
Connect a user-supplied computer/laptop security cable lock (not included) to this K-lock port to protect your source device against theft.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Connects 2 external displays for easy multitasking and increasing productivity
- Supports 20V 4.25A (85W) power output for fast-charging large-capacity mobile devices
- Joins a wired 10/100/1000 Gigabit Ethernet network when no Wi-Fi is available
- USB 3.2 Gen 1 Type-A data ports allow connection of flash drives and other peripherals
- Included USB-C to A adapter can connect to host device's USB-A port, if desired
- 3-year limited warranty
Specifications
| Package Contents |
|
|---|---|
| Host Interface | USB Type C |
| Product Type | Docking Station |
| Compatibility |
|
| Device Supported | Notebook, Monitor, Tablet, Smartphone |
| Manufacturer Part Number | U442-DOCK20BINT |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 6.40 oz |
| Connectivity Technology | Wired |
| Manufacturer | Eaton Corporation |
| Product Model | U442-DOCK20BINT |
| Product Name | U442-DOCK20BINT Docking Station |
| Brand Name | Tripp Lite series |
| Operating System Supported | Windows, macOS |
| Country of Origin | China |
| Height | 1.33" |
| Width | 3.74" |
| Depth | 3.74" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 85 W |
| Audio Line Out | Yes |
| Number of HDMI Outputs | 2 |
| Number of Displays Supported | 2 |
| Number of RJ-45 Ports | 1 |
| Kensington Security Slot | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | USB C (Female) |
| Number of USB Type-A Ports | 3 |
| Product Color | Black |
| Supported Resolutions | 2560 x 1440, 1920 x 1200 |
| USB Type-A | Yes |
| Screen Mode Supported | Full HD, HD |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
