Tripp Lite by Eaton 8-Port Unmanaged Industrial Gigabit Ethernet Switch 10/100/1000 Mbps 2 GbE SFP Slots -40° to 75°C DIN Mount
8 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - 11 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable - 3 Year Limited Warranty
- SKU
- NGI-U08C2
- Category
- Switches & Bridges
MSRP$557.23
$363.42
Save 35%In stock: 71
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- NGI-U08C2
- Category
- Switches & Bridges
Overview

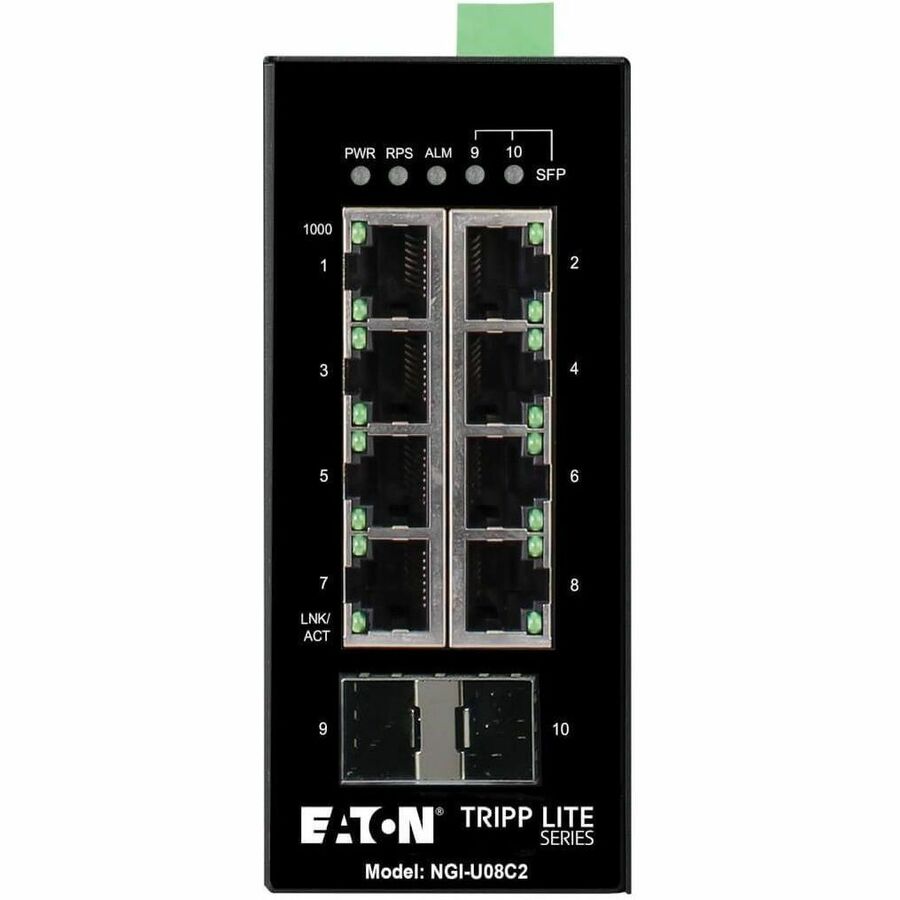

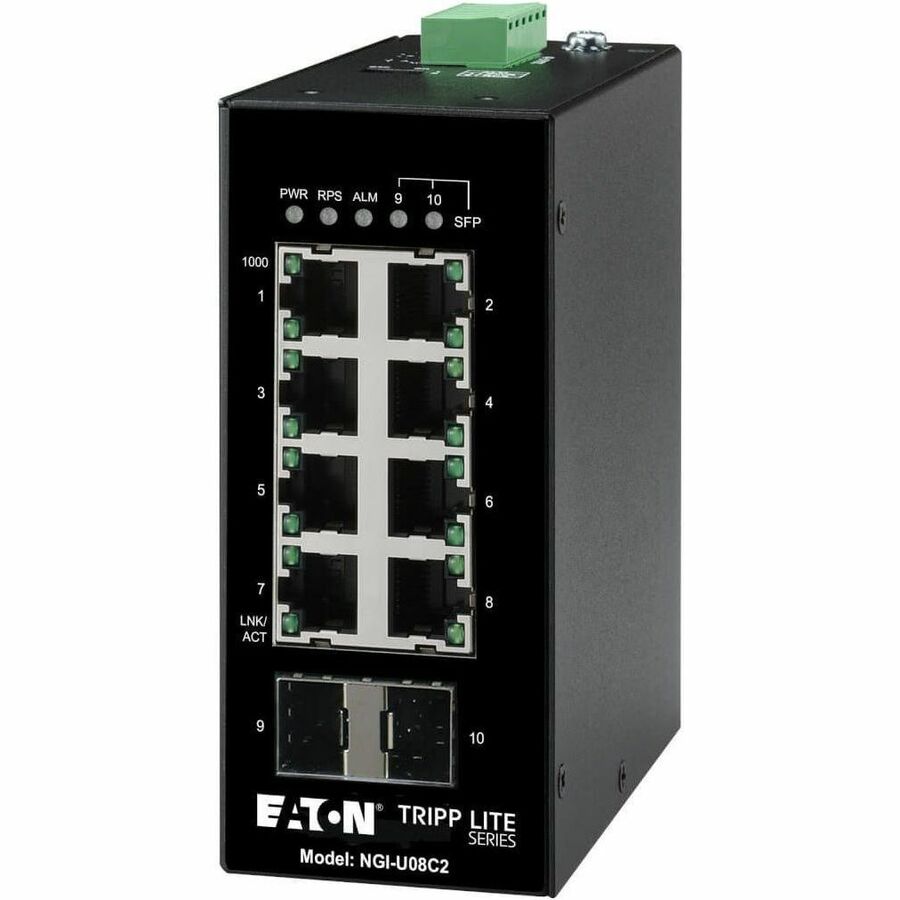

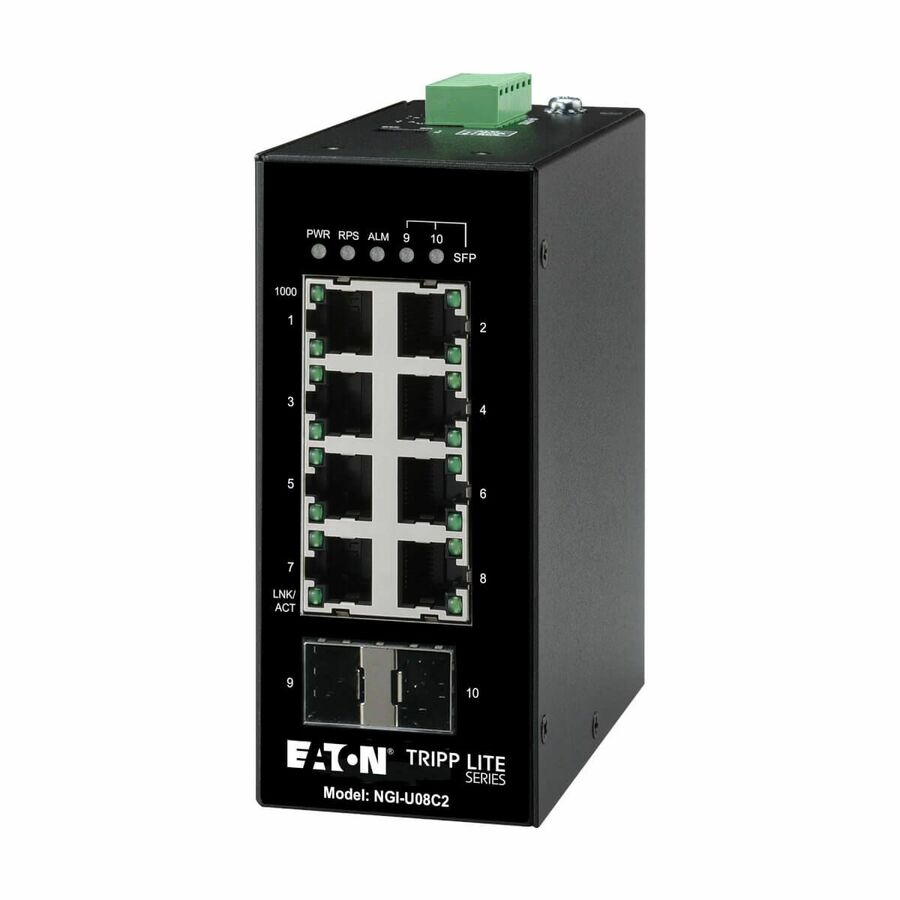

8-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-U08C2 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper.
Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U08C2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08C2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. DIP switch supports an alarm relay output function in which you can connect an alarm light or buzzer.

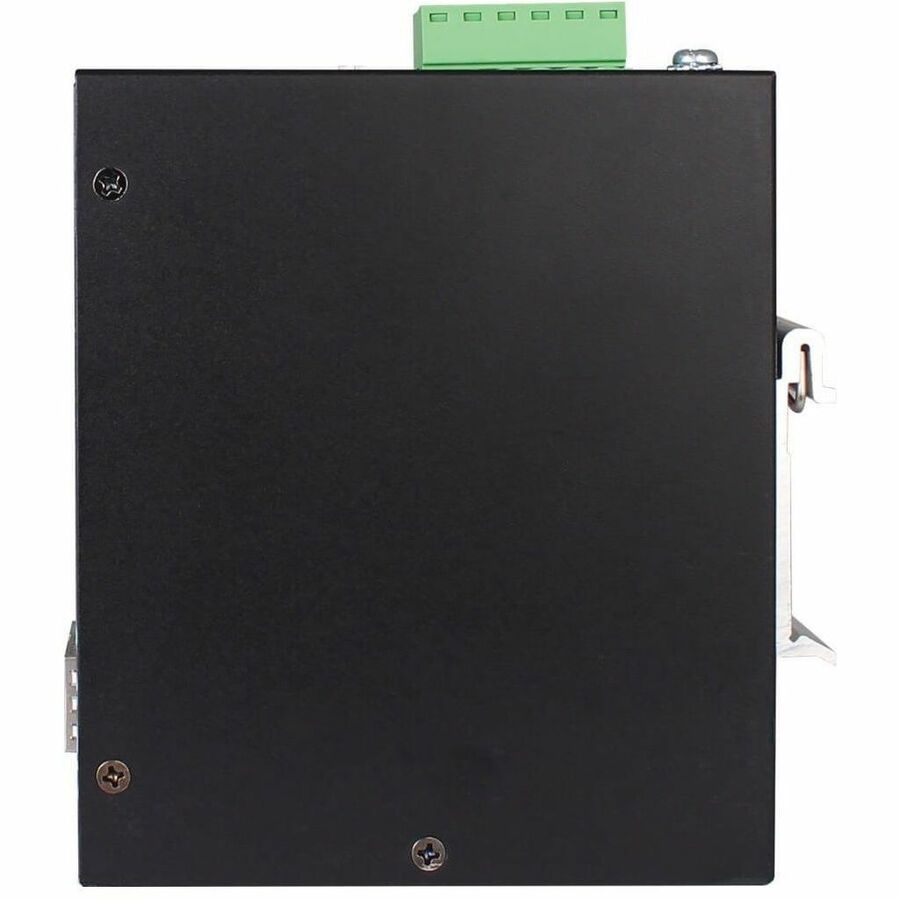

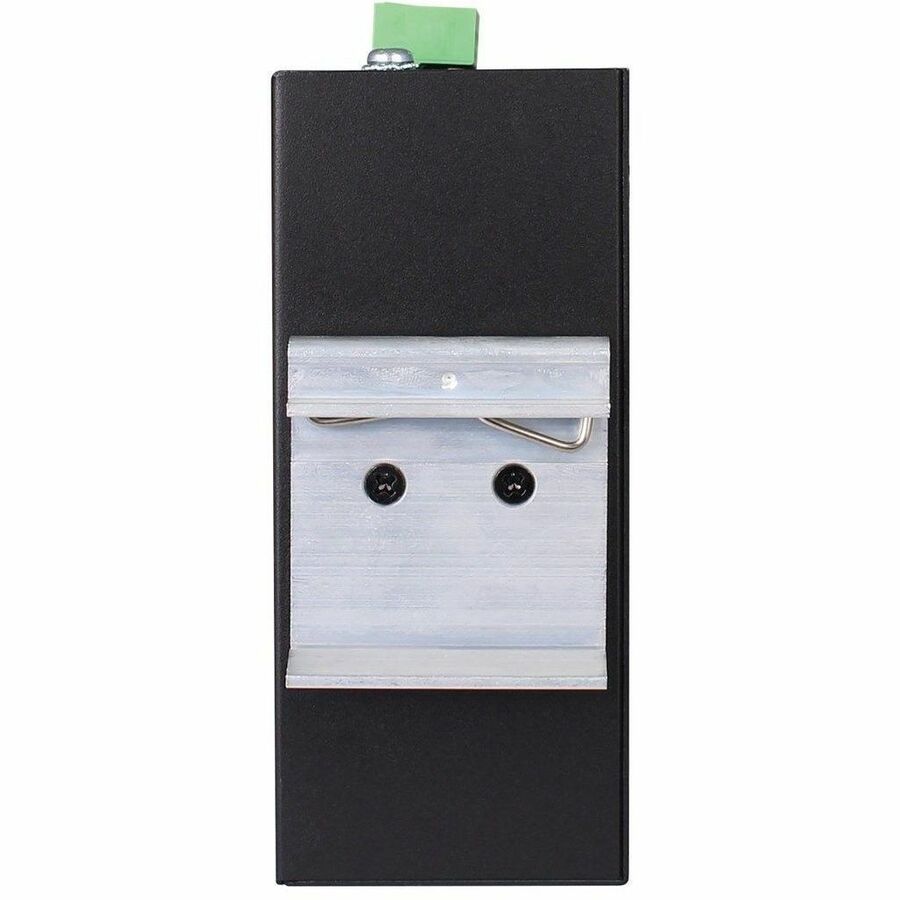

Pre-Installed DIN Rail Clip Allows for Convenient Installation
The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 24-48VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs. Device power must be supplied by LPS (Limited Power Source) circuit.
TAA-Compliant for GSA Schedule Purchases
The NGI-U08C2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: 3 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Effectively increases available bandwidth on your network
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- DIN Rail Mountable form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Manufacturer Part Number | NGI-U08C2 |
| Limited Warranty | 3 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 1.23 lb |
| Form Factor | DIN Rail Mountable |
| Manufacturer | Eaton Corporation |
| Product Model | NGI-U08C2 |
| Product Name | NGI-U08C2 Ethernet Switch |
| Network Technology | 10/100/1000Base-T, 1000Base-X |
| Power Consumption | 11 W |
| Brand Name | Tripp Lite series |
| Expansion Slot Type | SFP (mini-GBIC) |
| Country of Origin | Taiwan |
| Height | 3.9" |
| Width | 2" |
| Depth | 4.6" |
| Manageable | No |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 2 |
| Modular | Yes |
| Uplink Port | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 8 |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 2 |
| TAA Compliant | Yes |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p |
| Product Material | Metal |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
