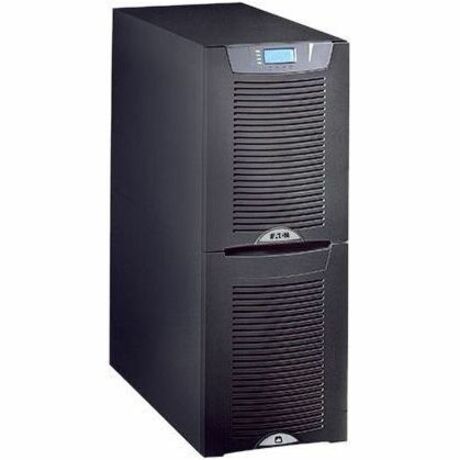

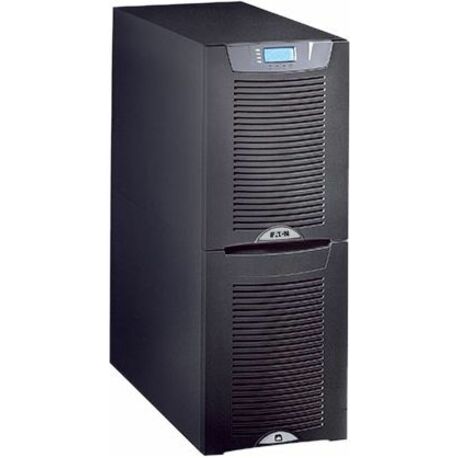

Eaton 9155 8kVA Compact Tower UPS
Compact Tower - 230 V AC Input - 100 V AC, 200 V AC, 110 V AC, 220 V AC, 120 V AC, 240 V AC, 208 V AC, 127 V AC Output - Single Phase - LCD Display
- SKU
- K4081203DDEX000
- Category
- General Purpose UPS
MSRP$22,149.00
$14,381.87
Save 35%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- K4081203DDEX000
- Category
- General Purpose UPS
Overview
High power density means more power protection in a small footprint. Eaton's 9155 single-phase uninterruptible power supply (UPS) is a proven market winner in its class. With scalable battery runtime options, the 9155 packs maximum battery runtime into a very small footprint. Customize your UPS with power distribution and an integral maintenance bypass switch for complete power protection.
Features of the Eaton 9155 UPS
• True double-conversion online operation protects connected equipment from all nine of the most common power problems
• Compact tower design delivers maximum power density - entire unit is only 12 inches wide and 33 inches deep, including batteries
• Provides 5,500 watts per square foot with .9 output power factor - protecting more equipment for every utility dollar spent, and leaving more room for expansion in the data center
• Easily add redundancy or increase system capacity with patented Eaton Hot Sync® paralleling technology
• Manage your power devices in your physical or virtual environment with Eaton's Power Xpert® software and Intelligent Power? Software Suite
• Advanced Battery Monitoring (ABM) technology increases battery life
• Enhanced communications allow network connectivity and remote management: - Two X-Slot communication bays - Relay output contacts - Two programmable signal inputs - Remote emergency power-off (REPO).
About Eaton
We're dedicated to improving people's lives and the environment with power management technologies that are more reliable, efficient, safe and sustainable. Every day, all around the world, people depend on technology, transportation, energy and infrastructure to live and work. With rapid growth in electrification, an energy transition driven by climate change and explosive growth in connectivity, we’re well positioned to solve the world’s toughest electrical and mechanical power management challenges. Because that’s what really matters. And we’re here to make sure it works.
Highlights
- Split-phase, double-conversion online operation offers highest reliability
- Small footprint saves on valuable floor space
- Monitor and manage UPS and other devices via a web-based interface
- Available in 8 kVA, 10 kVA, 12 kVA, and 15 kVA units
Specifications
| Application/Usage | Data Center, Equipment |
|---|---|
| Battery Chemistry | Lead Acid |
| Software Included | Suite CD software |
| Product Type | Double Conversion Online UPS |
| Display | LCD |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | K4081203DDEX000 |
| Output Voltage | 100 V AC, 200 V AC, 110 V AC, 220 V AC, 120 V AC, 240 V AC, 208 V AC, 127 V AC |
| Features | Built-in Bypass Switch, Audible Alarm |
| Form Factor | Compact Tower |
| Status Indicators | 4 x LEDs for Notice and Alarm |
| Manufacturer | Eaton Corporation |
| Product Name | 9155 8kVA Compact Tower UPS |
| Product Series | 9155 |
| Brand Name | Eaton |
| Input Voltage Range | 200 V AC - 240 V AC |
| Width | 12" |
| Depth | 33" |
| Input Frequency | 45 Hz, 50 Hz, 60 Hz, 65 Hz |
| Phase | Single Phase |
| Battery Capacity | 9000 mAh |
| Minimum Operating Temperature | 50°F (10°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Battery Characteristics | Maintenance-free, Sealed |
| Load Capacity (VA) | 8000 VA |
| Load Capacity (Watt) | 7200 W |
| Replaceable Battery | Yes |
| EPO Port | Yes |
| Storage Temperature | 5°F (-15°C) - 77°F (25°C) |
| Output Power Factor | 0.9 |
